0-57 — EMISSION PIPING (#62273) — 30 parça

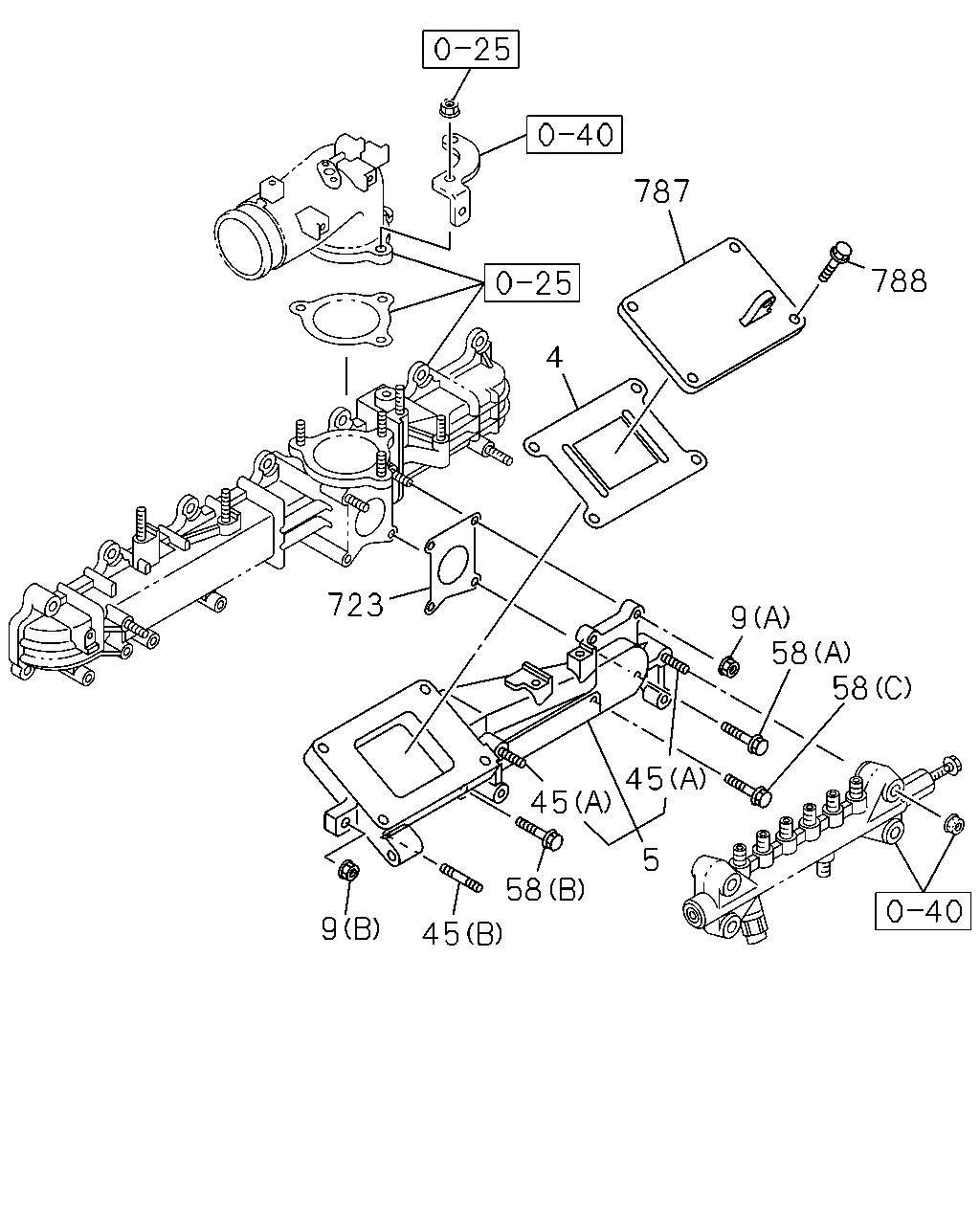

çizim 145859
787 788 4 723 9 45 45 5 58 45 58 58 9
BalonParca AdiParca NoAdetTipApplied Date A B
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97608-423-0 01 1 1108-1309 ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97608-423-0 01 1 1310- ● ●
5 ADAPTER ASM 8-97606-201-3 01 1 1108-1305 ●
5 ADAPTER ASM 8-98240-157-0 01 1 1306-1309 ●
5 ADAPTER ASM 8-98240-157-0 01 1 1310- ● ●
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1108-1309 ●
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1108-1309 ●
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1310- ● ●
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 1108-1309 ●
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 1310- ● ●
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 1108-1309 ●
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 1310- ● ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1108-1309 ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1310- ● ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1108-1309 ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ● ●
58 BOLT; PIPE
(A) M8X30 FLANGE 		8-98034-764-0 01 1 1108-1309 ●
58 BOLT; PIPE
(A) M8X30 FLANGE 		8-98034-764-0 01 1 1310- ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97605-995-0 01 1 1108-1309 ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97605-995-0 01 1 1310- ● ●
787 COVER; DUCT,EGR VLV
KD ENGINE<7MB> 		8-98286-317-0 01 1 1411- ● ●
787 COVER; DUCT,EGR VLV 8-98238-416-0 01 1 1403-1410 ● ●
787 COVER; DUCT,EGR VLV
EXC. KD ENGINE<7MB> 		8-98238-416-0 01 1 1411- ● ●
787 COVER; DUCT,EGR VLV 8-98058-709-0 01 1 1108-1309 ●
787 COVER; DUCT,EGR VLV 8-98058-709-0 01 1 1310-1402 ● ●
788 BOLT; COVER
KD ENGINE<7MB> M10X25 FLANGE 		0-28751-025-0 04 1 1402-1402 ● ●
788 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 04 1 1403- ● ●
788 BOLT; COVER
M10X35 FLANGE 		0-28751-035-0 04 1 1108-1309 ●
788 BOLT; COVER
M10X35 FLANGE 		0-28751-035-0 04 1 1310-1402 ● ●
