0-50 — OIL COOLER AND OIL FILTER (#62270) — 80 parça
çizim 145832
496 386 434 66 13 265 307 308 2 321 321 321 265
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 1108-1309 ●
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 1310- ● ●
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-011-1 01 1 1108-1110 ●
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-064-0 01 1 1111-1309 ●
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-064-0 01 1 1310- ● ●
13 VALVE; RELIEF 8-98238-944-0 01 1 1308-1309 ●
13 VALVE; RELIEF 8-98238-944-0 01 1 1310- ● ●
66 SPRING; VLV 8-98238-943-0 01 1 1308-1309 ●
66 SPRING; VLV 8-98238-943-0 01 1 1310- ● ●
265 BODY; OIL FILTER
IDN 		8-94391-016-4 01 1 1108-1307 ●
265 BODY; OIL FILTER 8-98238-939-0 01 1 1308-1309 ●
265 BODY; OIL FILTER 8-98238-939-0 01 1 1310- ● ●
307 VALVE; OVERFLOW
IDN 		8-94395-700-0 01 1 1108-1307 ●
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 1108-1307 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 1108-1309 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 1310- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 1108-1309 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 1310- ● ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1308-1309 ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1310- ● ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1108-1309 ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1310- ● ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1308-1309 ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1310- ● ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1108-1309 ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1310- ● ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 1108-1307 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1308-1309 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1310- ● ●

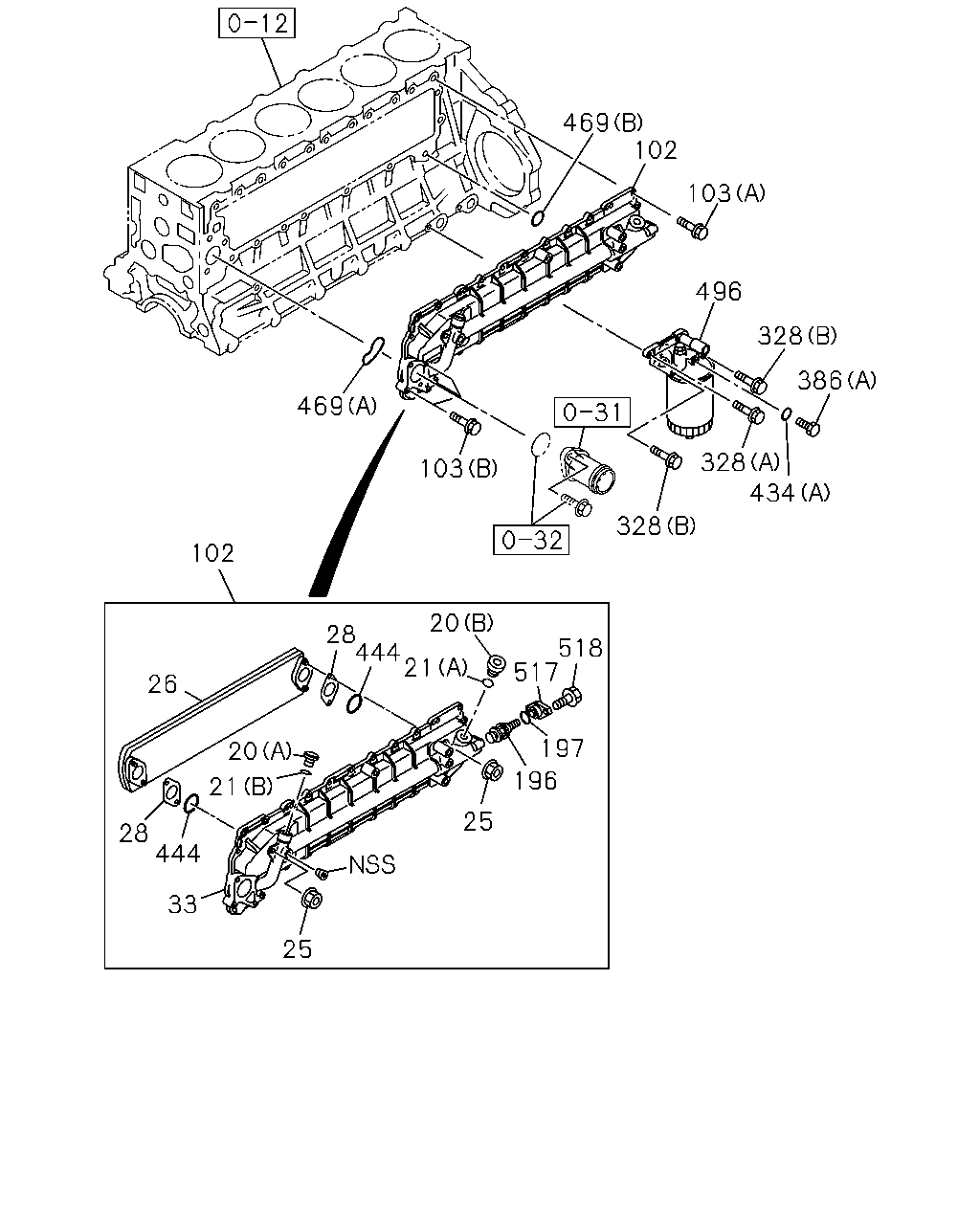

çizim 145850
469 102 103 496 328 386 328 434 328 103 469 102 28 20 518 517 197 196 25 444 21 26 20 21 28 444 33 25
BalonParca AdiParca NoAdetTipApplied Date A B
20 PLUG; COOLER BODY
(A) 		8-94393-604-0 01 1 1108-1309 ●
20 PLUG; COOLER BODY
(A) 		8-94393-604-0 01 1 1310- ● ●
20 PLUG; COOLER BODY
(B) 		8-94396-753-0 01 1 1108-1309 ●
20 PLUG; COOLER BODY
(B) 		8-94396-753-0 01 1 1310- ● ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 1108-1309 ●
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 1310- ● ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 1108-1309 ●
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 1310- ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 1108-1309 ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 1310- ● ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 1108-1309 ●
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 1310- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 1108-1309 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 1310- ● ●
33 HOUSING ASM; COOLER 8-97600-158-0 01 1 1108-1309 ●
33 HOUSING ASM; COOLER 8-97600-158-0 01 1 1310- ● ●
102 COOLER ASM; OIL 8-97600-156-1 01 1 1108-1309 ●
102 COOLER ASM; OIL 8-97600-156-1 01 1 1310- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 1108-1309 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 1310- ● ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 1108-1309 ●
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 1310- ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 1108-1309 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 1310- ● ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 1108-1309 ●
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 1310- ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 1108-1309 ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 1310- ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 1108-1309 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 1310- ● ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1308-1309 ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1310- ● ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1108-1309 ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1310- ● ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1308-1309 ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1310- ● ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1108-1309 ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1310- ● ●
444 GASKET; ELEMENT TO BODY 8-94396-810-0 02 1 1108-1309 ●
444 GASKET; ELEMENT TO BODY 8-94396-810-0 02 1 1310- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 1108-1309 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 1310- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 1108-1309 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 1310- ● ●
496 FILTER ASM; OIL 8-94391-015-8 01 1 1108-1307 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1308-1309 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1310- ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 1108-1309 ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 1310- ● ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 1108-1309 ●
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
