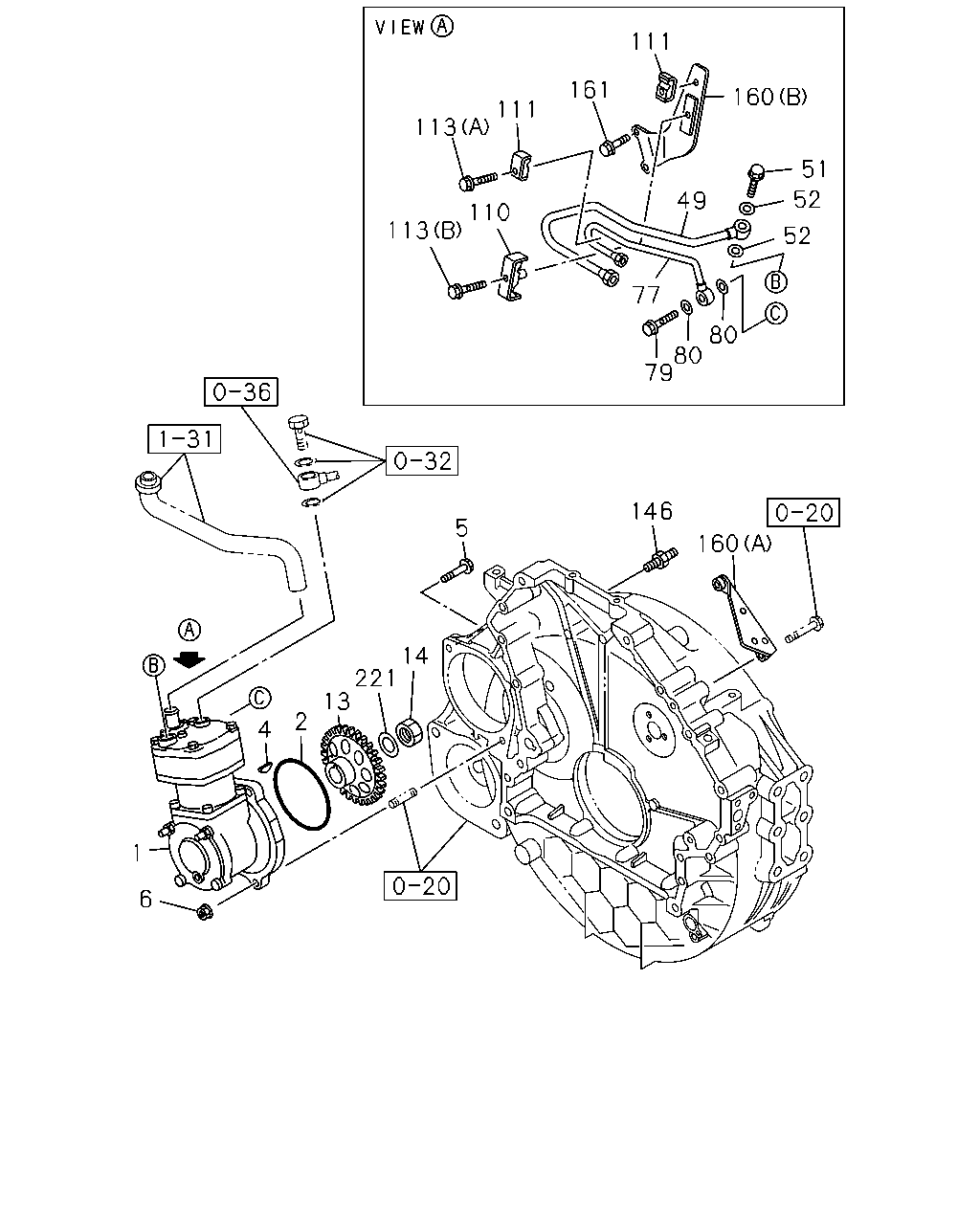

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#62266) — 53 parça

1 6 4 2 13 221 14 5 146 160 79 80 80 52 52 51 49 160 77 111 161 111 113 110 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97619-244-2	01	1	1108-1108	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1108-1309	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1310-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). KD ENGINE<7MB> ID=162	8-97520-877-0	01	1	1411-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1108-1309	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1310-1410	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. KD ENGINE<7MB> ID=162	1-09623-570-0	01	1	1411-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1108-1309	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1310-	●	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1108-1309	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1310-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1108-1309	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1310-	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1108-1309	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1310-	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1108-1309	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1310-	●	●
49	PIPE; AIR,CHARGE KD ENGINE<7MB>	8-97520-849-0	01	1	1411-	●	●
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	1108-1309	●
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	1310-1410	●	●
49	PIPE; AIR,CHARGE EXC. KD ENGINE<7MB>	8-97618-722-0	01	1	1411-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1108-1309	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1310-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1108-1309	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1310-	●	●
77	PIPE; AIR,GOV	8-97618-724-0	01	1	1108-1309	●
77	PIPE; AIR,GOV	8-97618-724-0	01	1	1310-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	1108-1309	●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	1310-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	1108-1309	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	1310-	●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	1108-1309	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	1310-	●	●
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	1108-1309	●
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	1310-	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	1108-1309	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	1310-	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	1108-1309	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	1310-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1108-1309	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1310-	●	●
160	BRACKET; AIR PIPE KD ENGINE<7MB> (A)	8-97520-815-0	01	1	1411-	●	●
160	BRACKET; AIR PIPE KD ENGINE<7MB> (B)	8-97520-816-1	01	1	1411-	●	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1108-1309	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1310-1410	●	●
160	BRACKET; AIR PIPE EXC. KD ENGINE<7MB> (A)	8-97614-182-2	01	1	1411-	●	●
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	1108-1309	●
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	1310-1410	●	●
160	BRACKET; AIR PIPE EXC. KD ENGINE<7MB> (B)	8-98074-255-0	01	1	1411-	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1108-1309	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1108-1309	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1310-	●	●
