◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#62265) — 30 parça

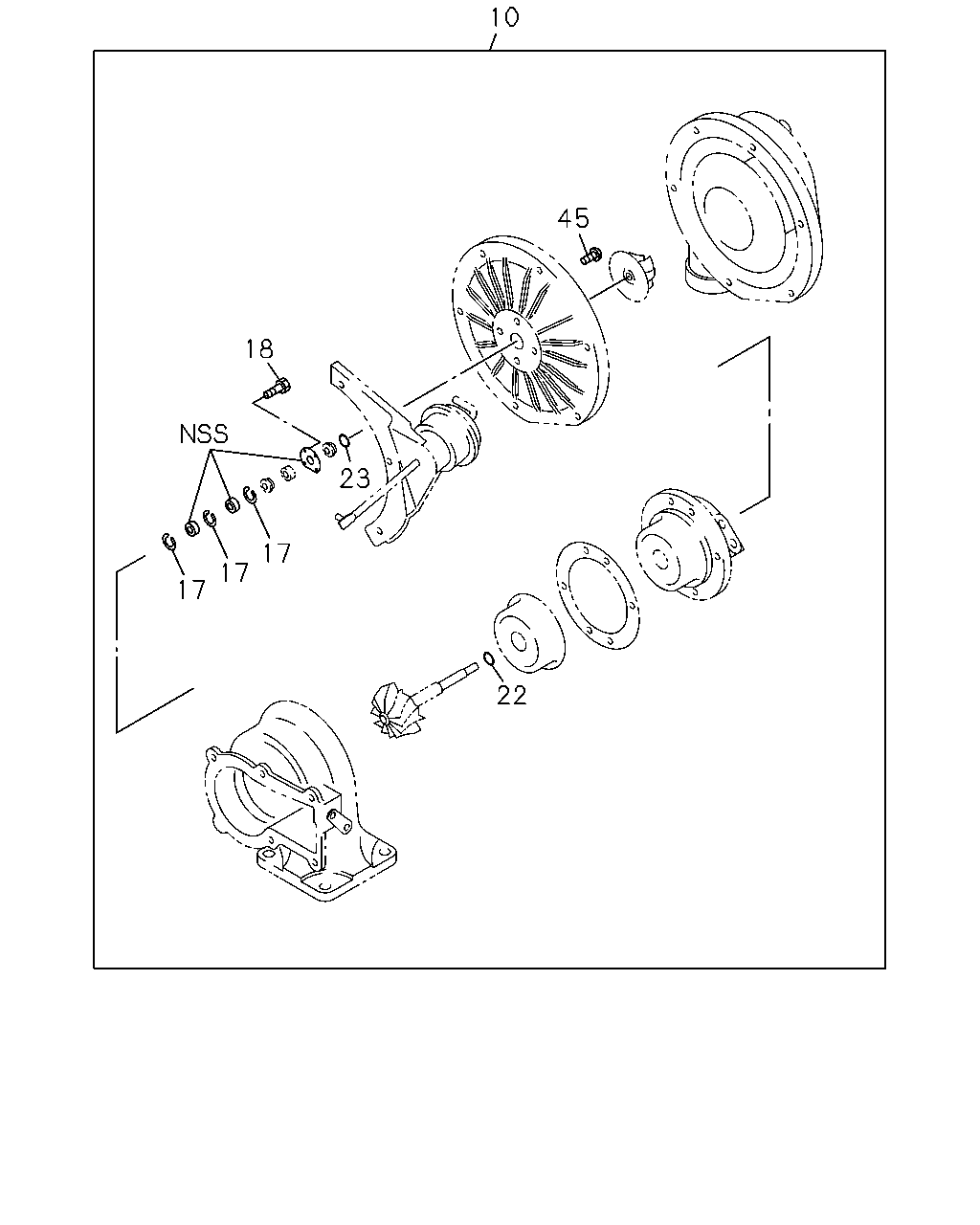

çizim 145827
22 17 17 17 23 18 10 45
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-075-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14455-038-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-09100-027-0 03 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-076-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-077-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-09100-028-0 04 1 -

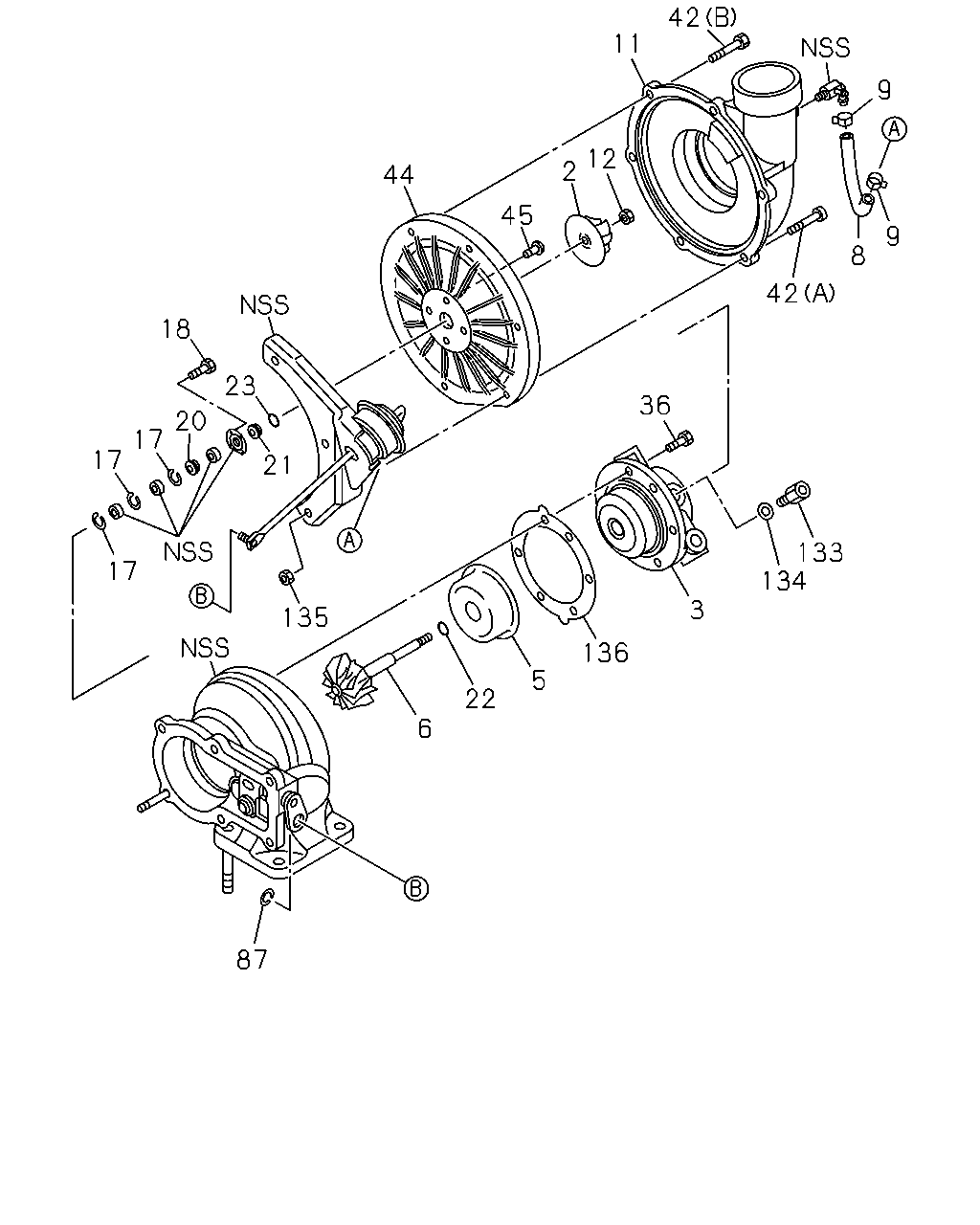

çizim 145855
87 6 22 5 136 3 134 133 36 135 17 17 17 20 23 21 18 44 45 2 12 11 42 9 9 8 42
BalonParca AdiParca NoAdetTipApplied Date
2 IMPELLER; TURBOCHARGER
ASM PART: A = 8-98078-779-1 		8-97603-425-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14411-054-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14425-023-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14450-048-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-98078-779-1 		1-14469-036-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14469-035-0 02 1 -
11 HOUSING ASM; TURBOCHARGER
ASM PART: A = 8-98078-779-1 		8-98154-221-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 8-98078-779-1 		1-09400-041-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14455-038-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-09100-027-0 03 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-078-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14455-039-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-076-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14453-077-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-98078-779-1 		8-97600-259-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(A) ASM PART: A = 8-98078-779-1 		1-09100-030-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(B) ASM PART: A = 8-98078-779-1 		1-09100-031-0 03 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14425-024-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-09100-028-0 04 1 -
87 RING; ACTUATOR,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		1-14469-037-0 01 1 -
133 ADAPTER; OIL PIPE
ASM PART: A = 8-98078-779-1 		1-14469-034-0 01 1 -
134 GASKET; ADAPTER
ID=12.2 ASM PART: A = 8-98078-779-1 		1-09630-084-0 01 1 -
135 NUT; BLOWER HOUSING
ASM PART: A = 8-98078-779-1 		1-09400-127-0 03 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-98078-779-1 		8-97600-289-0 01 1 -
