0-36 — TURBOCHARGER SYSTEM (#62264) — 79 parça

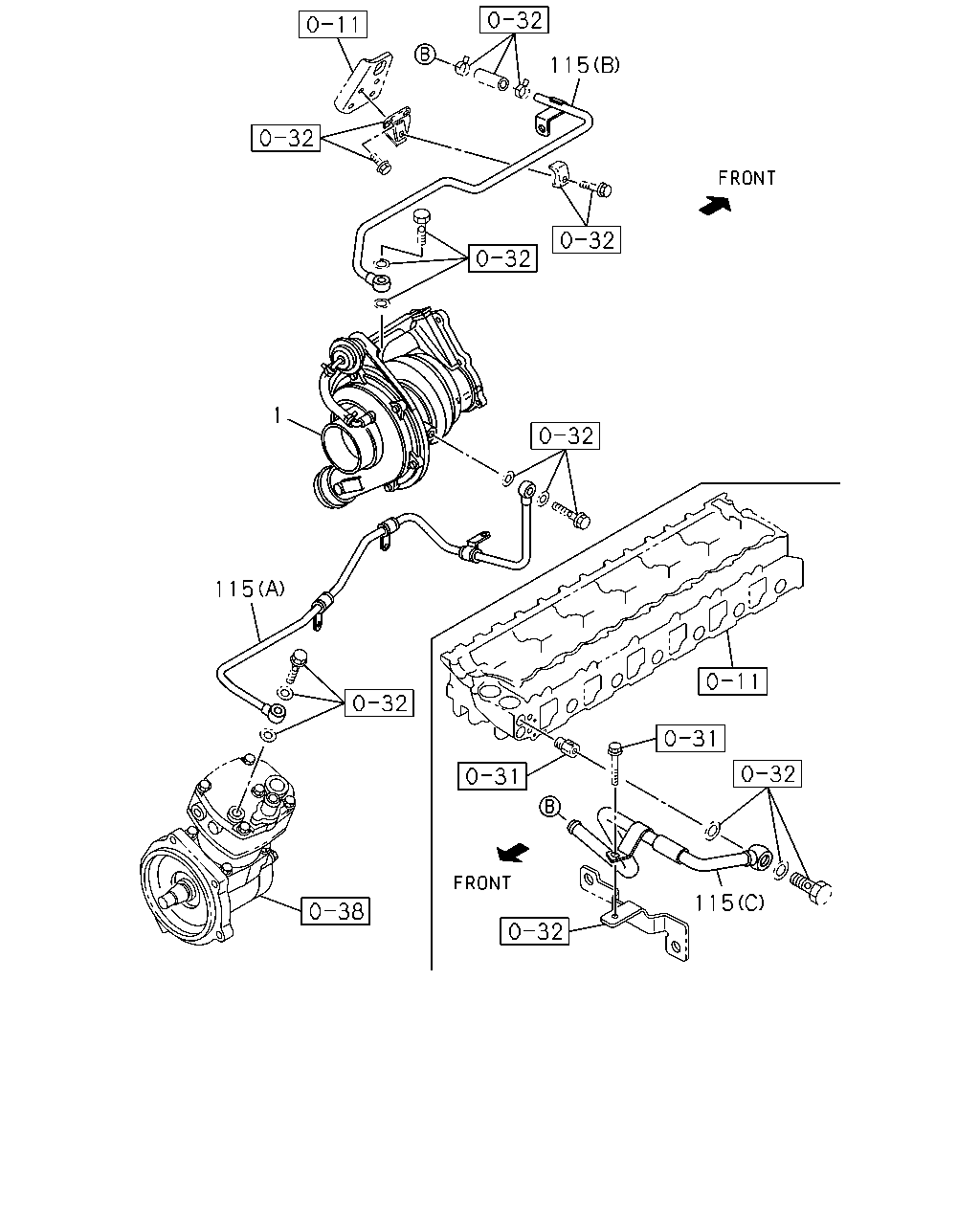

çizim 145852
115 115 1 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1108-1309 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1310- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1108-1309 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1310- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1108-1309 ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1310- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-808-0 01 1 1108-1309 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-808-0 01 1 1310- ● ●
çizim 145906
143 98 143 28 92 92 398 398 488 398 398 20 398 398 79 79 20 20 1 13 12 17 122 17 162 275 217 265 275 217 162 17 16 388 11 212 12 2 212 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1108-1309 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1310- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1108-1309 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1310- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1108-1309 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1310- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1108-1309 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1310- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1108-1309 ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 1310- ● ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1108-1309 ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 1310- ● ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1108-1309 ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1310-1410 ● ●
16 ADAPTER; EXH PIPE
KD ENGINE<7MB> 		8-97520-837-0 01 1 1411- ● ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1108-1309 ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1310-1410 ● ●
16 ADAPTER; EXH PIPE
EXC. KD ENGINE<7MB> 		8-94395-767-0 01 1 1411- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1108-1309 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1310- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1108-1309 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97606-675-1 01 1 1310- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 1108-1309 ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97618-726-2 01 1 1310-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1108-1309 ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1310- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1108-1309 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1310- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1108-1309 ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1310- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1108-1309 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1310- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1108-1309 ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE 		0-28650-840-0 01 1 1310- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1108-1309 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 1310-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1108-1309 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1310- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1108-1309 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1310- ● ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1108-1309 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1310- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1108-1309 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1310- ● ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1108-1309 ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1310- ● ●
265 BRACKET; EXH PIPE
KD ENGINE<7MB> 		8-97520-838-0 01 1 1411- ● ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1108-1309 ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1310-1410 ● ●
265 BRACKET; EXH PIPE
EXC. KD ENGINE<7MB> 		8-94395-764-2 01 1 1411- ● ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1108-1309 ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1310- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1108-1309 ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1310- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1108-1309 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1310- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1108-1309 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1310- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1108-1309 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1310- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1108-1309 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1310- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1108-1309 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1310- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1108-1309 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1310- ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1108-1309 ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 1310-1408 ● ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
