0-32 — WATER PIPING; ENGINE (#62261) — 77 parça

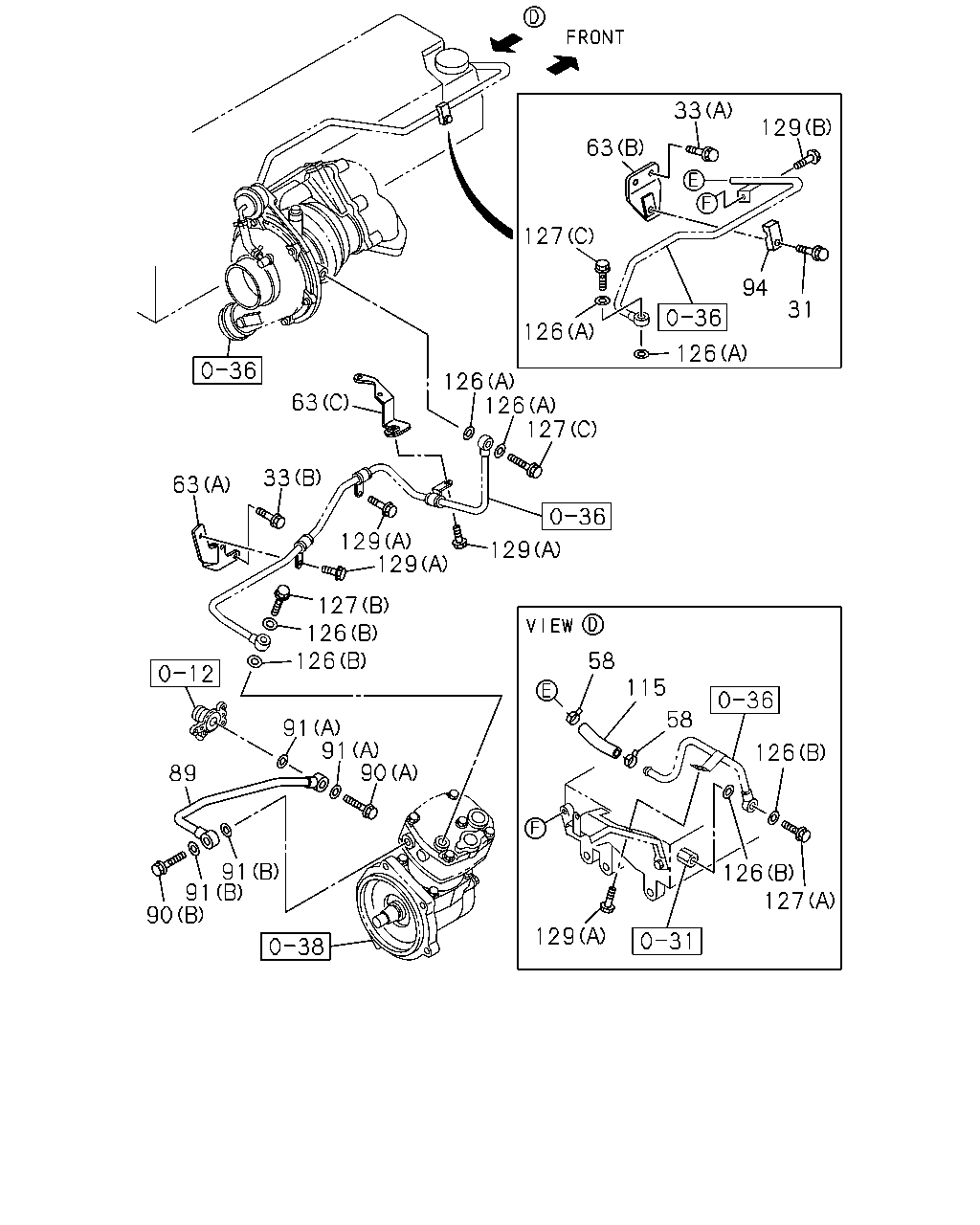

çizim 145833
127 126 126 58 115 58 129 90 91 91 89 91 91 90 126 126 127 129 129 129 127 126 126 63 33 63 33 129 63 94 31 126 126 127
BalonParca AdiParca NoAdetTipApplied Date A B
31 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 1108-1309 ●
31 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 01 1 1310- ● ●
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1108-1309 ●
33 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1310- ● ●
33 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1108-1309 ●
33 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1310- ● ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1108-1309 ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1310- ● ●
63 BRACKET; WATER PIPE
KD ENGINE<7MB> (A) 		8-97520-831-0 01 1 1411- ● ●
63 BRACKET; WATER PIPE
(B) 		8-94392-951-0 01 1 1108-1309 ●
63 BRACKET; WATER PIPE
(B) 		8-94392-951-0 01 1 1310- ● ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1108-1309 ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1310- ● ●
63 BRACKET; WATER PIPE
(A) 		8-98074-253-0 01 1 1108-1309 ●
63 BRACKET; WATER PIPE
(A) 		8-98074-253-0 01 1 1310-1410 ● ●
63 BRACKET; WATER PIPE
EXC. KD ENGINE<7MB> (A) 		8-98074-253-0 01 1 1411- ● ●
89 PIPE; WATER,AIR CMPR,IN 8-97611-095-0 01 1 1108-1309 ●
89 PIPE; WATER,AIR CMPR,IN 8-97611-095-0 01 1 1310- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1108-1309 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1310- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1108-1309 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1310- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1108-1309 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1310-1312 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1108-1309 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1310- ● ●
94 CLIP; WATER PIPE 8-94396-860-0 01 1 1108-1309 ●
94 CLIP; WATER PIPE 8-94396-860-0 01 1 1310- ● ●
115 HOSE; RUBBER
KD ENGINE<7MB> L=60 		8-97520-832-0 01 1 1411- ● ●
115 HOSE; RUBBER
L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1108-1309 ●
115 HOSE; RUBBER
L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1310-1410 ● ●
115 HOSE; RUBBER
EXC. KD ENGINE<7MB> L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1411- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1108-1309 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1310-1312 ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1108-1309 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1310- ● ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1108-1309 ●
127 BOLT; EYE
(C) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1310- ● ●
127 BOLT; EYE
(A) M16X25 		5-09675-028-2 01 1 1108-1309 ●
127 BOLT; EYE
(A) M16X25 		5-09675-028-2 01 1 1310- ● ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1108-1309 ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1310- ● ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1108-1309 ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1310- ● ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1108-1309 ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1310- ● ●

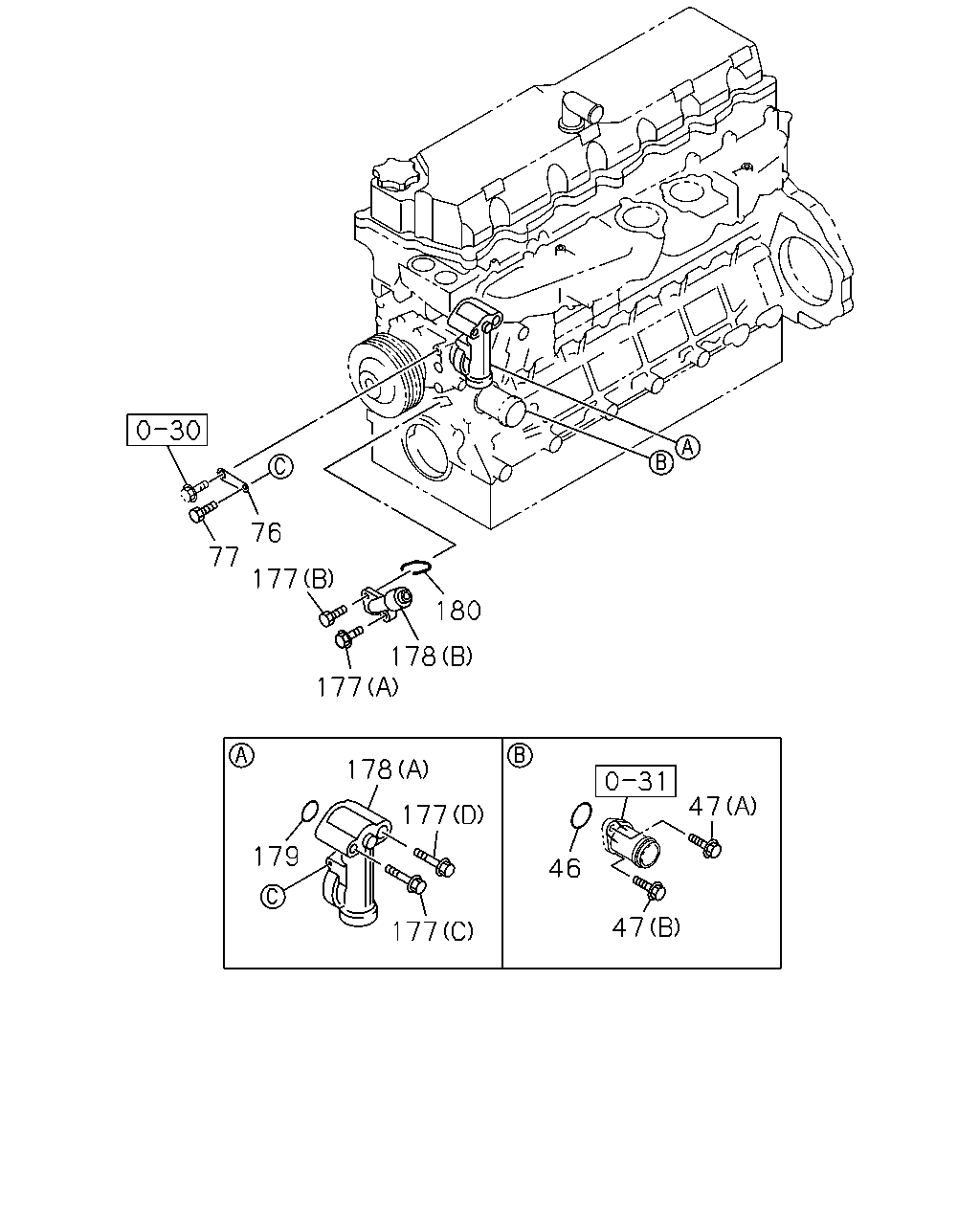

çizim 145935
76 77 177 180 177 178 179 177 177 46 47 47 178
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1108-1309 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1310- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1108-1309 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1310- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-1309 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1310- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1108-1309 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1310- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1108-1309 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1310- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1108-1309 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1310- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1108-1309 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1310- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1108-1309 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1310- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1108-1309 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1310- ● ●
178 DUCT; WATER,BYPASS
KD ENGINE<7MB> (A) 		8-97520-830-0 01 1 1411- ● ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 1108-1309 ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 1310- ● ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1108-1309 ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1310-1410 ● ●
178 DUCT; WATER,BYPASS
EXC. KD ENGINE<7MB> (A) 		8-94396-627-3 01 1 1411- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1108-1309 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1310-1408 ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1108-1309 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1310- ● ●
