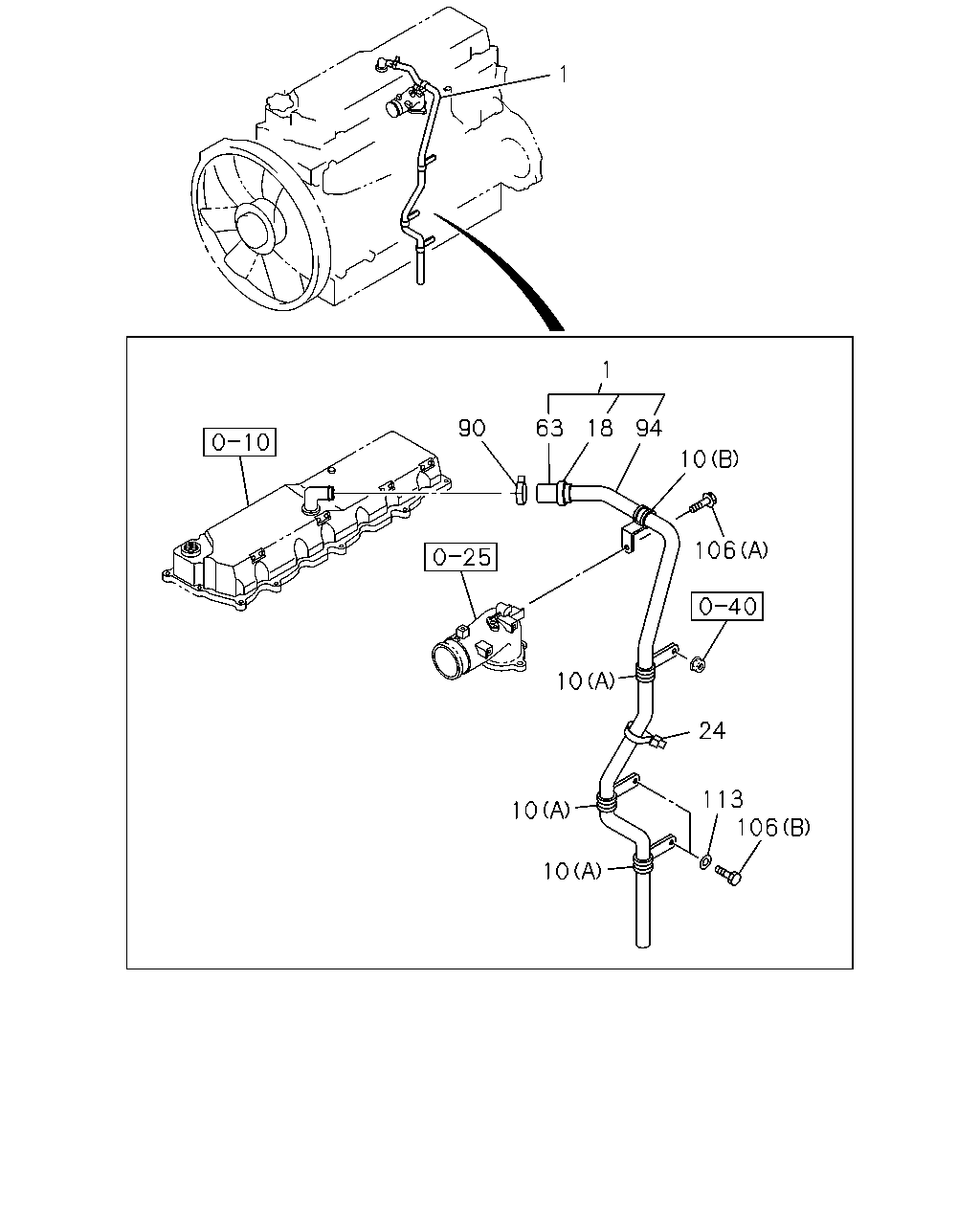

0-28 — VENTILATION SYSTEM (#62258) — 23 parça

1 90 10 10 10 106 113 24 106 10 94 18 63 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	8-94392-083-3	01	1	1108-1309	●
1	BREATHER; AIR	8-94392-083-3	01	1	1310-	●	●
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	1108-1309	●
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	1310-	●	●
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1108-1309	●
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1310-	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6 IDN	8-94362-518-0	01	1	1108-1309	●
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6 IDN	8-94362-518-0	01	1	1310-	●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250 IDN	5-09707-030-1	01	1	1108-1205	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	01	1	1206-1309	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	01	1	1310-	●	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	1108-1309	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	1310-	●	●
90	CLIP; RUBBER HOSE ID=33.6 IDN	8-94362-518-0	01	1	1108-1309	●
90	CLIP; RUBBER HOSE ID=33.6 IDN	8-94362-518-0	01	1	1310-	●	●
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	1108-1309	●
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	1310-	●	●
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1108-1309	●
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	1310-	●	●
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	1108-1309	●
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	1310-	●	●
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	1108-1309	●
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	1310-	●	●
