◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#62255) — 38 parça

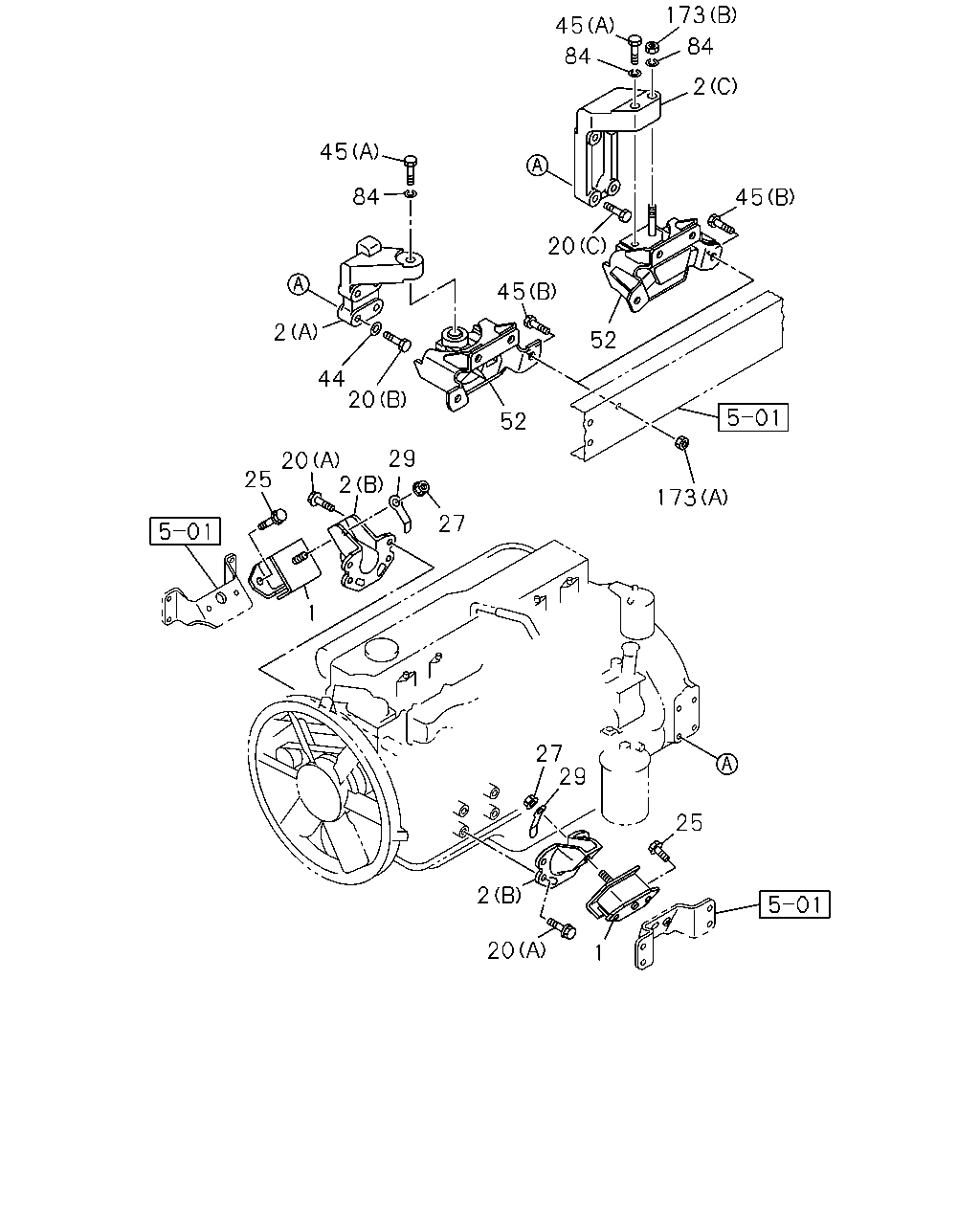

çizim 145839
45 84 20 52 45 52 45 84 84 173 2 45 173 2 29 27 20 25 1 44 2 20 27 29 25 2 1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1108-1309 ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1310- ● ●
2 FOOT; ENG
KD ENGINE<7MB> (C) 		8-97520-873-0 01 1 1411- ●
2 FOOT; ENG
KD ENGINE<7MB> (C) 		8-97520-874-0 01 1 1411- ●
2 FOOT; ENG
KD ENGINE<7MB> (A) 		8-97520-875-0 01 1 1411- ●
2 FOOT; ENG
KD ENGINE<7MB> (A) 		8-97520-876-0 01 1 1411- ●
2 FOOT; ENG
(C) 		8-97611-990-0 01 1 1310-1410 ●
2 FOOT; ENG
EXC. KD ENGINE<7MB> (C) 		8-97611-990-0 01 1 1411- ●
2 FOOT; ENG
(C) 		8-97611-991-0 01 1 1310-1410 ●
2 FOOT; ENG
EXC. KD ENGINE<7MB> (C) 		8-97611-991-0 01 1 1411- ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1108-1309 ●
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1310- ● ●
2 FOOT; ENG
(A) 		8-97611-988-0 01 1 1108-1410 ●
2 FOOT; ENG
EXC. KD ENGINE<7MB> (A) 		8-97611-988-0 01 1 1411- ●
2 FOOT; ENG
(A) 		8-97611-989-0 01 1 1108-1410 ●
2 FOOT; ENG
EXC. KD ENGINE<7MB> (A) 		8-97611-989-0 01 1 1411- ●
20 BOLT; ENG FOOT
(C) M12X55 		8-94399-884-1 08 1 1310- ●
20 BOLT; ENG FOOT
(B) M12X50 		0-16956-250-0 08 1 1108- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1108-1309 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1310- ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1108- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1108- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1108- ● ●
44 WASHER; LK,ENG FOOT
ID=12.5 		0-91614-512-0 08 1 1108- ●
45 BOLT; CUSHION RUBBER TO FRAME
ZF9S1110 DD M/T(Y5P) (A) M16X60 		0-10956-660-0 02 1 1310- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 1108-1309 ●
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 1310- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M18X65 		8-94393-260-1 02 1 1108-1309 ●
45 BOLT; CUSHION RUBBER TO FRAME
MZW6P M/T(RSZ) (A) M18X65 		8-94393-260-1 02 1 1310- ● ●
52 RUBBER; CUSHION,ENG MTG,RR
ZF9S1110 DD M/T(Y5P) 		8-98013-022-1 02 1 1310- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98013-021-1 02 1 1108-1309 ●
52 RUBBER; CUSHION,ENG MTG,RR
MZW6P M/T(RSZ) 		8-98013-021-1 02 1 1310- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ZF9S1110 DD M/T(Y5P) ID=17 		9-09164-516-0 04 1 1310- ● ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36 		0-91614-618-0 02 1 1108-1309 ●
84 WASHER; PL,ENG MTG RR TO FRAME
MZW6P M/T(RSZ) ID=19 OD=36 		0-91614-618-0 02 1 1310- ● ●
173 NUT; ENG MTG RR TO FRAME
ZF9S1110 DD M/T(Y5P) (B) M16 		0-91110-516-0 02 1 1310- ● ●
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE 		0-91180-214-0 08 1 1108-1309 ●
173 NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE 		0-91180-214-0 08 1 1310- ● ●
