◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#62251) — 31 parça
çizim 145824
8 10 9 9 193 192 193 49 10 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1108-1309 ●
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1310- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
KD ENGINE<7MB> (B) 		8-97520-818-0 01 1 1411- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1108-1309 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1310-1410 ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. KD ENGINE<7MB> (B) 		8-98063-554-0 01 1 1411- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1108-1309 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1310- ● ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1108-1309 ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1310- ● ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1108-1309 ●
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 1310- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1108-1309 ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN 		0-28650-820-0 01 1 1310- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1108-1309 ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
192 HOSE; GUIDE TUBE
L=463 IDN 		8-98054-844-1 01 1 1108-1309 ●
192 HOSE; GUIDE TUBE
L=463 IDN 		8-98054-844-1 01 1 1310- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1108- ● ●

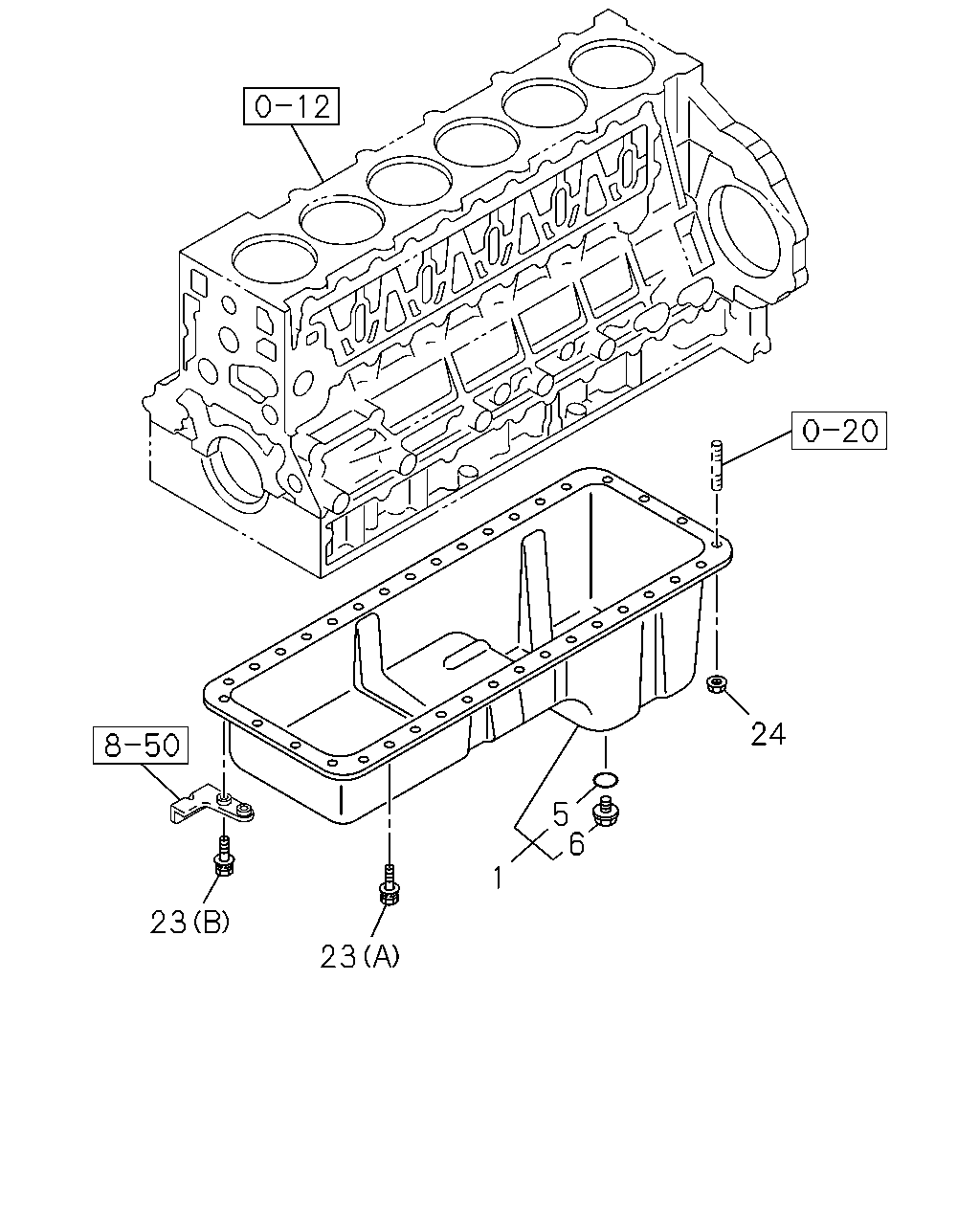

çizim 145888
23 23 1 5 6 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98179-005-0 01 1 1108-1309 ●
1 PAN ASM; OIL 8-98179-005-0 01 1 1310- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1108-1309 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1310- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1108-1309 ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 1310- ● ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 1108-1309 ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 1310- ● ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 1108-1309 ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 1310- ● ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 1108-1309 ●
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
