◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11391 - FVM(INDONESIA)6HK1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#62250) — 88 parça

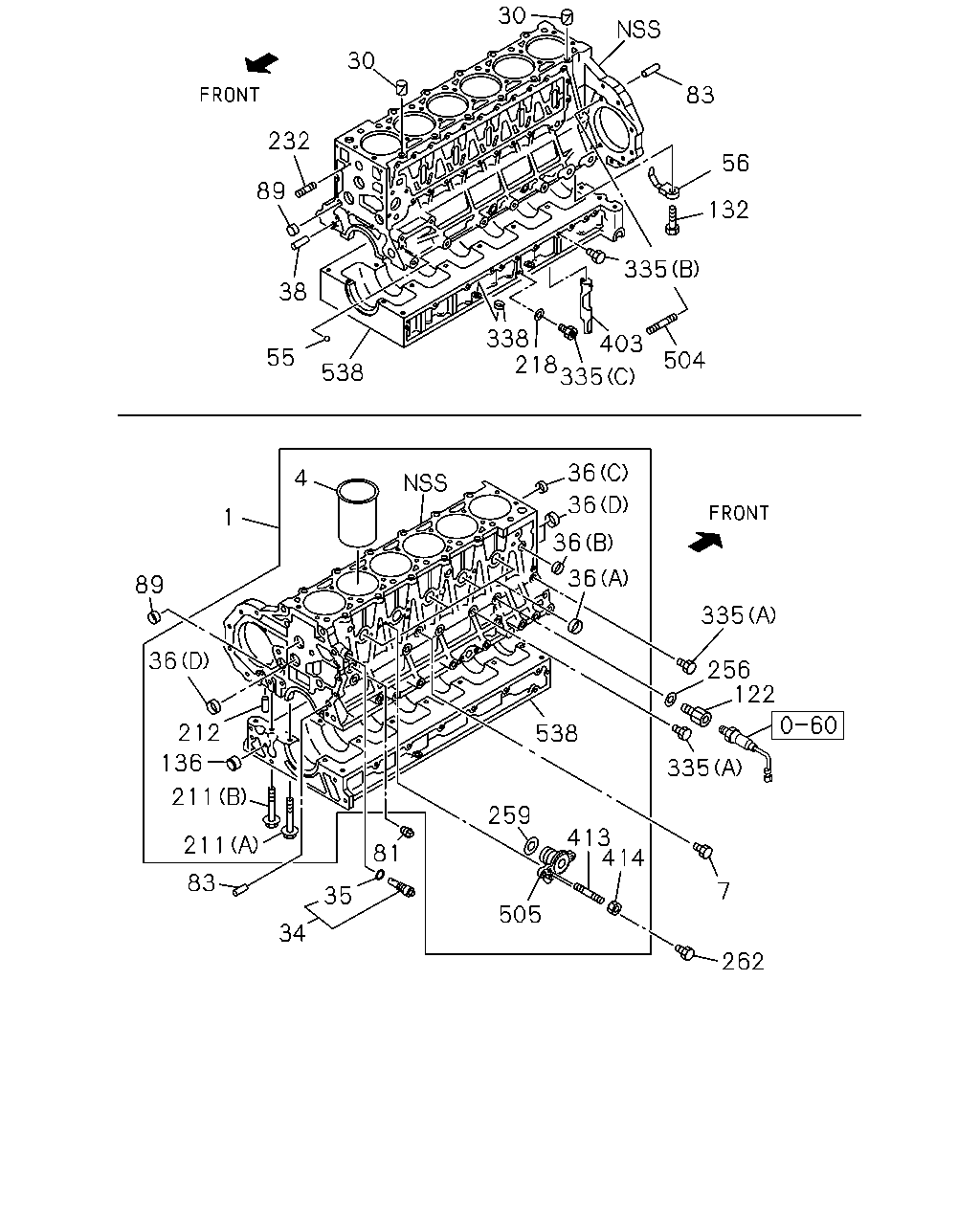

çizim 145826
30 30 83 56 335 403 338 538 55 89 232 218 504 132 335 36 36 36 36 335 256 122 335 538 259 413 414 262 7 505 81 35 34 83 211 36 1 4 38 89 212 136 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-98206-966-0 01 1 1210-1309 ●
1 BLOCK ASM; CYL 8-98206-966-0 01 1 1310- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1108-1309 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1310- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1108-1309 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1310- ● ●
7 PLUG; WATER DRAIN
M14X16.5 		8-97329-617-0 01 1 1108-1309 ●
7 PLUG; WATER DRAIN
M14X16.5 		8-97329-617-0 01 1 1310- ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 1108-1309 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 1310- ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 1108-1309 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 1310- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 1108-1309 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 1310- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 1108-1309 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 1310- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 1108-1309 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 1310- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 1108-1309 ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 1310- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 1108-1309 ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 1310- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 1108-1309 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 1310- ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 1108-1309 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 1310- ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1108-1309 ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1310- ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 1108-1309 ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 1310- ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 1108-1309 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 1310- ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1108-1309 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 1310- ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 1108-1309 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 1310- ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 1108-1309 ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 1310- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1108-1309 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1310- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 1108-1309 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 1310- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1108-1309 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1310- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1108-1309 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1310- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1108-1309 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1310-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401- ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 1108-1309 ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 1310- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1108-1309 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1310- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 1108-1309 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 1310- ● ●
262 PLUG; ADAPTER
M14X14 IDN 		9-09862-156-0 01 1 1108-1309 ●
262 PLUG; ADAPTER
M14X14 IDN 		9-09862-156-0 01 1 1310- ● ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 1108-1309 ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 1310- ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 1108-1309 ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 1310- ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 1108-1309 ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 1310- ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 1108-1309 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 1310- ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 1108-1309 ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 1310- ● ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 1108-1309 ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 1310- ● ●
414 NUT; ADAPTER
M8 FLANGE IDN 		0-91180-208-0 02 1 1108-1309 ●
414 NUT; ADAPTER
M8 FLANGE IDN 		0-91180-208-0 02 1 1310- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 1108-1309 ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 1310- ● ●
505 ADAPTER; WATER FEED 8-97611-854-0 01 1 1108-1309 ●
505 ADAPTER; WATER FEED 8-97611-854-0 01 1 1310- ● ●
538 CRANKCASE; LOW 8-94391-712-3 01 1 1108-1209 ●

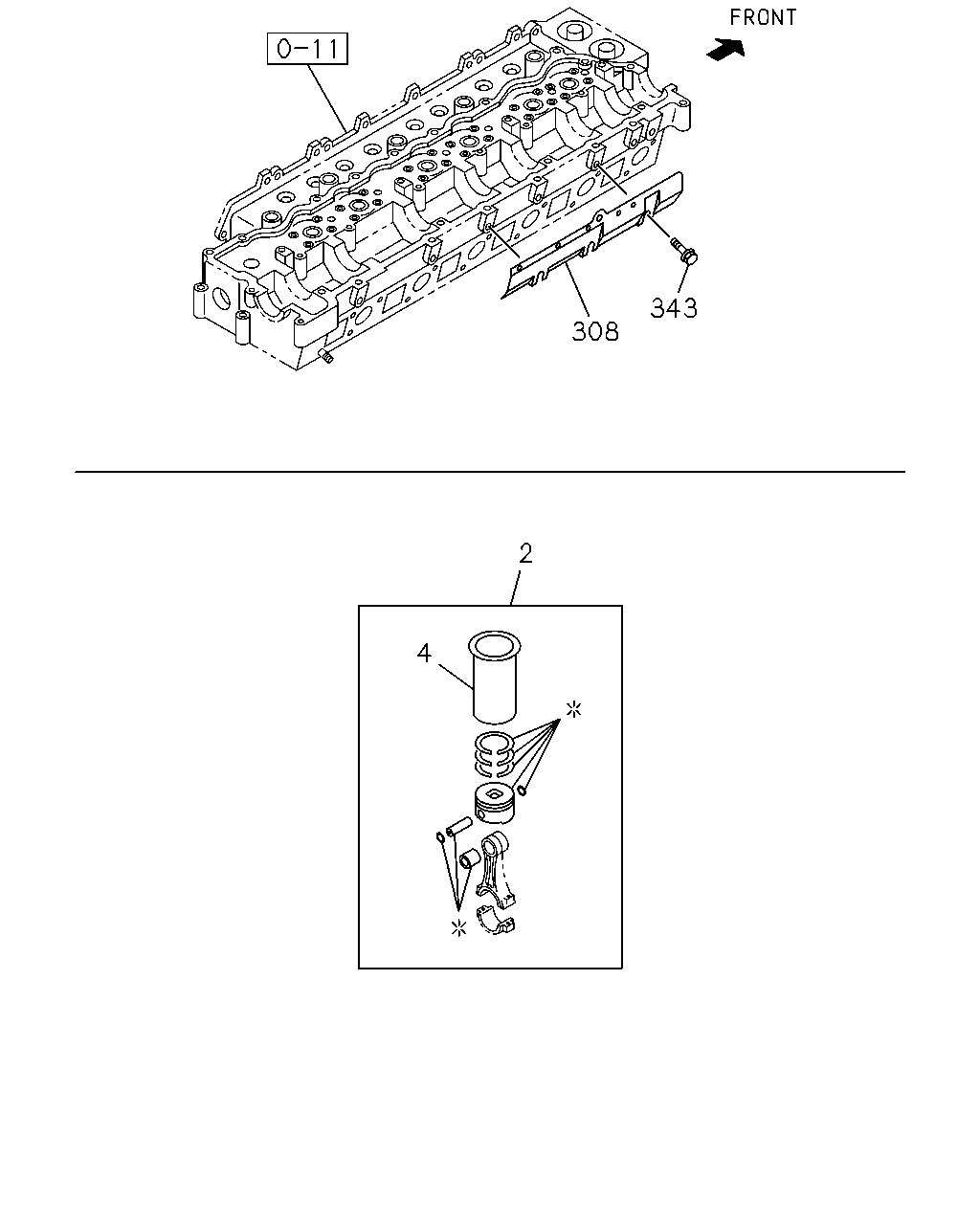

çizim 145828
308 343 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 1108-1309 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 1310- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 1108-1309 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 1310- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1108-1309 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1310- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1108-1309 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1310- ● ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 1108-1309 ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 1310- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 1108-1309 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 1310- ● ●
