◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#62243) — 44 parça

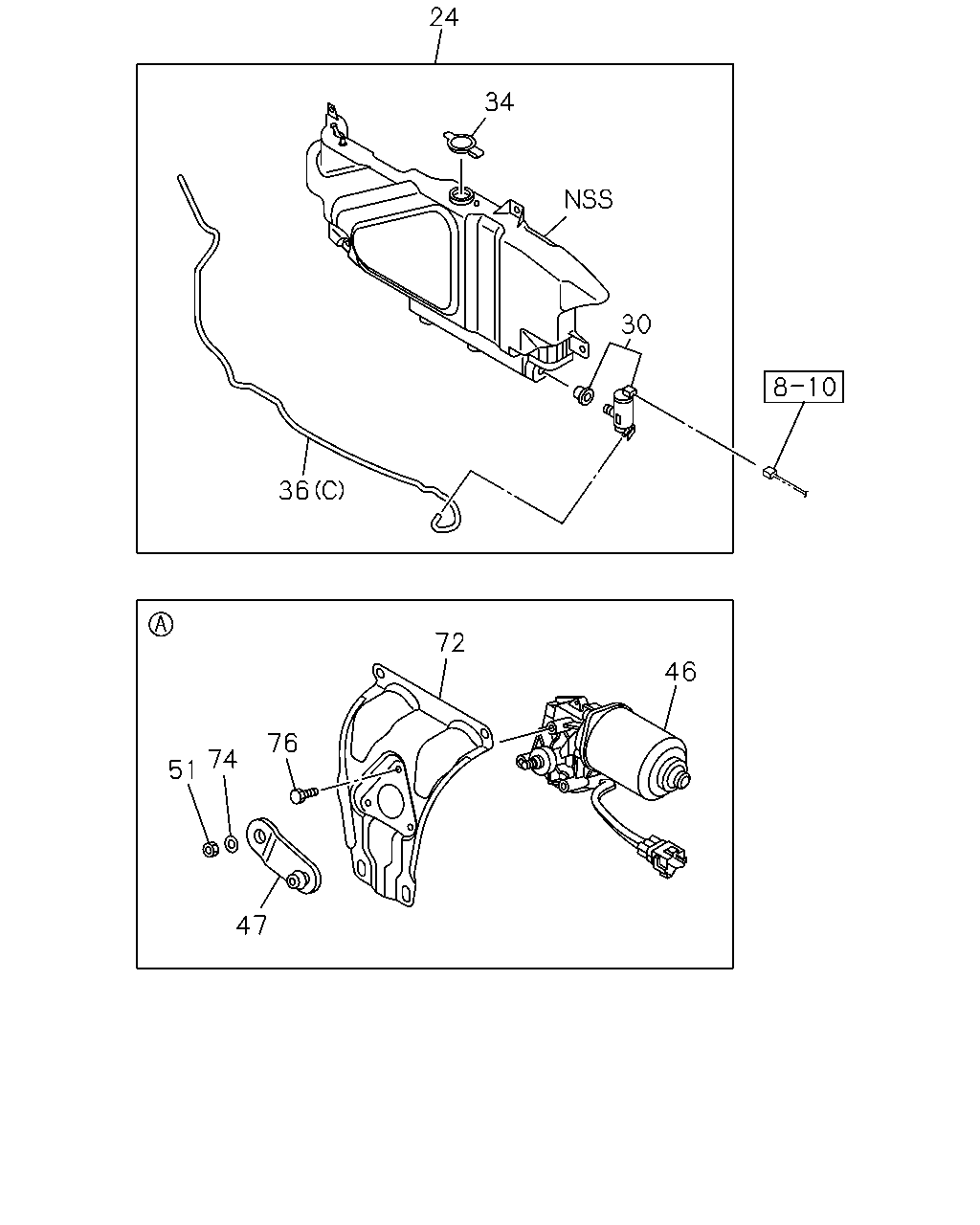

çizim 174692
24 34 30 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-98039-661-4 01 1 1103-
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 1103-
34 CAP; WASHER TANK
IDN 		8-97855-140-0 01 1 1103-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1103-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1103-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1103-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-806-1 01 1 1103-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1103-
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 1103-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1103-
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 1103-
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 1103-

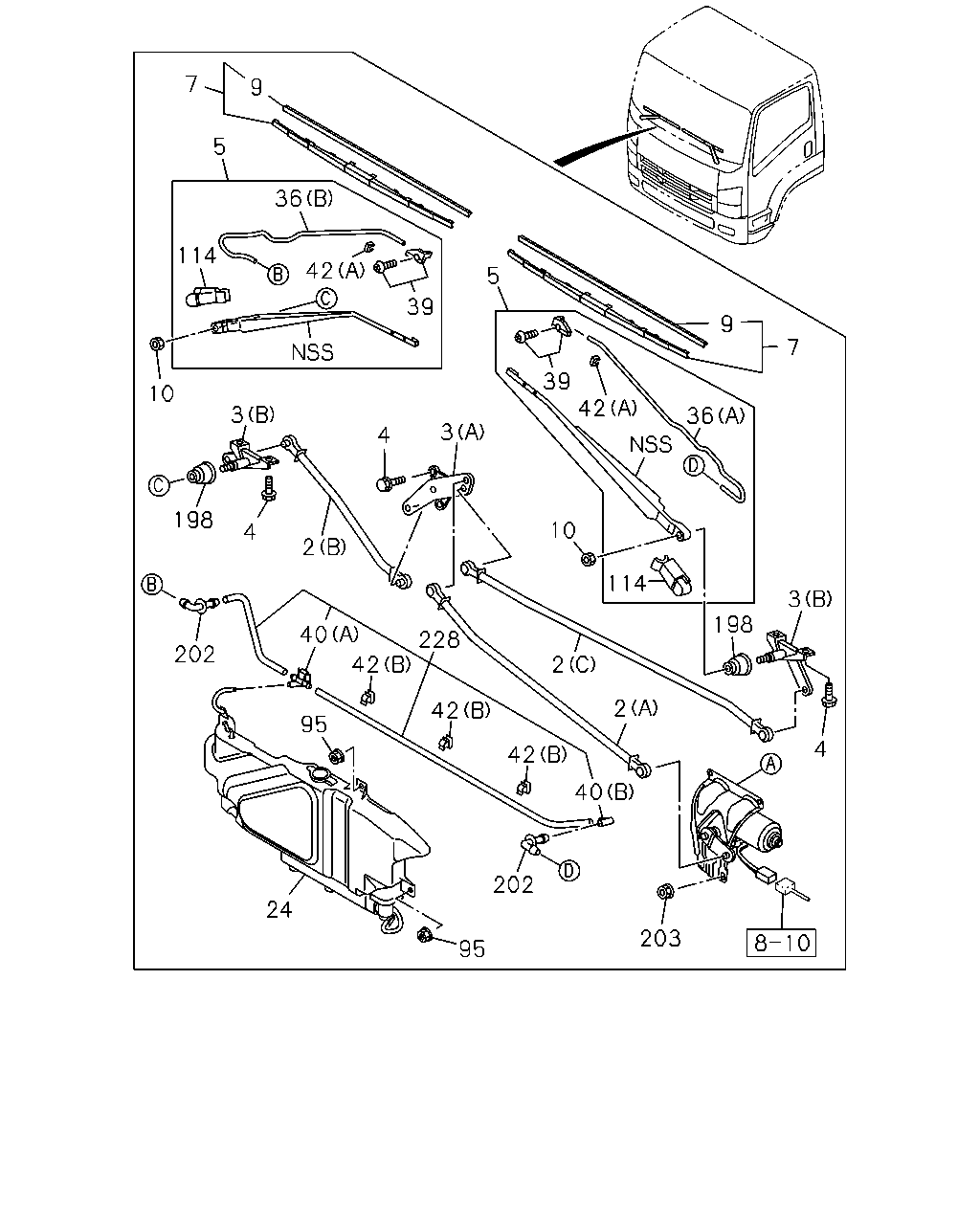

çizim 174699
7 9 5 36 114 42 5 39 10 4 3 198 2 4 202 40 95 42 3 39 9 7 36 42 10 114 198 3 4 2 2 228 42 42 202 203 95 24 40
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1103-
2 LINK; FRT WIPER
(B) 		8-98078-810-1 01 1 1103-
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1103-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1103-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1103-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE IDN 		0-28650-820-0 07 1 1103-
5 ARM; WIPER 8-98078-819-1 01 1 1103-
5 ARM; WIPER 8-98078-820-1 01 1 1103-
7 BLADE; WIPER 1-83315-045-2 01 1 1103-
7 BLADE; WIPER 1-83315-046-2 01 1 1103-
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 1103-
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 1103-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1103-
24 TANK ASM; WASHER 8-98039-661-4 01 1 1103-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1103-
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 1103-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1103-
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1103-
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1103-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1103-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1103-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1103-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1103-
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 1103-
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1103-
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1103-
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1103-
202 GROMMET; WIPER 1-86815-003-2 02 1 1103-
203 NUT; WIPER MOTOR
M8 FLANGE IDN 		0-91180-208-0 04 1 1103-
228 HOSE ASM; WASHER 8-98039-704-0 01 1 1103-

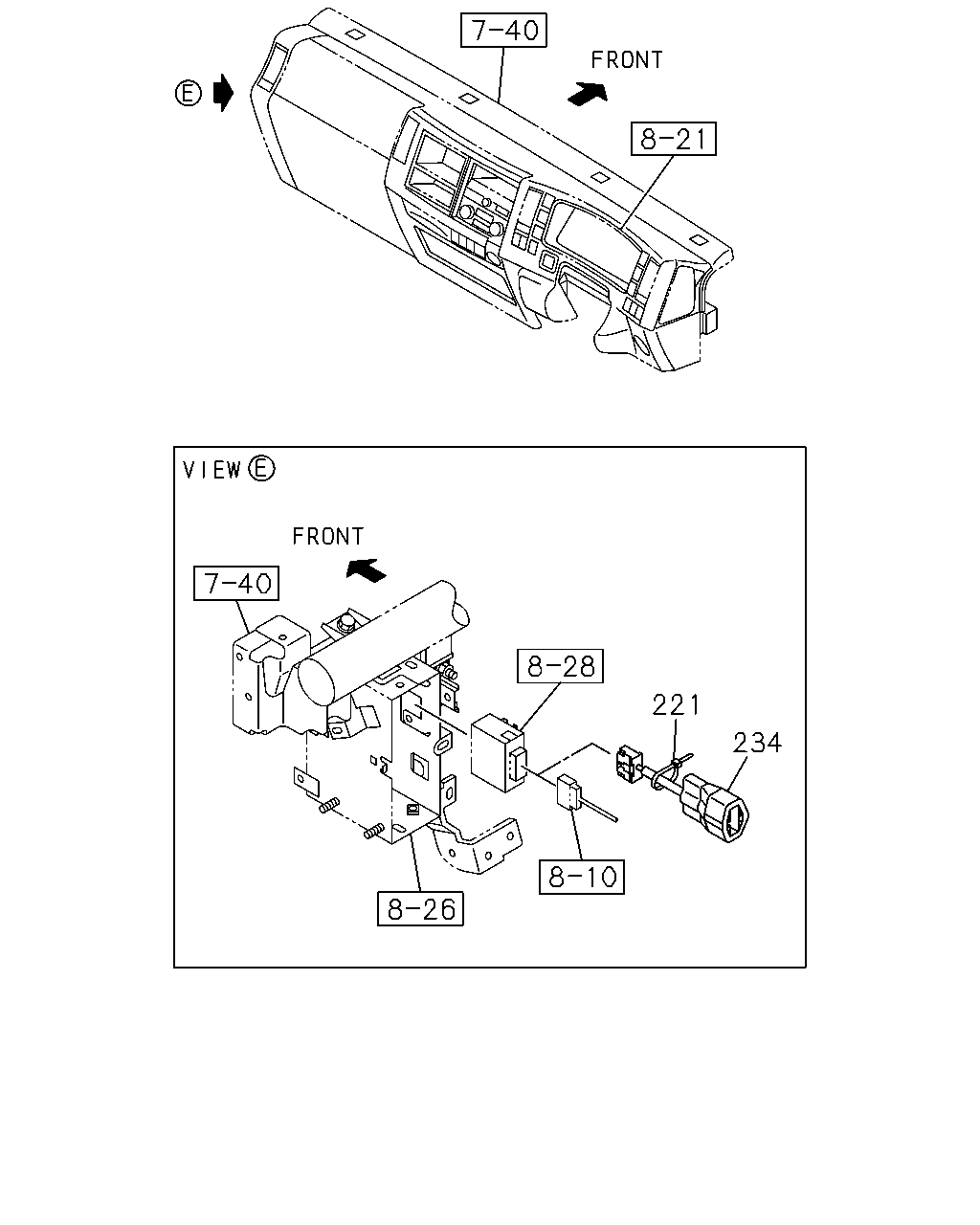

çizim 339315
221 234
BalonParca AdiParca NoAdetTipApplied Date
221 CLIP
L=140 IDN 		5-09707-031-1 01 1 1302-1308
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308
