Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#62237) — 28 parça
◀
[840A] OTHER PARTS (4 parça)

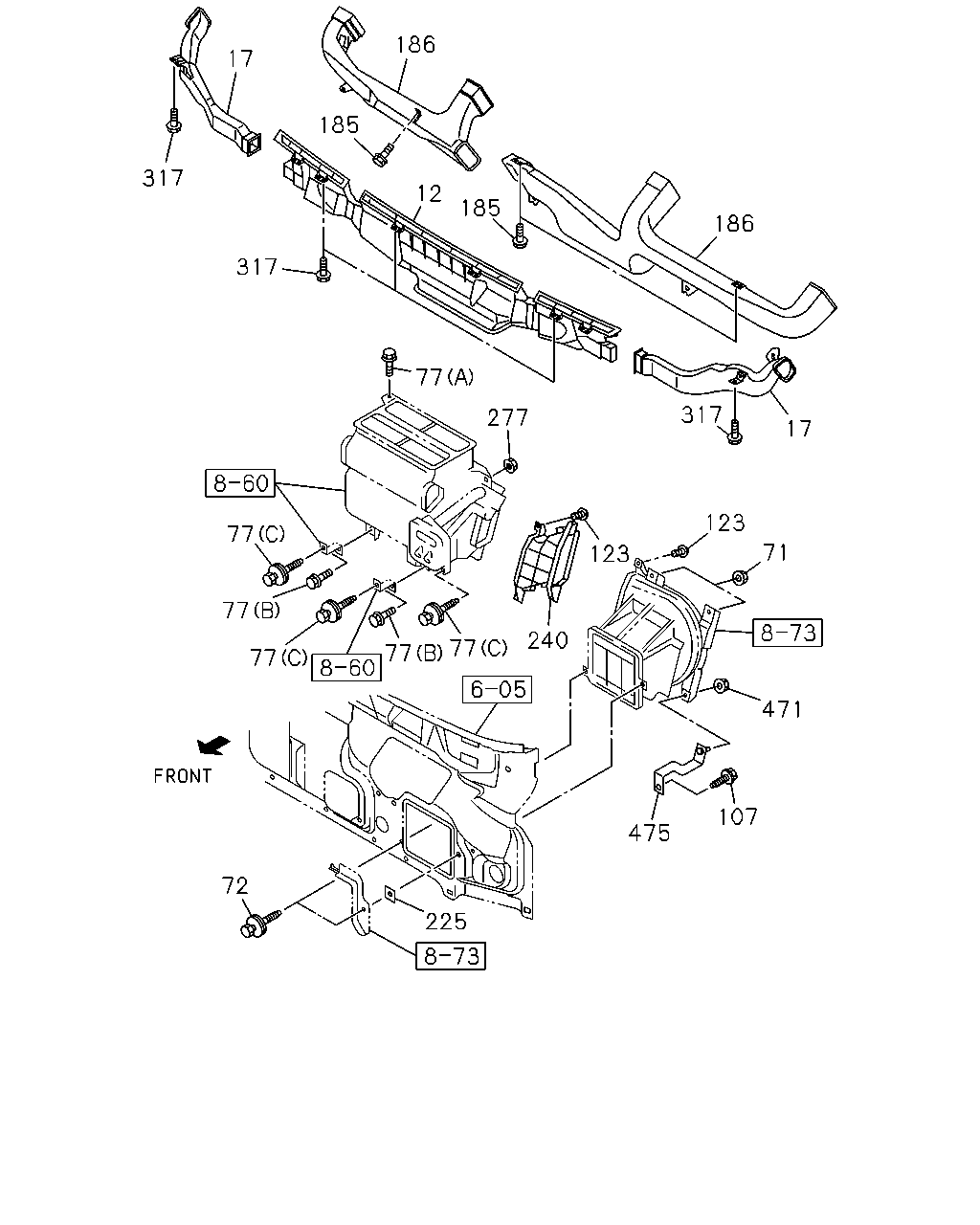

[840A] DUCT (24 parça)
▶
223
50
476
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
IDN
8-98080-998-1
01
1
1103-
206
GROMMET; A/C PIPE TO BLOWER UNIT
IDN
8-98019-649-0
01
1
1103-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN
8-94441-539-0
01
1
1103-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN
8-98062-675-0
01
1
1103-
186
17
185
317
12
185
186
317
77
317
277
17
123
77
71
123
77
240
77
77
77
471
475
72
225
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1103-
17
NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98040-016-1
01
1
1103-
17
NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98040-011-1
01
1
1103-
71
NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE
0-91180-106-0
02
1
1103-
72
BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1103-
77
BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE
0-28650-616-0
01
1
1103-
77
BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE IDN
0-28650-620-0
02
1
1103-
77
BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1103-1301
77
BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1302-
107
BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1103-
123
SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1103-
185
SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1103-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-97585-488-4
01
1
1103-1410
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98285-576-0
01
1
1411-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98174-737-0
01
1
1103-1410
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98285-571-0
01
1
1411-
225
SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK
1-76798-019-0
01
1
1304-
225
SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN
8-97856-616-0
01
1
1103-
240
DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98041-402-1
01
1
1103-
277
NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE
0-91180-106-0
01
1
1103-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1103-
317
SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1103-
471
NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE
0-91180-106-0
01
1
1103-
475
BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98043-500-1
01
1
1103-
