◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#62236) — 20 parça
çizim 174677
531
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITUBA 		8-97238-540-0 01 1 1103-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-

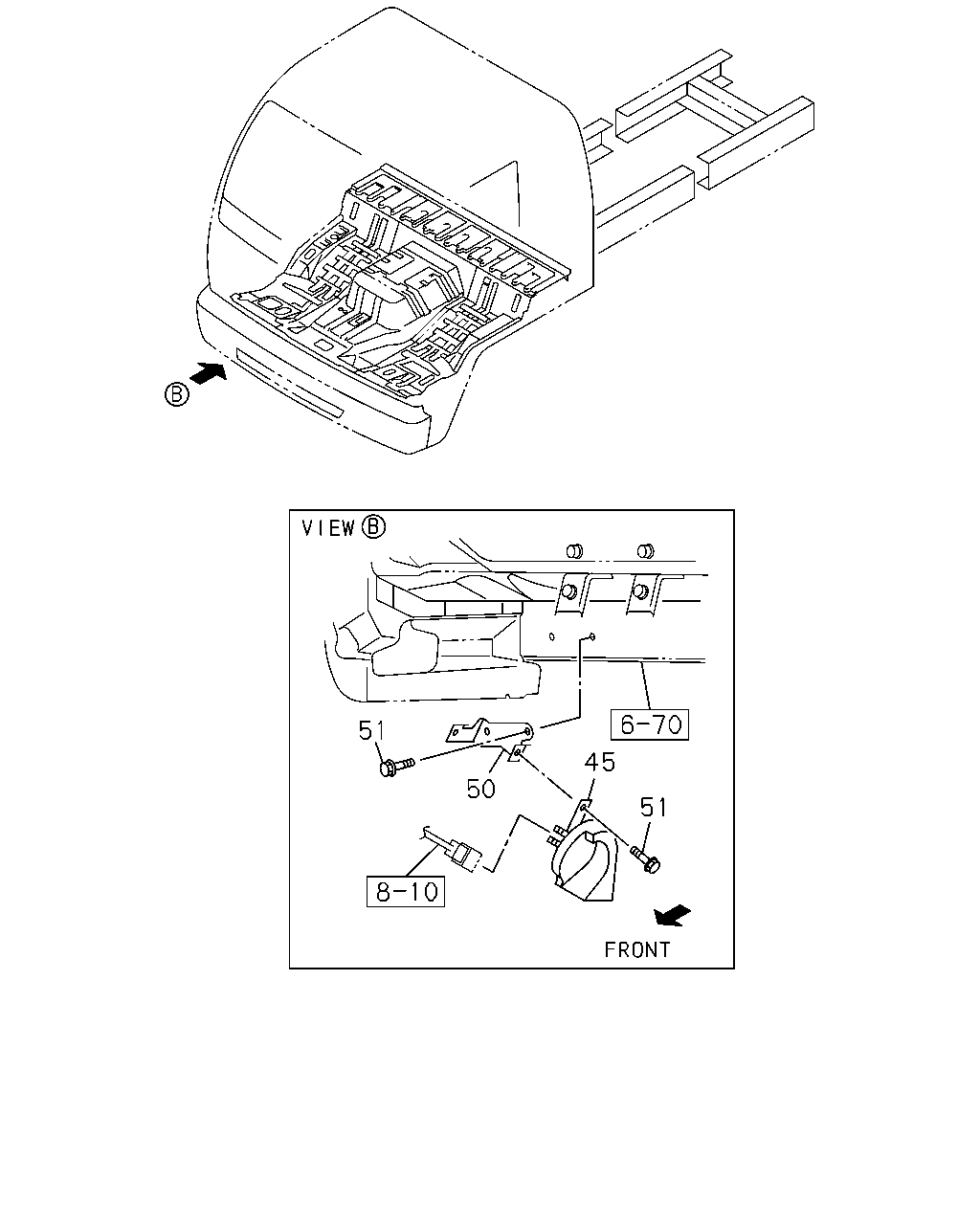

çizim 174679
51 45 50 51
BalonParca AdiParca NoAdetTipApplied Date
45 HORN; LOW NOTE
IDN 		8-98022-023-0 01 1 1103-
50 BRACKET; HORN 8-97613-300-2 01 1 1103-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 03 1 1103-
çizim 174682
39 36 33 34 35 261 34
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1103-
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1103-
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		8-98034-702-0 01 1 1103-
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE IDN 		0-28650-820-0 02 1 1103-
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X25 FLANGE IDN 		0-28651-025-0 02 1 1103-
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1103-

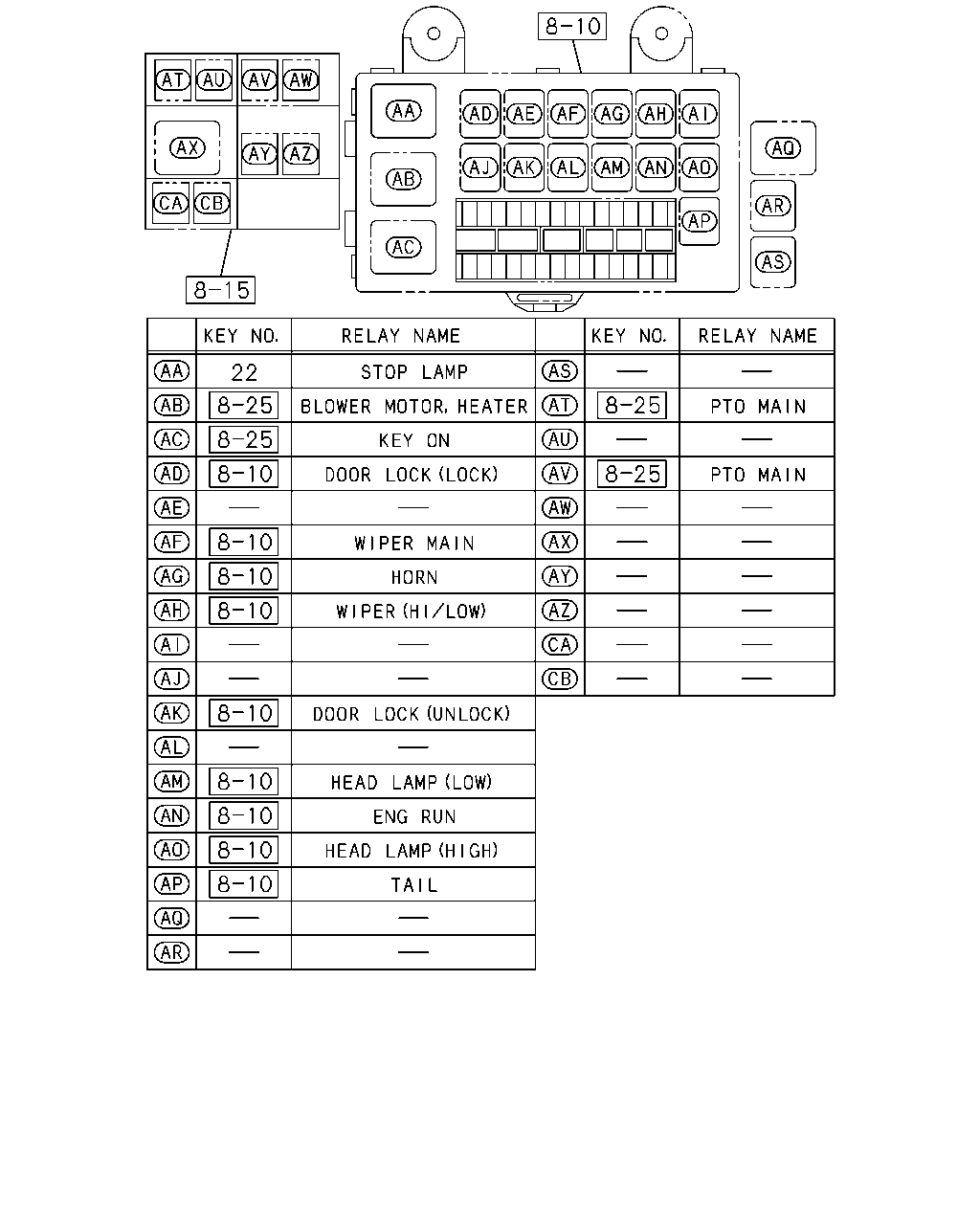

çizim 174684
22
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1103-

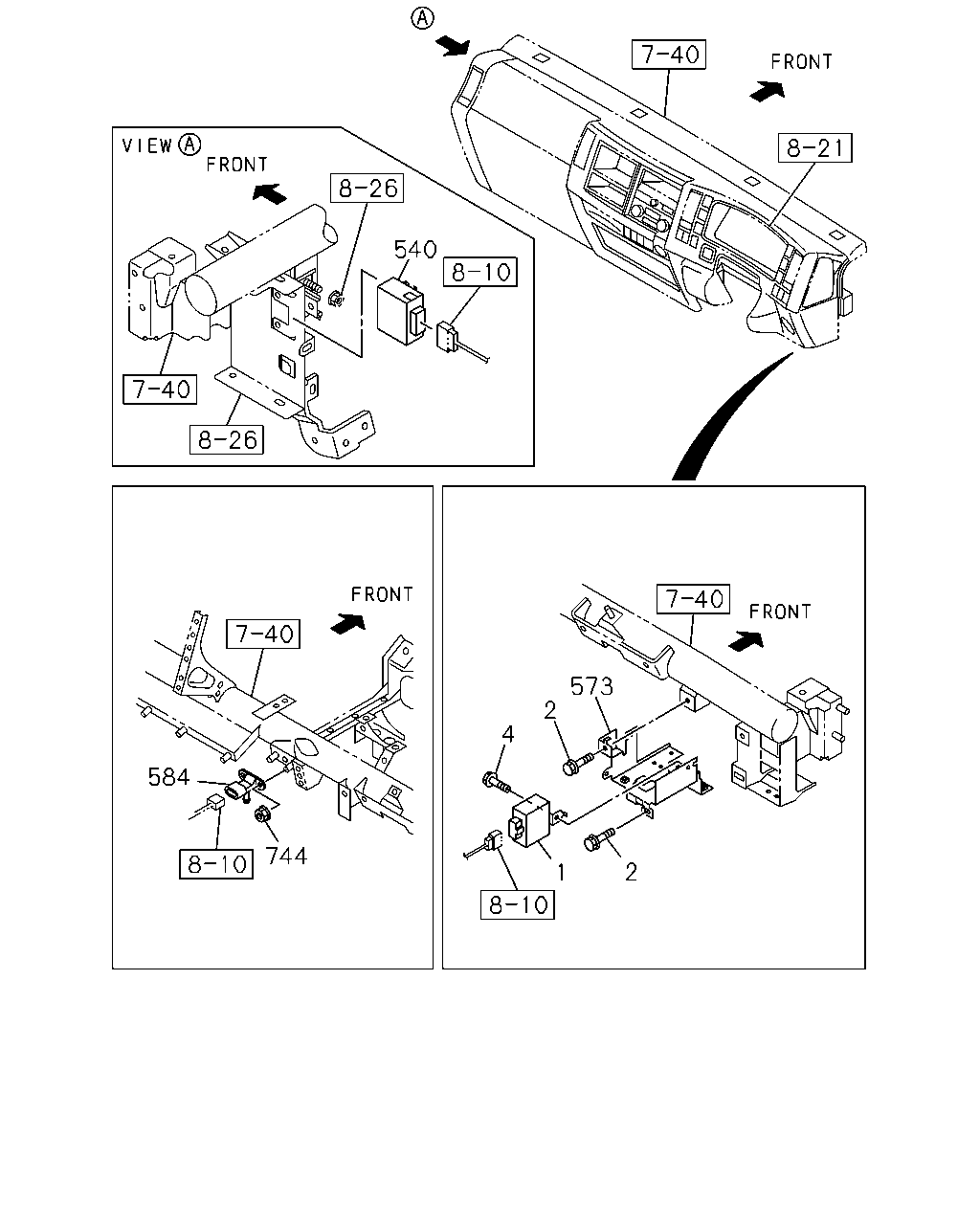

çizim 174687
540 573 2 4 584 744 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 1103-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1103-
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1103-
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 1103-1308
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1103-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1103-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1103-
