◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#62235) — 17 parça

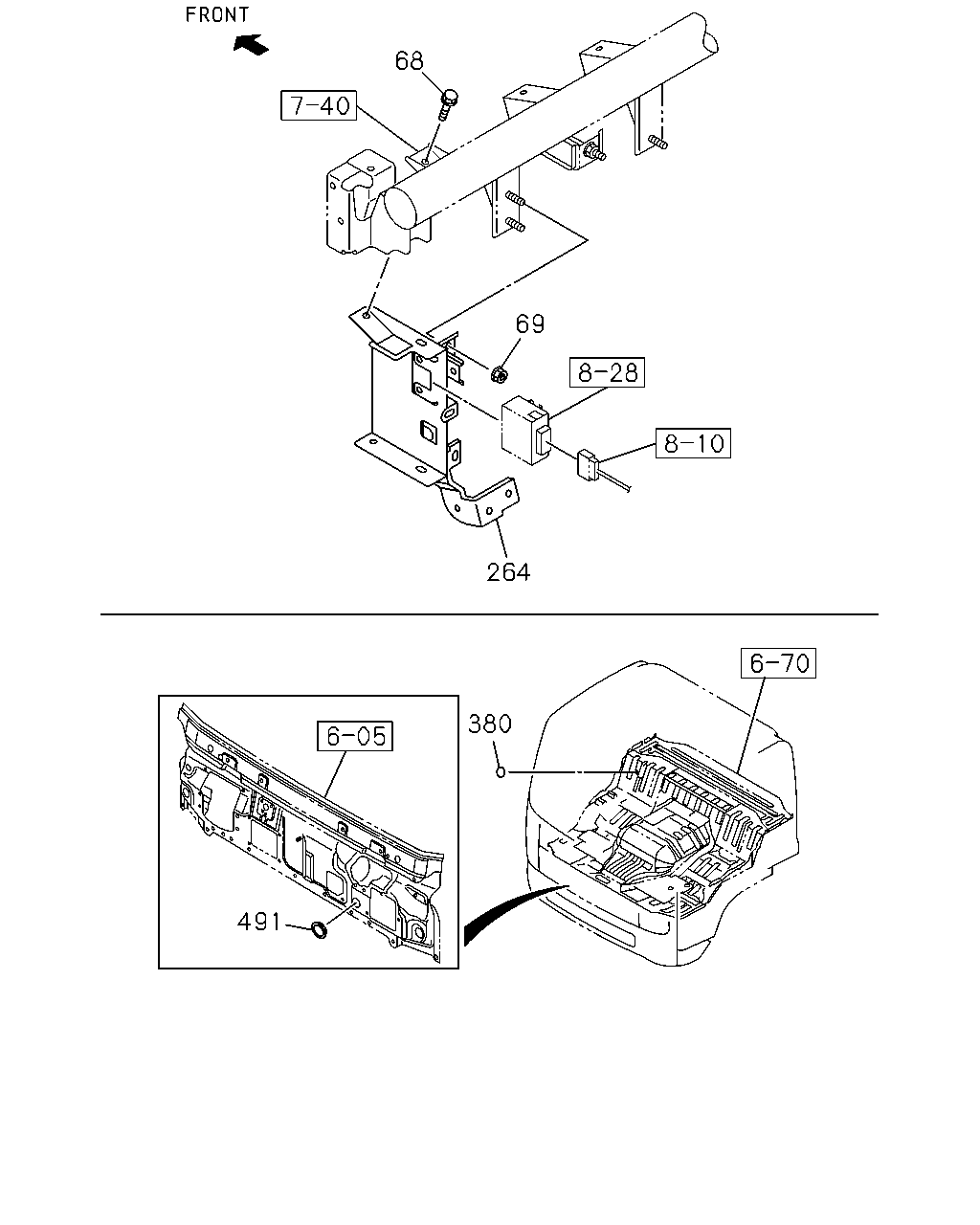

çizim 174680
68 69 264 380 491
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1103-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1103-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1103-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1103-
491 PLUG; HOLE,CONT UNIT
OD=60 IDN 		8-98054-651-0 01 1 1103-

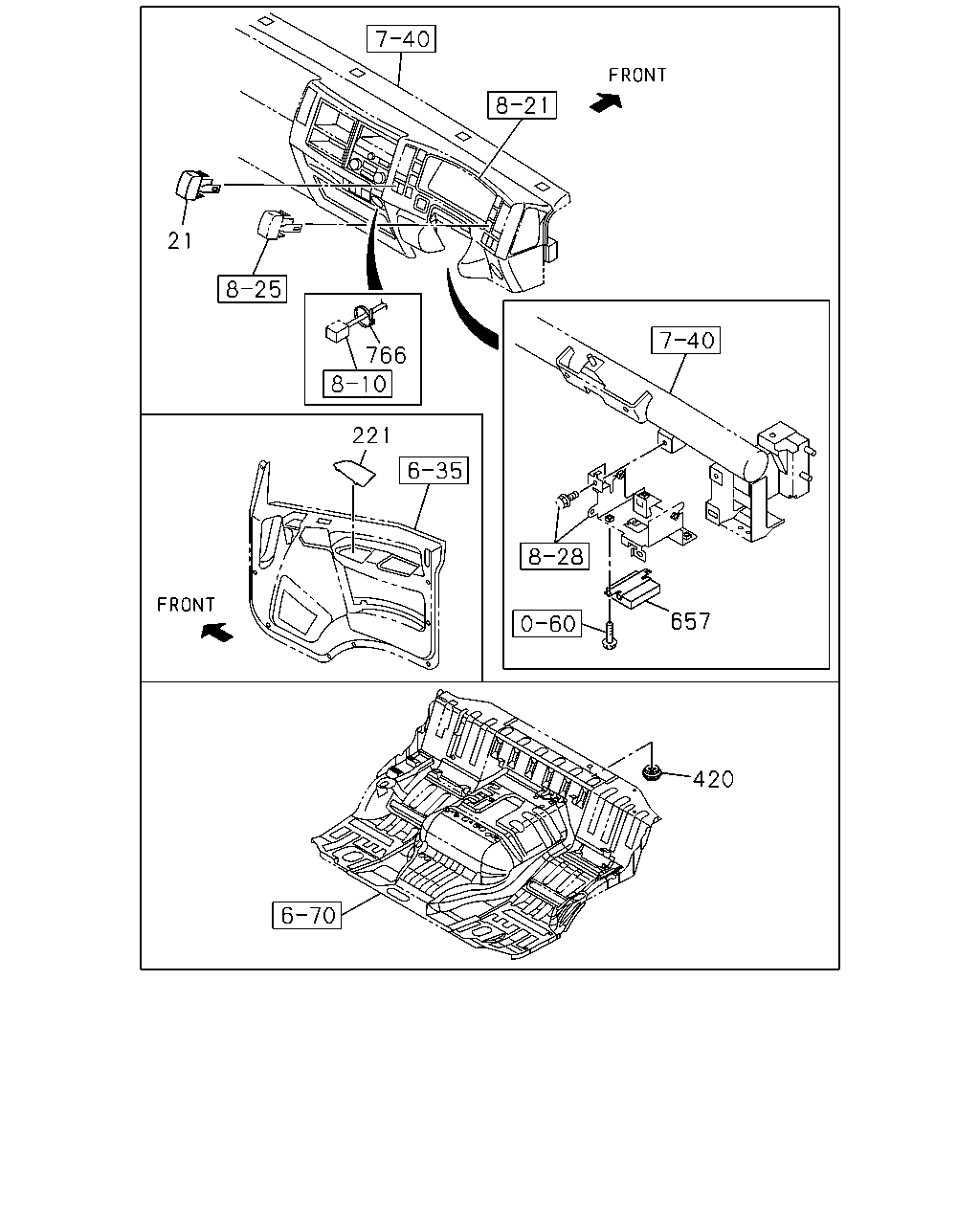

çizim 174681
21 766 221 657 420
BalonParca AdiParca NoAdetTipApplied Date
21 COVER; HOLE 8-98025-954-1 01 1 1103-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-915-2 01 1 1103-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-916-2 01 1 1103-
420 PLUG; SWITCH
OD=35 IDN 		8-94122-971-0 01 1 1103-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1103-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-0 01 1 1402-
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1103-

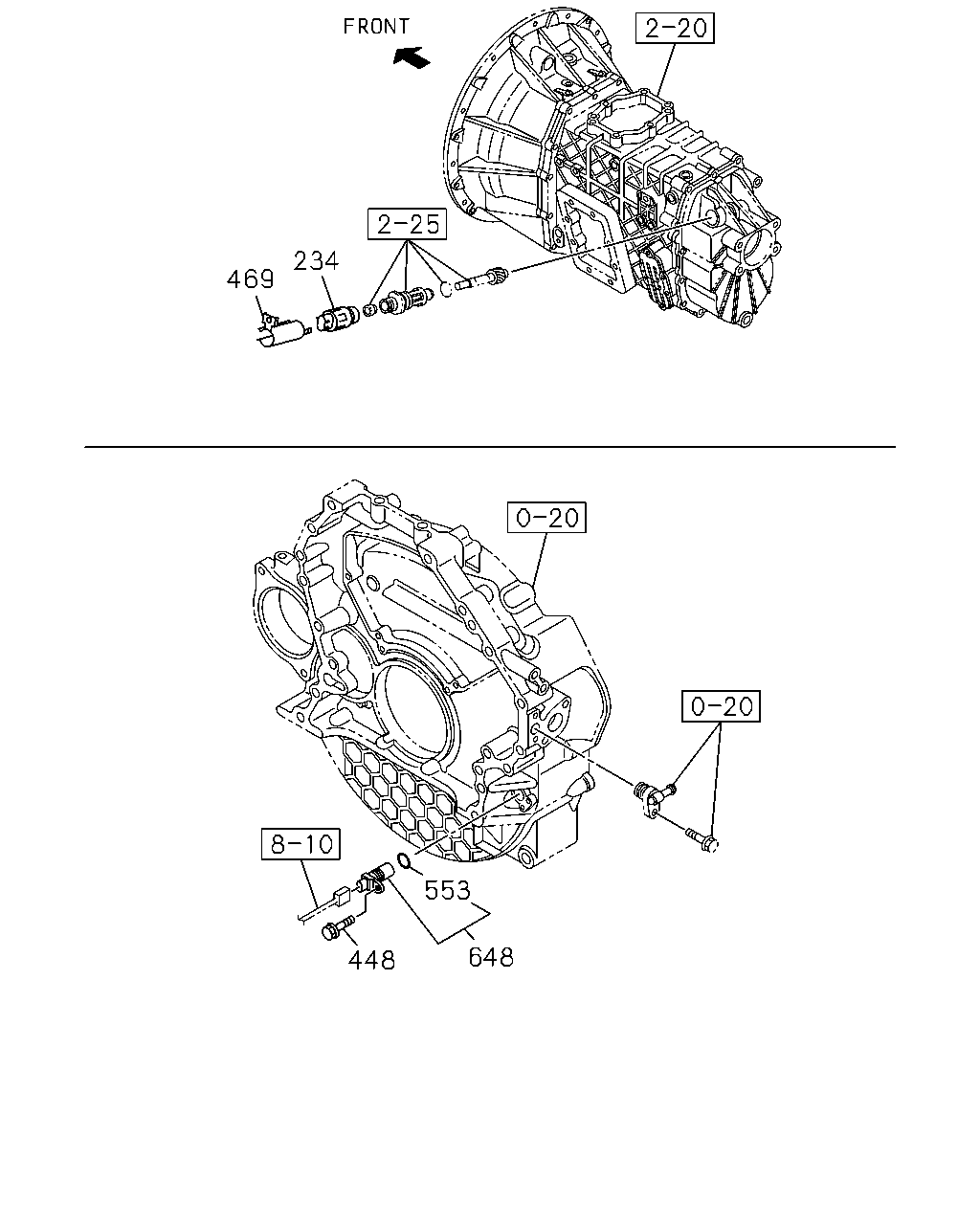

çizim 174688
234 469 553 648 448
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103-
448 BOLT; SENSOR
M6X16 FLANGE IDN 		0-28050-616-0 01 1 1103-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1103-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1103-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
