Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#62234) — 27 parça
◀

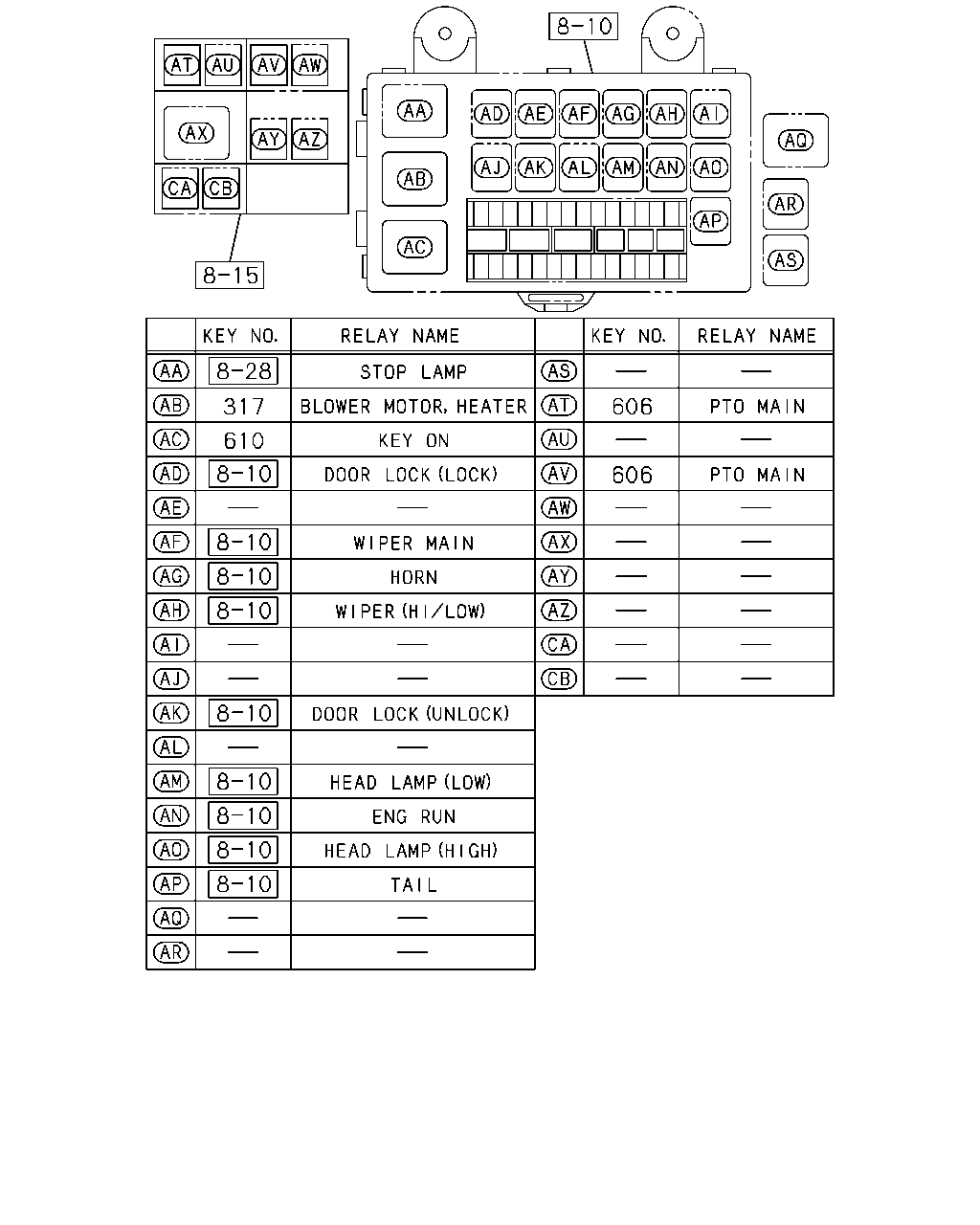

[825A] RELAY;CAB HARNESS (4 parça)
[825A] SWITCH NO.1 (5 parça)
[825A] SWITCH NO.2 (10 parça)
[825A] SWITCH NO.3 (8 parça)
▶
317
606
610
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC IDN
8-97173-035-1
01
1
1103-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC IDN
8-97173-035-1
01
1
1103-
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1103-

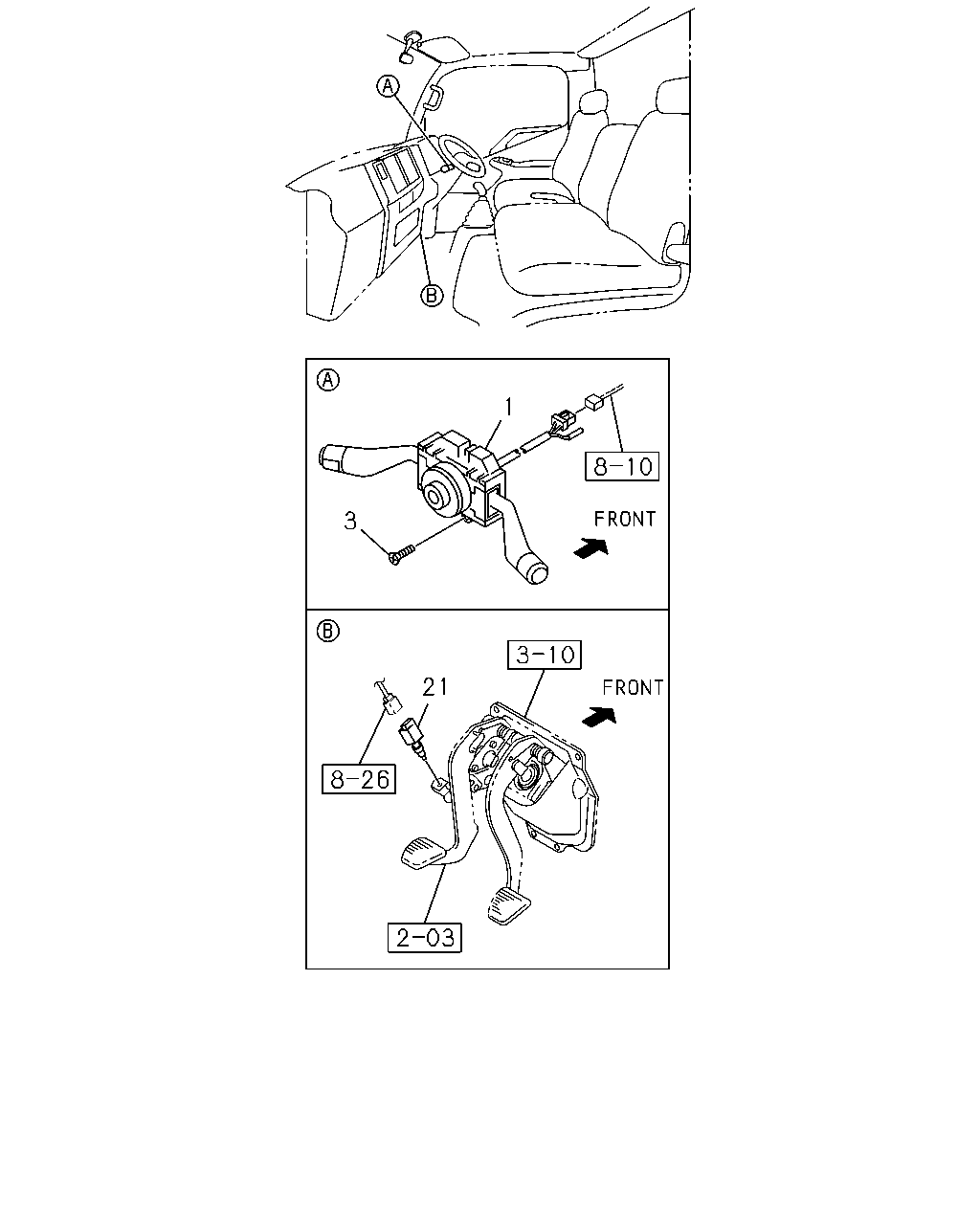

1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98060-302-1
01
1
1103-1310
1
SWITCH; COMB
8-98243-704-0
01
1
1311-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1103-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-94337-761-0
01
1
1103-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1103-

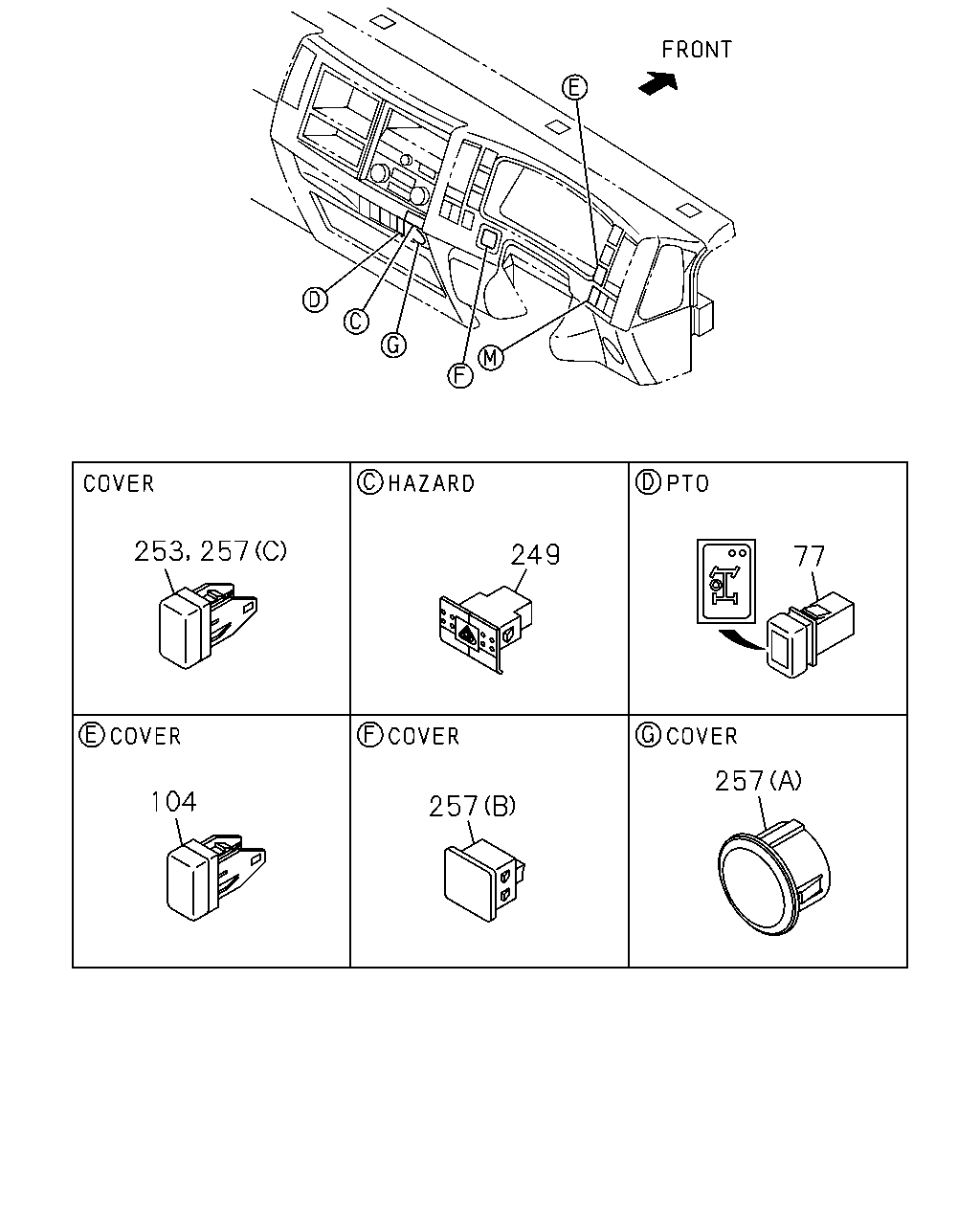

249
77
257
104
257
253
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97615-488-2
01
1
1103-
104
COVER; SW HOLE,FOG LAMP
8-98025-954-1
01
1
1103-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
01
1
1103-
253
COVER; SW HOLE
8-98025-954-1
03
1
1103-
257
COVER; HOLE,SW
(C)
8-98025-954-1
09
1
1103-
257
COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
1103-
257
COVER; HOLE,SW
(D) IDN
8-98029-917-0
01
1
1103-
257
COVER; HOLE,SW
(A) IDN
8-98070-401-2
01
1
1103-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1103-

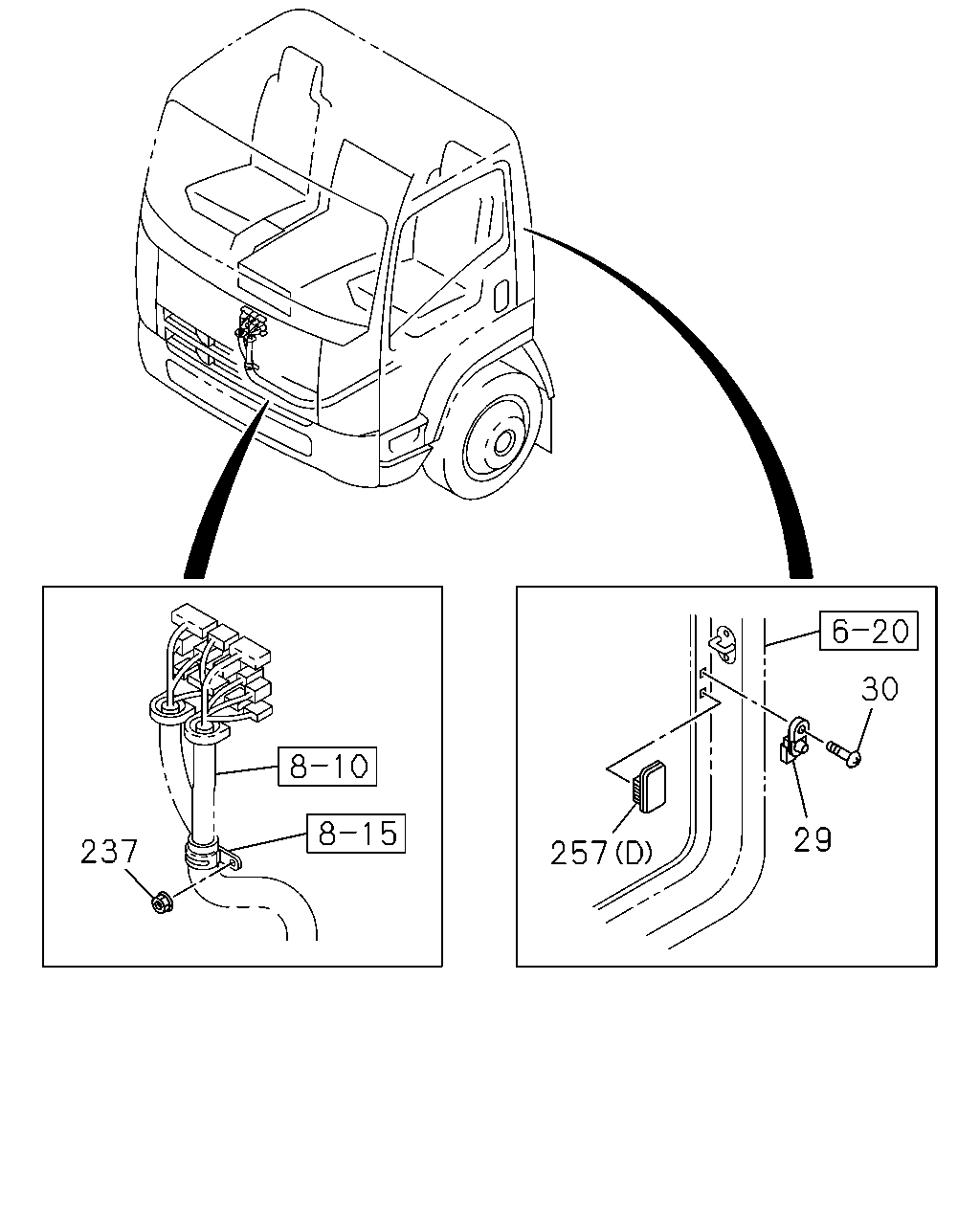

30
29
237
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK IDN
8-98022-211-0
01
1
1103-
30
SCREW; DOOR SW
M5X18 IDN
8-98047-201-0
01
1
1103-
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1103-
257
COVER; HOLE,SW
(C)
8-98025-954-1
09
1
1103-
257
COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
1103-
257
COVER; HOLE,SW
(D) IDN
8-98029-917-0
01
1
1103-
257
COVER; HOLE,SW
(A) IDN
8-98070-401-2
01
1
1103-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)
8-98025-954-1
01
1
1103-
