◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#62232) — 157 parça
çizim 174661
16 16 483 16 16 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1103-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1103-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1103-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1103-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1106-
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1106-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1103-1112
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1103-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1103-1312
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 03 1 1103-1105
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1106-

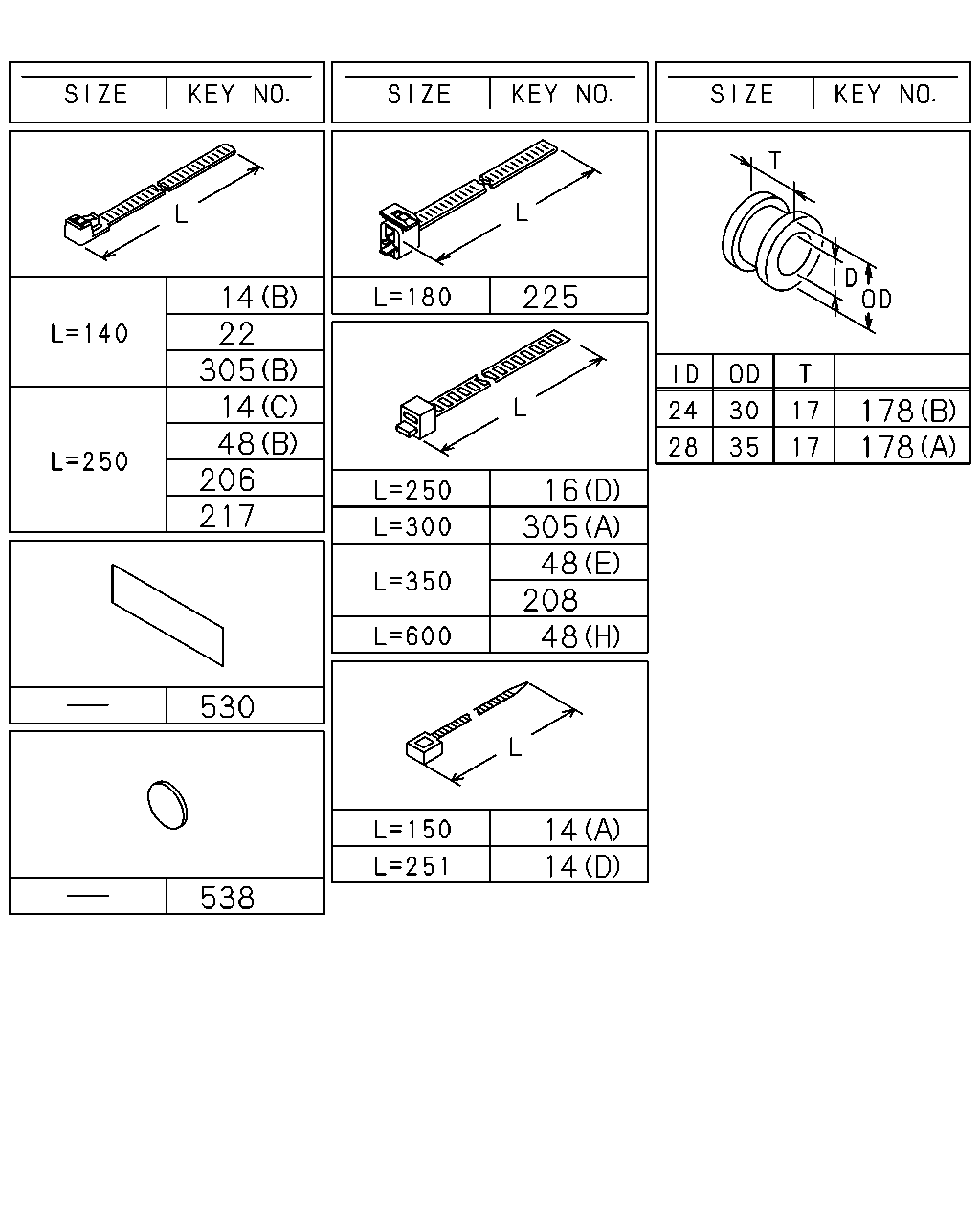

çizim 174665
14 22 305 14 48 206 217 225 178 178 16 305 48 208 48 530 14 14 538
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1108-
14 CLIP; BAND,HARNESS
(C) L=250 IDN 		5-09707-030-1 02 1 1103-
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 05 1 1103-1105
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 06 1 1106-1312
14 CLIP; BAND,HARNESS
(B) L=140 IDN 		5-09707-031-1 05 1 1401-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1103-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1103-
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1103-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1103-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1103-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1103-
22 CLIP; ENG HARNESS
L=140 IDN 		5-09707-031-1 02 1 1103-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1103-
48 CLIP; FRAME HARNESS
(H) L=600 		1-09707-107-1 01 1 1103-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-
48 CLIP; FRAME HARNESS
(B) L=250 IDN 		5-09707-030-1 01 1 1103-
48 CLIP; FRAME HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 1103-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 19 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=11 L=28 		9-09917-544-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=22 		1-09709-292-0 01 1 1103-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1103-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1103-
206 CLIP; FUEL TANK HARNESS
L=250 IDN 		5-09707-030-1 03 1 1103-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1103-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 1103-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 1103-
305 CLIP; ENG HARNESS
(A) L=300 		1-09707-001-1 01 1 1103-
305 CLIP; ENG HARNESS
(B) L=140 IDN 		5-09707-031-1 02 1 1103-
530 SEAL; HARNESS
180X40 		1-72498-019-1 11 1 1103-1402
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1103-

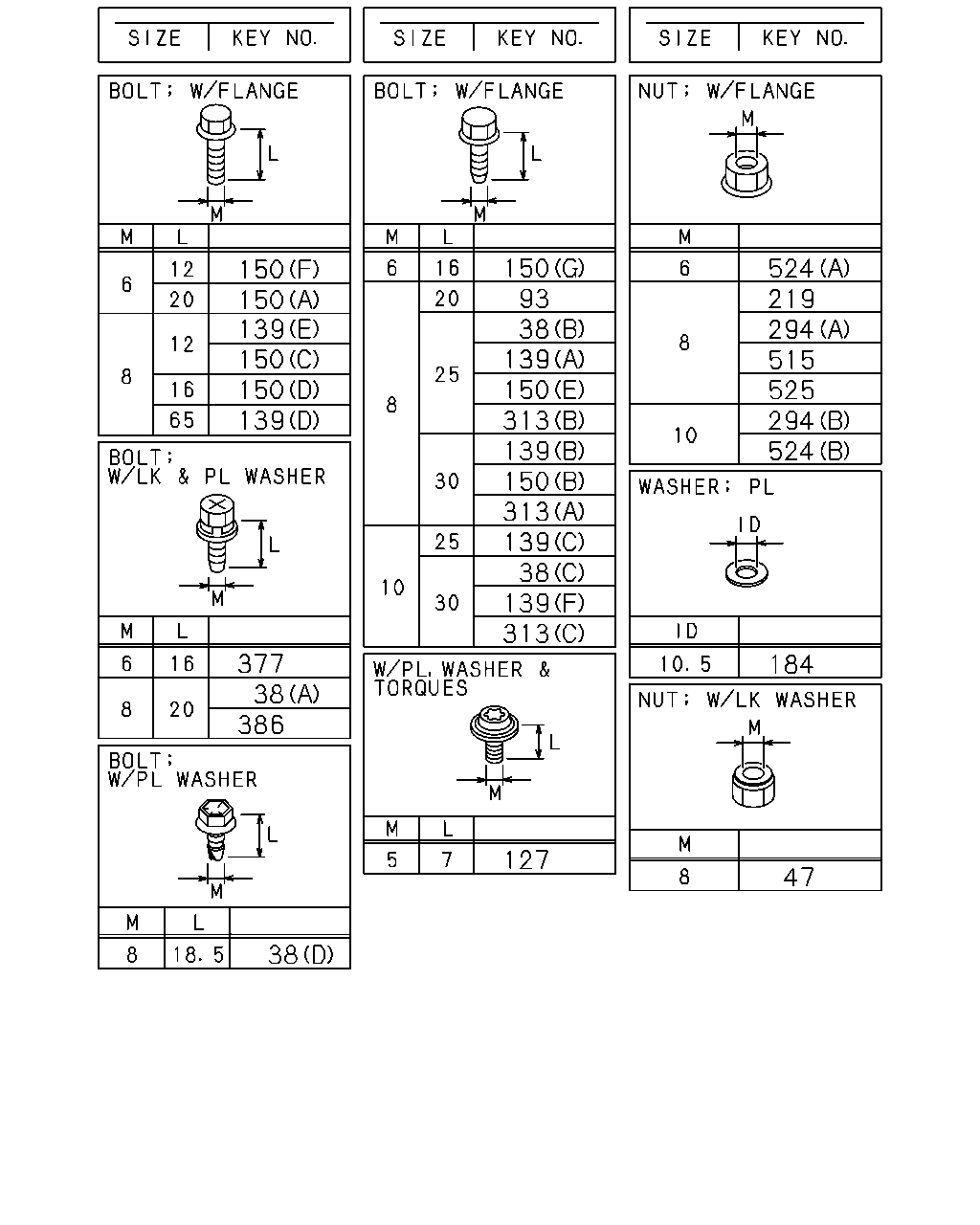

çizim 174672
150 139 150 150 139 150 377 38 386 38 150 38 93 139 313 150 139 313 150 139 139 313 38 127 524 294 219 515 294 525 524 184 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 1103-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 03 1 1103-1202
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 03 1 1203-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1103-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 01 1 1103-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1103-
139 BOLT; BRKT
(A) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1103-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1103-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1103-
139 BOLT; BRKT
(C) M10X25 FLANGE IDN 		0-28651-025-0 02 1 1103-
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 1103-
139 BOLT; BRKT
(D) M8X65 FLANGE 		1-09044-072-1 01 1 1103-
150 BOLT; CLIP
(G) M6X16 FLANGE 		0-28650-616-0 01 1 1401-
150 BOLT; CLIP
(E) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1106-
150 BOLT; CLIP
(A) M6X20 FLANGE 		0-28050-620-0 01 1 1103-1105
150 BOLT; CLIP
(F) M6X12 FLANGE 		0-28050-612-0 02 1 1106-1312
150 BOLT; CLIP
(F) M6X12 FLANGE 		0-28050-612-0 04 1 1401-
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1103-
150 BOLT; CLIP
(D) M8X16 FLANGE 		0-28050-816-0 02 1 1103-1105
150 BOLT; CLIP
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1106-
150 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1103-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1103-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1103-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1103-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1103-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1103-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1103-
313 BOLT; BRKT
(B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 1103-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1103-
313 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 01 1 1103-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1103-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 02 1 1103-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1103-
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1103-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103-1104
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103-1104
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1105-1105
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1105-1105
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1105-1105
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106-

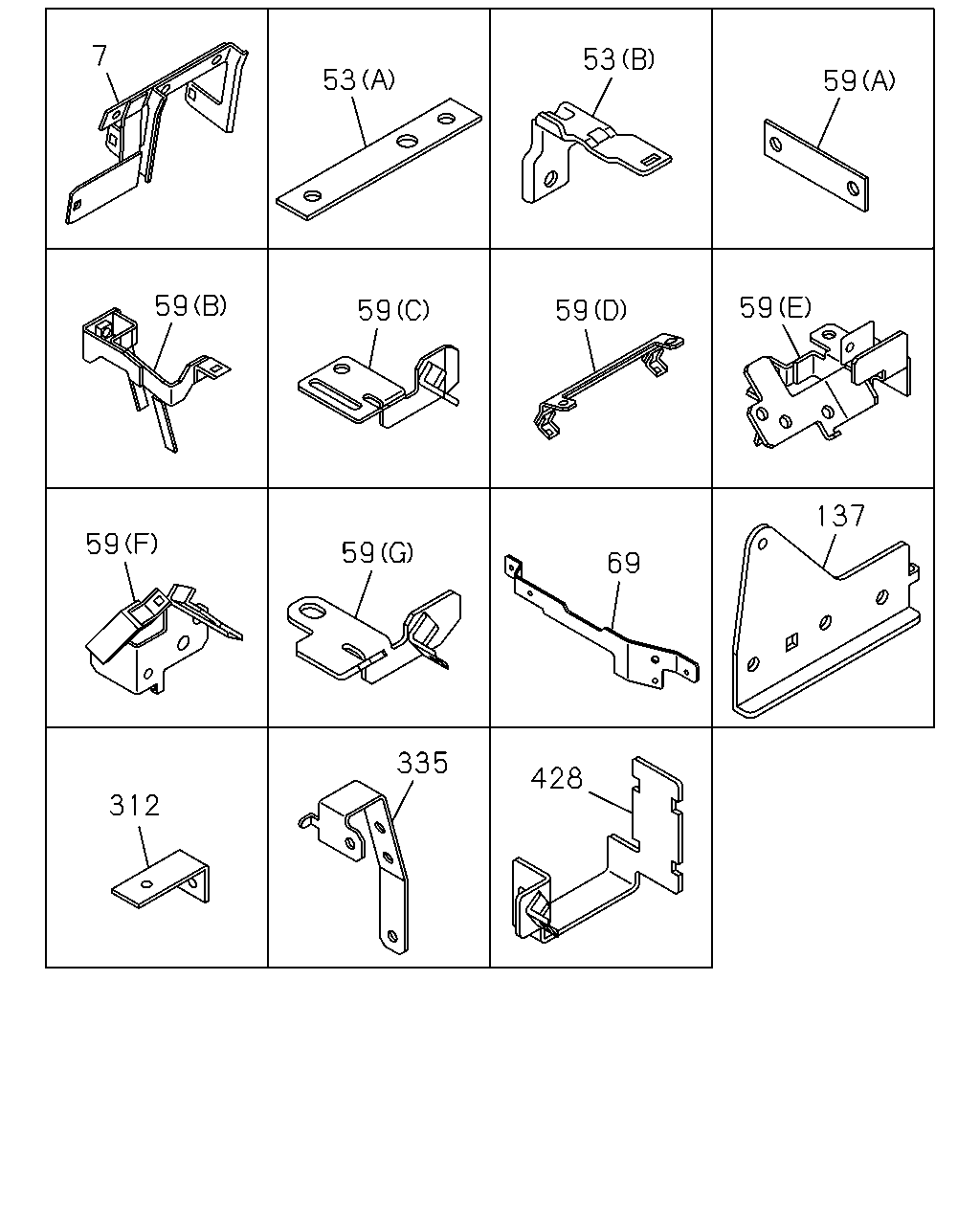

çizim 174673
7 53 53 59 59 59 59 59 59 59 69 137 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1103-
53 BRACKET; HARNESS
(A) L=170 		1-47479-380-0 01 1 1103-
53 BRACKET; HARNESS
(B) IDN 		8-98052-458-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1103-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 1103-1405
59 BRACKET; FRAME HARNESS
(F) 		8-97622-828-0 01 1 1406-
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1103-
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1103-
69 BRACKET; CLIP 8-97614-738-0 01 1 1103-
137 BRACKET; HARNESS CLAMP 8-98052-805-0 01 1 1506-1506
137 BRACKET; HARNESS CLAMP 8-97624-016-0 01 1 1103-
312 BRACKET; CLIP HARNESS
L=55 		1-47475-304-0 01 1 1103-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1103-
428 BRACKET 8-98116-461-0 01 1 1103-

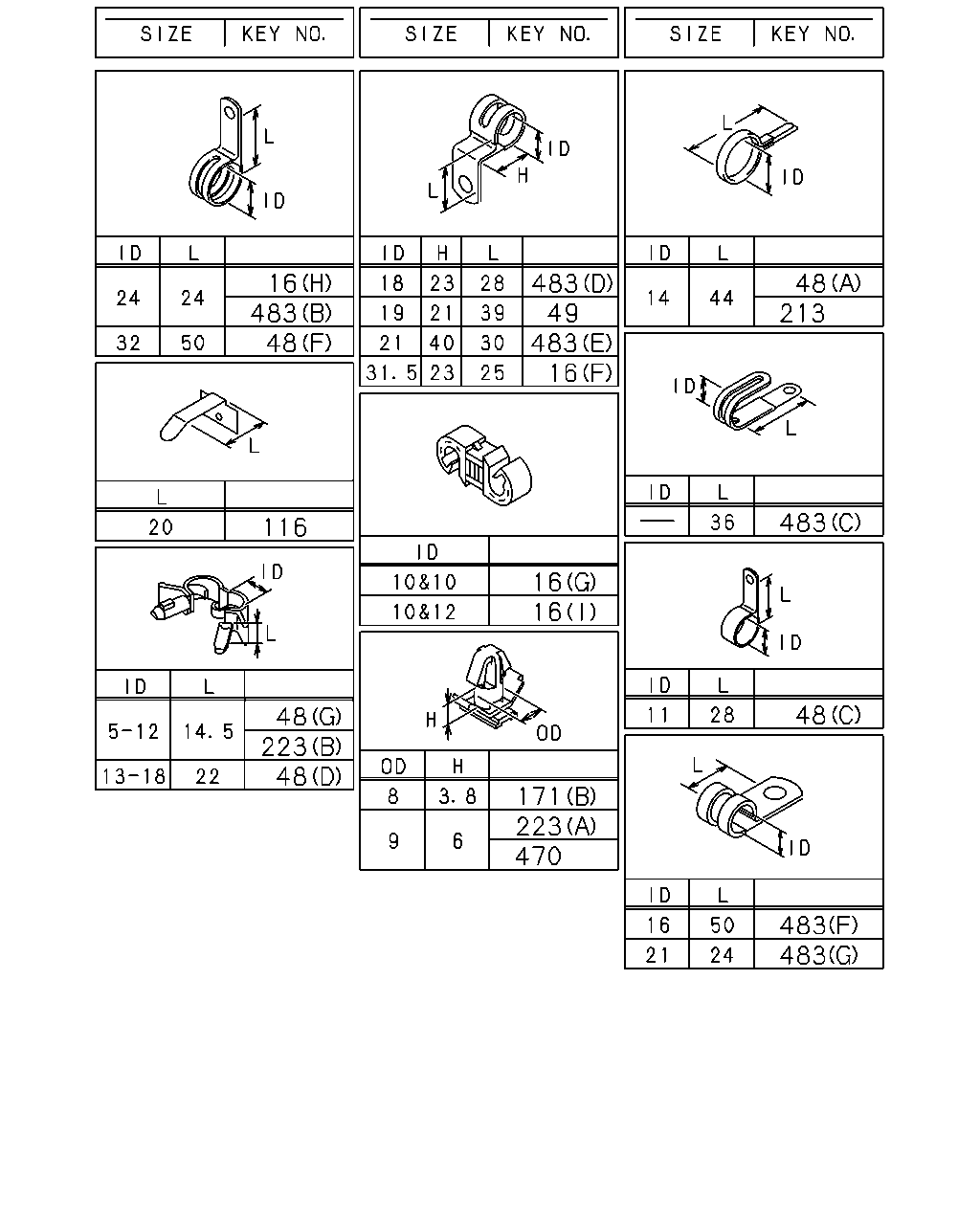

çizim 174675
16 48 483 116 223 48 48 483 483 49 16 16 16 223 470 171 48 213 483 48 483 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 		1-09701-001-1 02 1 1103-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1103-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 1103-
16 CLIP; HARNESS
(G) ID=10 & 10 		1-09709-277-1 04 1 1103-
16 CLIP; HARNESS
(I) ID=10 & 12 		1-09709-278-1 01 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 IDN 		8-94413-325-0 01 1 1103-
16 CLIP; HARNESS
(B) L=155 IDN 		8-97173-307-0 18 1 1103-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1103-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1103-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1103-
48 CLIP; FRAME HARNESS
(H) L=600 		1-09707-107-1 01 1 1103-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1103-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-
48 CLIP; FRAME HARNESS
(B) L=250 IDN 		5-09707-030-1 01 1 1103-
48 CLIP; FRAME HARNESS
(B) L=250 IDN 		5-09707-030-1 02 1 1103-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 19 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=11 L=28 		9-09917-544-0 01 1 1103-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=22 		1-09709-292-0 01 1 1103-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1103-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1103-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 1103-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1103-
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1103-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1103-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 1103-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 03 1 1103-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1103-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1211-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1106-
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1106-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1103-1112
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 02 1 1201-1210
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1211-
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1103-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1103-1312
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1401-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 03 1 1103-1105
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
