◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#62231) — 105 parça

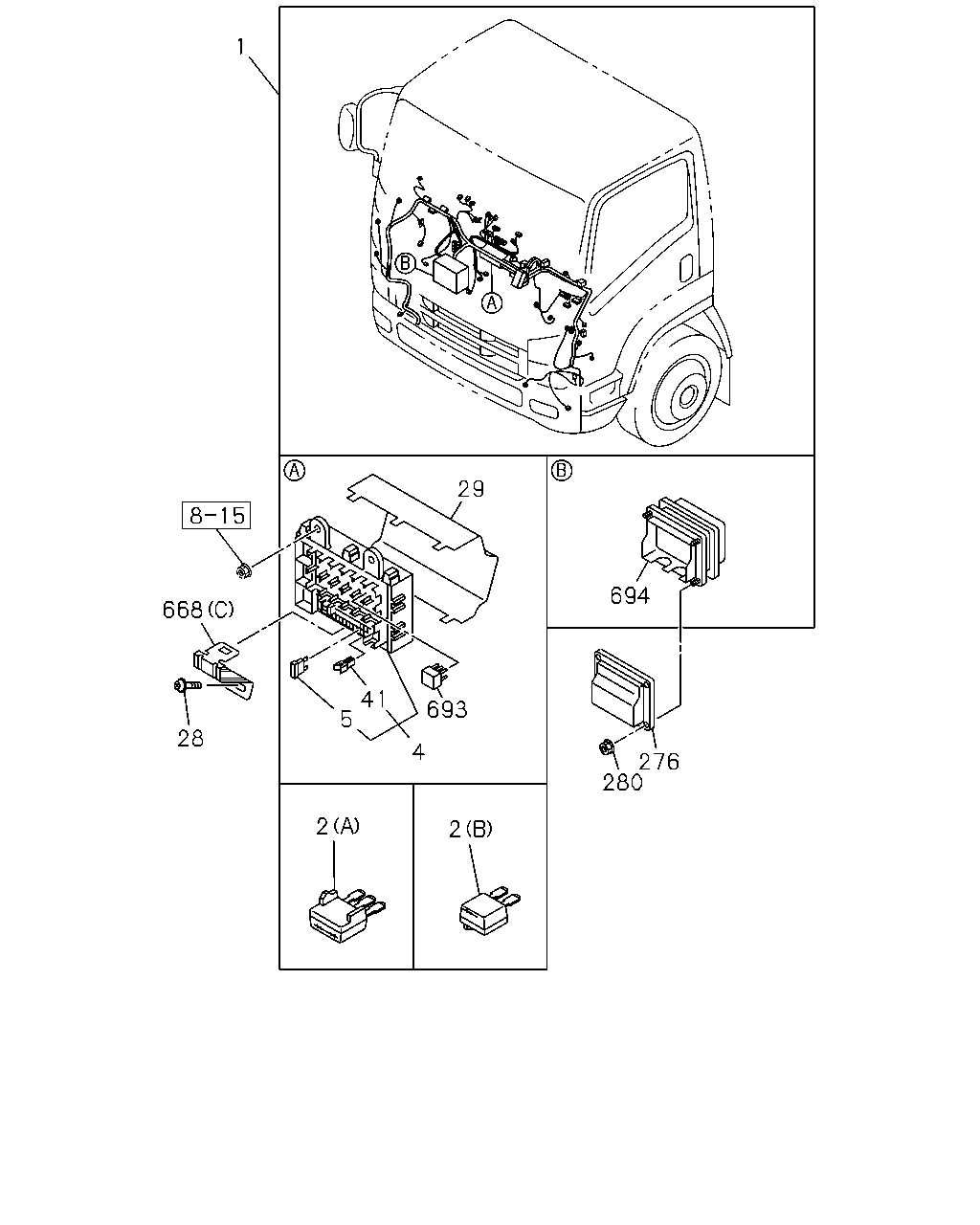

çizim 174658
1 29 694 668 41 5 693 28 4 276 280 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IDN 		8-98182-396-0 01 1 1103-
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A IDN 		8-94416-438-1 01 1 1103-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A IDN 		8-94422-639-1 02 1 1103-
4 BOX ASM; FUSE,HARNESS
IDN 		8-98065-666-0 01 1 1103-
5 FUSE; FACIA HARNESS
10A RED IDN 		8-98054-257-0 AR 1 1103-
5 FUSE; FACIA HARNESS
15A BLUE IDN 		8-98054-258-0 AR 1 1103-
5 FUSE; FACIA HARNESS
20A YELLOW IDN 		8-98054-259-0 AR 1 1103-
5 FUSE; FACIA HARNESS
25A WHITE IDN 		8-98062-982-0 01 1 1103-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1103-
29 COVER; FUSE BOX
IDN 		8-98056-968-0 01 1 1103-
41 PULLER; FUSE
IDN 		8-98054-260-0 01 1 1103-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1103-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1103-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103-
668 BRACKET; HARNESS
(B) 		8-98022-106-2 01 1 1103-1105
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1106-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1103-
693 RELAY; FUSE BOX
24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1103-
694 BOX ASM; CONNECTOR
IDN 		8-98063-269-1 01 1 1103-

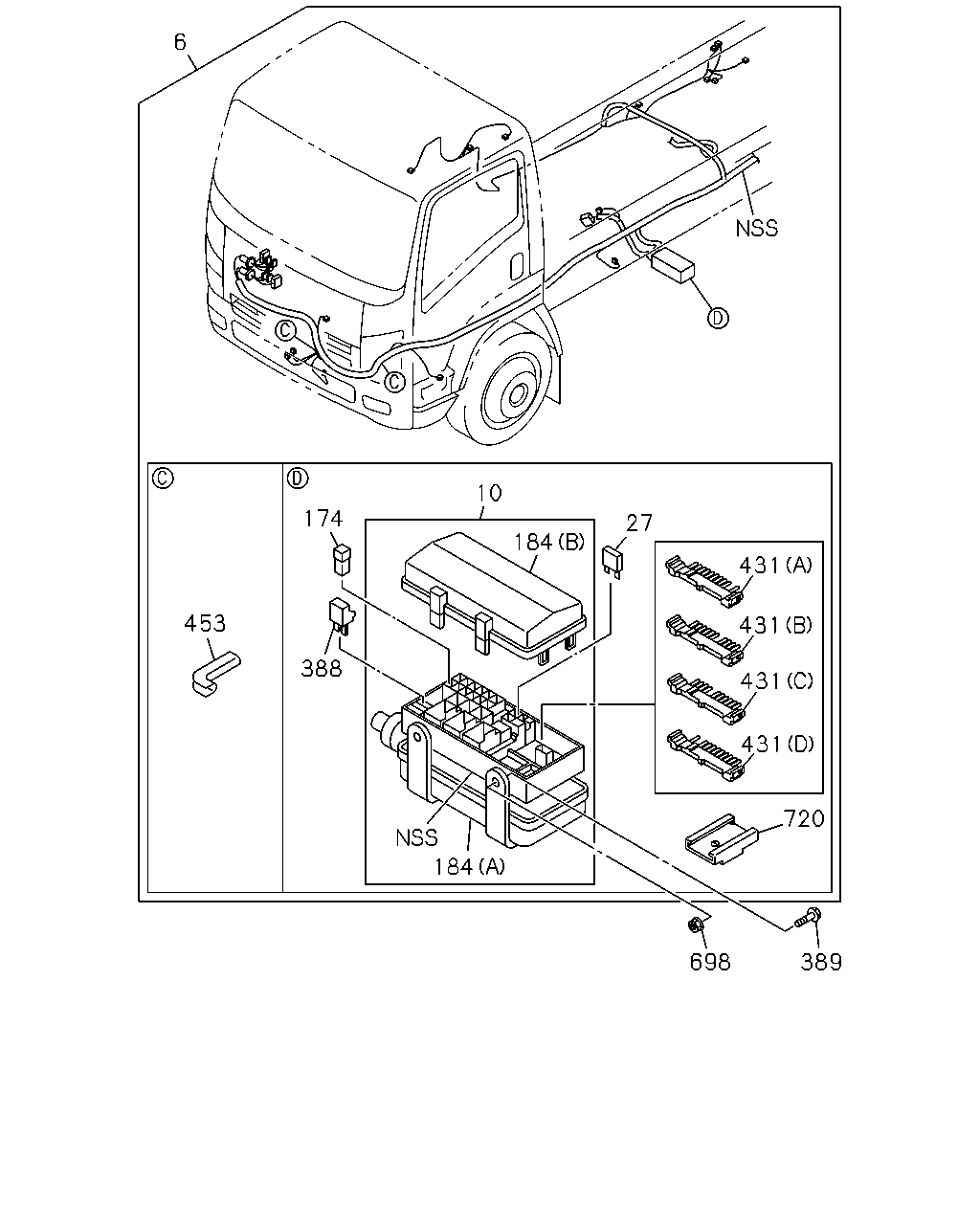

çizim 174659
6 10 174 27 184 431 453 431 388 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
10 BOX; FUSE,HARNESS
IDN 		8-98030-762-0 01 1 1103-
27 FUSE UNIT
10A RED IDN 		8-98054-257-0 01 1 1103-
27 FUSE UNIT
15A BLUE IDN 		8-98054-258-0 02 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK IDN 		8-98079-191-0 01 1 1103-
174 FUSE; SLOW BLOW
40A GREEN IDN 		8-98079-192-0 01 1 1103-
174 FUSE; SLOW BLOW
50A RED IDN 		8-98079-193-0 03 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 02 1 1103-1106
174 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 01 1 1107-
184 COVER; RELAY & FUSE BOX
(A) IDN 		8-98030-766-0 01 1 1103-
184 COVER; RELAY & FUSE BOX
(B) IDN 		8-98030-767-1 01 1 1103-
388 DIODE; RELAY BOX
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 1103-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1103-
431 CONNECTOR; JOINT
(A) 10P GREEN IDN 		1-82698-579-0 02 1 1103-
431 CONNECTOR; JOINT
(C) 10P BLUE IDN 		1-82699-598-0 04 1 1103-
431 CONNECTOR; JOINT
(B) 10P GREEN IDN 		1-82699-599-0 04 1 1103-
431 CONNECTOR; JOINT
(D) 10P BROWN IDN 		1-82699-601-0 01 1 1103-
453 PROTECTOR; HARNESS
IDN 		1-82699-709-0 02 1 1103-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1103-
720 ATTACHMENT; CONNECTOR
IDN 		1-82699-688-0 03 1 1103-

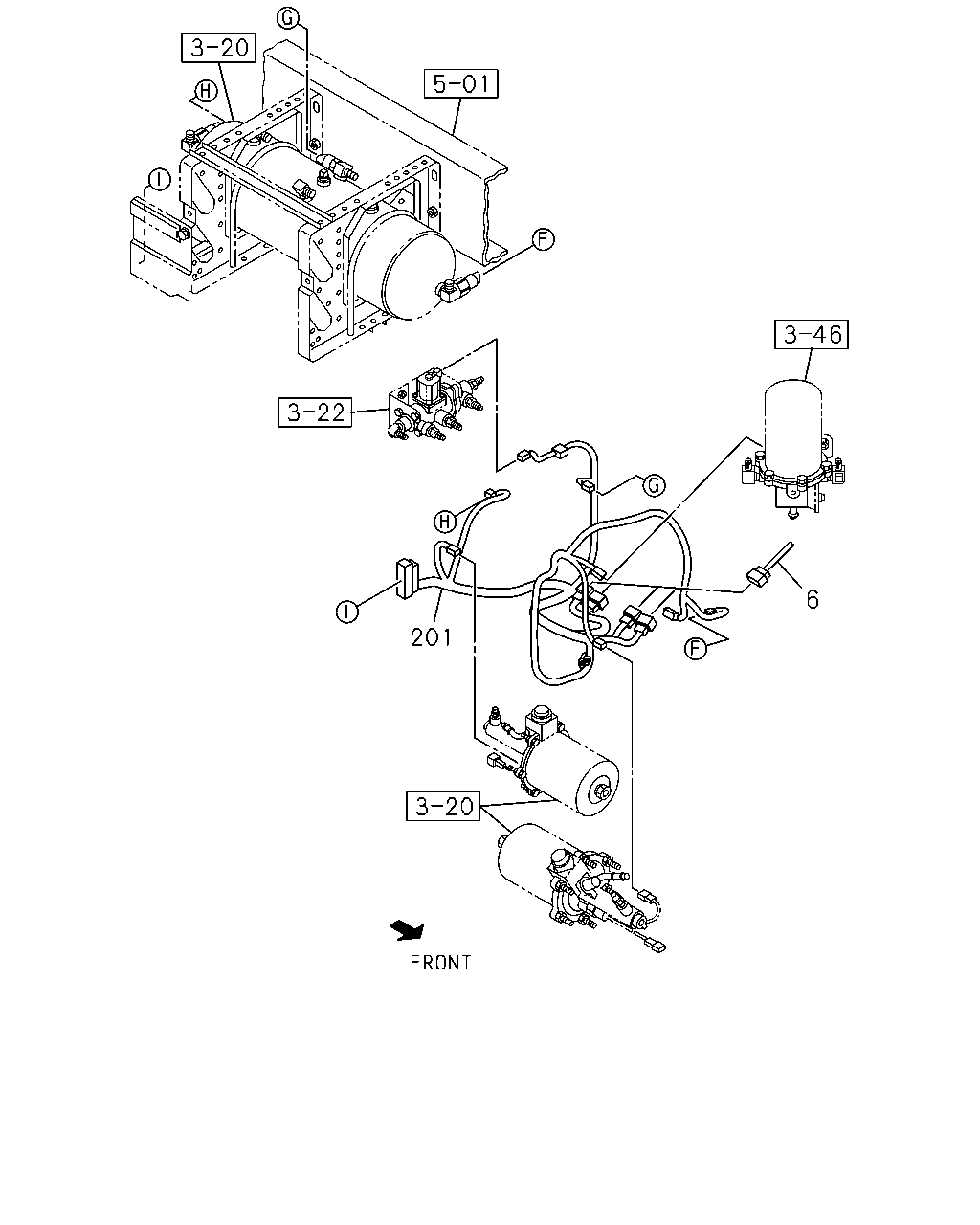

çizim 174660
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
201 HARNESS; AIR TANK
IDN 		8-98182-516-0 01 1 1103-

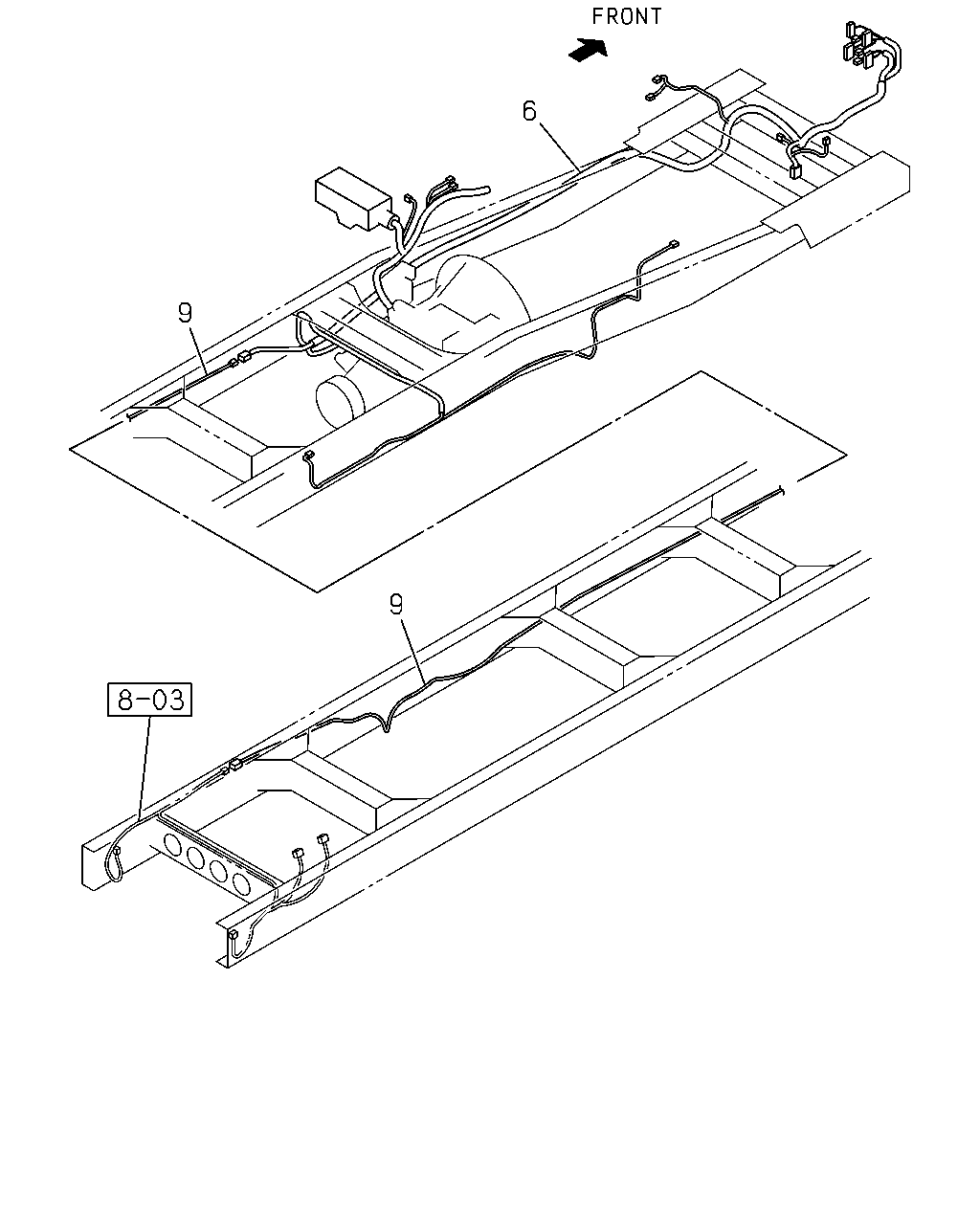

çizim 174662
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
9 HARNESS; FRAME,RR
IDN 		8-98182-514-0 01 1 1103-

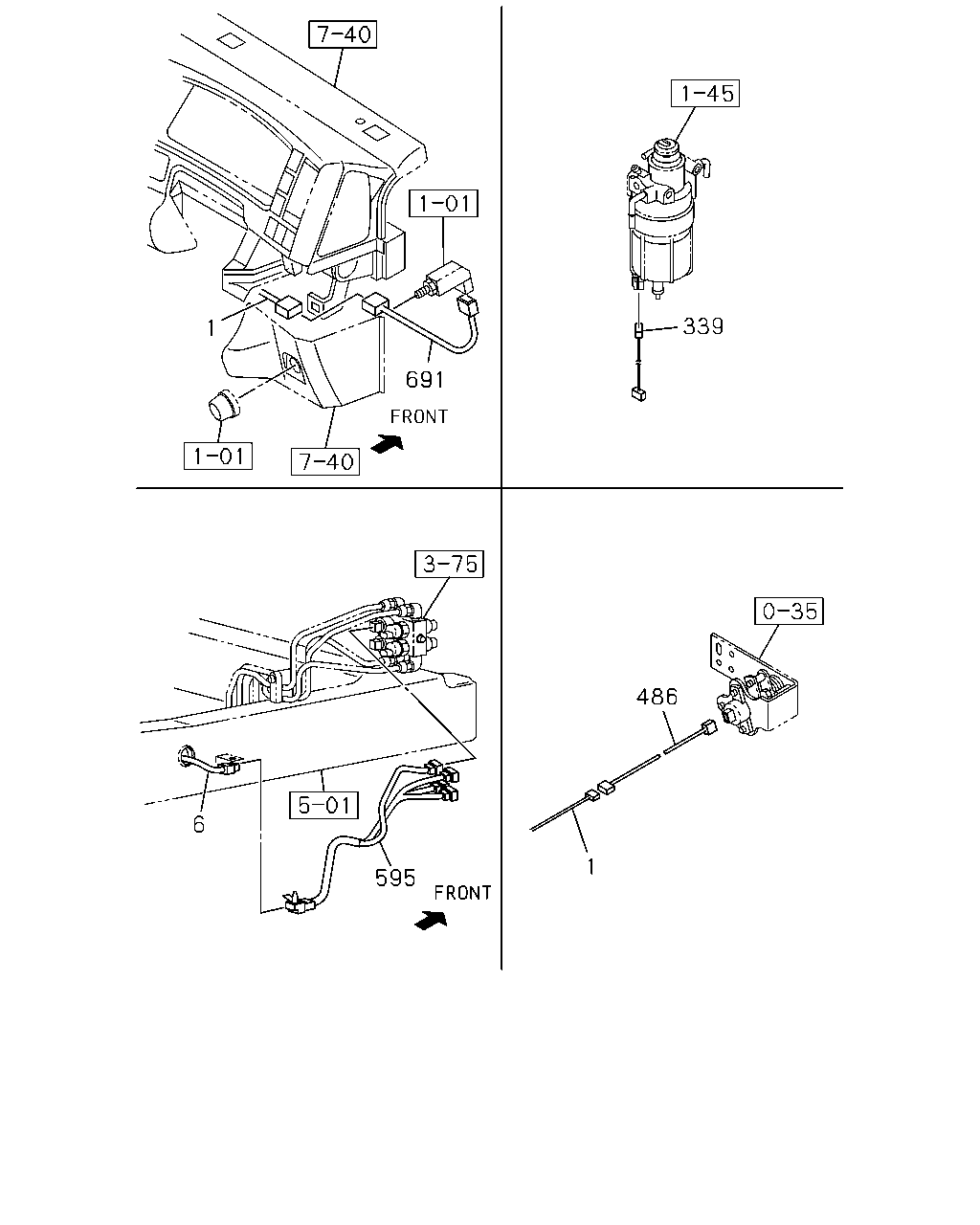

çizim 174664
339 1 691 486 6 1 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IDN 		8-98182-396-0 01 1 1103-
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
339 HARNESS; EXT,FUEL
IDN 		8-98118-331-1 01 1 1103-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1103-1112
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1103-
691 HARNESS; IDLE CONT
IDN 		8-98049-014-2 01 1 1103-

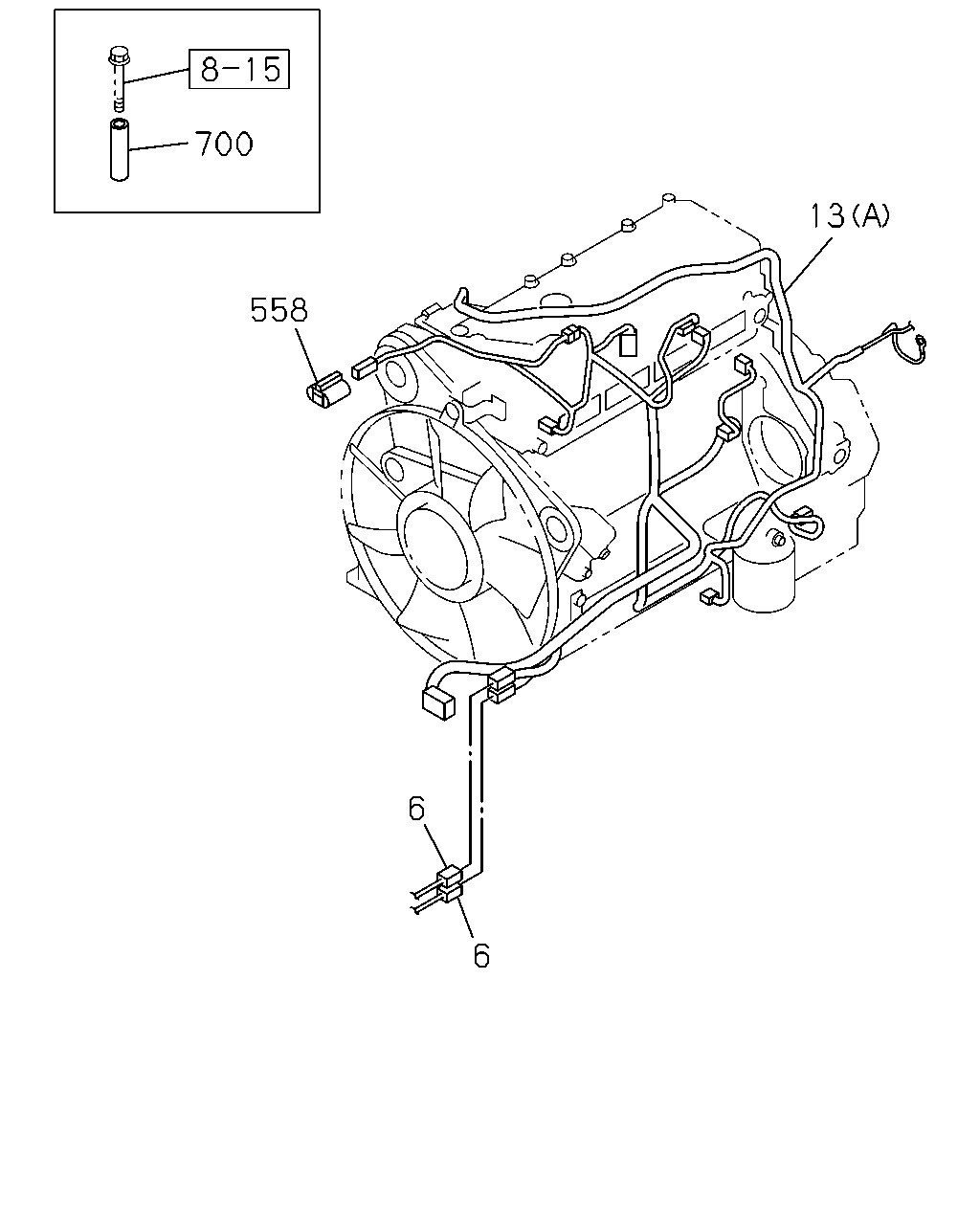

çizim 174666
700 13 558 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
13 HARNESS; ENG
(A) 		8-98077-326-3 01 1 1103-1105
13 HARNESS; ENG
(A) 		8-98171-999-4 01 1 1106-1312
13 HARNESS; ENG
(A) 		8-98255-586-0 01 1 1401-1405
13 HARNESS; ENG
(A) 		8-98274-033-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1103-
558 CONNECTOR; HARNESS 1-82690-668-0 01 1 1103-
700 TUBE; DISTANCE
L=105 		8-98084-726-0 01 1 1506-1506
700 TUBE; DISTANCE
L=51 		1-11369-157-0 01 1 1103-

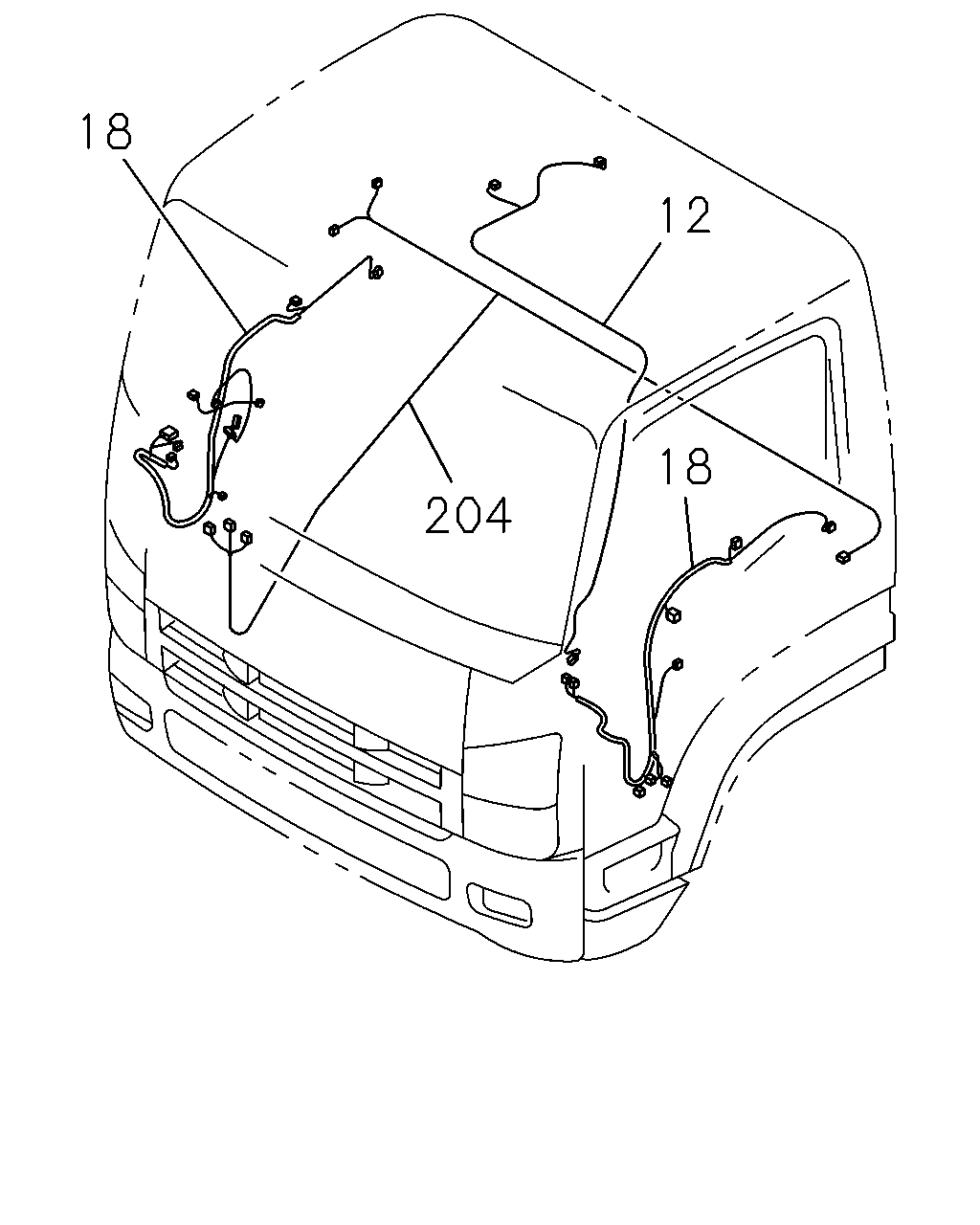

çizim 174667
18 12 18 204
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-98084-247-0 01 1 1103-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> IDN 		8-98041-948-2 01 1 1103-
18 HARNESS; DOOR
DRIVER IDN 		8-98076-304-3 01 1 1103-
18 HARNESS; DOOR
PASSENGER IDN 		8-98076-305-3 01 1 1103-
204 HARNESS; CABLE,FLOOR
IDN 		8-98182-446-0 01 1 1103-

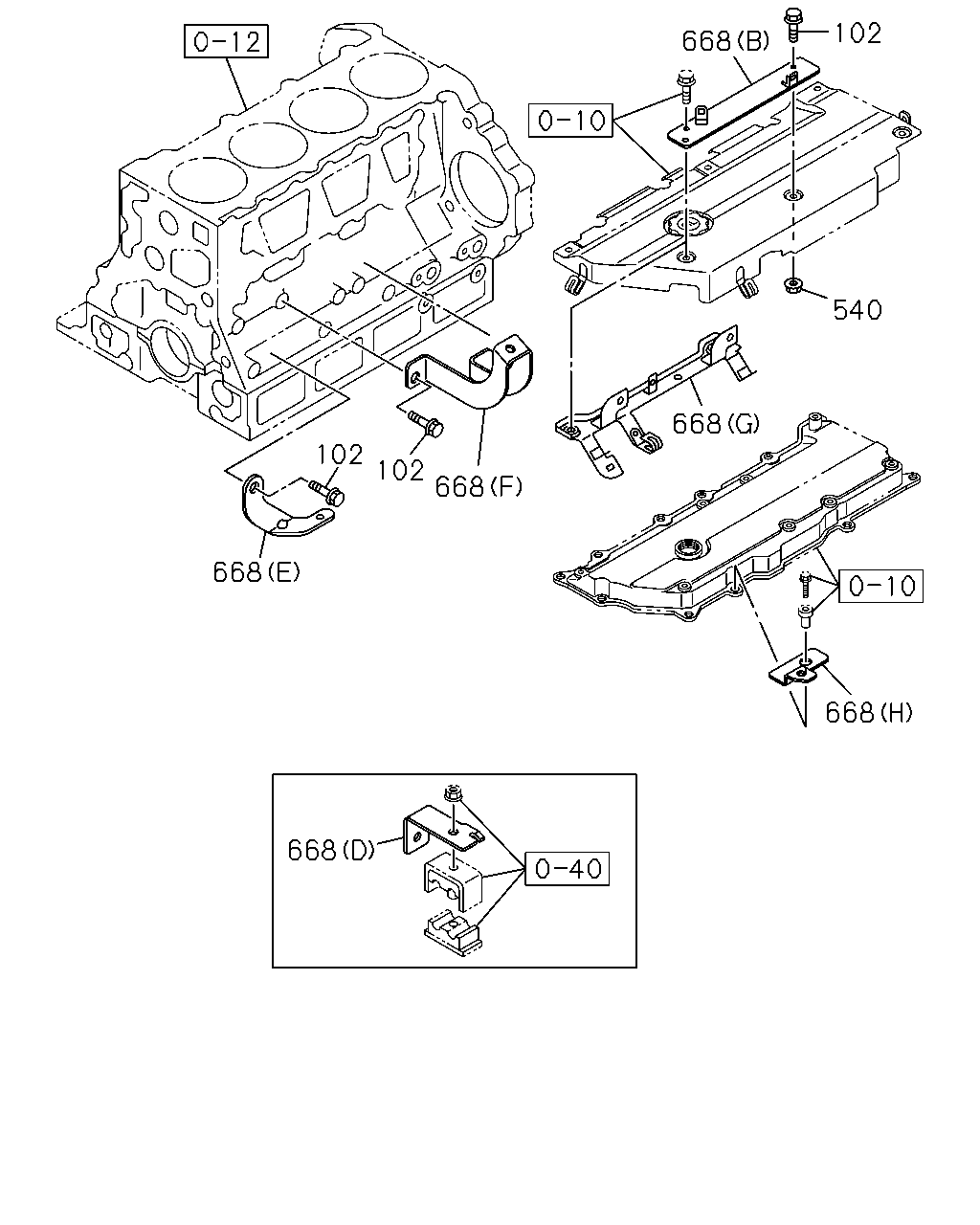

çizim 174668
102 668 668 102 668 668 668 540 102 668
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 1103-1105
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1103-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1103-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 1103-1105
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 1106-1312
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103-
668 BRACKET; HARNESS
(B) 		8-98022-106-2 01 1 1103-1105
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1106-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1103-

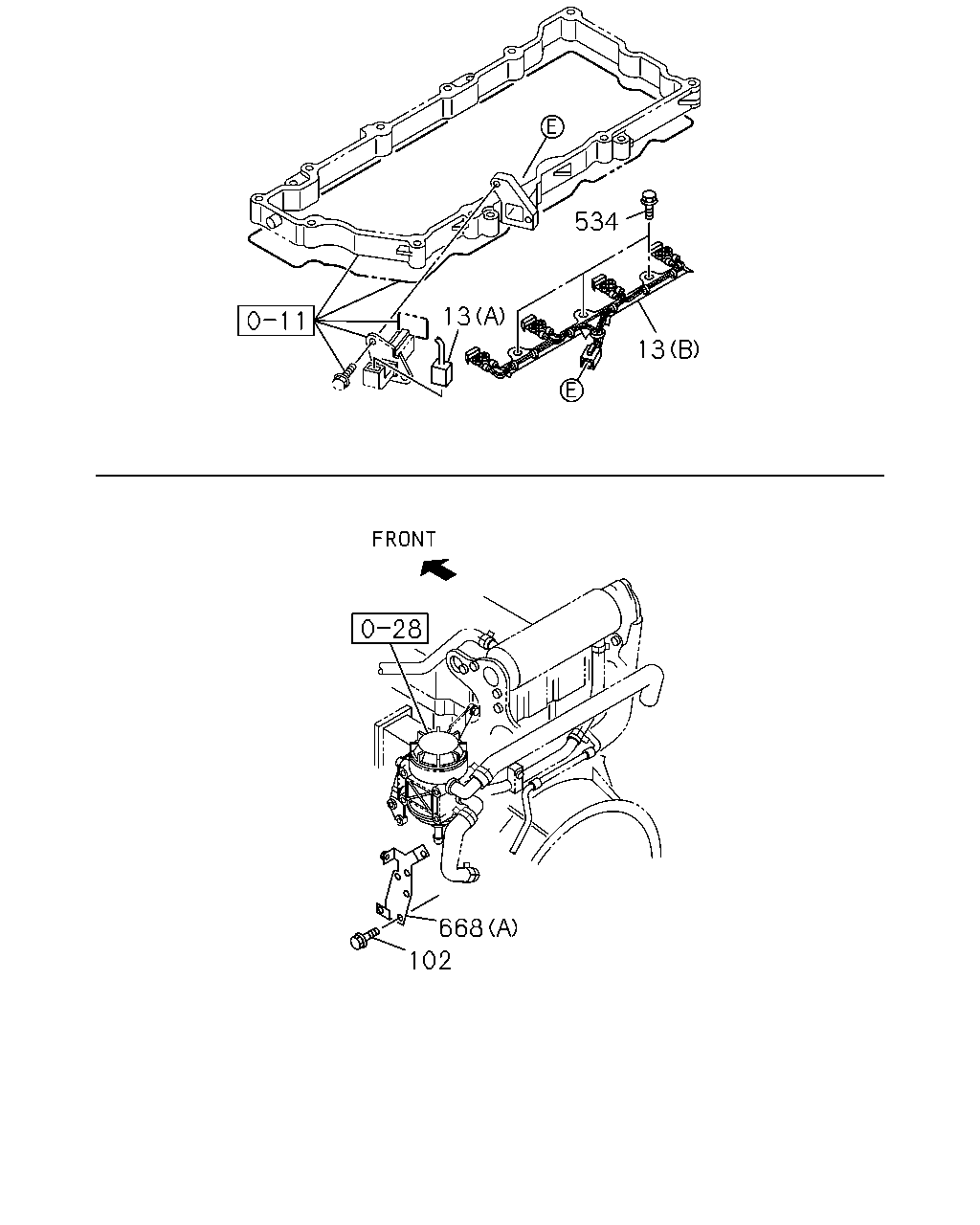

çizim 174669
13 534 13 668 102
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(A) 		8-98077-326-3 01 1 1103-1105
13 HARNESS; ENG
(A) 		8-98171-999-4 01 1 1106-1312
13 HARNESS; ENG
(A) 		8-98255-586-0 01 1 1401-1405
13 HARNESS; ENG
(A) 		8-98274-033-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1103-
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 1103-1105
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1103-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1103-
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 1103-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103-
668 BRACKET; HARNESS
(B) 		8-98022-106-2 01 1 1103-1105
668 BRACKET; HARNESS
(G) 		8-98061-805-2 01 1 1106-1312
668 BRACKET; HARNESS
(H) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103-
668 BRACKET; HARNESS
(C) 		8-98095-653-2 01 1 1103-

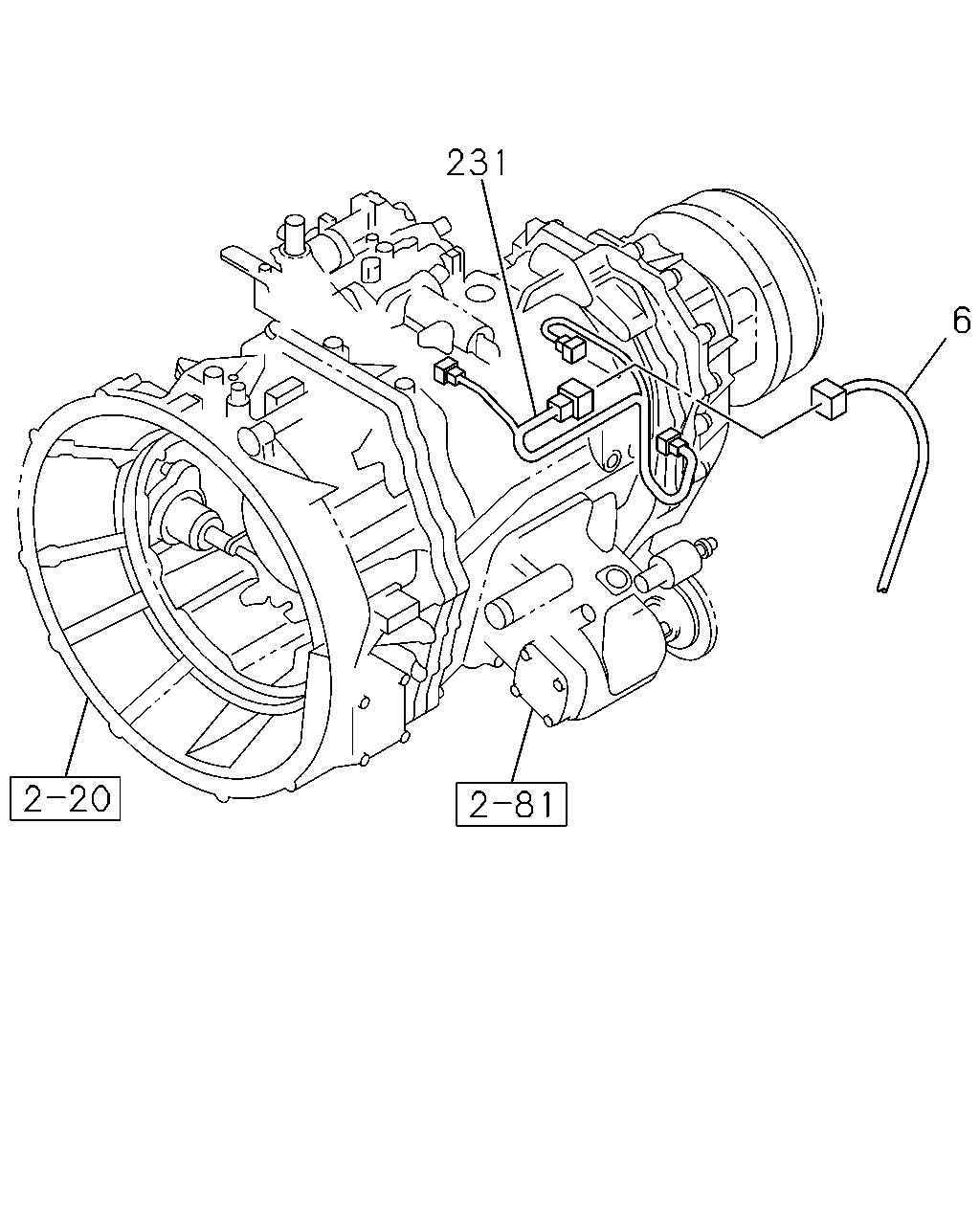

çizim 174674
231 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
IDN 		8-98185-238-2 01 1 1103-
231 HARNESS; TRANS
IDN 		8-98170-740-0 01 1 1103-

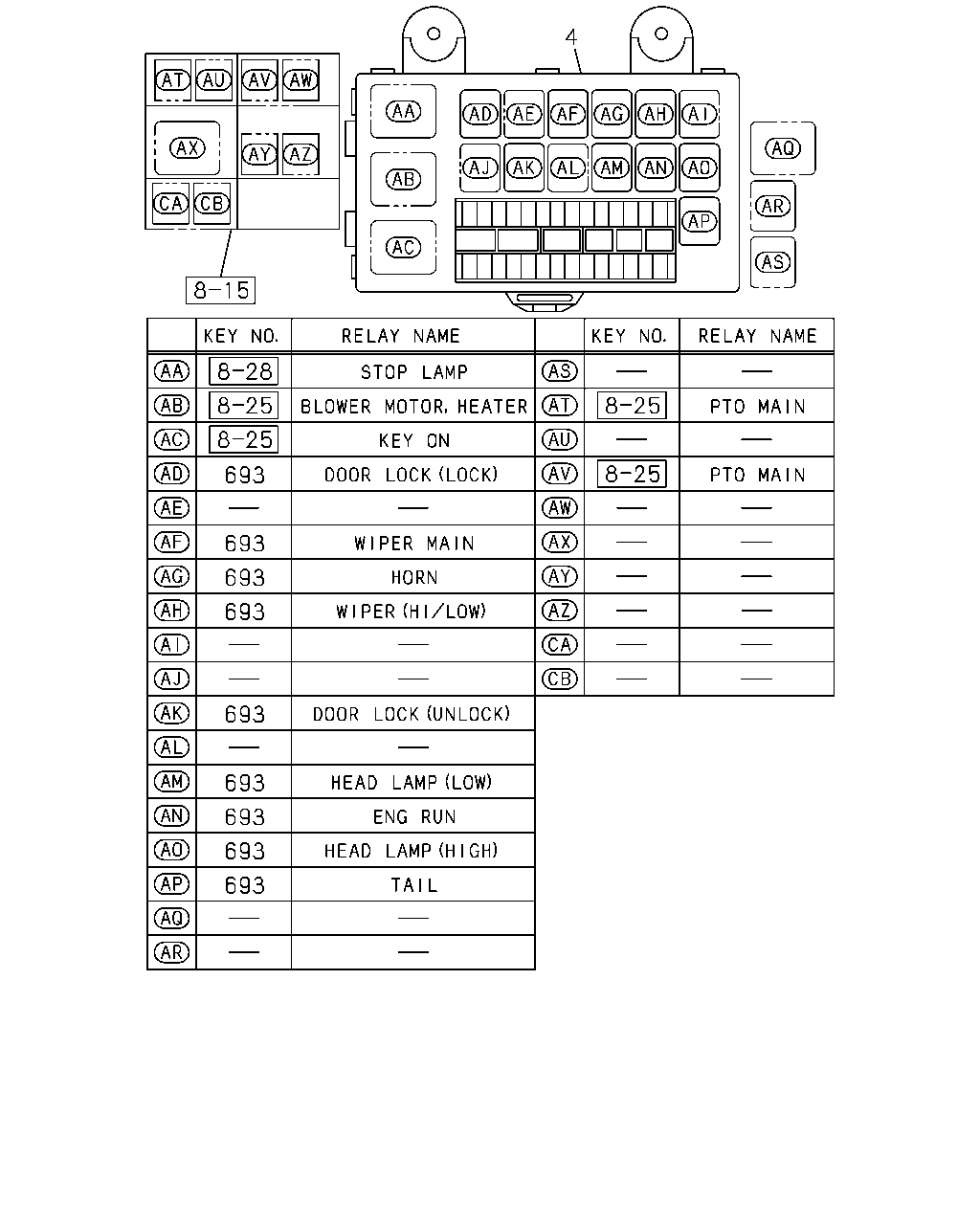

çizim 414139
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
IDN 		8-98065-666-0 01 1 1103-
693 RELAY; FUSE BOX
24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1103-
