◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#6222) — 20 parça

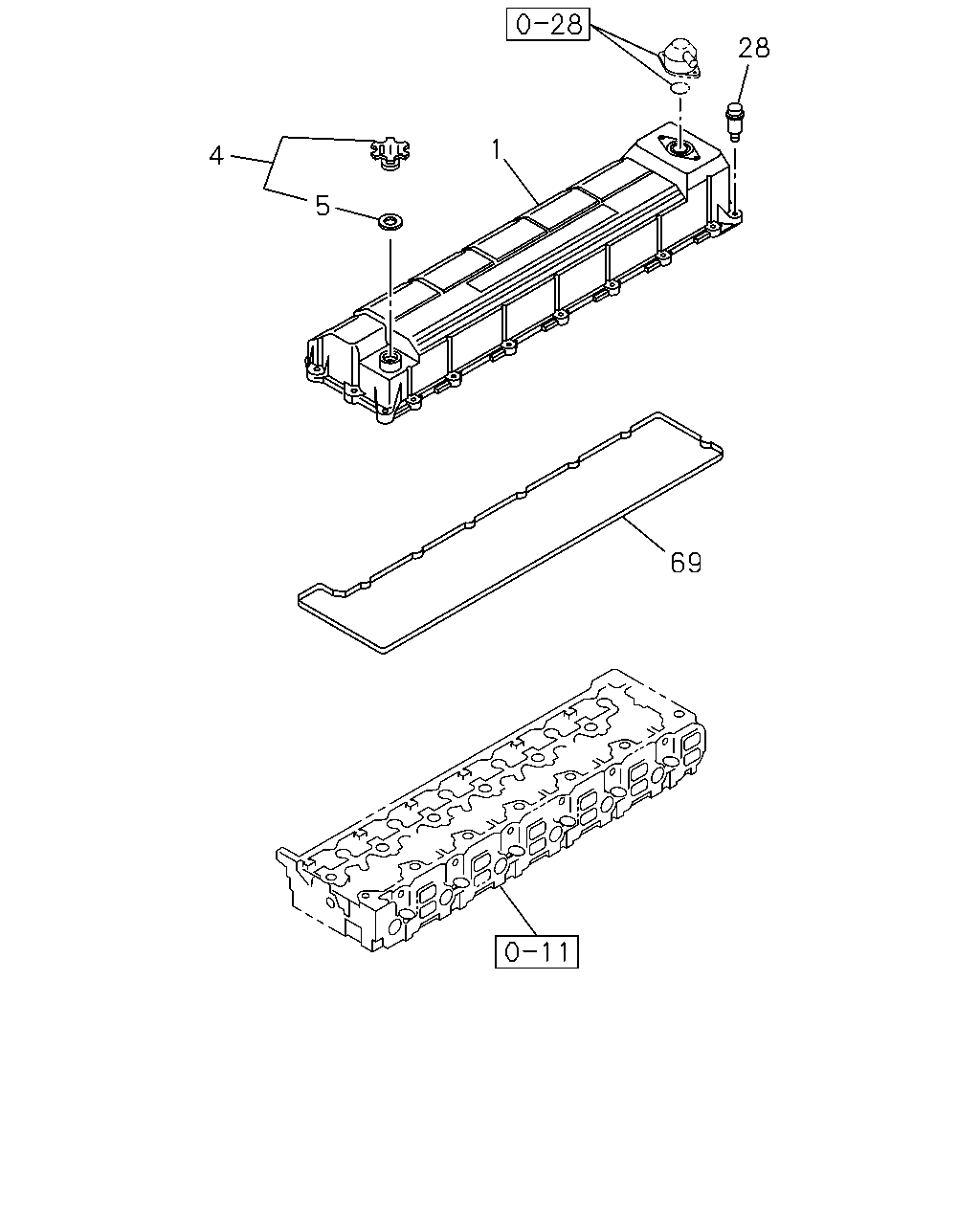

çizim 7983
28 1 4 5 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD 1-11180-416-0 01 1 9906-9906 ● ● ●
1 COVER; CYL HD 1-11180-416-0 01 1 9907- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9906-9906 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9907- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9906-9906 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9907- ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9906-9906 ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9907- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9906-9906 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9907- ● ●

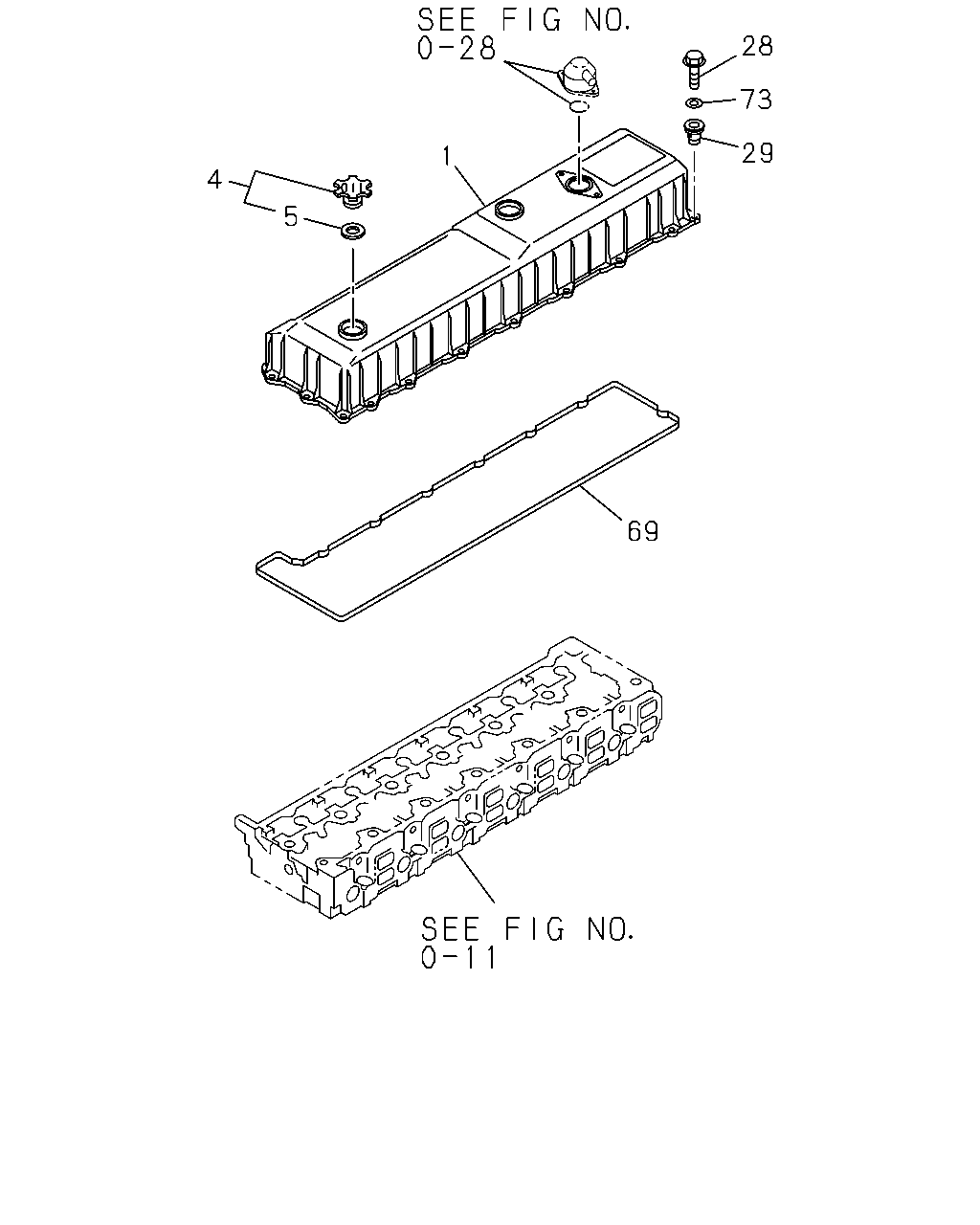

çizim 46565
28 73 29 1 4 5 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COVER; CYL HD 1-11180-416-0 01 1 9906-9906 ● ● ●
1 COVER; CYL HD 1-11180-416-0 01 1 9907- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9906-9906 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9907- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9906-9906 ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9907- ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9906-9906 ● ● ●
28 BOLT; HD COVER 1-09040-103-0 20 1 9907- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9906-9906 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-080-0 01 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
