Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

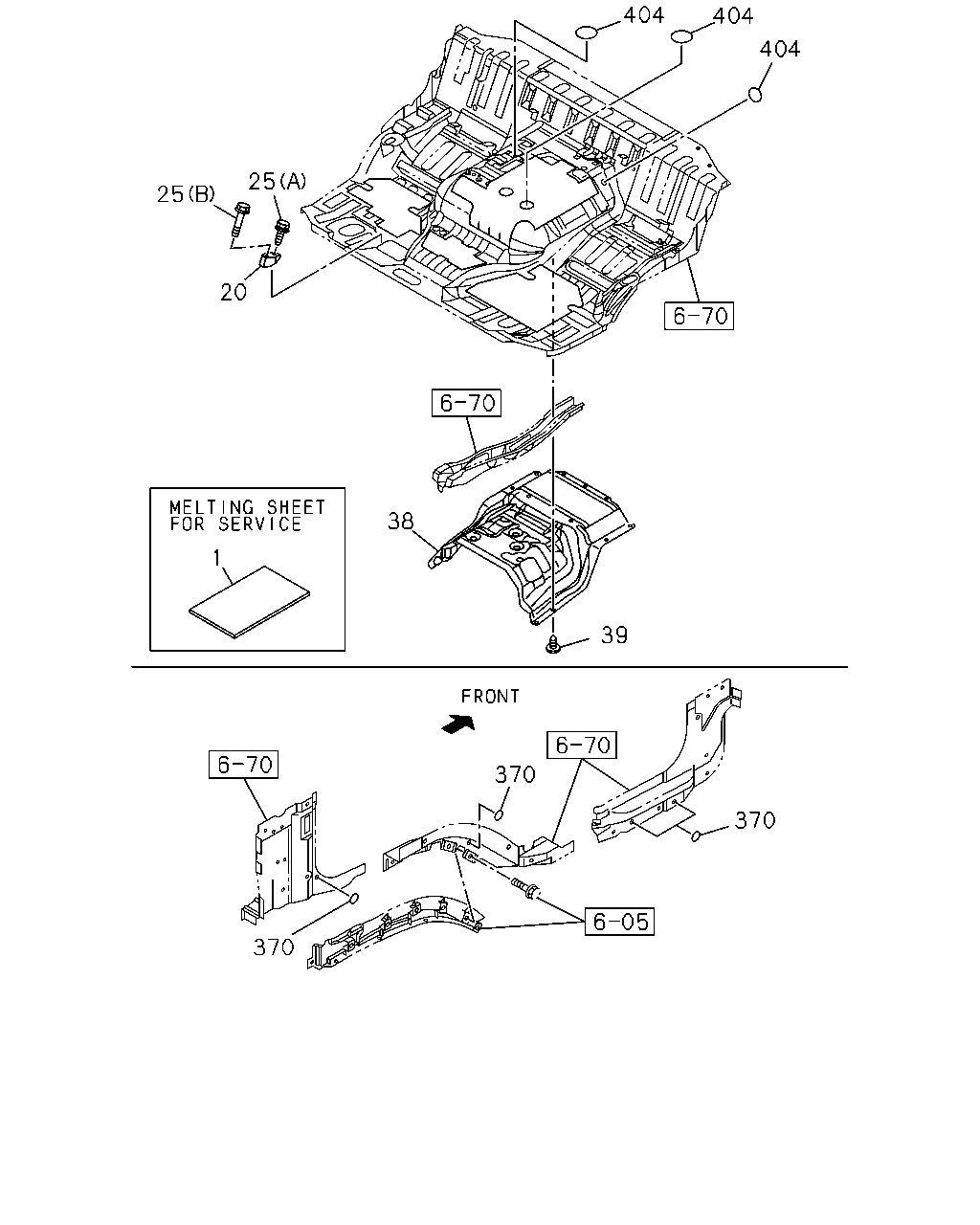

6-76 — FLOOR EQUIPMENT AND SEALING
(#62211) — 11 parça
404
404
404
25
25
20
38
1
39
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1103-
20
REST; FOOT
1-73907-176-1
01
1
1103-
25
SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1103-
25
SCREW; FOOT REST
(B) M6X47
8-94407-876-1
01
1
1103-
38
INSULATOR; ENG COVER
8-98180-258-0
01
1
1103-1310
38
INSULATOR; ENG COVER
8-98248-305-0
01
1
1311-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
17
1
1103-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1103-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
02
1
1103-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1103-
