◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#62200) — 48 parça

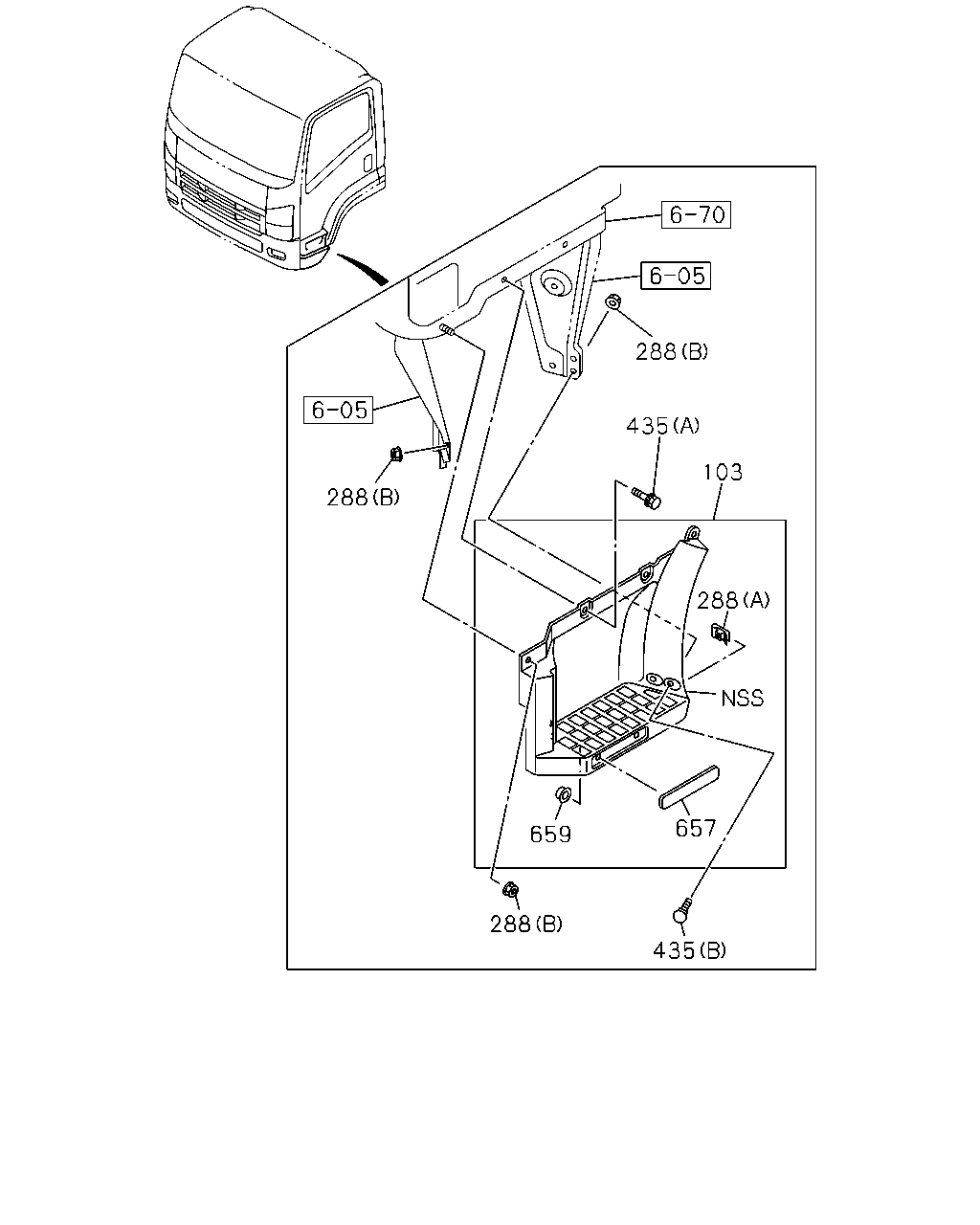

çizim 174605
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-329-3 01 1 1103-
103 PLATE; STEP 8-98037-327-3 01 1 1103-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1103-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1103-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1103-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1103-
657 REFLECTOR; REFLEX
IDN 		8-97378-910-0 02 1 1103-
659 CLIP; SPRING NUT
IDN 		8-97811-510-0 04 1 1103-

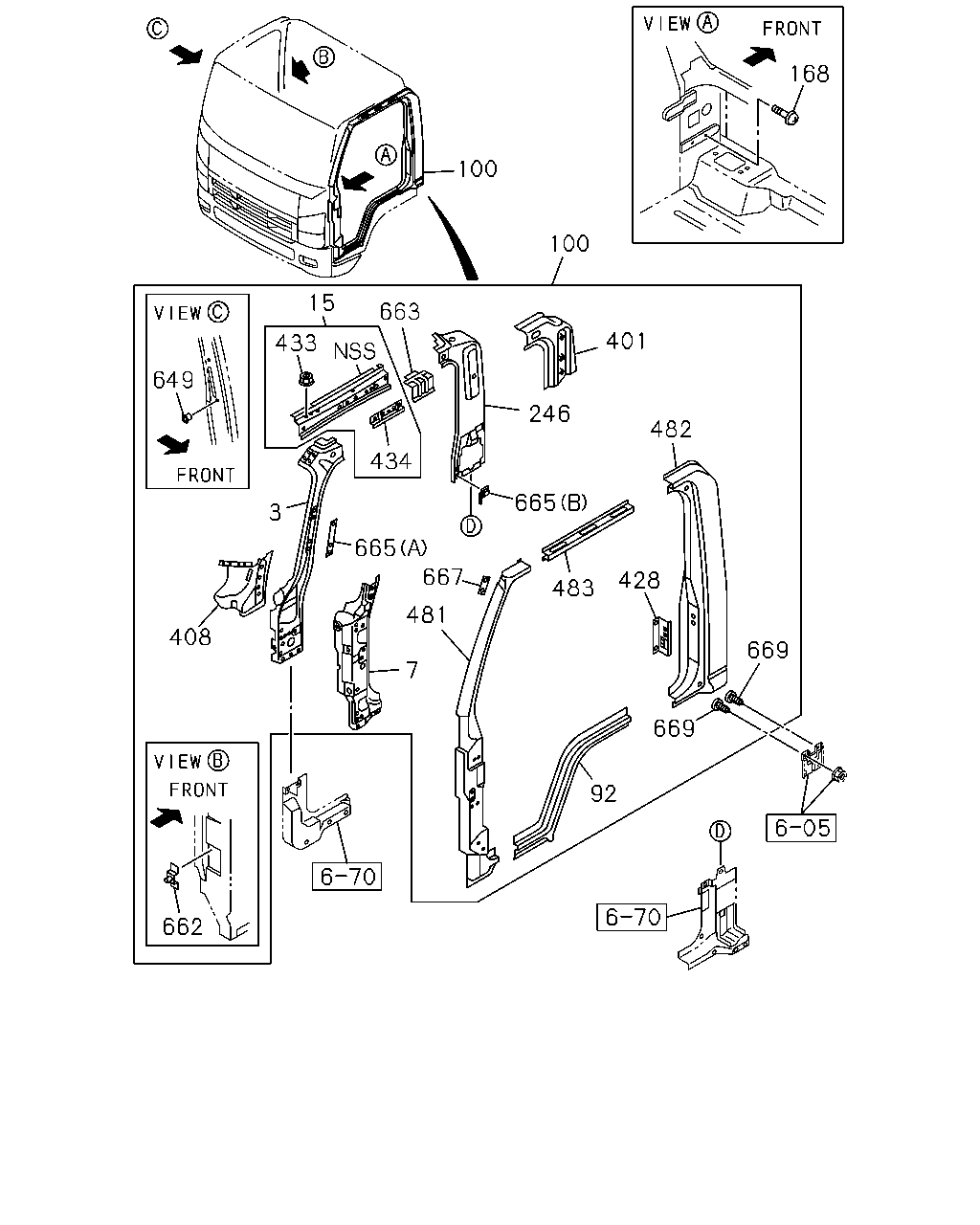

çizim 174606
168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
IDN 		8-98058-237-1 01 1 1103-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1103-
7 REINFORCEMENT; HINGE
IDN 		8-97585-244-4 01 1 1103-
7 REINFORCEMENT; HINGE
IDN 		8-97585-240-3 01 1 1103-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1103-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1103-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1103-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1103-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-98185-954-0 01 1 1103-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-027-6 01 1 1103-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98103-332-1 01 1 1103-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-028-6 01 1 1103-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1103-
246 PANEL; RR PILLAR,INNER
IDN 		8-97585-301-3 01 1 1103-
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1103-
401 PATCH; CLOSING,FRT PILLAR
IDN 		8-97585-303-2 01 1 1103-
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 1103-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1103-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1103-
428 REINFORCEMENT; DOOR STRIKER
IDN 		8-97585-261-4 01 1 1103-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1103-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1103-
434 PATCH; ASSIST GRIP
IDN 		8-98039-020-0 01 1 1103-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-580-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 1103-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 1103-
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 1103-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1103-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1103-
649 NUT; POP
M5 POP NUT IDN 		8-97249-574-0 02 1 1103-
662 BRACKET; DUCT
IDN 		8-97584-611-1 01 1 1103-
663 BRACKET; AIR
IDN 		8-97585-208-2 01 1 1103-
663 BRACKET; AIR 8-97585-207-2 01 1 1103-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1103-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1103-
667 BRACKET; MIRROR 8-98109-948-0 03 1 1103-
669 STUD; FENDER
M8X18 		8-98013-113-1 04 1 1103-
