9-01 — TOOLS (#6220) — 150 parça

50 51 52 53 54 57 61 70 70 73 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	9905-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	9905-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	9905-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	9905-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	9905-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	9905-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9905-0602
70	TOOL; SETTING,OIL SEAL (A)	1-85220-043-0	01	1	9905-1108
70	TOOL; SETTING,OIL SEAL (B)	8-98194-608-0	AR	1	1109-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	9905-
75	TOOL; SETTING,OIL SEAL	1-85220-049-0	01	1	9905-

85 87 82 84 102 93 89 95 167 296 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	9905-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	9905-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	9905-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	9905-
87	TOOL; PISTON	1-85220-059-0	01	1	9905-
89	TOOL; PISTON RING	1-85221-025-0	01	1	9905-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9905-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	9905-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	9905-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	9905-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9905-0602
296	REPLACER; SLINGER	1-85210-027-0	01	1	9905-0602
296	REPLACER; SLINGER	1-85210-027-0	AR	1	0603-

1 108 124 128 129 130 130 130 135 130 130 141 141 141 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9905-0104
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0105-0602
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0603-
108	WRENCH; SOCKET	9-85113-132-0	01	1	0603-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9905-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9905-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9905-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	9905-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9905-0602
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9905-0602
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9905-0602
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9905-0602
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9905-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0603-1501
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9905-0602
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9905-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9905-0602
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9905-0602
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	9905-

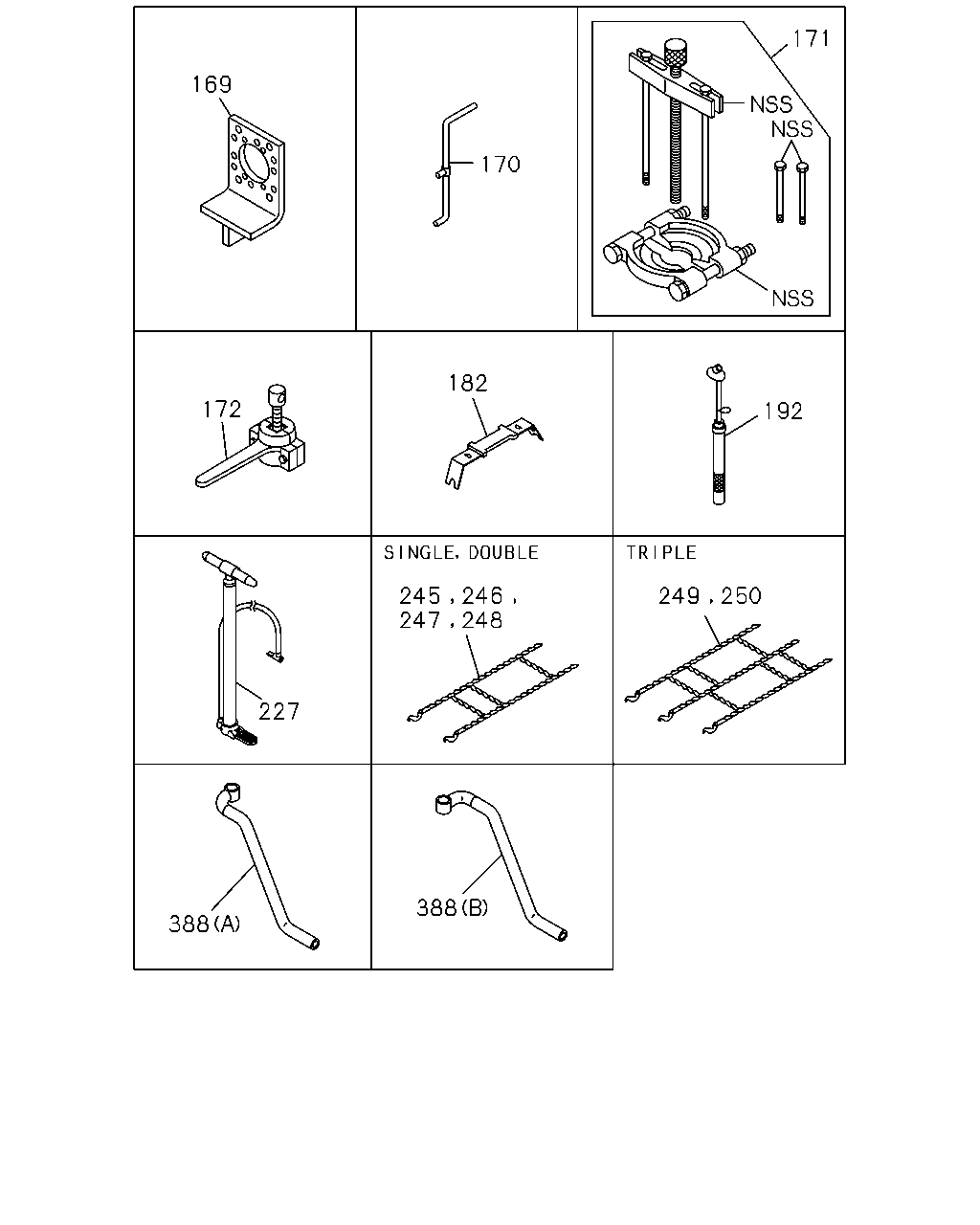

171 169 170 182 172 192 246 248 245 247 249 250 227 388 388

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9905-0301
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0302-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9905-0602
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9905-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9905-
182	REMOVER ASM	1-85239-008-0	01	1	9905-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9905-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9905-9908
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9909-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-0104
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0105-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0603-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9905-0104
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	9905-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9905-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9905-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0603-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0603-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	9905-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	9905-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9905-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9905-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0603-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0603-

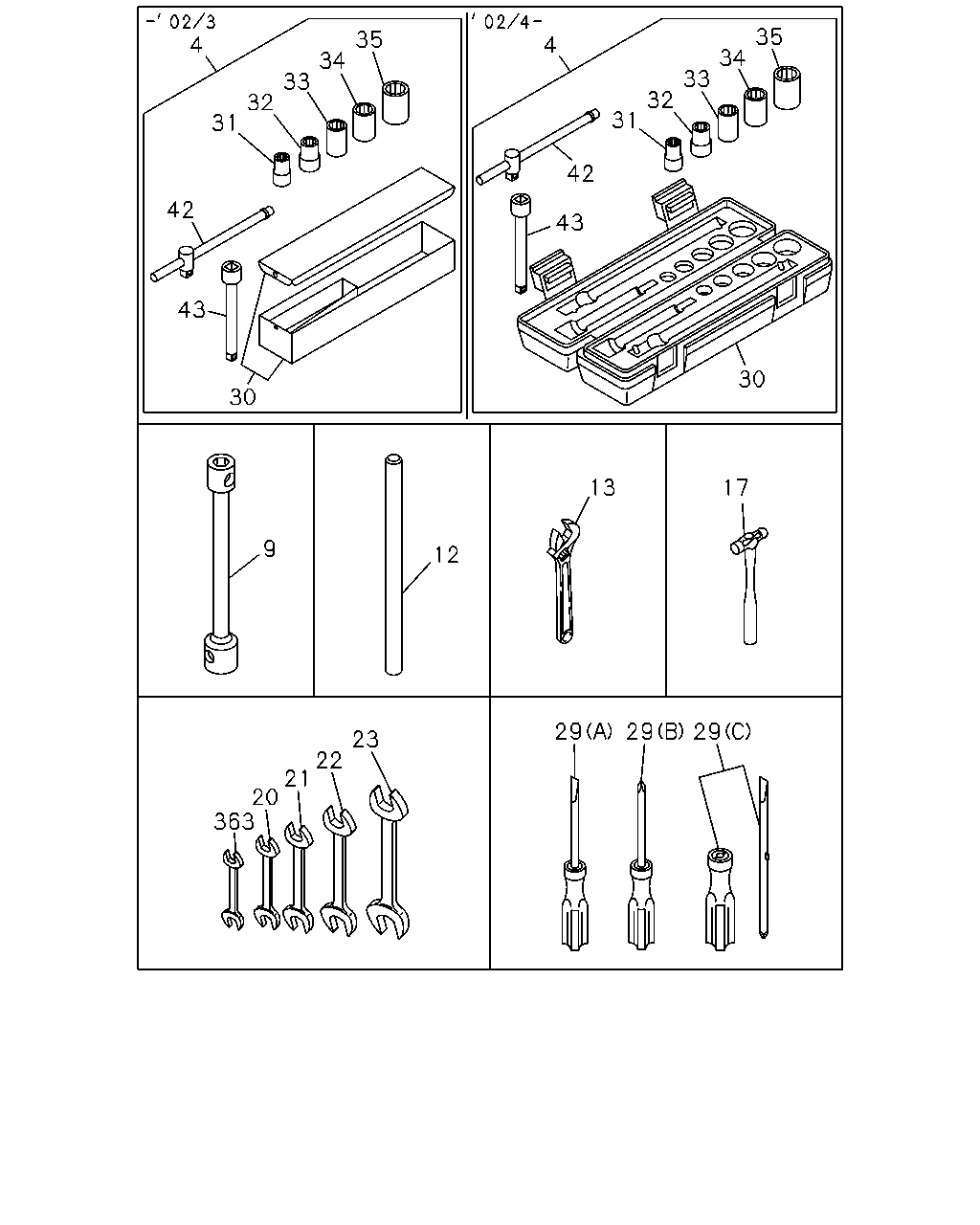

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9905-0104
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	9-85110-012-0	01	1	0105-0203
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9905-0104
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0105-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0603-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9905-0104
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0105-0602
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9905-0104
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0105-0907
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0908-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	9905-0104
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0105-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9905-0104
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0105-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9905-0104
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0105-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9905-0104
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0105-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9905-0104
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0105-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9905-0104
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0105-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9905-0104
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	9905-0104
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0105-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9905-0104
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	9-85581-260-0	01	1	0105-0203
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	9905-0104
31	WRENCH; 12 TOOL B KIT<SL1>	9-09590-012-0	01	1	0105-0203
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	9905-0104
32	WRENCH; 14 TOOL B KIT<SL1>	9-09590-014-0	01	1	0105-0203
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	9905-0104
33	WRENCH; 17 TOOL B KIT<SL1>	9-09590-017-0	01	1	0105-0203
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	9905-0104
34	WRENCH; 19 TOOL B KIT<SL1>	9-09590-019-0	01	1	0105-0203
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	9905-0104
35	WRENCH; 22 TOOL B KIT<SL1>	9-09590-022-0	01	1	0105-0203
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	9905-0104
42	HANDLE; SLIDING TOOL B KIT<SL1>	9-09590-512-0	01	1	0105-0203
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9905-0104
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	9-09590-812-0	01	1	0105-0203
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	9905-0104
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0105-0607
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-

40 39 38 37 115 36 189 193 237 208 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	9905-
37	WRENCH; 27	9-85111-375-0	01	1	9905-
38	WRENCH; 32	9-85111-358-0	01	1	9905-
39	WRENCH; 36	9-85111-374-0	01	1	9905-
40	WRENCH; 41	9-85111-356-0	01	1	9905-
115	PLIER	5-85171-001-0	01	1	9905-0104
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0105-0212
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9905-0104
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0105-
193	JACK ASM 15TON	1-85510-019-1	01	1	9905-0104
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	0105-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9905-0104
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-008-0	01	1	0105-0105
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0106-1107
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-
230	PUMP; GREASE	1-85556-007-2	01	1	9905-0104
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0105-
237	BAG; TOOL	8-97130-902-0	01	1	9905-0104
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-1	01	1	0105-
