◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#6219) — 49 parça
çizim 37795
62 63 49 48 52 215 68 215 52 48 215 49
BalonParca AdiParca NoAdetTipApplied Date
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 9905-0605
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		8-98046-216-0 02 1 0606-
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-057-0 02 1 9905-0310
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-075-1 02 1 0311-
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 9905-0308
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 9905-0308
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-073-0 02 1 0309-0905
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-073-0 02 1 0309-0905
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98140-326-1 02 1 0906-
49 SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER 		8-94279-400-0 08 1 9905-
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 9905-0104
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 08 1 0105-
52 GROMMET; SCREW,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9905-
62 BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73347-749-4 01 1 9905-
62 BOX; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> 		1-73347-748-4 01 1 9905-
63 SCREW; RR SPEAKER BOX
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9905-
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-786-2 01 1 9905-
68 BRACKET; RR SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> 		1-73347-785-2 01 1 9905-
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9905-
215 SCREW; BRKT,SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9905-

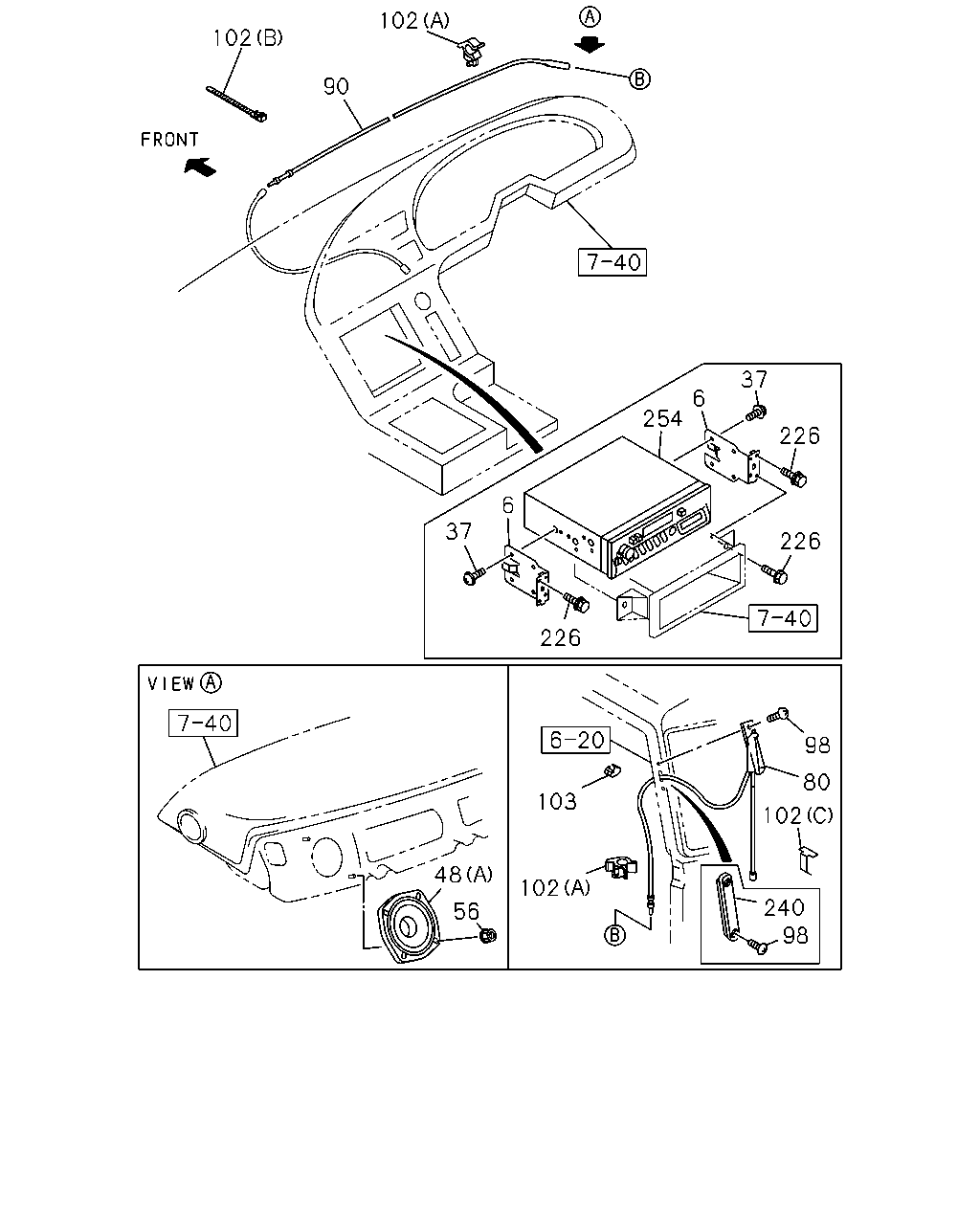

çizim 38266
102 90 102 37 254 6 6 37 226 226 226 48 56 103 102 98 80 102 240 98
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9905-0612
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701-
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9905-0604
37 SCREW; CASSETTE & RADIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		1-84114-062-0 02 1 9905-0605
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> (A) 		8-98046-216-0 02 1 0606-
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-057-0 02 1 9905-0310
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-84114-075-1 02 1 0311-
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 9905-0308
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-050-0 02 1 9905-0308
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-073-0 02 1 0309-0905
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		1-84114-073-0 02 1 0309-0905
48 SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) 		8-98140-326-1 02 1 0906-
56 NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE 		1-09984-170-0 04 1 9905-
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9905-1203
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204-
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9905-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9905-
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) W/PACKING ID=4.8 		1-73907-618-0 05 1 9905-
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 03 1 9905-
102 CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) L=140 		5-09707-031-1 01 1 9905-0301
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) L=140 		5-09707-031-1 01 1 0302-
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9905-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9905-
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION 		1-84122-032-3 01 1 9905-
