4-65 — REAR LEAF SPRING (#62189) — 24 parça

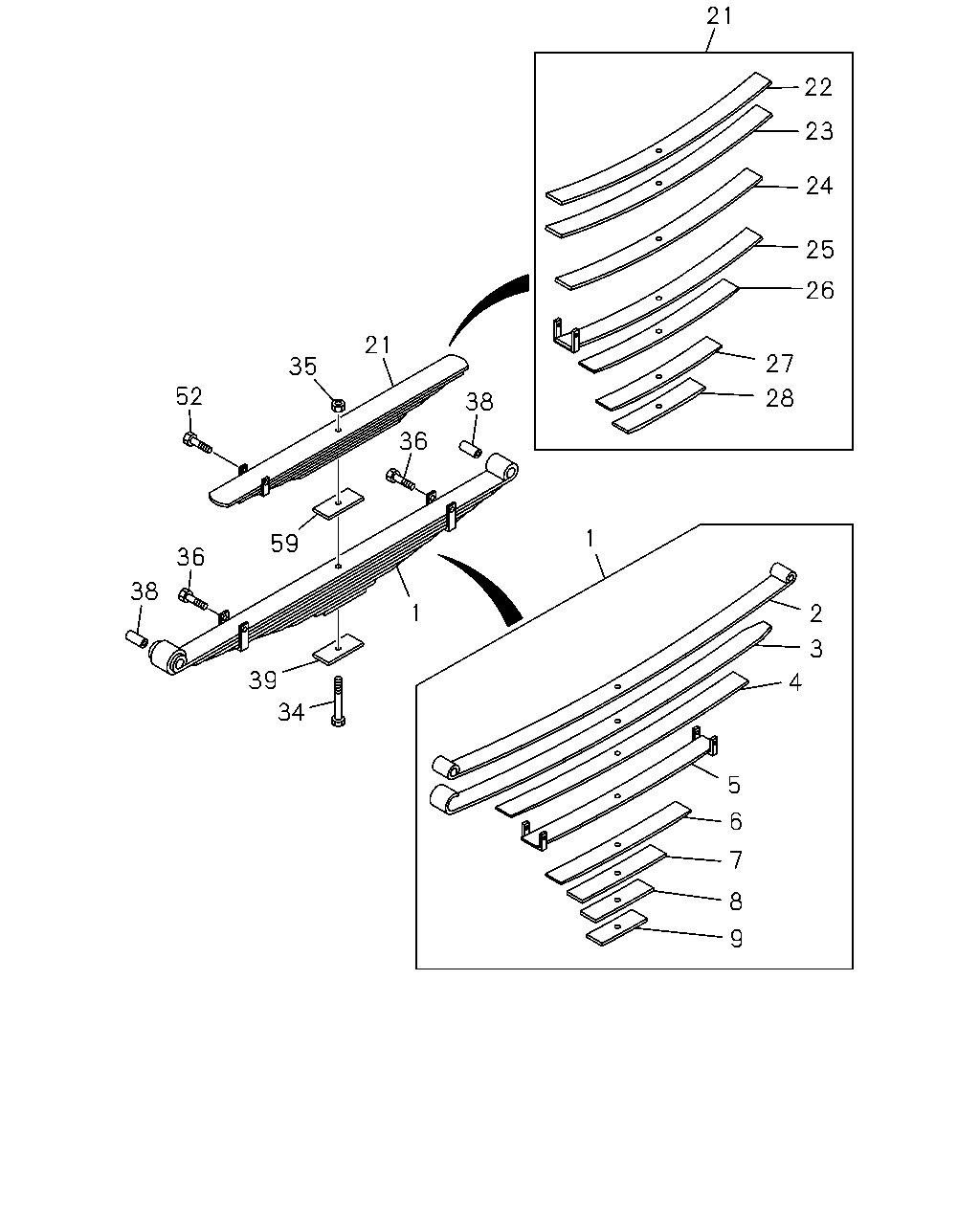

çizim 174585
21 22 23 24 25 26 21 27 35 52 28 38 36 1 59 36 38 1 2 3 39 4 34 5 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-643-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-635-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-636-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-637-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-638-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-639-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-640-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-641-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
IDN ASM PART: A = 8-98064-449-0 		8-98081-642-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-651-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-644-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-645-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-646-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-647-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-648-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-649-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
IDN ASM PART: A = 8-98064-449-0 		8-98081-650-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=190, IDN ASM PART: A = 8-98064-449-0 		1-51356-352-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12, IDN ASM PART: A = 8-98064-449-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X85, IDN ASM PART: A = 8-98064-449-0 		1-09000-366-0 02 1 -
38 BUSHING; LEAF SPR,RR
ID=25, IDN ASM PART: A = 8-98064-449-0 		9-51151-032-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
T=6, IDN ASM PART: A = 8-98064-449-0 		1-51377-359-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X85, IDN ASM PART: A = 8-98064-449-0 		1-09000-366-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6, IDN ASM PART: A = 8-98064-449-0 		1-51377-359-0 01 1 -
