3-70 — BRAKE PIPING; AIR,AIR MASTER (#62170) — 17 parça

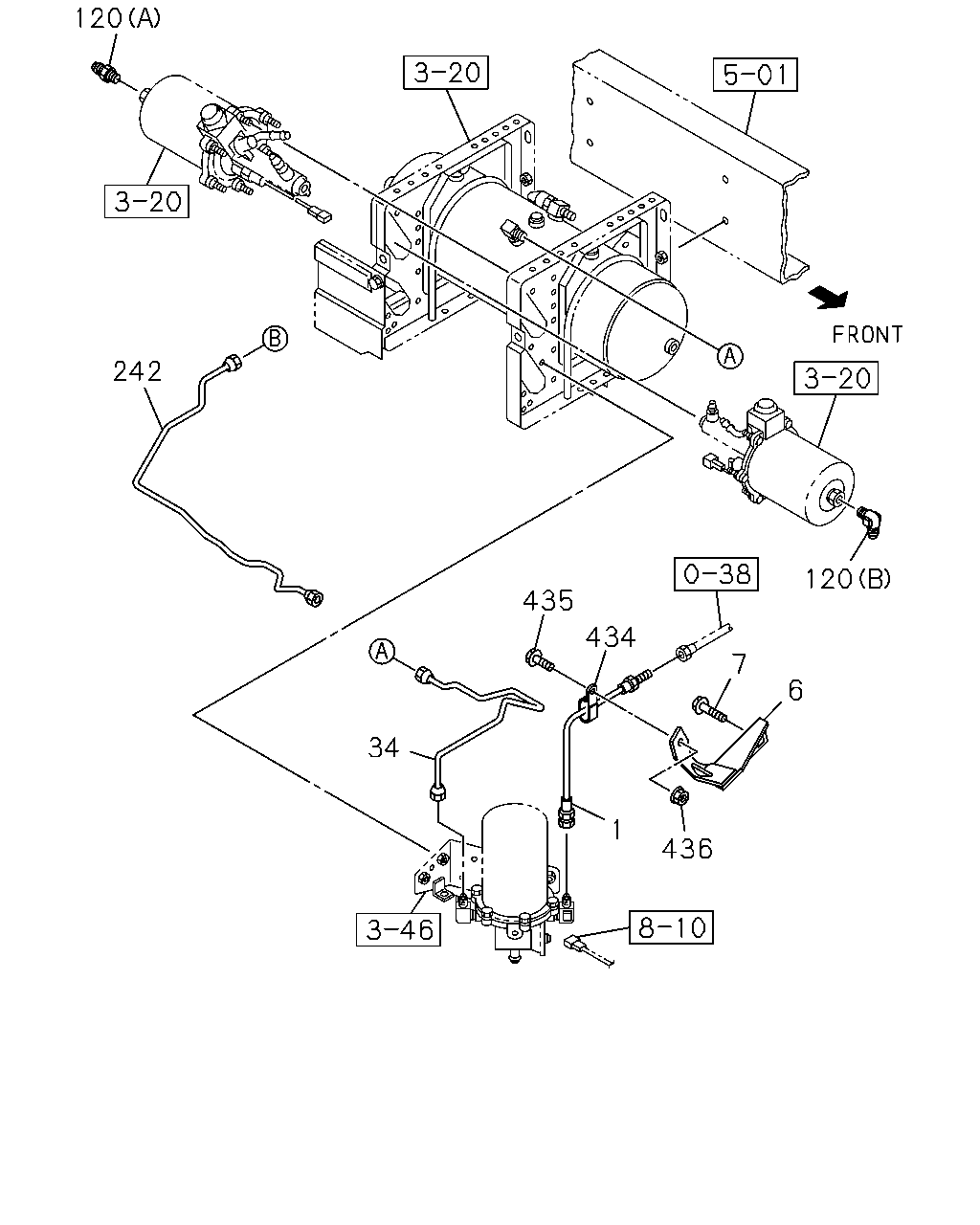

120 242 34 435 436 6 7 434 120 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1103-
6	BRACKET; FLEX HOSE,AIR TANK	8-98066-733-1	01	1	1103-1205
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1206-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE IDN	0-28650-825-0	02	1	1103-
34	PIPE; AIR L=659 SERVICED BY L=660	1-49115-480-0	01	1	1103-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1103-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1103-
242	PIPE; AIR,AIR TANK TO UNION L=557 SERVICED BY L=600	1-47428-809-0	01	1	1103-
434	CLIP ID=35 L=33	1-09700-945-0	01	1	1103-
435	BOLT; CLIP M8X25 FLANGE IDN	0-28650-825-0	01	1	1103-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-

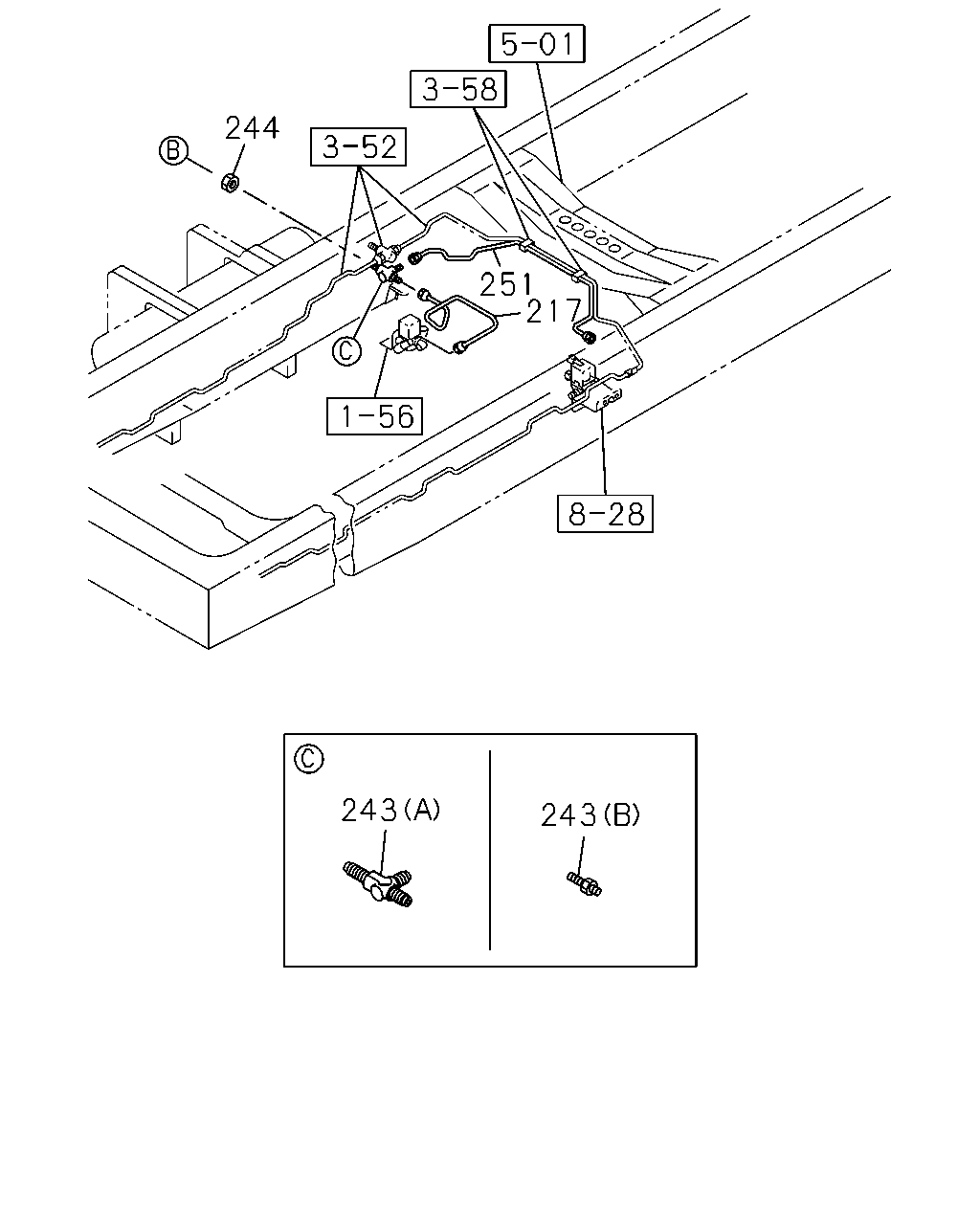

244 251 217 243 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV PTO CONTROL<SV6> L=265	8-98067-433-0	01	1	1103-
217	PIPE; VAC,UNION TO MAG VLV EXC. PTO CONTROL<SV6> L=289 IDN	8-98120-102-0	01	1	1103-
243	UNION; AIR PIPE PTO CONTROL<SV6> (A) M12 3WAY	0-92138-906-0	01	1	1103-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6> (B) M12 L=66.5	0-92113-306-0	01	1	1103-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1103-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1103-
