8-75 — CONDENSER (#6217) — 121 parça

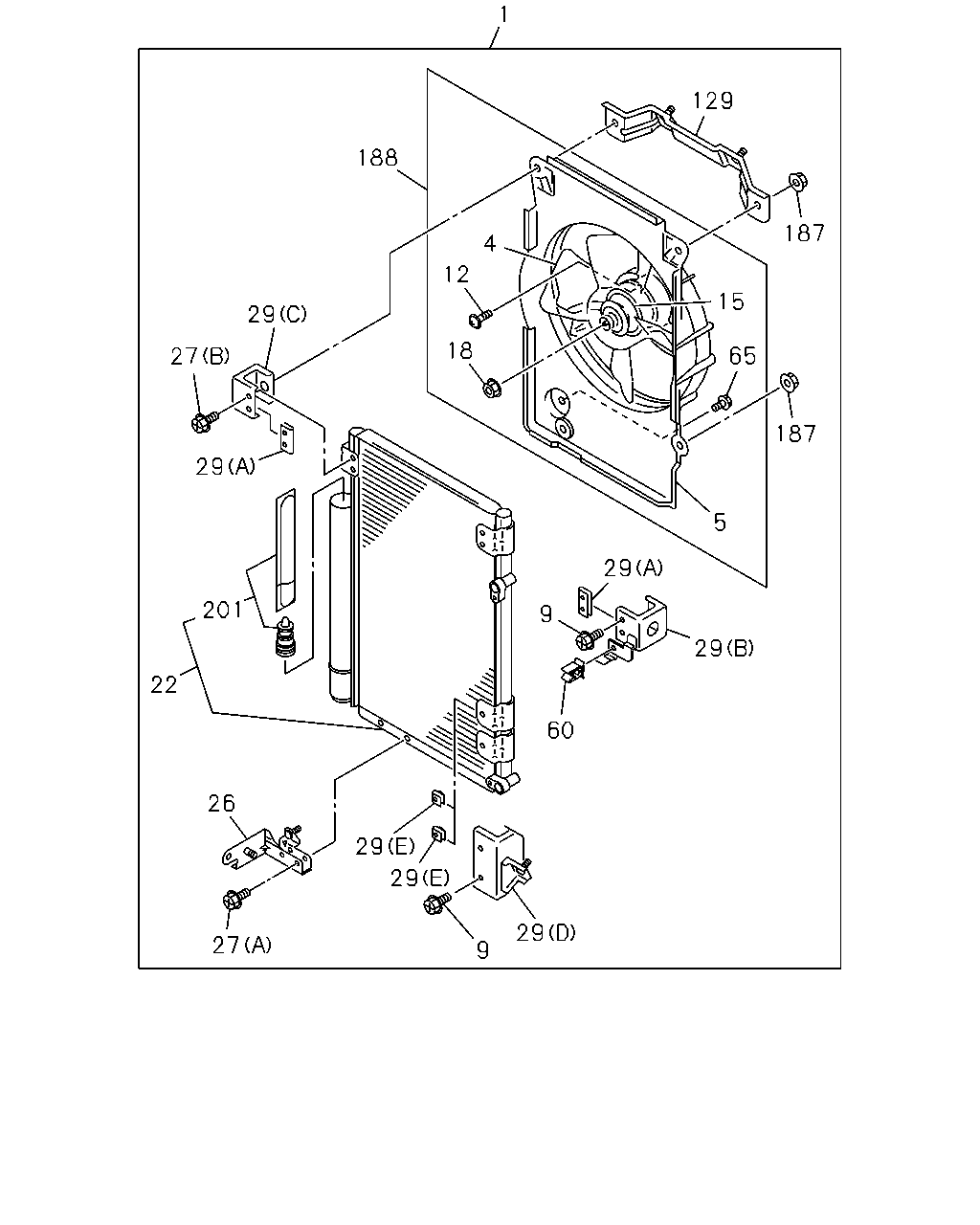

1 129 188 187 4 12 15 29 18 65 27 187 29 5 29 201 9 29 22 60 26 29 29 29 27 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9905-0104
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-206-2	01	1	0105-0509
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98024-412-1	01	1	0510-0703
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-088-1	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0509
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98014-458-0	01	1	0510-0703
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98078-763-0	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9905-0104
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0703
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-093-0	01	1	0704-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9905-0104
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0104-0104
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-
12	BOLT; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-314-0	03	1	0105-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0703
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-092-0	01	1	0704-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9905-0104
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9905-0104
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9905-0104
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-1	01	1	0105-
26	BRACKET; LOW AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-128-1	01	1	0105-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X16	8-97096-525-0	02	1	0105-
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X25	8-97178-770-0	02	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9905-0104
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9905-0104
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9905-0104
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-
187	NUT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6	1-83539-354-0	04	1	0105-
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-162-2	01	1	0105-0703
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-98078-760-1	01	1	0704-
201	DRYER ASM; CONDENSER 6WG1 TC-N(71L)	8-97255-561-0	01	1	0105-0209
201	DRYER ASM; CONDENSER 6WG1 TC-N(71L)	1-83535-097-0	01	1	0210-

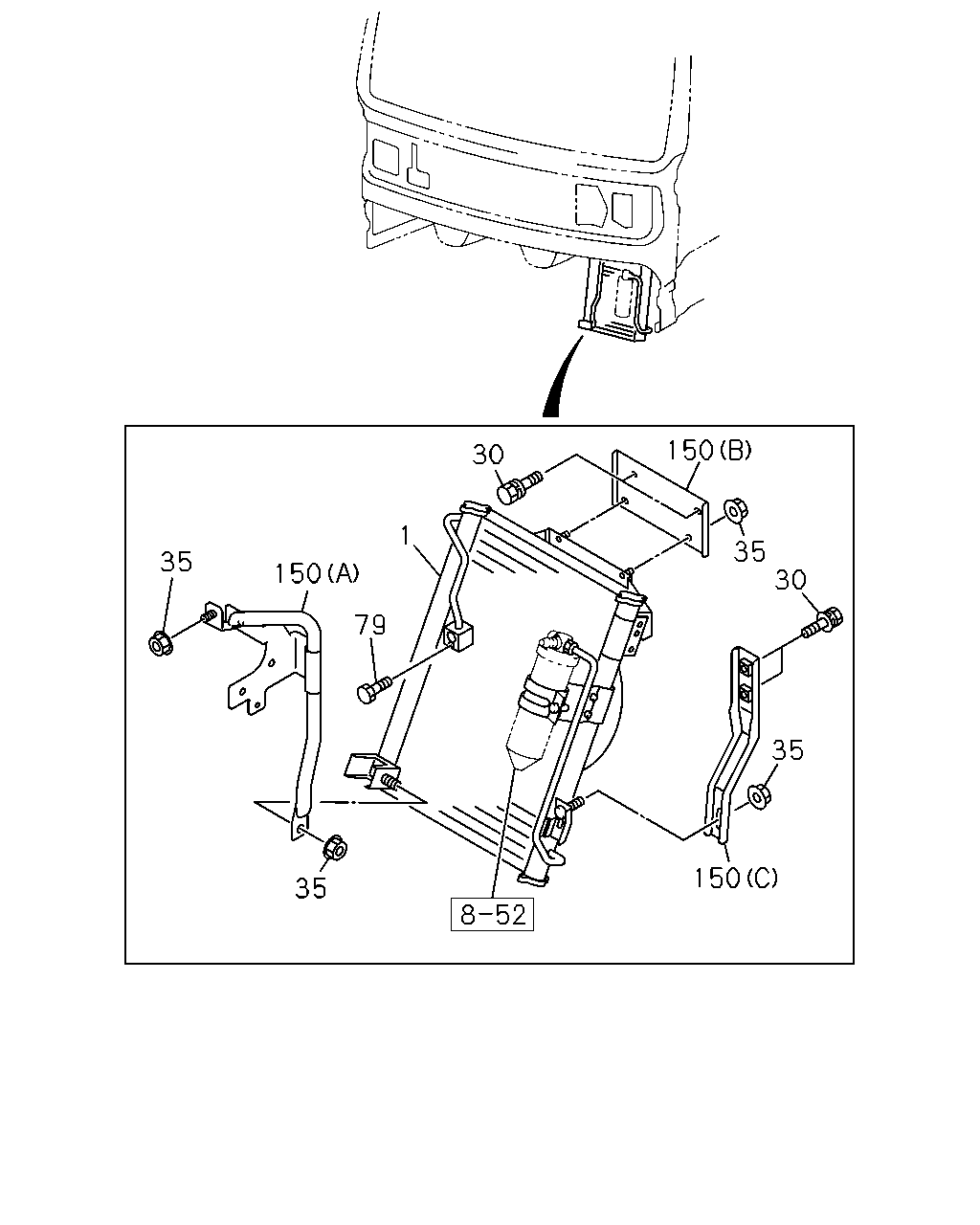

150 30 35 30 1 35 150 79 35 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9905-0104
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-206-2	01	1	0105-0509
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98024-412-1	01	1	0510-0703
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-088-1	01	1	0704-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9905-0904
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9905-0602
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0204
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-826-0	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0206
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0207-0301
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-242-1	01	1	0302-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-827-1	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-

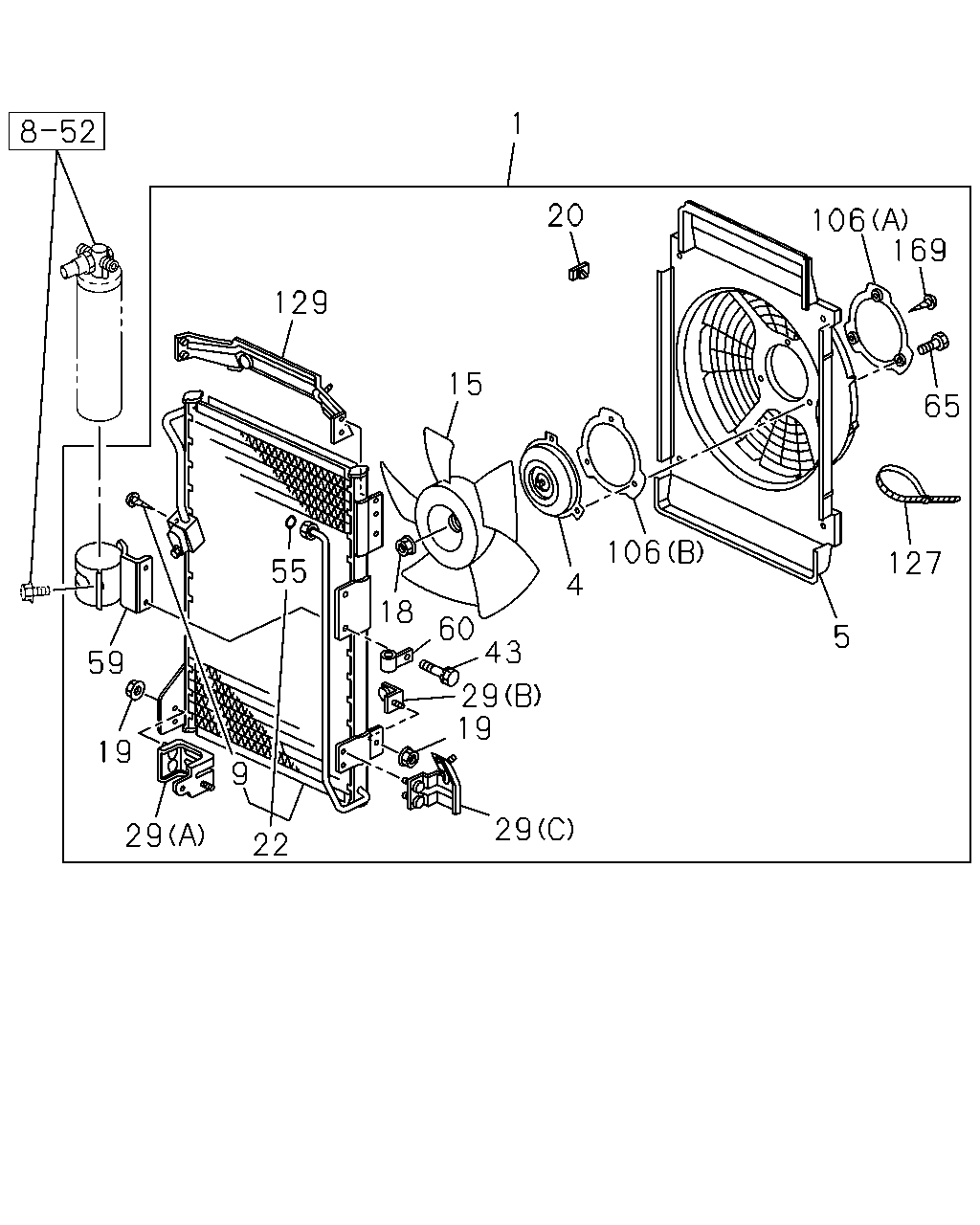

1 20 106 169 129 15 65 106 127 55 4 18 60 43 5 59 29 19 19 9 29 29 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9905-0104
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-206-2	01	1	0105-0509
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98024-412-1	01	1	0510-0703
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-088-1	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-139-3	01	1	0105-0509
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98014-458-0	01	1	0510-0703
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	8-98078-763-0	01	1	0704-
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9905-0104
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-362-1	01	1	0105-0703
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-093-0	01	1	0704-
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9905-0104
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-374-0	01	1	0104-0104
9	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	04	1	0105-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-140-0	01	1	0105-0703
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-092-0	01	1	0704-
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9905-0104
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-313-0	01	1	0105-
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9905-0104
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	9905-0104
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9905-0104
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	9905-0104
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-231-1	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-010-0	02	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-125-0	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	9905-0104
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83573-126-0	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83573-127-1	01	1	0105-
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97180-263-0	02	1	0105-
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	9905-0104
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9905-0001
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0002-0104
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	9905-0104
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-266-0	01	1	0105-
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9905-0104
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) M6X16	8-97096-525-0	01	1	0105-
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9905-0104
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9905-0104
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9905-0104
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9905-0104
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	9905-0104
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-129-1	01	1	0105-
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	9905-0104

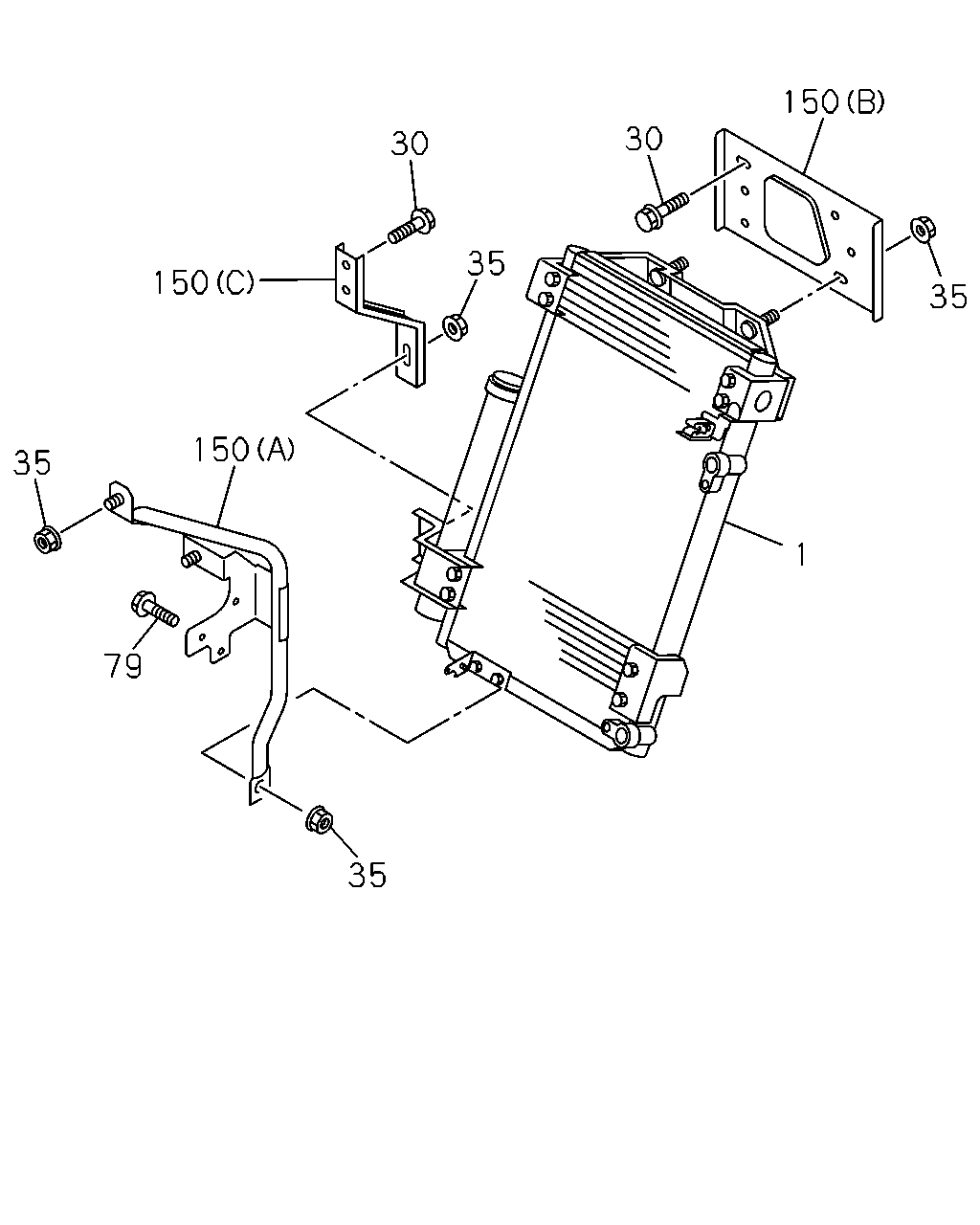

150 30 30 35 150 35 150 35 1 79 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	9905-0104
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-206-2	01	1	0105-0509
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98024-412-1	01	1	0510-0703
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	8-98076-088-1	01	1	0704-
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9905-0904
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9905-0602
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	05	1	0603-
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0204
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-826-0	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-982-1	01	1	0105-0206
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-241-0	01	1	0207-0301
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-242-1	01	1	0302-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-827-1	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-984-0	01	1	0105-
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	9905-0104
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-985-0	01	1	0105-
