3-58 — FIXING PARTS; OIL PIPING (#62169) — 13 parça

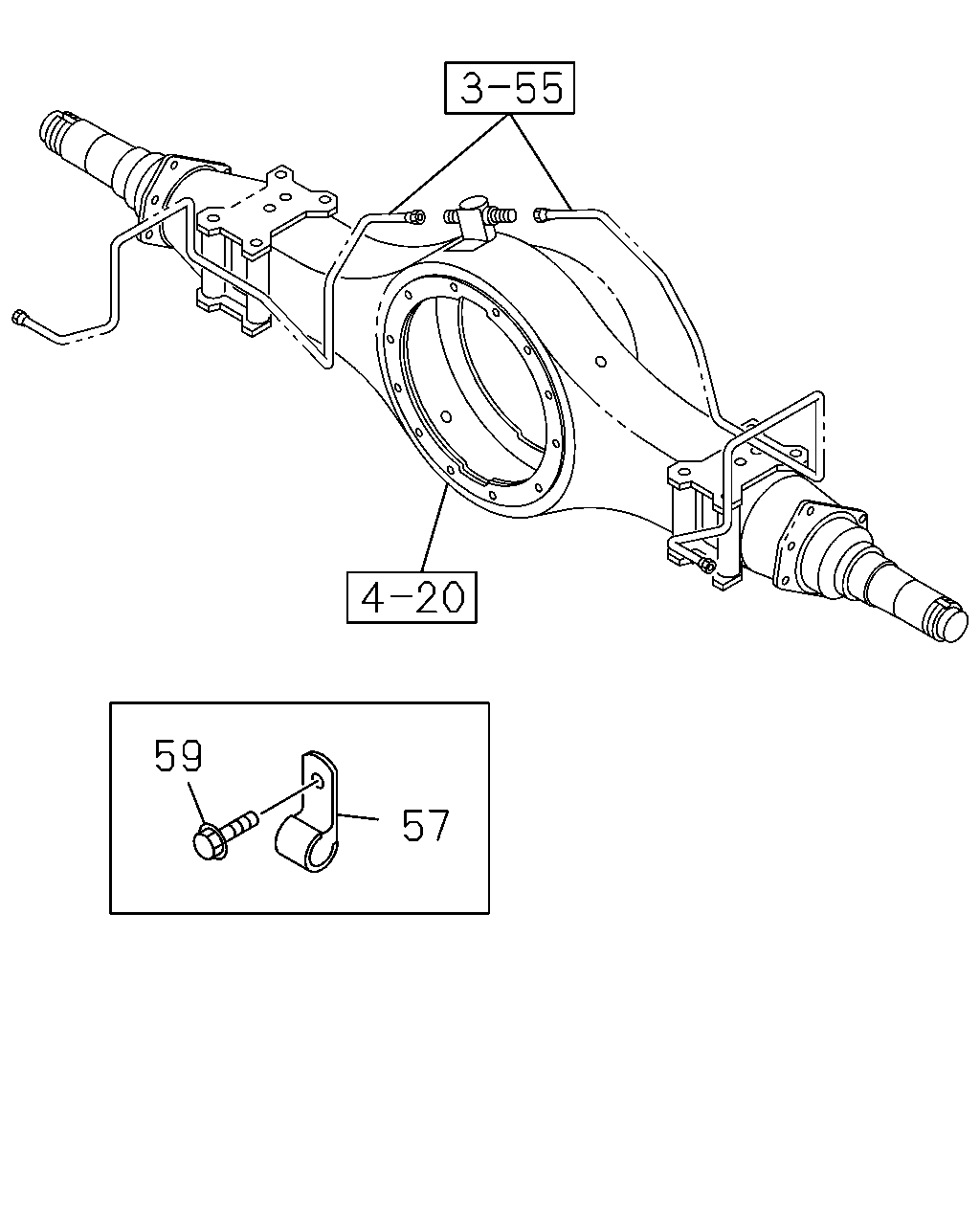

çizim 174562
59 57
BalonParca AdiParca NoAdetTipApplied Date
57 CLIP; BRK PIPE,RR AXLE
ID=7 L=20 		0-95234-635-0 04 1 1103-
59 BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE 		0-28050-810-0 04 1 1103-

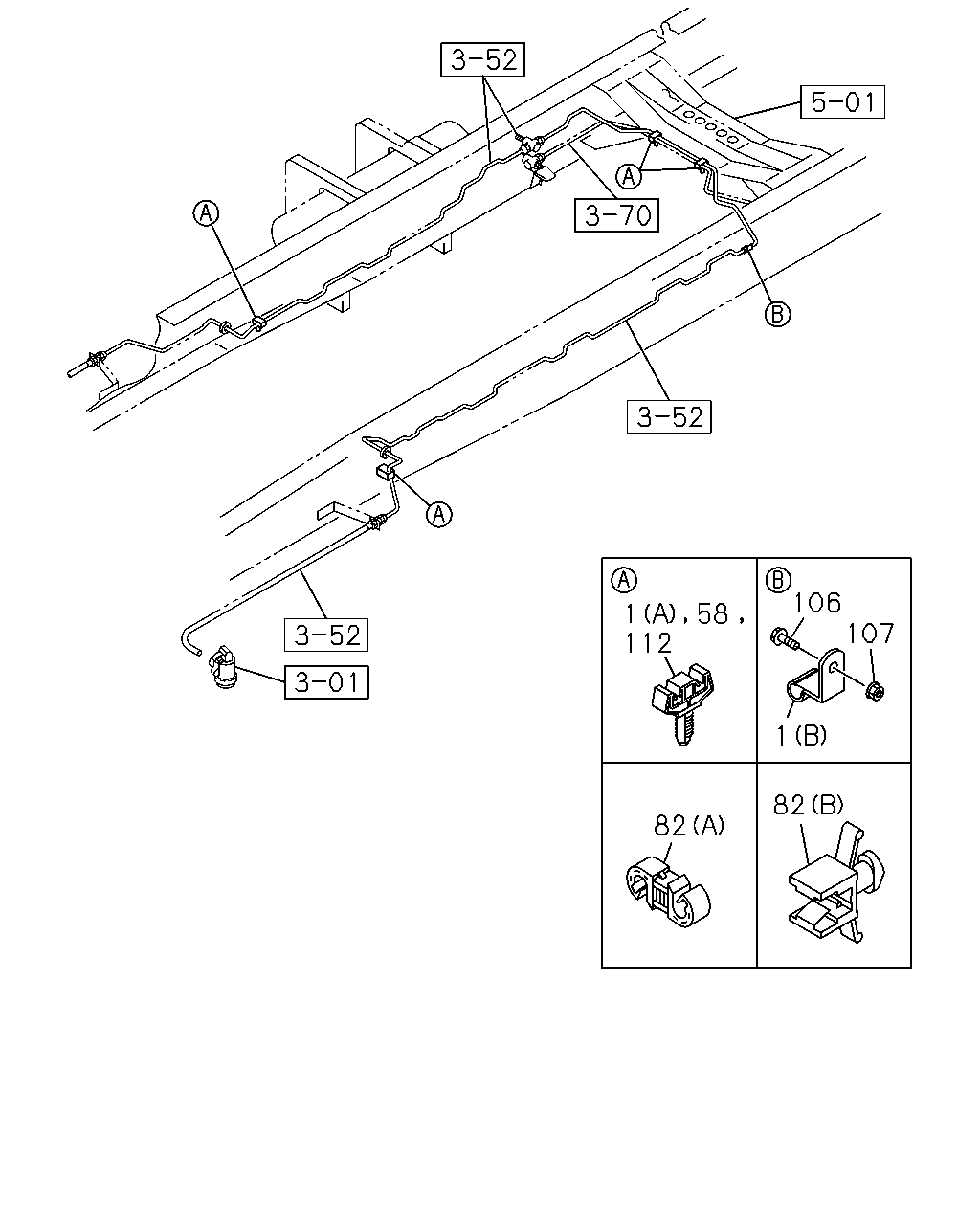

çizim 174563
106 107 112 1 82 82 1 58
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 03 1 1103-
1 CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20 		8-98040-714-0 04 1 1103-
1 CLIP; OIL PIPE TO BODY
(A) 		8-98012-254-1 04 1 1103-
58 CLIP; OIL PIPE 8-98012-254-1 05 1 1103-
82 CLIP; OIL PIPE
(A) ID=4.76 & 4.76 		1-09709-303-0 02 1 1103-1304
82 CLIP; OIL PIPE
(A) ID=4.76 & 6.35 		1-09709-304-0 04 1 1103-1304
82 CLIP; OIL PIPE
(A) ID=4.76 & 10.0 		1-09709-305-0 01 1 1103-
82 CLIP; OIL PIPE
(B) ID=4.8X2 IDN 		8-94316-410-0 01 1 1103-
106 BOLT; CLIP,OIL PIPE
M8X25 FLANGE IDN 		0-28650-825-0 04 1 1103-
107 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 04 1 1103-
112 CLIP; OIL PIPE 8-98012-254-1 08 1 1103-
