Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#62161) — 37 parça
◀

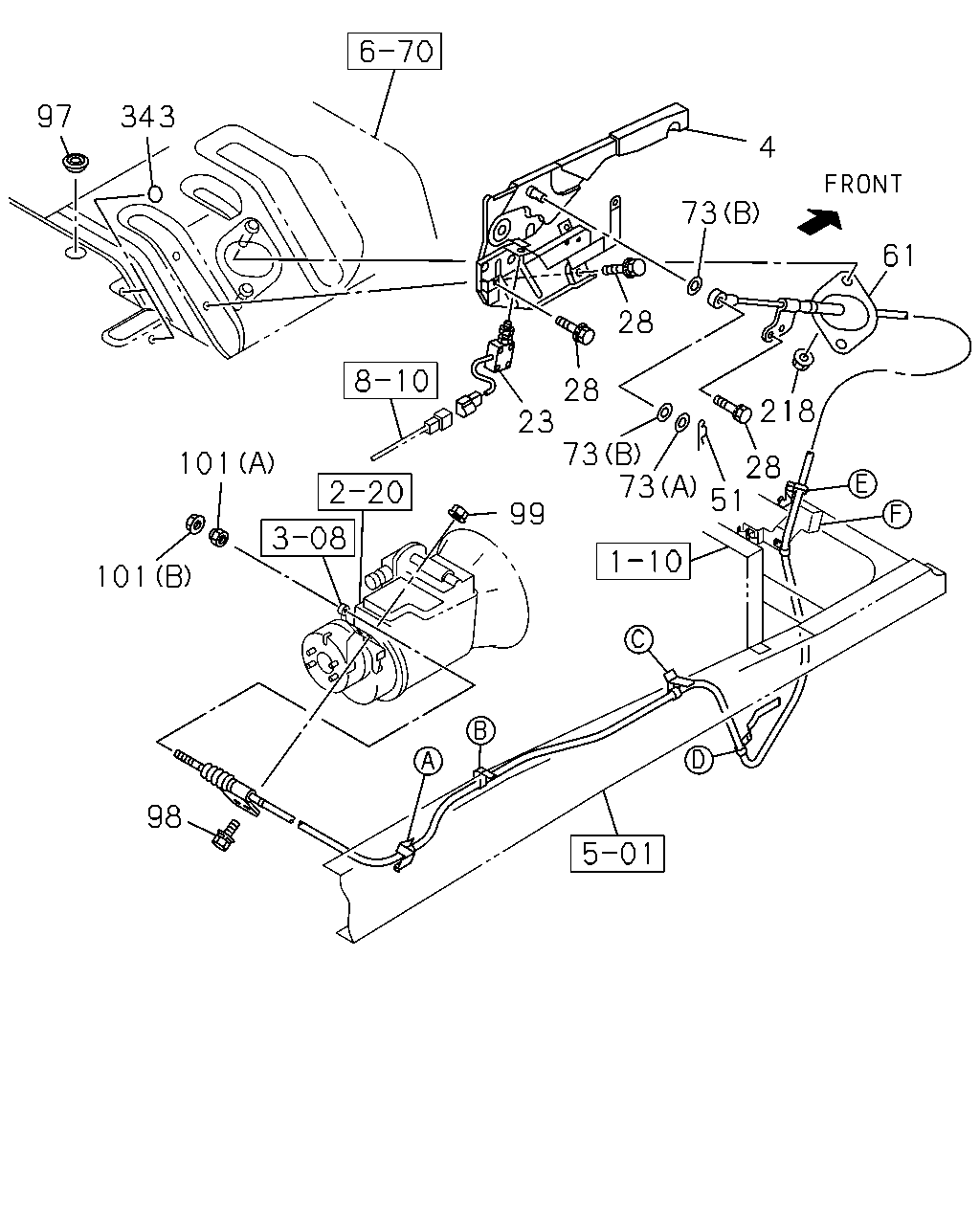

[311A] NO.2 (22 parça)

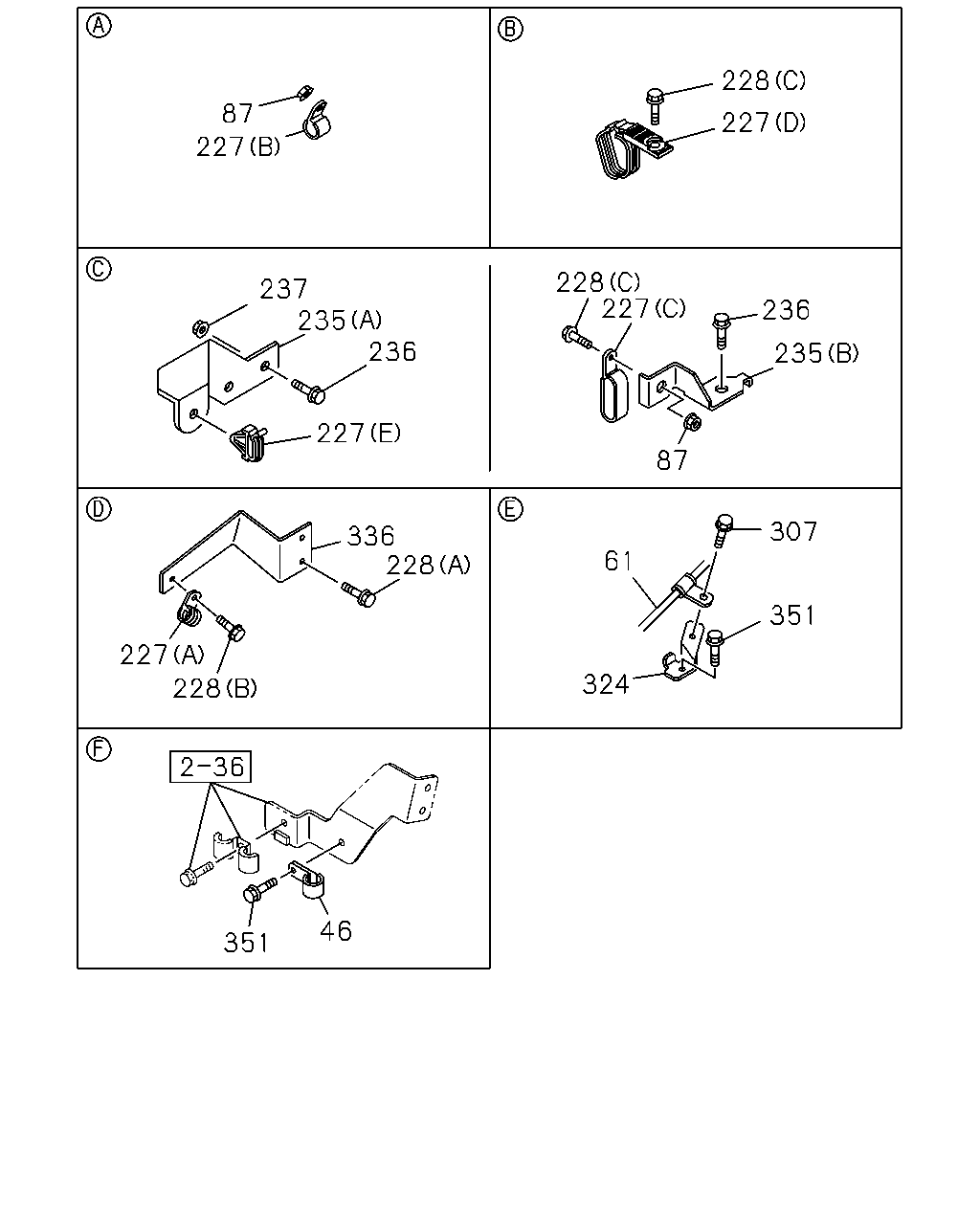

[311A] NO.1 (15 parça)
▶
87
227
228
227
237
236
235
227
228
236
227
235
87
336
228
228
227
61
307
351
324
351
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1103-1401
46
CLIP; FRT CABLE TO FLOOR
ID=13 L=20
0-95235-235-0
01
1
1402-
61
CABLE; PARKING BRK
L=4253
8-98171-946-1
01
1
1103-1401
61
CABLE; PARKING BRK
L=4253
8-98257-634-0
01
1
1402-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1103-
227
CLIP; RAD
(B) ID=16 L=20
0-95235-535-0
01
1
1103-
227
CLIP; RAD
(A) ID=26 L=26
1-09701-236-0
01
1
1103-
227
CLIP; RAD
(E) ID=9.5
5-09709-020-0
01
1
1103-
227
CLIP; RAD
(C) ID=13 & 13 L=32
8-97389-264-0
01
1
1103-
227
CLIP; RAD
(D) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1103-1504
227
CLIP; RAD
(D) ID=13 & 10 & 10 L=43.5
8-98292-921-0
01
1
1505-
228
BOLT; CLIP RAD MTG
(B) M8X16 FLANGE
0-28050-816-0
01
1
1103-
228
BOLT; CLIP RAD MTG
(C) M8X25 FLANGE IDN
0-28650-825-0
02
1
1103-
228
BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1103-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98100-152-0
01
1
1103-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98126-426-0
01
1
1103-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE IDN
0-28650-825-0
03
1
1103-
237
NUT; BRKT TO FRAME
M8 FLANGE
0-91180-108-0
02
1
1103-
307
BOLT; BRKT,PARKING BRK CABLE
M8X25 W/WASHER
0-51640-825-0
01
1
1103-
324
BRACKET
8-98067-482-1
01
1
1103-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1103-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1103-
61
4
73
28
28
23
73
73
51
28
218
99
101
101
98
343
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-548-0
01
1
1103-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1103-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1103-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1103-
61
CABLE; PARKING BRK
L=4253
8-98171-946-1
01
1
1103-1401
61
CABLE; PARKING BRK
L=4253
8-98257-634-0
01
1
1402-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1103-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1103-
97
GROMMET; PARKING BRK CABLE
OD=35 IDN
8-94122-971-0
01
1
1103-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
01
1
1103-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1103-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1103-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
1103-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1103-
343
SEAL
OD=25 BLACK
1-76798-019-0
05
1
1103-
