Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#62159) — 21 parça
◀

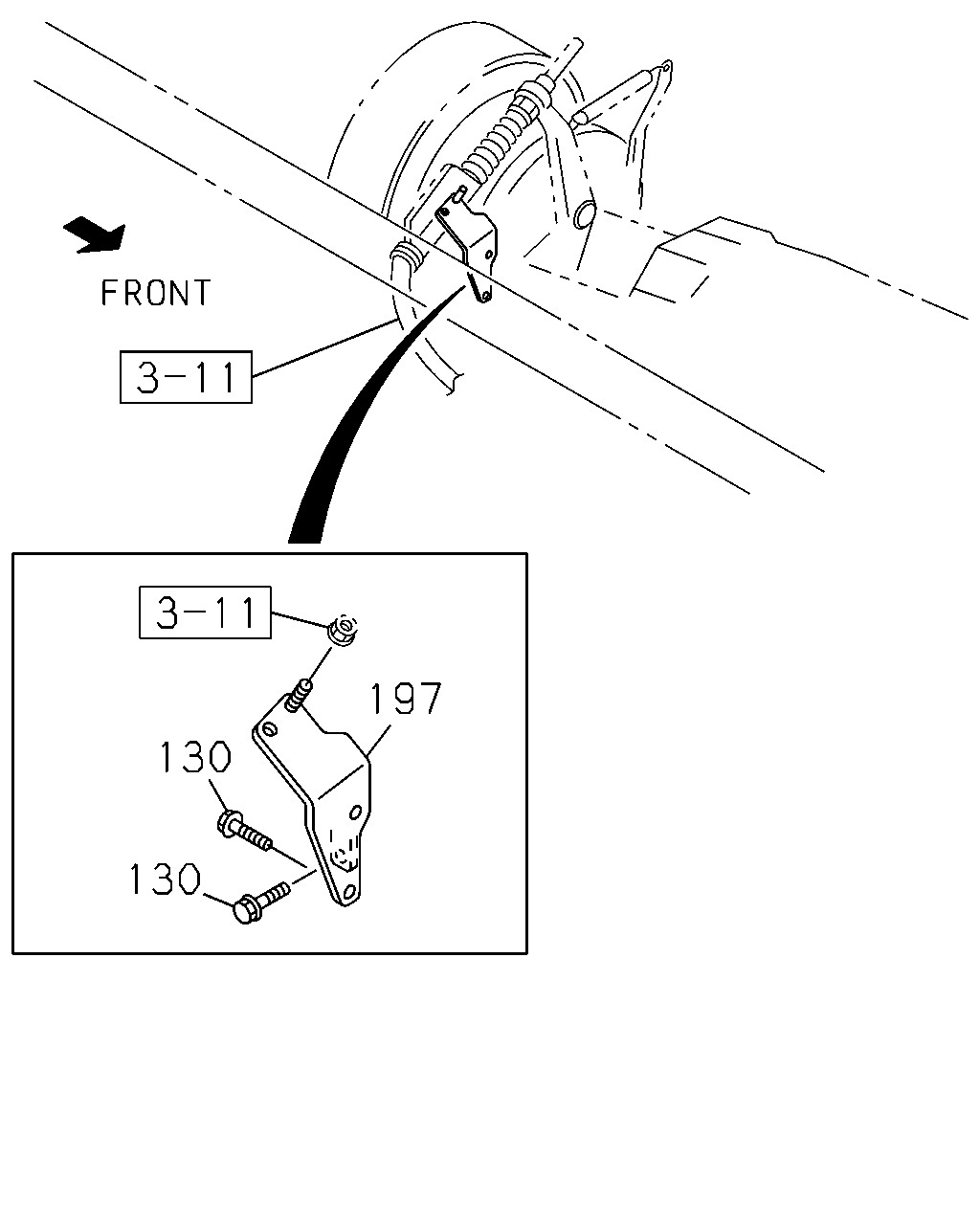

[308A] BRACKET (2 parça)
[308A] PARKING BRAKE (19 parça)
▶
197
130
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
1103-
197
BRACKET; CENTER BRAKE CABLE
8-98170-963-2
01
1
1103-
42
40
114
41
39
32
46
20
33
17
13
8
37
114
198
37
20
21
17
23
2
81
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-020-1
01
1
1103-
8
FLANGE; PARKING BRK
8-98171-007-0
01
1
1103-
13
BRACE; PARKING BRK
9-46239-003-0
01
1
1103-
17
SHOE; PARKING BRK
1-46220-029-0
02
1
1103-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-567-1
02
1
1103-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-268-0
01
1
1103-
23
SCREW; ADJ,PARKING BRK SHOE
9-46240-008-0
01
1
1103-
32
PLATE; SUPPORT,PARKING BRK
1-46213-023-0
01
1
1103-
33
SHAFT; CAM,PARKING BRK
1-46251-070-0
01
1
1103-
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
1103-
39
COVER; DUST,PARKING BRK
1-46213-115-0
01
1
1103-
40
LEVER; CM/SHF,PARKING BRK
1-46252-057-0
01
1
1103-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
1103-
42
SPRING; RETURN,LEVER
9-09942-592-0
01
1
1103-
46
WASHER; LEVER
9-09855-367-0
01
1
1103-
54
BOLT; COVER
M8X20 W/LK WASHER
0-50740-820-0
02
1
1103-
81
COVER; CHECK HOLE,PARKING BRK
1-46219-018-0
02
1
1103-
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
1103-
198
BOLT; KNURL
M14X43 KNURL
8-98014-003-0
04
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
