Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

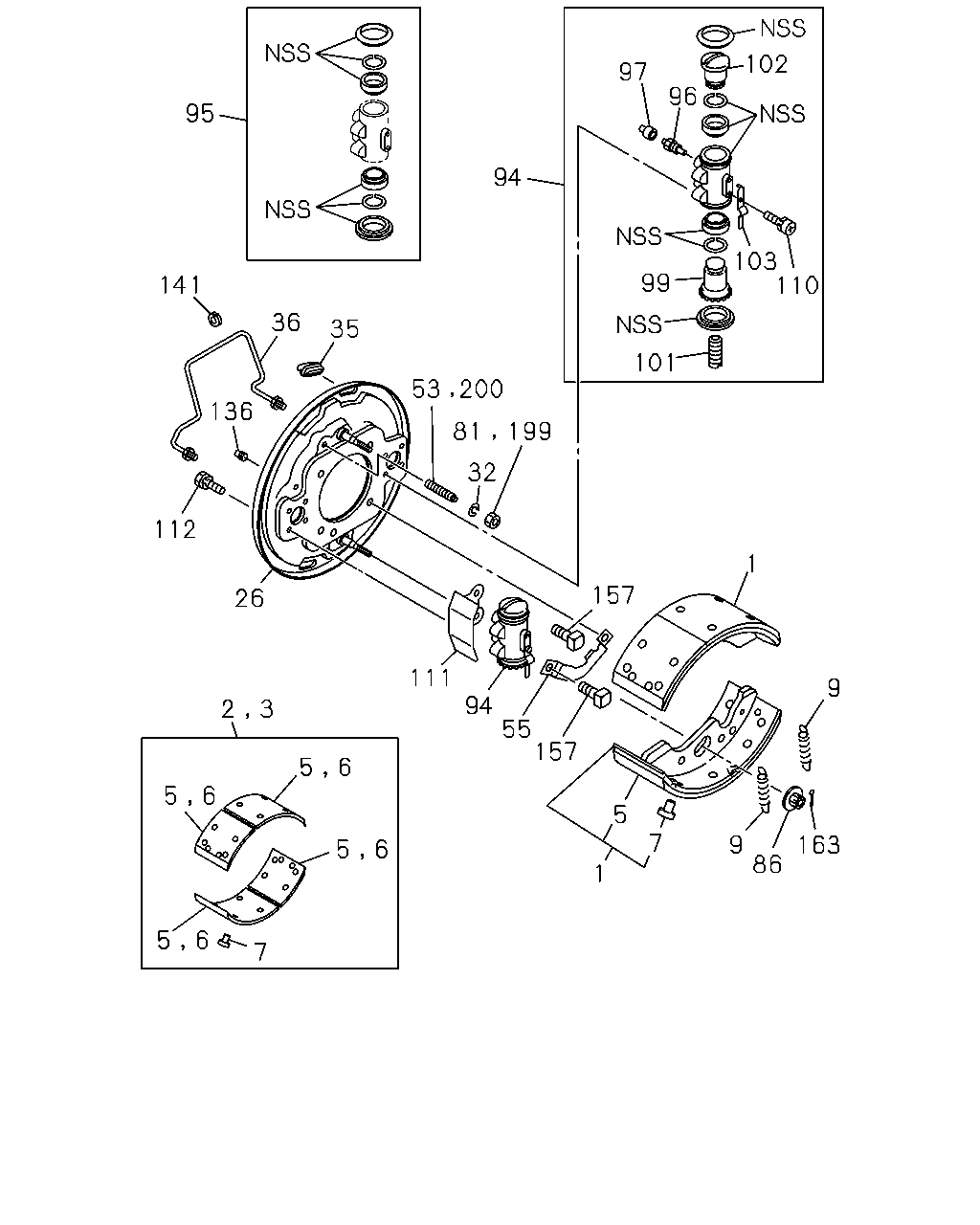

3-05 — REAR WHEEL BRAKE
(#62158) — 38 parça
102
97
96
95
94
103
110
99
141
36
35
101
136
81
199
32
112
1
157
26
111
9
94
55
157
2
3
5
6
5
6
5
7
9
86
163
5
6
1
5
6
7
53
200
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47120-626-0
04
1
1103-
2
LINING SET; RR BRK,STANDARD
1-88310-551-1
02
1
1103-
3
LINING SET; RR BRK,OVER SIZE
1-88310-552-1
02
1
1103-
5
LINING; RR BRK SHOE,STANDARD
1-47125-803-0
08
1
1103-
6
LINING; RR BRK SHOE,OVER SIZE
1-47125-804-0
08
1
1103-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
1103-
9
SPRING; RETURN,BRK SHOE
1-09583-271-0
04
1
1103-
26
PLATE; BACK,RR BRK
1-47150-467-0
01
1
1103-
26
PLATE; BACK,RR BRK
1-47150-468-0
01
1
1103-
32
WASHER; LK
ID=12.2
0-91510-512-0
04
1
1103-
35
GROMMET; CHECK HOLE
1-09333-033-0
04
1
1103-
36
PIPE; OIL,RR BRK
1-47421-815-0
02
1
1103-
53
BOLT; LOCK PLATE
1-47162-050-0
02
1
1103-
55
PLATE; LK,RR WHEEL CYL
1-47139-064-0
04
1
1103-
81
NUT
1-09400-100-0
02
1
1103-
86
NUT; FLANGE
1-09440-003-0
04
1
1103-
94
CYLINDER; WHEEL,RR BRK
FORWARD
1-47600-956-0
01
1
1103-
94
CYLINDER; WHEEL,RR BRK
BACKWARD
1-47600-957-0
01
1
1103-
94
CYLINDER; WHEEL,RR BRK
FORWARD
1-47600-958-0
01
1
1103-
94
CYLINDER; WHEEL,RR BRK
BACKWARD
1-47600-959-0
01
1
1103-
95
CUP SET; RR WHEEL CYL
1-87830-770-0
04
1
1103-
96
SCREW; BLEEDER,RR BRK
1-47615-020-0
02
1
1103-
97
CAP; BLEEDER,RR WHEEL CYL
IDN
1-47619-009-0
02
1
1103-
99
PISTON; RR WHEEL CYL
1-47624-309-0
02
1
1103-
99
PISTON; RR WHEEL CYL
1-47624-310-0
02
1
1103-
101
SCREW; ADJ,RR WHEEL CYL
M22 LH THREAD
1-47622-033-0
02
1
1103-
101
SCREW; ADJ,RR WHEEL CYL
M22 RH THREAD
1-47622-034-0
02
1
1103-
102
PISTON; REAR WHEEL CYL
1-47624-311-0
04
1
1103-
103
SPRING; LK,RR WHEEL CYL,ADJ
1-47629-072-0
04
1
1103-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1103-
111
COVER; WHEEL CYL
1-47159-103-0
04
1
1103-
112
BOLT; WHEEL CYL SETTING
M12
1-47159-184-0
16
1
1103-
136
GROMMET
9-09956-640-0
04
1
1103-
141
PROTECTOR; RR BRK PIPE
9-47461-158-0
02
1
1103-
157
BOLT; RR BRK SET
M14X45 SQUARE HEAD
1-09060-015-0
12
1
1103-
163
PIN; SPLIT,SHOE HOLD
9-09874-040-0
04
1
1103-
199
NUT
1-09400-100-0
02
1
1103-
200
BOLT
1-47162-050-0
02
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
