◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#62151) — 62 parça

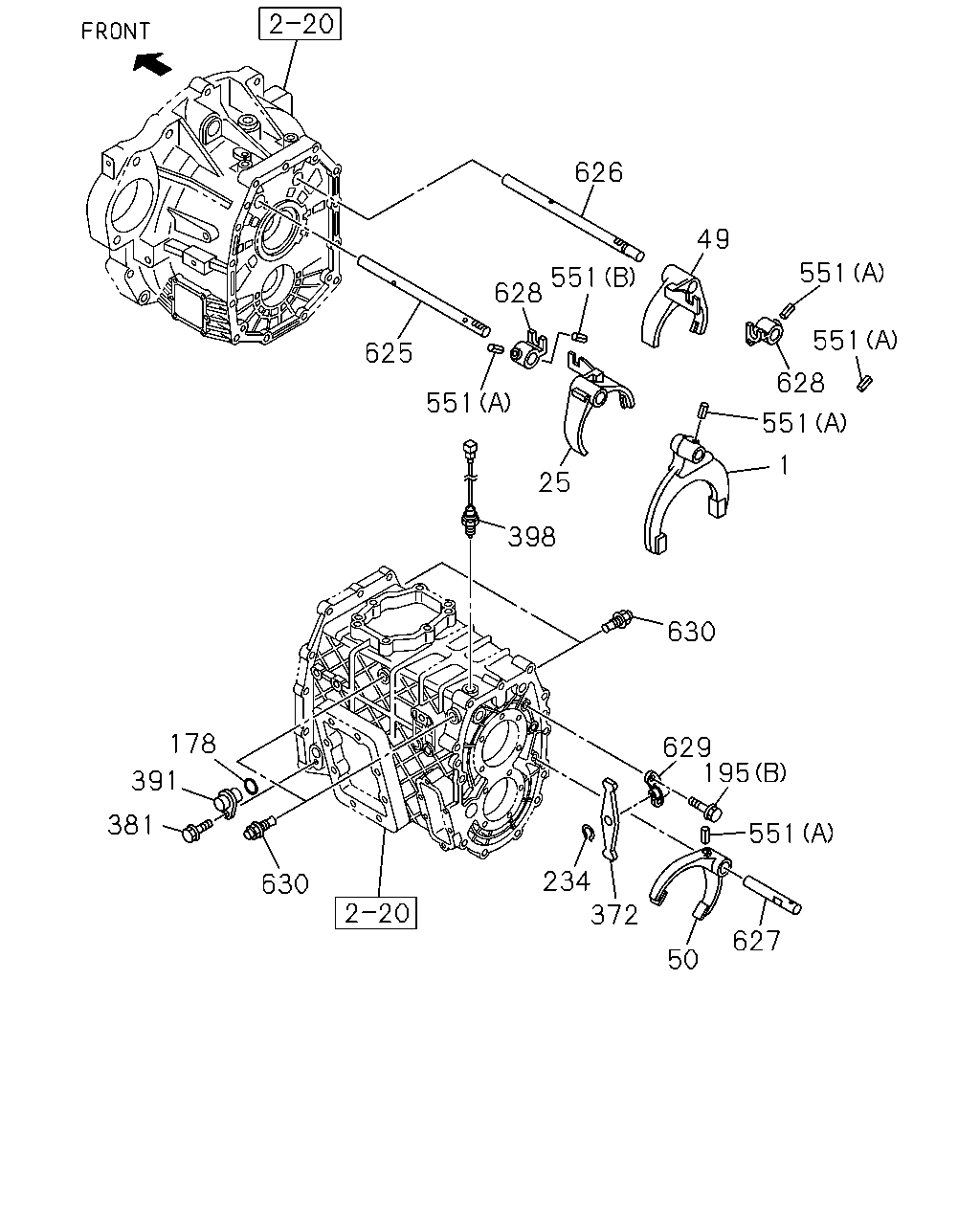

çizim 174527
626 49 551 551 628 551 625 628 551 551 1 25 398 630 178 629 195 391 381 551 234 630 372 627 50
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 8-97255-351-1 01 1 1103-
25 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1103-
49 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1103-
50 ARM; SHIFT,6TH 8-97241-324-1 01 1 1103-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1103-
195 BOLT
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1103-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1103-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1103-
372 LEVER; RELAY,6TH 8-97241-342-0 01 1 1103-
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 1103-
391 PLUG; SW HOLE 8-97300-273-1 01 1 1103-
398 SWITCH; REV LAMP 8-98023-050-0 01 1 1103-1312
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1103-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1103-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1103-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-735-0 01 1 1103-
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 1103-
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1103-
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1103-
629 BRIDGE; LEVER 8-97241-345-1 01 1 1103-
630 DETENT ASM 8-98019-536-0 04 1 1103-

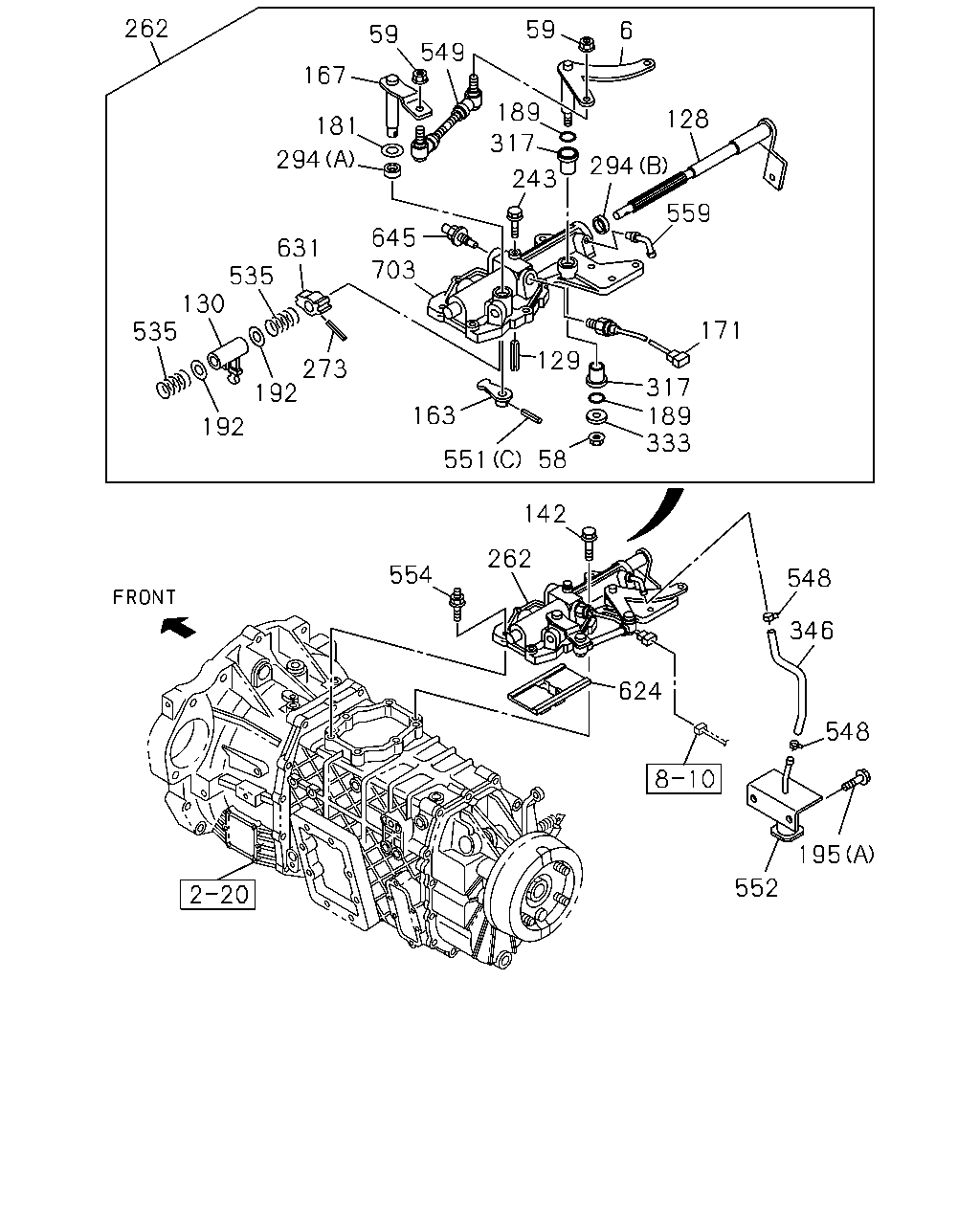

çizim 174540
262 59 6 59 549 167 189 128 181 317 294 294 243 559 645 631 535 130 535 703 171 129 273 192 317 189 333 163 192 551 58 142 262 554 548 346 624 548 195 552
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY 8-98014-157-1 01 1 1103-
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 1103-
59 NUT
M8 FLANGE 		0-91180-108-0 02 1 1103-
128 LEVER; SHIFT,EXTERNAL 8-98170-720-0 01 1 1103-1506
128 LEVER; SHIFT,EXTERNAL 8-98315-829-0 01 1 1507-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1103-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1103-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1103-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1103-
167 LEVER; SELECT,EXTERNAL 8-98021-489-0 01 1 1103-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1103-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1103-
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 1103-
192 WASHER; PL 8-97305-661-0 02 1 1103-
195 BOLT
(A) M10X20 FLANGE 		0-28751-020-0 02 1 1103-
195 BOLT
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1103-
243 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 01 1 1103-
262 BOX ASM; SHIFT CONT 8-98170-719-1 01 1 1103-1312
262 BOX ASM; SHIFT CONT 8-98240-990-1 01 1 1401-1506
262 BOX ASM; SHIFT CONT 8-98315-825-0 01 1 1507-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1103-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 1103-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 1103-
317 BUSHING; LEVER 1-09330-119-0 02 1 1103-
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 1103-
346 HOSE; AIR 8-98132-721-0 01 1 1103-
535 SPRING; LEVER 8-97385-713-0 02 1 1103-
548 CLIP; HOSE
ID=8 		8-94107-762-0 02 1 1103-
549 ROD; LINK 8-98023-095-0 01 1 1103-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1103-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1103-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1103-
552 BRACKET 8-98132-718-0 01 1 1103-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1103-
559 PIPE; BREATHER 8-97358-318-0 01 1 1103-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1103-
631 STOPPER; SPRING 8-98014-158-0 01 1 1103-
645 DETENT ASM 8-98019-536-0 01 1 1103-
703 CASE; CONT BOX 8-98096-924-0 01 1 1103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
