8-73 — BLOWER UNIT (#6215) — 113 parça

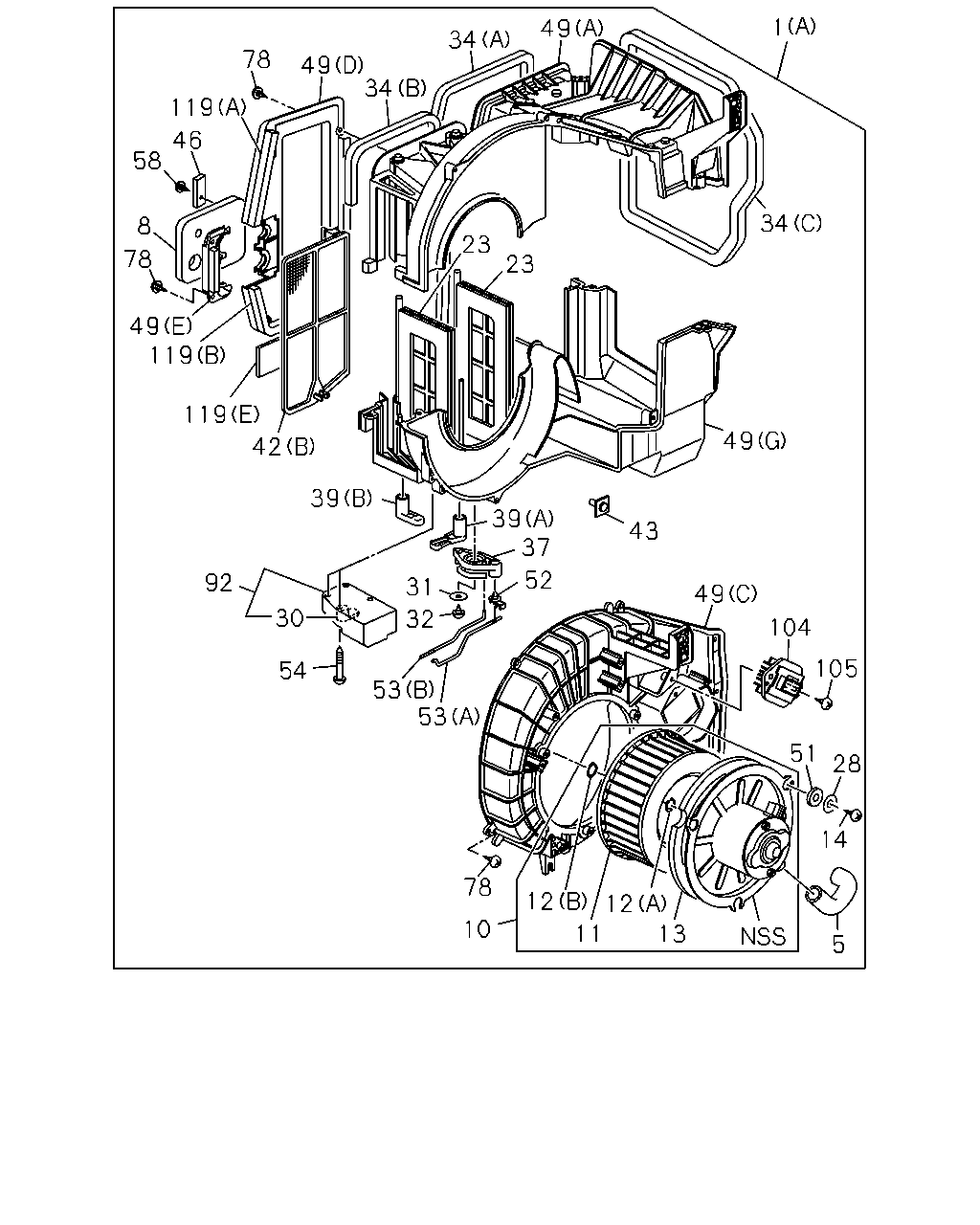

49 34 78 49 34 119 46 58 34 8 23 78 23 49 119 119 49 42 39 39 37 43 52 92 31 49 30 32 104 105 54 53 53 51 28 14 78 12 12 10 13 11 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-4	01	1	9905-0602
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-182-2	01	1	0603-
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-105-9	01	1	9905-0602
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	0603-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	9905-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9905-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	9905-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	9905-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	9905-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	9905-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	9905-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	9905-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9905-0602
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	9905-0602
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0603-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	9905-0602
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	0603-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	9905-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	9905-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	9905-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9905-0602
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9905-0602
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0603-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	9905-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	9905-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	9905-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	9905-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9905-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	9905-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	9905-
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	9905-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9905-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	9905-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	9905-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9905-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	9905-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	9905-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	9905-
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	9905-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	9905-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	9905-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-073-1	01	1	9905-0602
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	0603-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	9905-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9905-0007
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	9905-

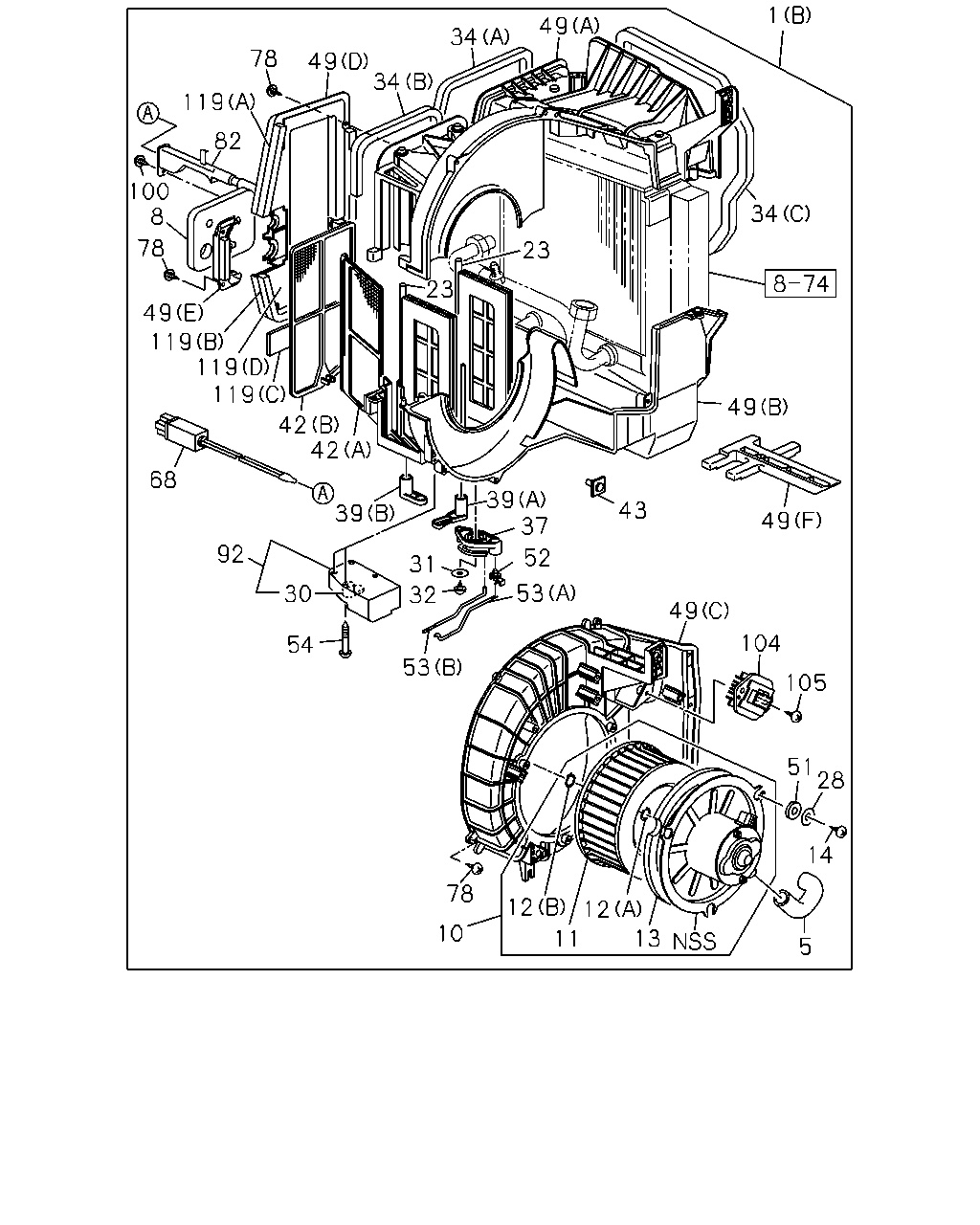

1 49 34 78 49 34 119 82 100 8 34 78 23 23 49 119 119 119 49 42 42 68 39 37 39 43 49 92 52 31 53 30 32 49 104 54 53 105 51 28 14 78 12 12 10 13 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-150-4	01	1	9905-0602
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-182-2	01	1	0603-
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-105-9	01	1	9905-0602
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-178-2	01	1	0603-
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	9905-
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9905-
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	9905-
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	9905-
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	9905-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	9905-
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	9905-
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	9905-
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	9905-0602
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	9905-0602
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0603-
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	9905-0602
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	0603-
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	9905-
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	9905-
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	9905-
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9905-0602
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	9905-0602
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0603-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-634-2	01	1	9905-
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-644-0	01	1	9905-
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	9905-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	9905-
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	9905-
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	9905-
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-643-3	01	1	9905-
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	9905-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	9905-
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (G)	1-83564-352-5	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	9905-
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	9905-
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	9905-
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	02	1	9905-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-638-0	01	1	9905-
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	9905-
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	9905-
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	9905-
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	9905-
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	9905-
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	9905-
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	9905-
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-073-1	01	1	9905-0602
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	0603-
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	9905-
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9905-0007
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-670-1	01	1	9905-
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-671-1	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
