8-90 — RADIO AND TV (#62142) — 15 parça

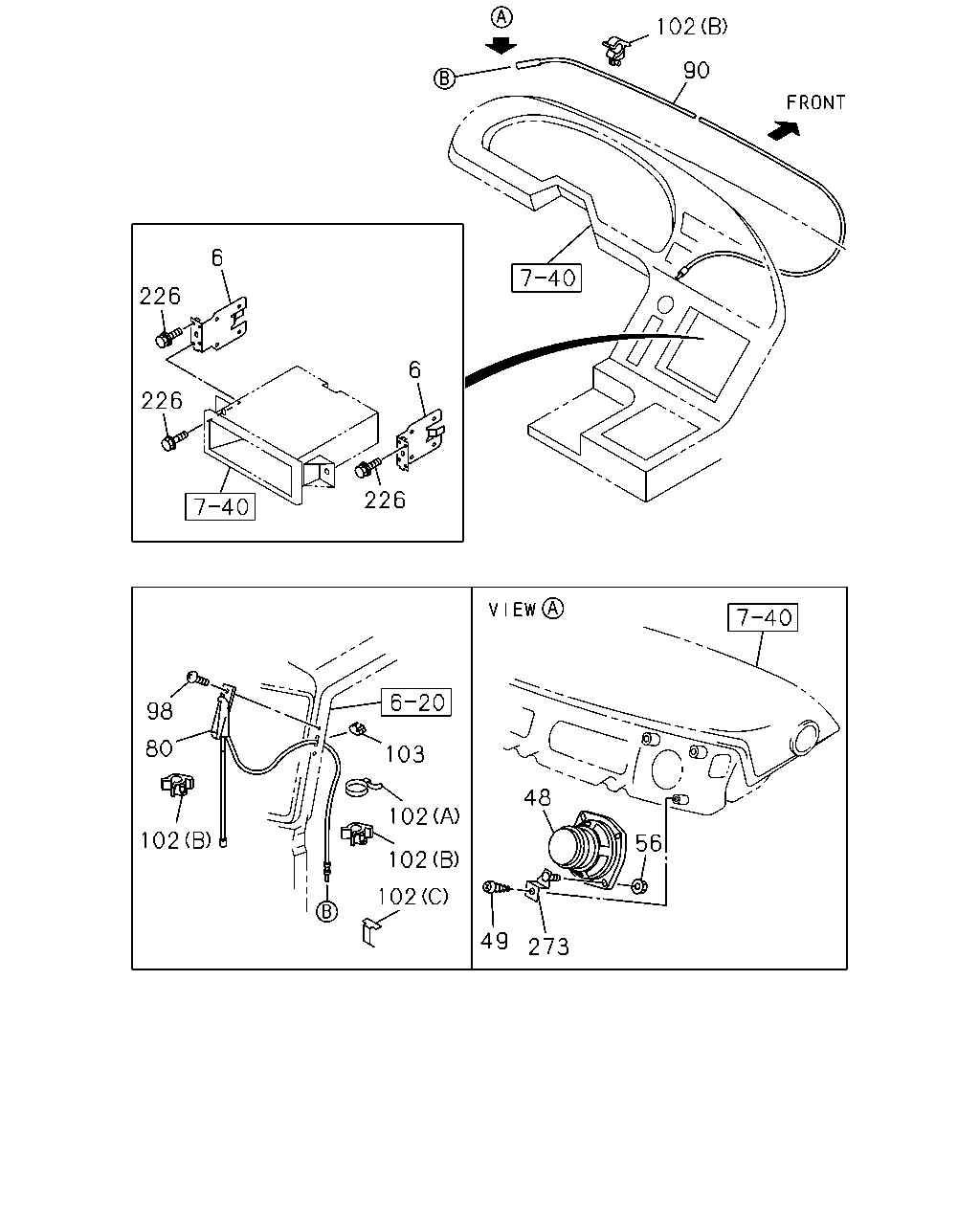

çizim 170104
102 90 6 6 226 226 226 103 102 102 102 102 80 98 49 273 56 48
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 1008-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 1008-
49 SCREW; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 		8-94279-325-0 06 1 1008-
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 1008-
80 ANTENNA 1-84115-055-2 01 1 1008-1203
80 ANTENNA 8-98210-874-1 01 1 1204-
90 CABLE; ANTENNA,FEEDER 1-84113-011-2 01 1 1008-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 1008-
102 CLIP; CABLE
(C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-
102 CLIP; CABLE
(B) W/PACKING ID=4.8 		1-73907-618-0 05 1 1008-
102 CLIP; CABLE
(A) L=140 		5-09707-031-1 01 1 1008-
102 CLIP; CABLE
(B) WO/PACKING ID=4.8 		8-94128-483-0 02 1 1008-
103 GROMMET; ANTENNA HOLE,FRT 8-97027-381-0 01 1 1008-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-
273 BRACKET; SPEAKER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-65671-788-0 02 1 1008-
