◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#62136) — 40 parça

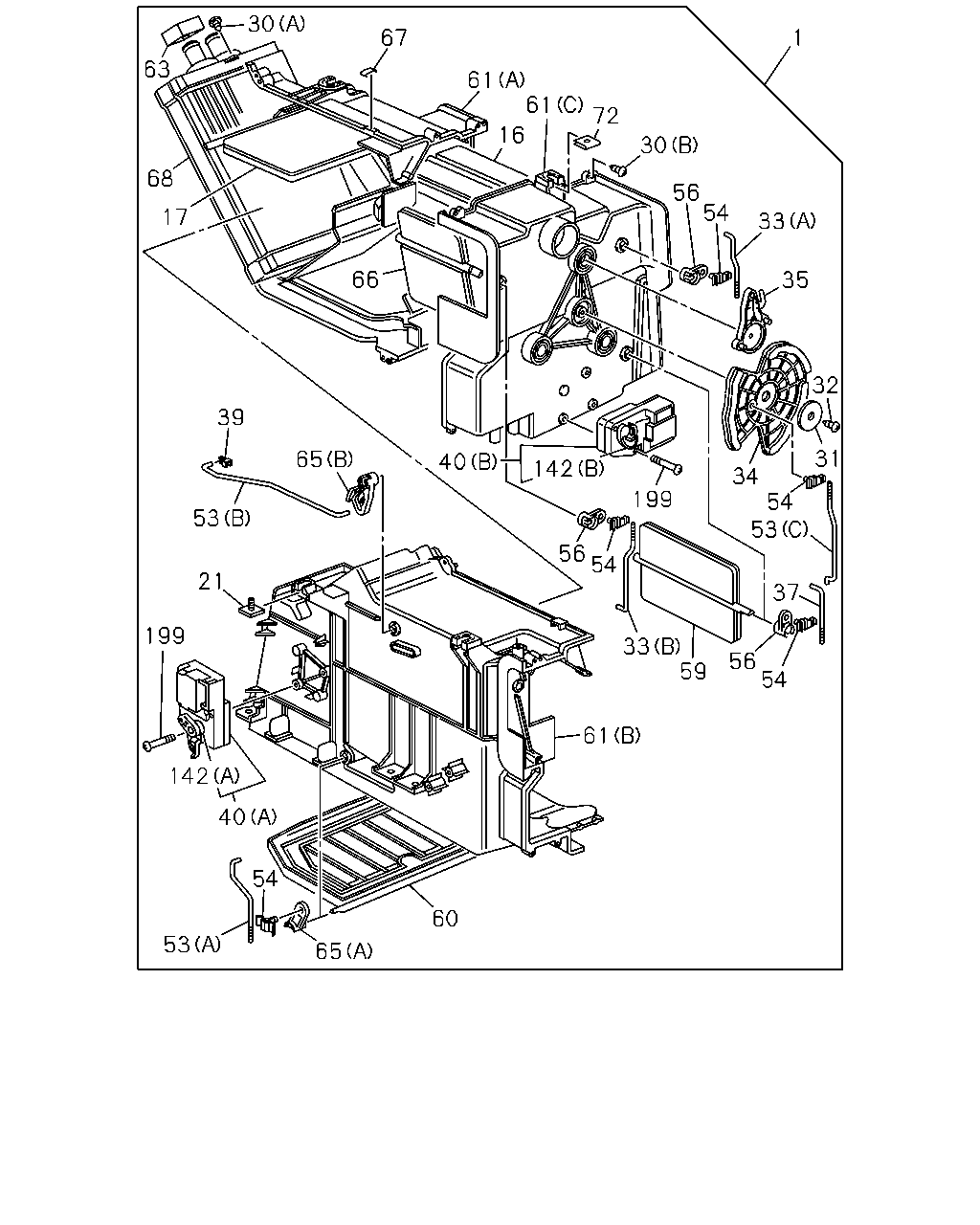

çizim 170120
30 1 67 63 61 61 72 16 30 68 56 54 17 33 66 35 32 39 31 65 40 142 34 54 53 199 53 56 54 21 37 199 33 59 56 54 61 142 40 54 60 53 65
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1008-1409
1 HEATER UNIT 8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1008-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1008-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1008-
30 SCREW; HTR UNIT
(B) M4X16 		8-94324-850-0 12 1 1008-
30 SCREW; HTR UNIT
(A) M5X20 		9-09829-324-1 01 1 1008-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1008-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1008-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1008-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1008-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1008-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1008-
37 ROD; LEVER 1-83579-620-1 01 1 1008-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1008-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1008-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1008-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1008-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1008-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1008-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1008-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1008-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1008-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1008-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1008-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1008-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1008-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1008-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1008-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1008-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1008-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1008-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1008-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1008-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1008-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1008-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1008-
