11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#62135) — 50 parça
◀

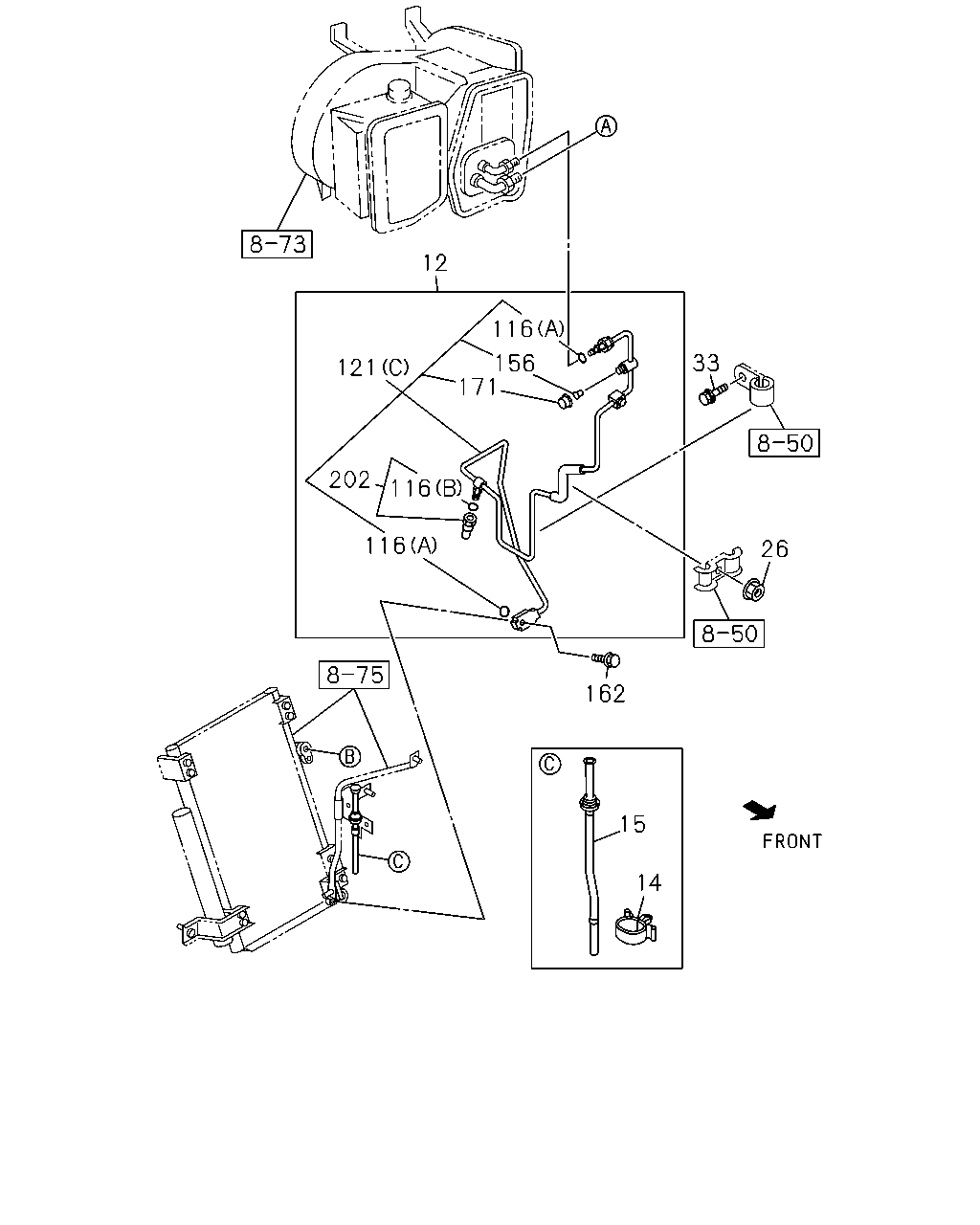

[852A] CAB SIDE (17 parça)

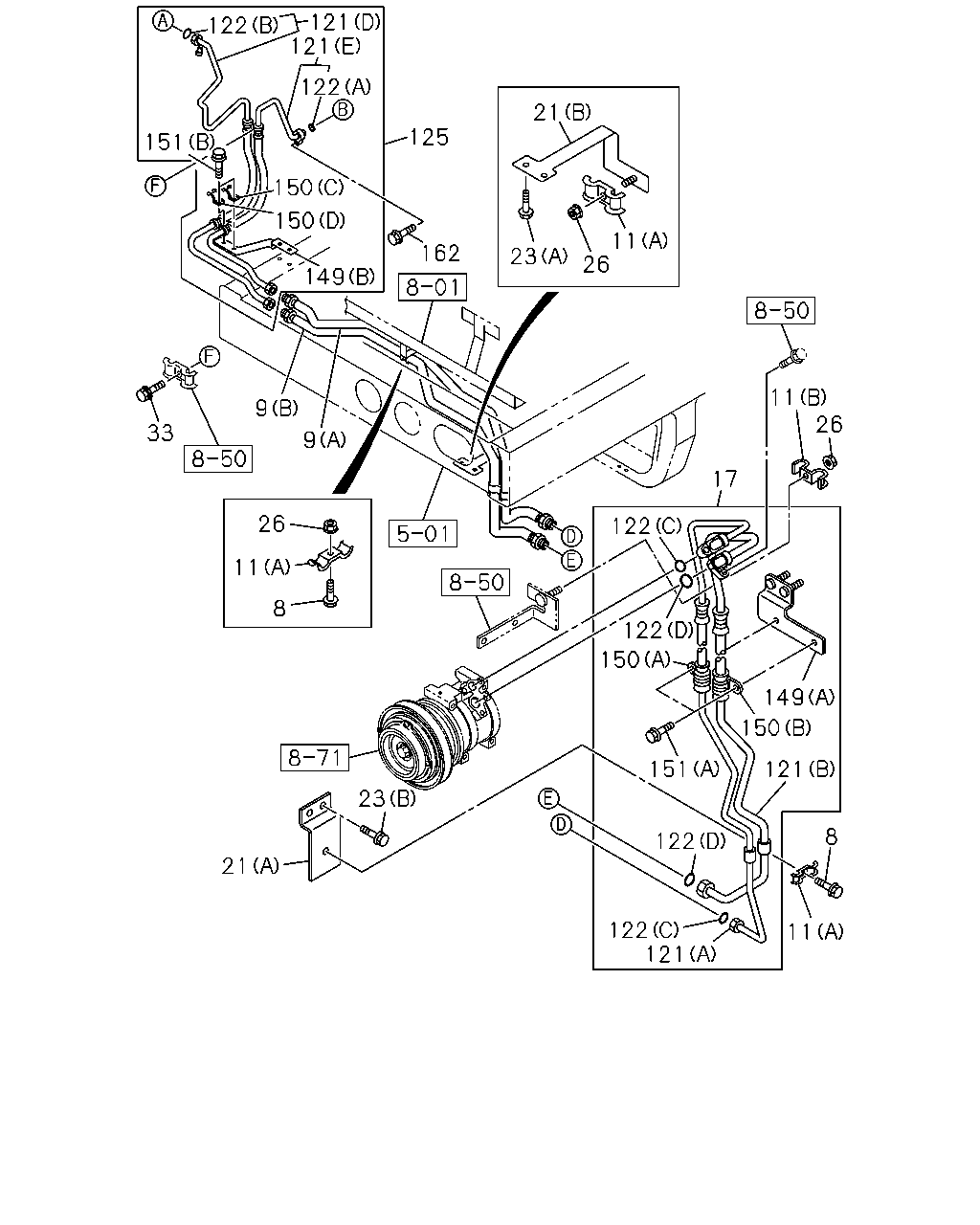

[852A] FRAME SIDE (33 parça)
▶
12
116
33
156
171
121
202
116
116
26
162
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
1-83567-718-3
01
1
1008-
14
CLIP; BAND,EVAP DRAIN HOSE
ID=20
8-94410-200-0
01
1
1008-
15
HOSE; DRAIN
1-83572-635-0
01
1
1008-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1008-
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1008-
116
GASKET; PIPE
(A) ID=7.4
8-97095-906-0
02
1
1008-
116
GASKET; PIPE
(B)
8-97178-772-0
01
1
1008-
121
HOSE; COOLER
(C)
1-83567-795-0
01
1
1008-
121
HOSE; COOLER
(D)
1-83572-801-1
01
1
1008-
121
HOSE; COOLER
(E)
1-83572-802-1
01
1
1008-
121
HOSE; COOLER
(A)
1-83577-066-0
01
1
1008-
121
HOSE; COOLER
(B)
1-83577-067-0
01
1
1008-
156
VALVE; PIPE
8-97095-909-0
01
1
1008-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1008-
171
CAP; PIPE
CAP MARK H
8-97095-911-0
01
1
1008-
202
SWITCH; PRESSURE
1-83564-392-1
01
1
1008-
121
121
122
122
21
125
151
150
150
11
26
149
162
23
11
26
9
33
9
17
26
122
11
8
122
150
149
150
151
121
23
8
122
21
122
121
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1008-
9
PIPE; COOLER,HOSE TO HOSE
(A)
1-83577-059-0
01
1
1008-
9
PIPE; COOLER,HOSE TO HOSE
(B)
1-83577-060-0
01
1
1008-
11
CLIP; COOLER PIPE
(A) ID=20 & 20
1-83574-195-1
03
1
1008-
11
CLIP; COOLER PIPE
(B) ID=12 & 14.5
1-83574-257-0
01
1
1008-
17
HOSE; FLEX,CMPR TO PIPE
1-83577-058-1
01
1
1008-
21
BRACKET; COOLER HOSE
(A)
1-83573-295-0
01
1
1008-
21
BRACKET; COOLER HOSE
MJT7S M/T(Y3E) (B)
1-83573-202-0
01
1
1008-
21
BRACKET; COOLER HOSE
MJX16P M/T(Y3Z) (B)
1-83573-282-1
01
1
1008-
23
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1008-
23
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
1008-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-
26
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1008-
33
BOLT; CLIP
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1008-
121
HOSE; COOLER
(C)
1-83567-795-0
01
1
1008-
121
HOSE; COOLER
(D)
1-83572-801-1
01
1
1008-
121
HOSE; COOLER
(E)
1-83572-802-1
01
1
1008-
121
HOSE; COOLER
(A)
1-83577-066-0
01
1
1008-
121
HOSE; COOLER
(B)
1-83577-067-0
01
1
1008-
122
GASKET
(A) ID=11.7
1-83539-317-0
02
1
1008-
122
GASKET
(B) ID=14.5
1-83539-324-0
02
1
1008-
122
GASKET
(C) ID=11.7
8-97095-907-0
02
1
1008-
122
GASKET
(D) ID=14.5
8-97095-908-0
02
1
1008-
125
HOSE; FLEX,UNIT TO CMPR
1-83572-704-2
01
1
1008-
149
BRACKET; COOLER HOSE
(B)
1-83573-206-1
01
1
1008-
149
BRACKET; COOLER HOSE
(A)
1-83573-255-0
01
1
1008-
150
CLIP; HOSE
(A)
1-83574-249-0
01
1
1008-
150
CLIP; HOSE
(C)
1-83574-254-0
01
1
1008-
150
CLIP; HOSE
(D)
1-83574-255-0
01
1
1008-
150
CLIP; HOSE
(B)
1-83574-264-0
01
1
1008-
151
BOLT; CLIP FIX,COOLER HOSE
(B)
1-83539-336-0
02
1
1008-
151
BOLT; CLIP FIX,COOLER HOSE
(A)
1-83578-098-0
02
1
1008-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
02
1
1008-
