Isuzu WW
▶
TRUCKS
▶
CYH
▶
11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

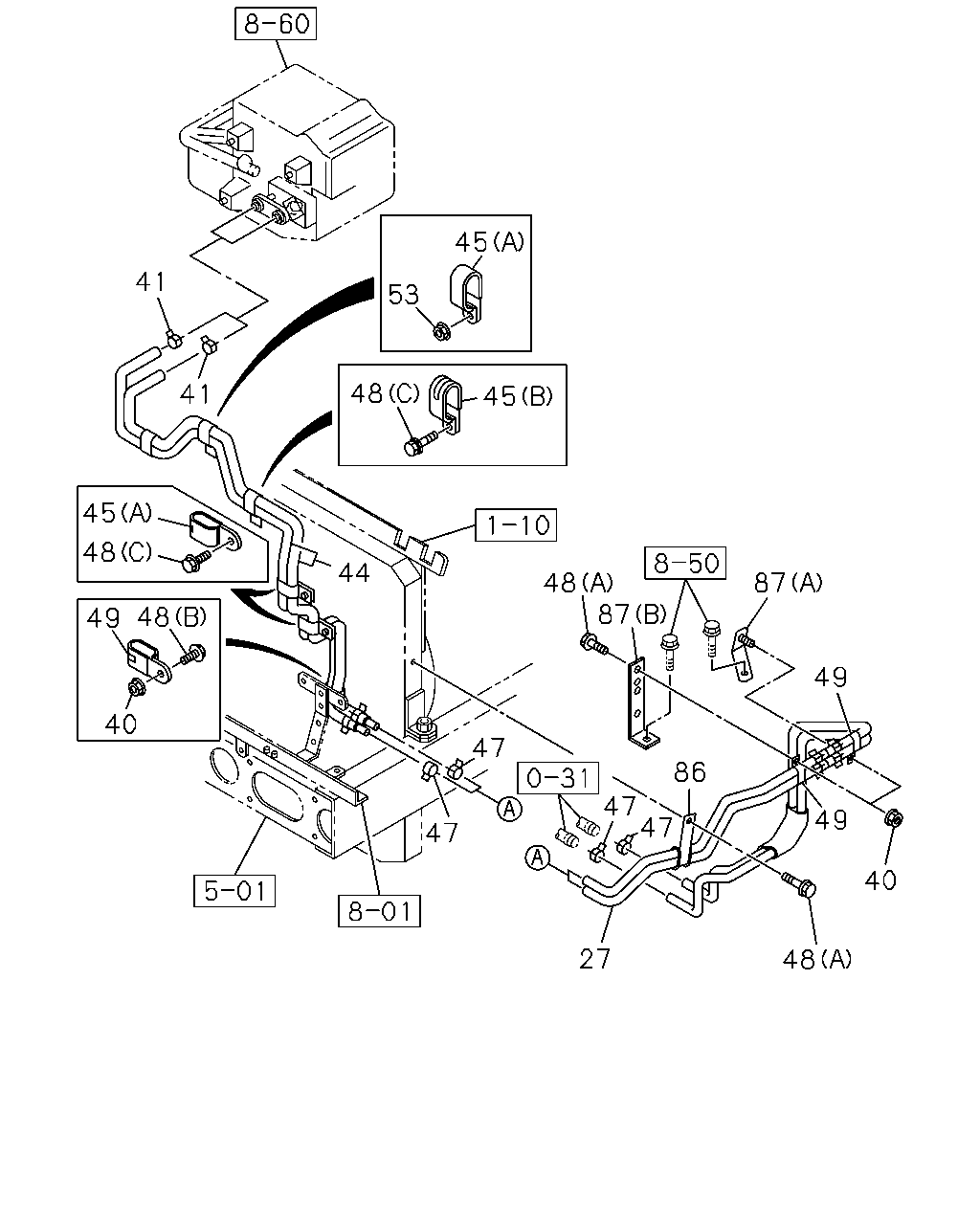

8-45 — HEATER PIPING
(#62133) — 15 parça
45
41
53
48
41
45
45
48
44
87
48
87
48
49
49
40
47
86
47
47
49
47
40
27
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-802-3
01
1
1008-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1008-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1008-
44
HOSE; WATER,HTR,INL
8-98052-676-2
01
1
1008-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1008-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
03
1
1008-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1008-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1008-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
01
1
1008-
48
BOLT; CLIP FIX
(C) M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1008-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
1008-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1008-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
1008-
87
BRACKET; HTR HOSE CLIP
(B)
1-82698-358-0
01
1
1008-
87
BRACKET; HTR HOSE CLIP
(A)
1-83573-251-1
01
1
1008-
