◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#62128) — 50 parça

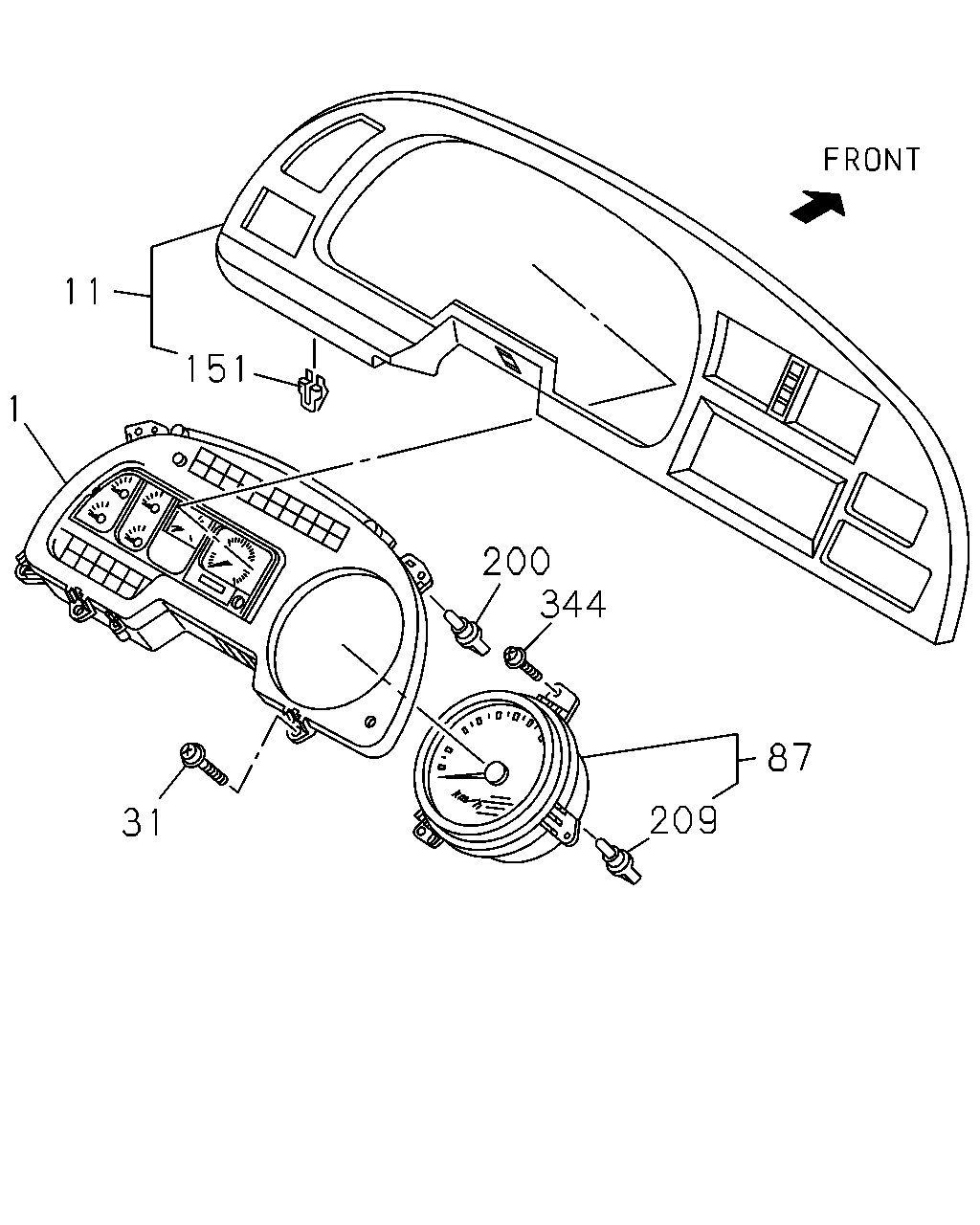

çizim 170097
11 151 1 200 344 87 209 31
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98146-463-0 01 1 1008-1103
1 METER COMPL; CLUSTER 8-97638-845-0 01 1 1104-1105
1 METER COMPL; CLUSTER 8-98195-538-0 01 1 1106-1205
1 METER COMPL; CLUSTER 8-98221-615-0 01 1 1206-
11 CLUSTER ASM; METER 1-72418-022-7 01 1 1008-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 1008-
87 SPEEDOMETER 8-98039-481-0 01 1 1008-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 1008-
200 BULB; WARNING LAMP
FULL TRAILER PIPING<Z25> 24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 1008-
209 BULB; SPEEDOMETER
24V 3W GREEN SOCKET 		1-82194-061-0 01 1 1008-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 1008-

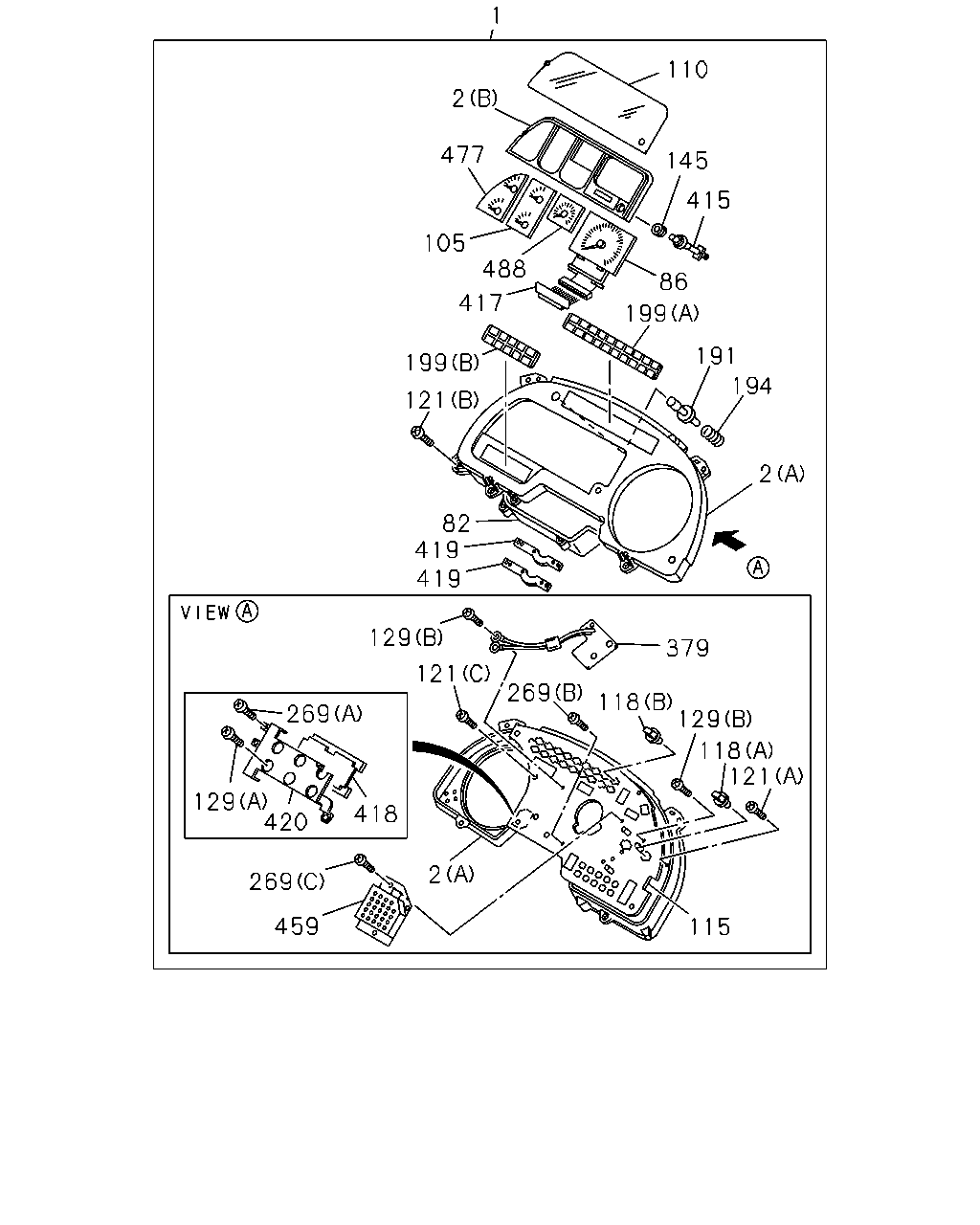

çizim 170107
1 110 2 477 145 415 105 488 86 417 199 191 199 194 121 2 82 419 419 129 379 121 269 118 129 269 118 121 129 420 418 2 269 459 115
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 8-98146-463-0 01 1 1008-1103
1 METER COMPL; CLUSTER 8-97638-845-0 01 1 1104-1105
1 METER COMPL; CLUSTER 8-98195-538-0 01 1 1106-1205
1 METER COMPL; CLUSTER 8-98221-615-0 01 1 1206-
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 1008-
2 PANEL; CLUSTER
(B) 		1-83119-682-0 01 1 1008-
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 1008-
86 TACHOMETER; CLUSTER METER 1-83120-921-0 01 1 1008-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 1008-1103
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-98185-065-0 01 1 1104-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 1008-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-475-0 01 1 1008-1105
115 CIRCUIT; PRINTED,CLUSTER METER 8-98194-994-0 01 1 1106-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 1008-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 1008-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 1008-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 1008-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 1008-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 1008-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 1008-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 1008-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 1008-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 1008-
199 LENS; WARNING LAMP
(B) 		1-83119-912-0 01 1 1008-
199 LENS; WARNING LAMP
(A) 		8-98170-738-0 01 1 1008-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 1008-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-657-0 03 1 1008-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 08 1 1008-
379 CIRCUIT; DROP 1-83189-369-0 01 1 1008-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 1008-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 1008-1105
417 DISPLAY; ODO & TRIP,METER 8-98195-041-0 01 1 1106-
418 CIRCUIT; CONTROL,METER 1-83189-442-0 01 1 1008-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 1008-
420 HEAT SINK; METER 1-83119-679-0 01 1 1008-
459 POWER SUPPLY ASM 1-83119-925-0 01 1 1008-
477 GAUGE; AIR PRESS & VOLTAGE 1-83180-294-0 01 1 1008-
488 GAUGE; AIR PRESS & OIL PRESS 1-83150-268-0 01 1 1008-1205
488 GAUGE; AIR PRESS & OIL PRESS 8-98221-618-0 01 1 1206-
