◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#62126) — 306 parça
çizim 170058
5 224 1 1 1 178 178 178 178 178 510 530 292
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1008-
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1008-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1008-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 1008-1201
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 04 1 1008-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 1008-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1008-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1008-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 1008-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 1008-
292 CAP; RUBBER 1-82691-239-0 02 1 1008-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 1008-1202
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 1008-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 1008-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1008-
çizim 170060
119 64 524 24 219 294 340 515 423
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1008-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 1008-1202
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 12 1 1008-
219 NUT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-
219 NUT
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 01 1 1008-
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1008-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1008-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 1008-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1008-
çizim 170064
16 51 104 206 212 305 16 104 171 228 369 380 470 14 194 14 16 48 194 470 16 51 142 162 208
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1008-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
(AG) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1106-
16 CLIP; HARNESS
(AF) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AH) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1008-1105
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1106-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1008-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 1008-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 1008-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-
16 CLIP; HARNESS
(AC) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 07 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26 		1-09709-293-0 04 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (G) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AB) ID=13-18 L=26 		1-09709-293-0 03 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (R) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (Q) OD=9 H=6 		1-09709-178-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (J) ID=11 L=40 		0-95235-075-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=16 L=40 		0-95235-576-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1008-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1008-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1008-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 1008-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 1008-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 1008-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1008-
194 CLIP; BAND
(A) L=350 		1-09707-183-0 05 1 1008-
194 CLIP; BAND
(B) L=300 		1-09707-001-1 01 1 1008-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1008-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 1008-
212 CLIP; HORN HARNESS
L=140 		5-09707-031-1 01 1 1008-
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1008-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1008-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 1008-
369 CLIP; BAND EDS HARNESS
FULL TRACTOR TRUCK<RD6> L=250 		5-09707-030-1 02 1 1008-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111

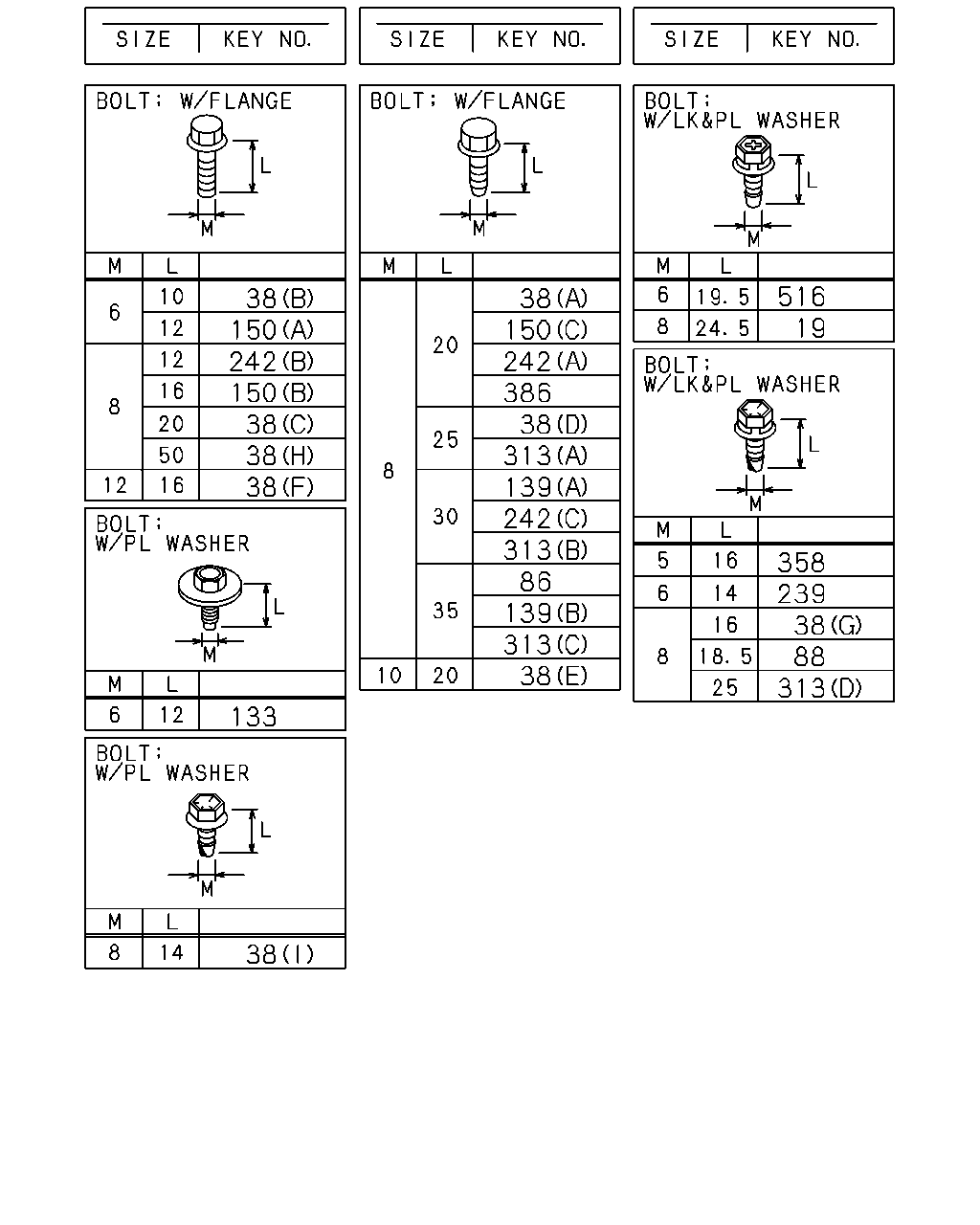

çizim 170067
516 19 38 150 242 150 38 38 38 38 150 242 386 38 313 139 242 313 86 139 313 38 358 239 38 88 313 133 38
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 1008-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1008-1201
38 BOLT; CLIP,HARNESS
(I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
ENGINE REAR PTO(SV1) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
FULL TRAILER PIPING<Z25> (H) M8X50 FLANGE 		0-28050-850-0 01 1 1008-
38 BOLT; CLIP,HARNESS
MJT7S M/T(Y3E) (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008-
86 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1008-
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1008-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 1008-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1008-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 04 1 1008-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1008-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1008-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1202-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1008-
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1008-
242 BOLT; BRKT,HARNESS
EXC. ENGINE REAR PTO(SV1) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1008-
313 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1008-
313 BOLT; BRKT
(D) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1202-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1008-
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-

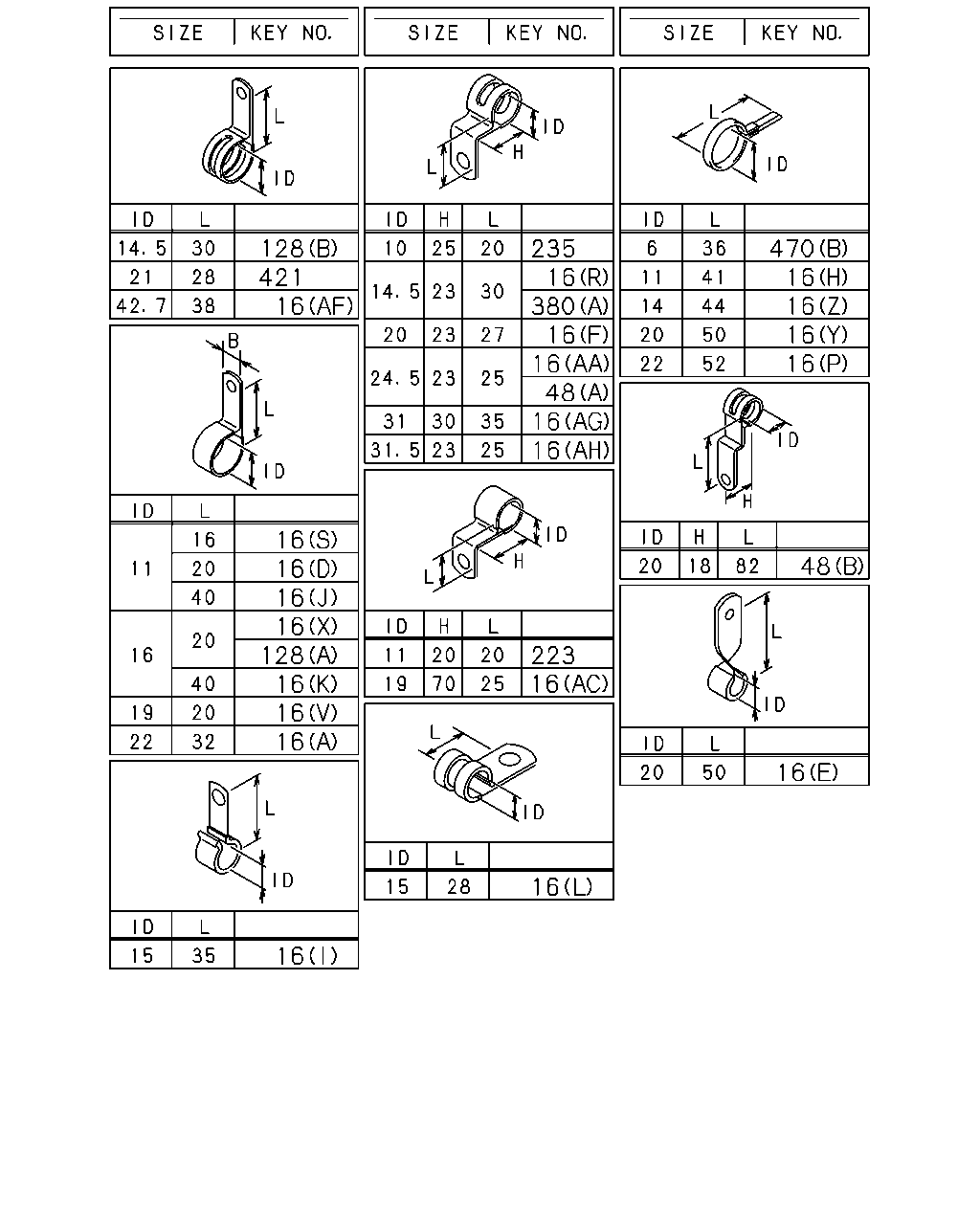

çizim 170075
128 421 16 235 16 380 16 16 48 16 16 470 16 16 16 16 16 16 16 16 128 16 16 16 48 223 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AG) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1106-
16 CLIP; HARNESS
(AF) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AH) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1008-1105
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1106-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1008-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 1008-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 1008-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-
16 CLIP; HARNESS
(AC) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 07 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26 		1-09709-293-0 04 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (G) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AB) ID=13-18 L=26 		1-09709-293-0 03 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (R) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (Q) OD=9 H=6 		1-09709-178-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (J) ID=11 L=40 		0-95235-075-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=16 L=40 		0-95235-576-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1008-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1008-
223 CLIP; AIR TANK HARNESS
ID=11 H=20 L=20 		8-98033-780-0 04 1 1008-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 1008-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 1008-1202
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111

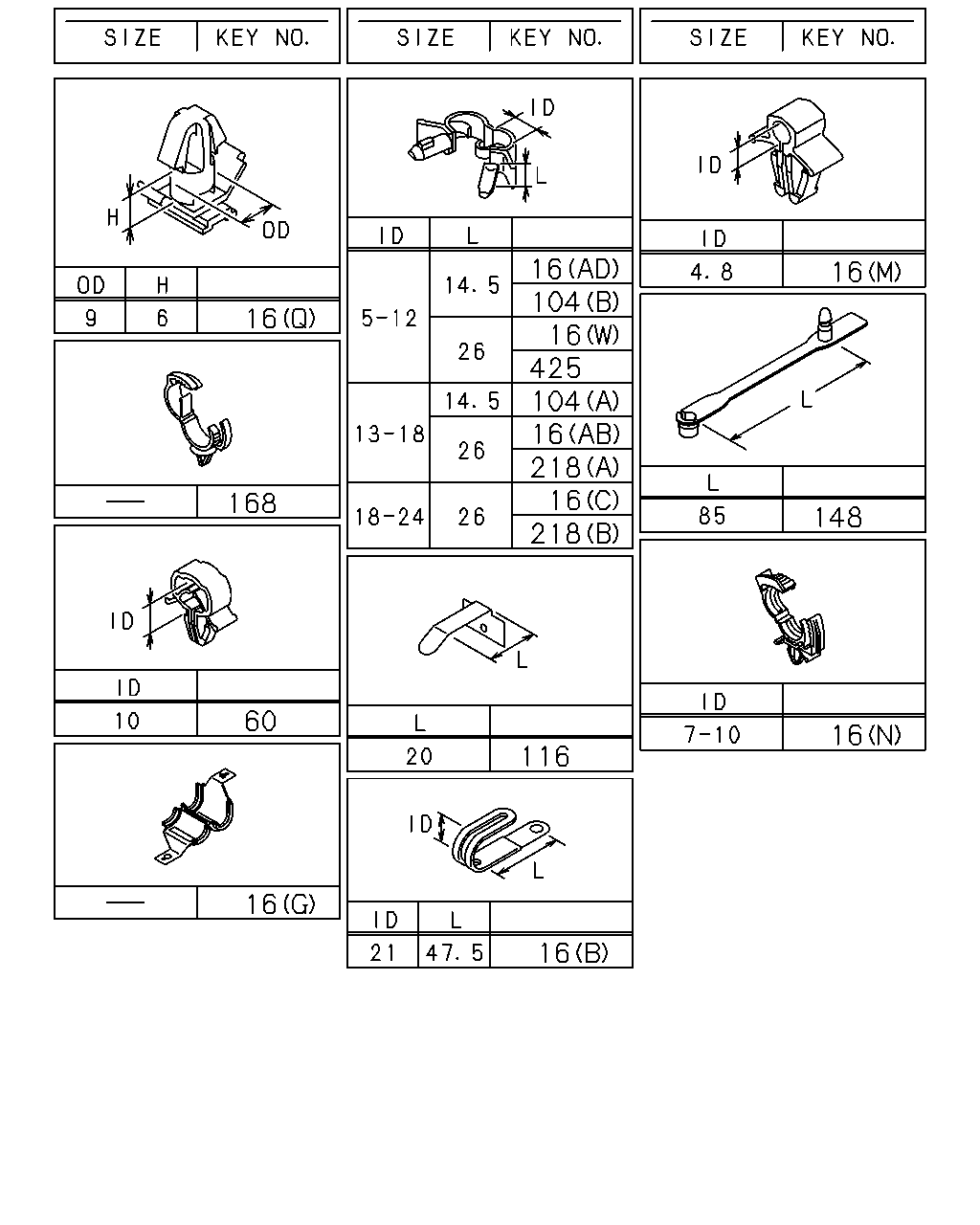

çizim 170077
16 104 16 425 104 16 218 16 218 16 16 168 148 60 16 116 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AG) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1106-
16 CLIP; HARNESS
(AF) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AH) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 05 1 1008-1105
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1106-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 13 1 1008-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (T) L=350 		1-09707-183-0 02 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 1008-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (U) L=250 		5-09707-030-1 01 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 1008-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AE) L=140 		5-09707-031-1 01 1 1008-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-
16 CLIP; HARNESS
(AC) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 07 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-
16 CLIP; HARNESS
ENGINE REAR PTO(SV1) (V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-
16 CLIP; HARNESS
EXC. ENGINE REAR PTO(SV1) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (C) ID=18-24 L=26 		1-09709-296-0 04 1 1008-
16 CLIP; HARNESS
FULL TRACTOR TRUCK<RD6> (Y) ID=20 L=50 		9-09917-430-0 03 1 1008-
16 CLIP; HARNESS
EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=13-18 L=26 		1-09709-293-0 04 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (G) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
FULL TRAILER PIPING<Z25> (AB) ID=13-18 L=26 		1-09709-293-0 03 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (R) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 1008-
16 CLIP; HARNESS
MJT7S M/T(Y3E) (Q) OD=9 H=6 		1-09709-178-0 02 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (J) ID=11 L=40 		0-95235-075-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=16 L=40 		0-95235-576-0 01 1 1008-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (Q) OD=9 H=6 		1-09709-178-0 03 1 1008-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1008-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 1008-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1008-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1008-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 02 1 1008-
218 CLIP; BAND,RR COMB
WHEEL BASE 6500MM(65W) (A) ID=13-18 L=26 		1-09709-293-0 05 1 1008-
218 CLIP; BAND,RR COMB
WHEEL BASE 6500MM(65W) (B) ID=18-24 L=26 		1-09709-296-0 01 1 1008-
218 CLIP; BAND,RR COMB
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (A) ID=13-18 L=26 		1-09709-293-0 06 1 1008-
425 CLIP; MODULATOR
ID=5-12 L=26 		1-09709-289-0 02 1 1008-
çizim 170079
53 27 53 53 69 211 334 312 312 342 335 375 342
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-97618-028-0 01 1 1008-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 1008-
53 BRACKET; HARNESS
(B) 		1-47479-800-0 01 1 1008-
53 BRACKET; HARNESS
(C) 		8-98124-778-0 01 1 1008-
69 BRACKET; CLIP 8-98171-829-0 01 1 1202-
211 BRACKET; AXLE HARNESS 1-47479-430-0 02 1 1008-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1008-
312 BRACKET; CLIP HARNESS
(B) 		1-21464-481-0 01 1 1008-
334 BRACKET 8-98160-717-1 01 1 1008-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1008-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 1008-
342 BRACKET; HARNESS CAB MTG
EXC. ENGINE REAR PTO(SV1) (B) 		1-47479-974-0 01 1 1008-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
