◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#62125) — 94 parça

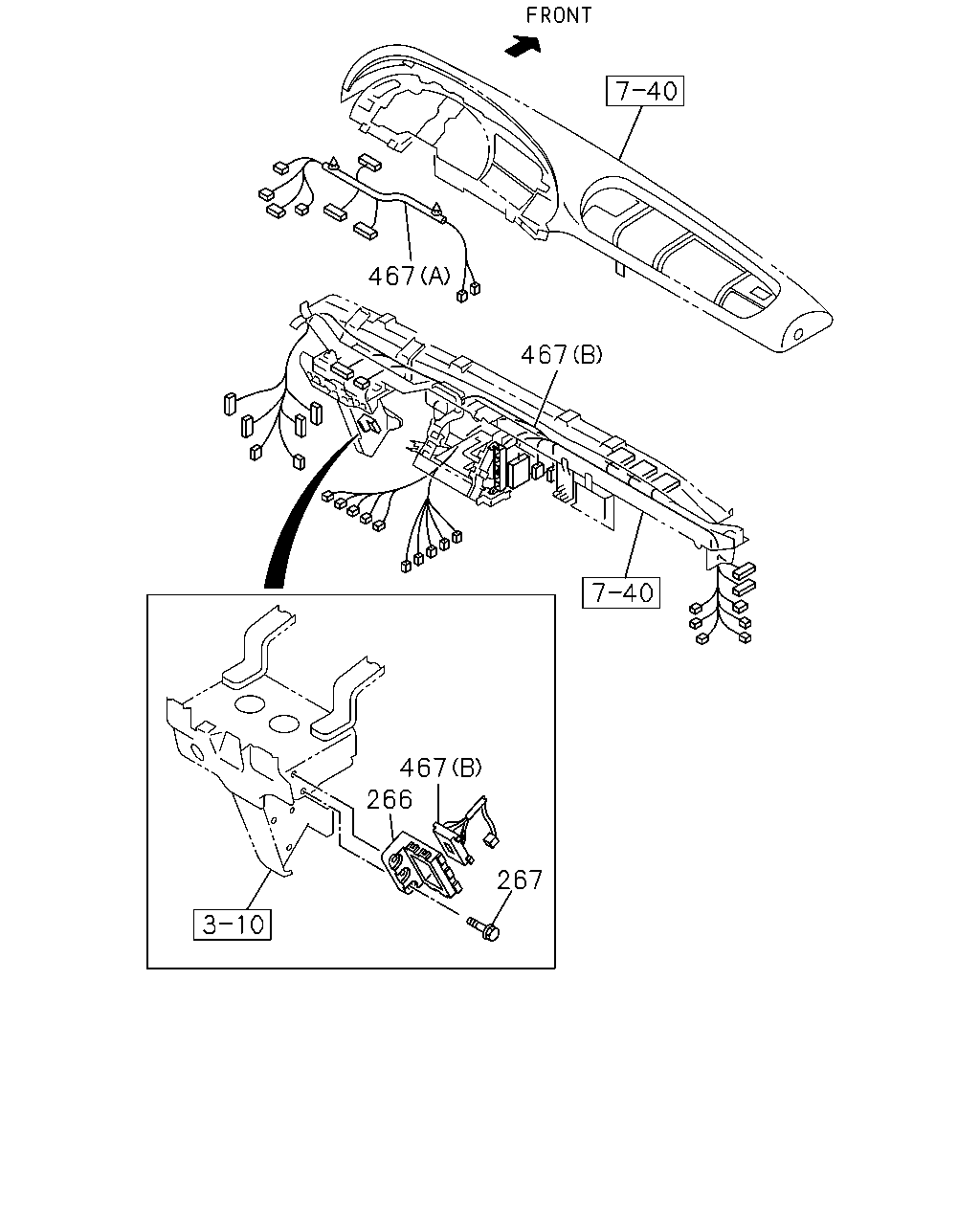

çizim 170070
467 467 467 266 267
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 1008-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 1008-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-

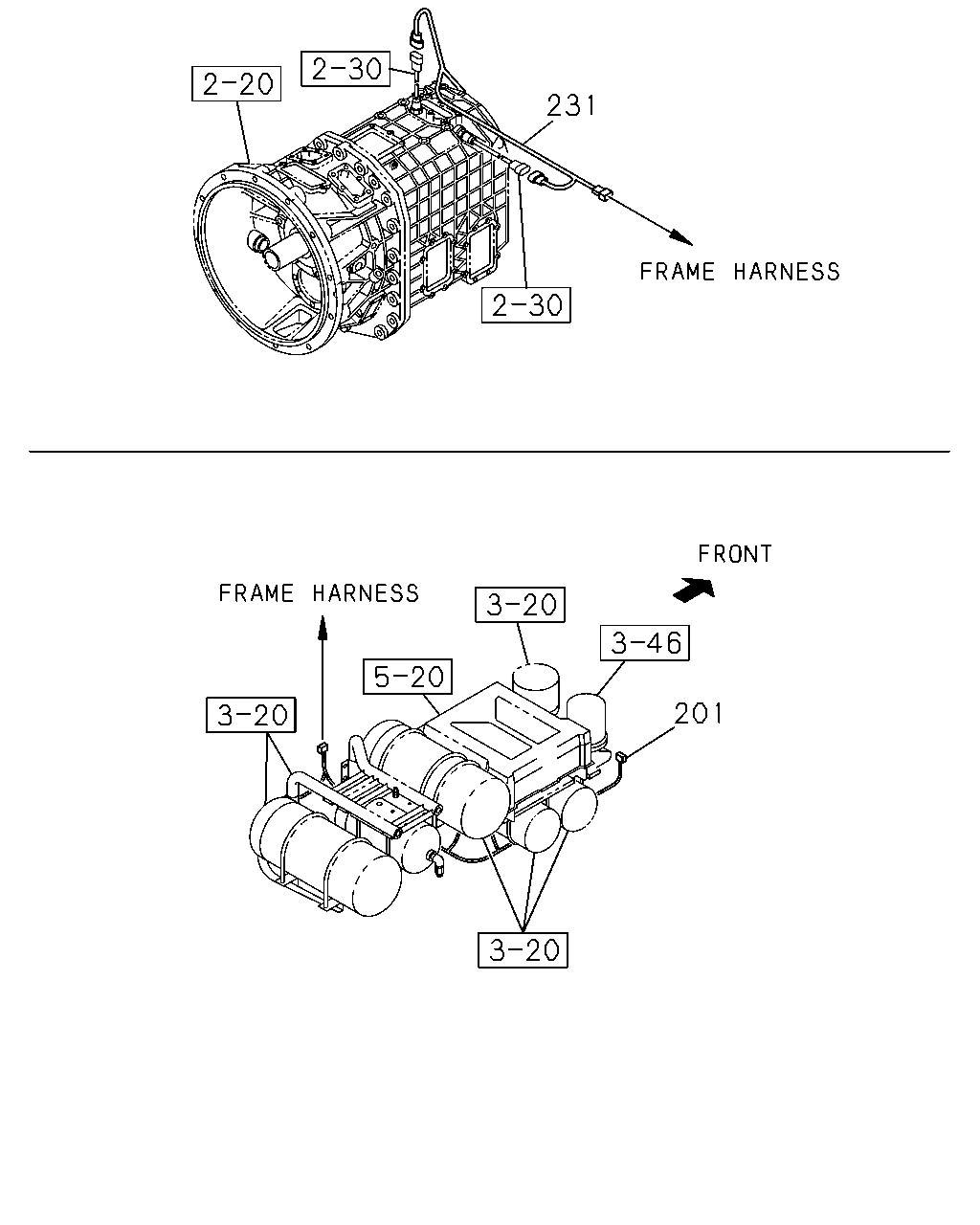

çizim 170071
231 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 8-98149-086-3 01 1 1008-
231 HARNESS; TRANS
MJT7S M/T(Y3E) 		8-97615-725-1 01 1 1008-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		8-98139-486-4 01 1 1008-

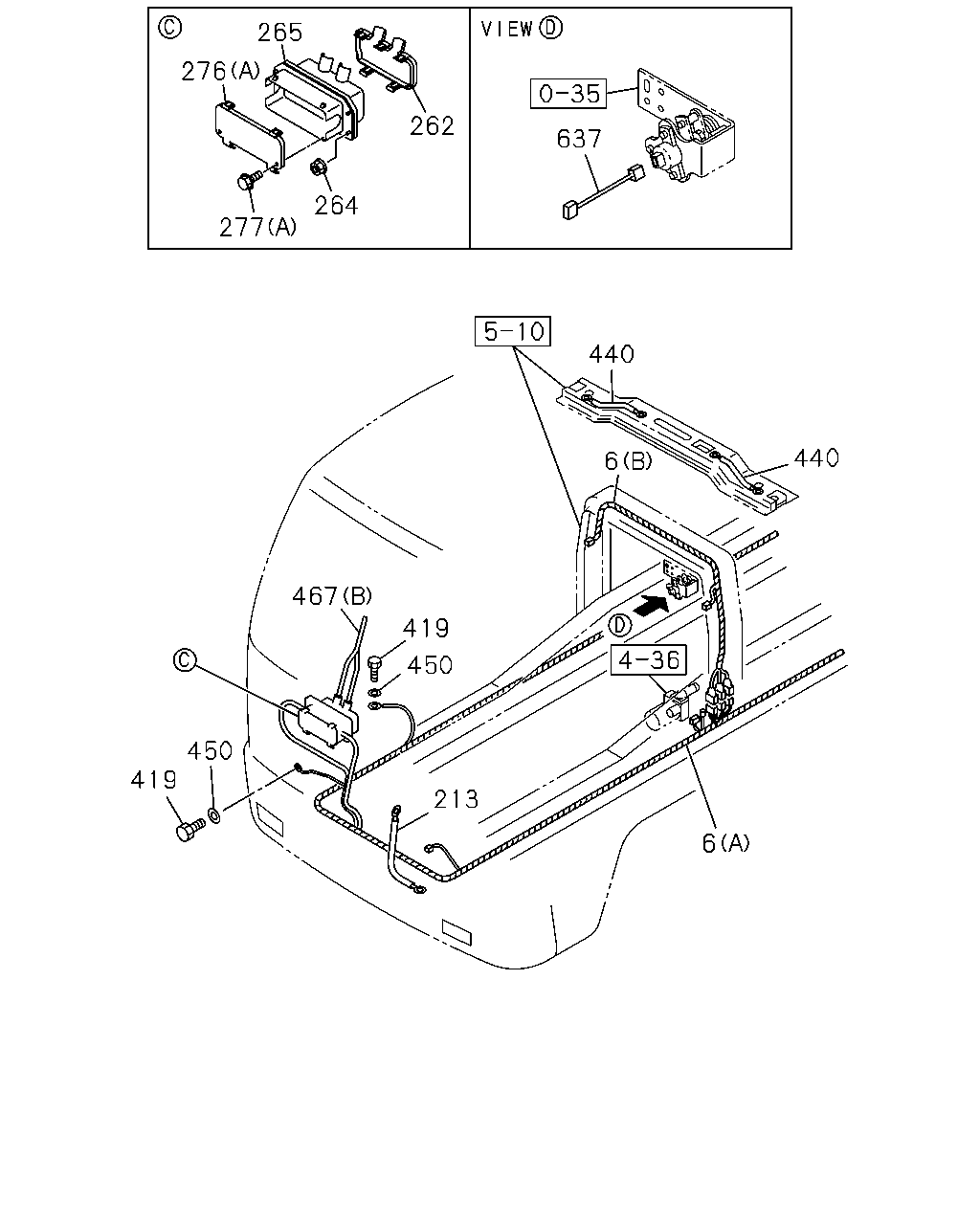

çizim 170072
265 276 262 637 264 277 440 440 6 467 419 450 450 419 213 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 1008-1201
6 HARNESS; FRAME
(B) 		8-98181-560-0 01 1 1202-
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> (A) 		8-98144-975-4 01 1 1008-
6 HARNESS; FRAME
EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-976-4 01 1 1008-
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 1008-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 1008-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 1008-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201
440 CABLE; EARTH 1-82678-273-0 02 1 1008-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 1008-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 1008-

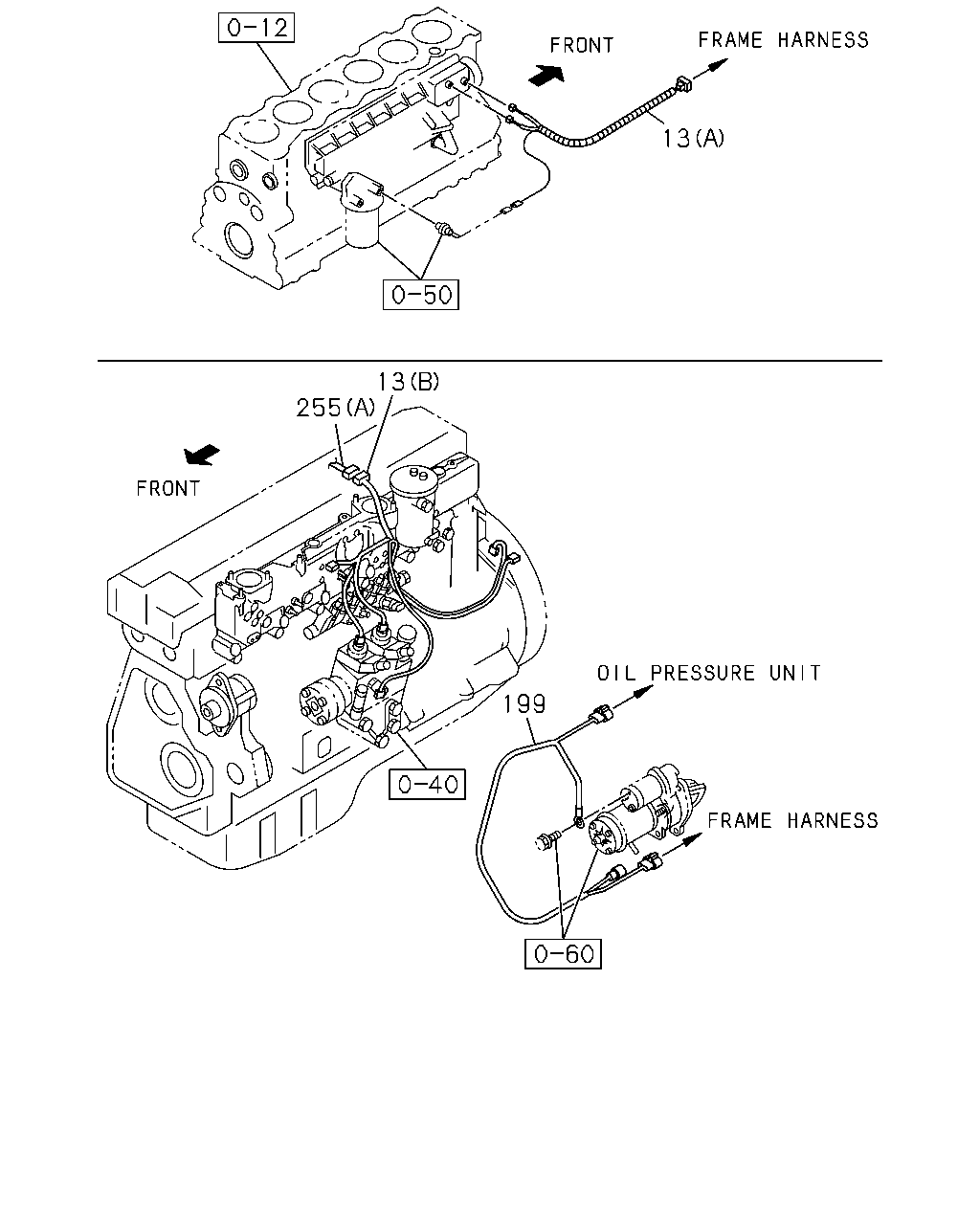

çizim 170073
13 13 255 199
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-98169-641-0 01 1 1008-1201
13 HARNESS; ENG
(B) 		8-98180-788-0 01 1 1202-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 1008-
199 HARNESS; STARTER
ENGINE REAR PTO(SV1) 		8-98147-121-0 01 1 1008-
199 HARNESS; STARTER
EXC. ENGINE REAR PTO(SV1) 		8-98139-485-0 01 1 1008-
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-

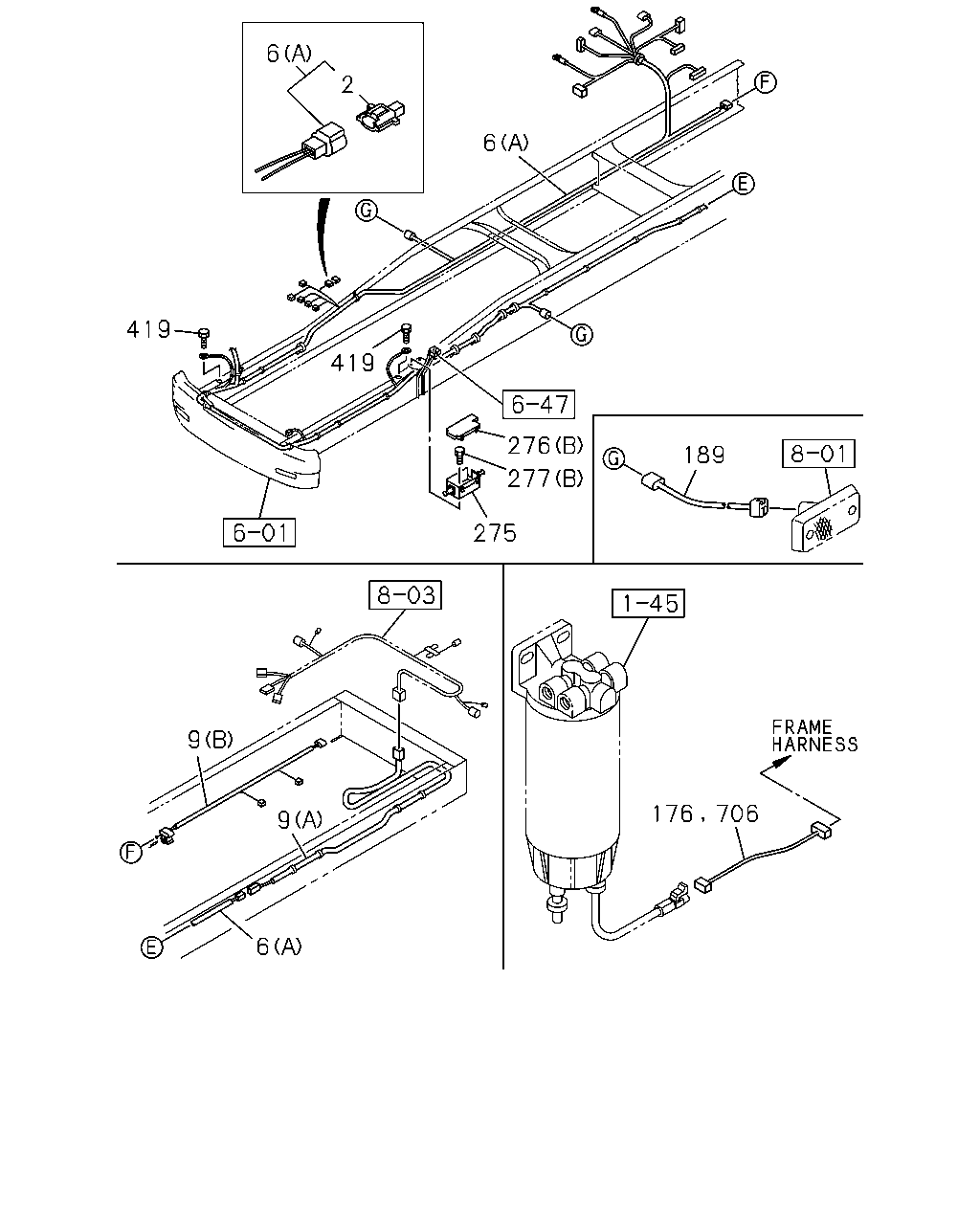

çizim 170084
6 6 2 419 419 276 277 275 189 9 9 176 706 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 1008-
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 1008-1201
6 HARNESS; FRAME
(B) 		8-98181-560-0 01 1 1202-
6 HARNESS; FRAME
FULL TRAILER PIPING<Z25> (A) 		8-98144-975-4 01 1 1008-
6 HARNESS; FRAME
EXC. FULL TRAILER PIPING<Z25> (A) 		8-98144-976-4 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) (B) 		8-98149-044-1 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) FULL TRAILER PIPING<Z25> (A) 		8-98139-450-2 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) EXC. FULL TRAILER PIPING<Z25> (A) 		8-98139-454-2 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 7400MM(74W) (A) 		8-98139-455-1 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 7400MM(74W) (B) 		8-98149-045-1 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 7800MM(78W) (A) 		8-98139-459-1 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 7800MM(78W) (B) 		8-98149-046-1 01 1 1008-
176 HARNESS; FUEL SEDIMENTER 8-98139-487-2 01 1 1008-1203
189 HARNESS; EXT 1-82673-735-0 08 1 1008-
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 1008-1201
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 1008-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 1008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1008-1201
419 BOLT; CAB EARTH
M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1008-1201
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 05 1 1202-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 05 1 1008-1201
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 05 1 1202-
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1008-1201
706 HARNESS; EXT,SEDIMENTER 8-98139-487-2 01 1 1204-

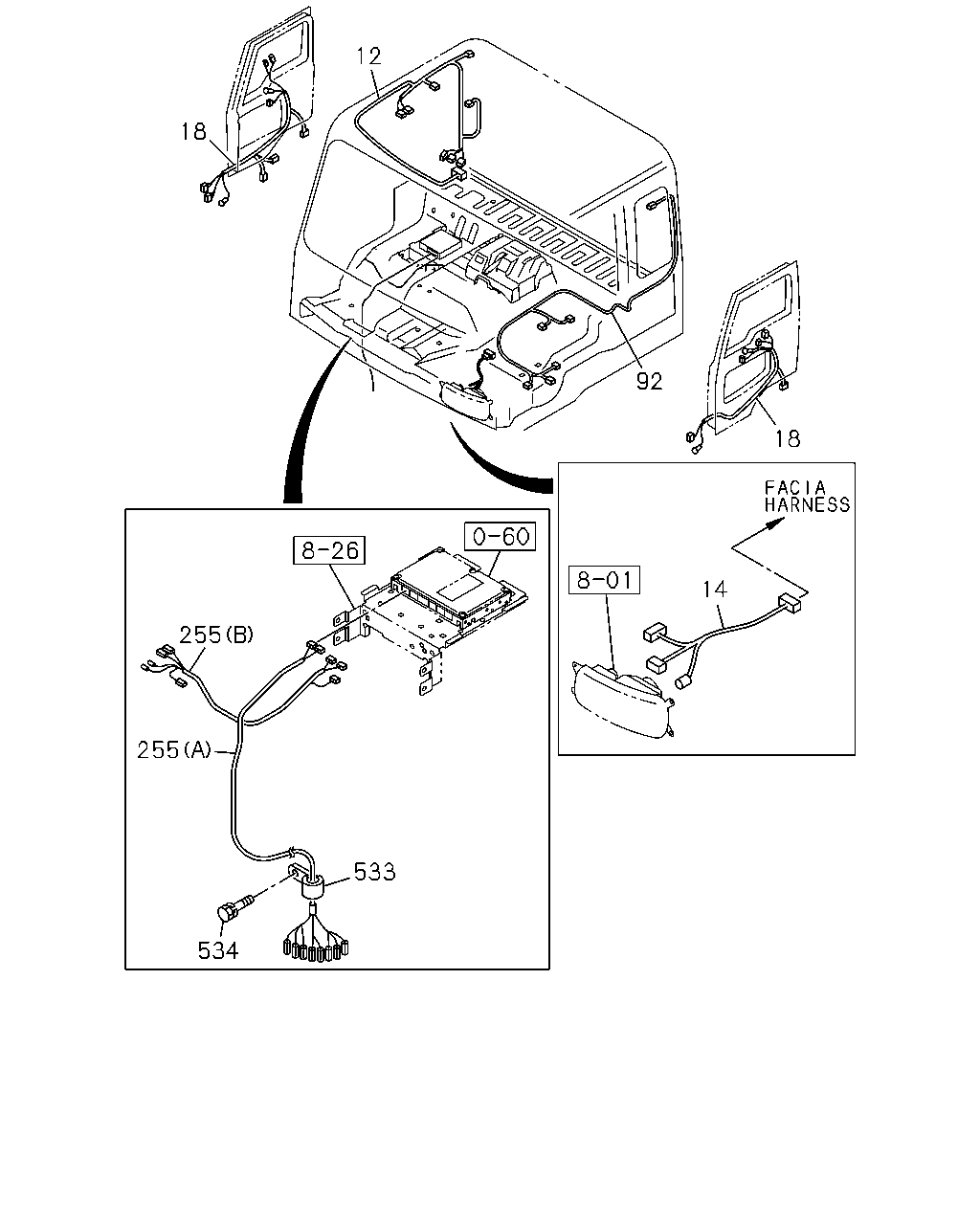

çizim 170086
12 18 92 18 14 255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 1-82629-921-2 01 1 1008-
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 1008-
18 HARNESS; DOOR
ASSISTANT 		8-98144-348-1 01 1 1008-
18 HARNESS; DOOR
DRIVER 		8-98144-350-0 01 1 1008-
92 HARNESS; FLOOR 8-98093-664-0 01 1 1008-
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 1008-1201
255 HARNESS; ELEC GOV
(A) 		8-98181-558-0 01 1 1202-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-992-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 1008-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203-
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 1008-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-

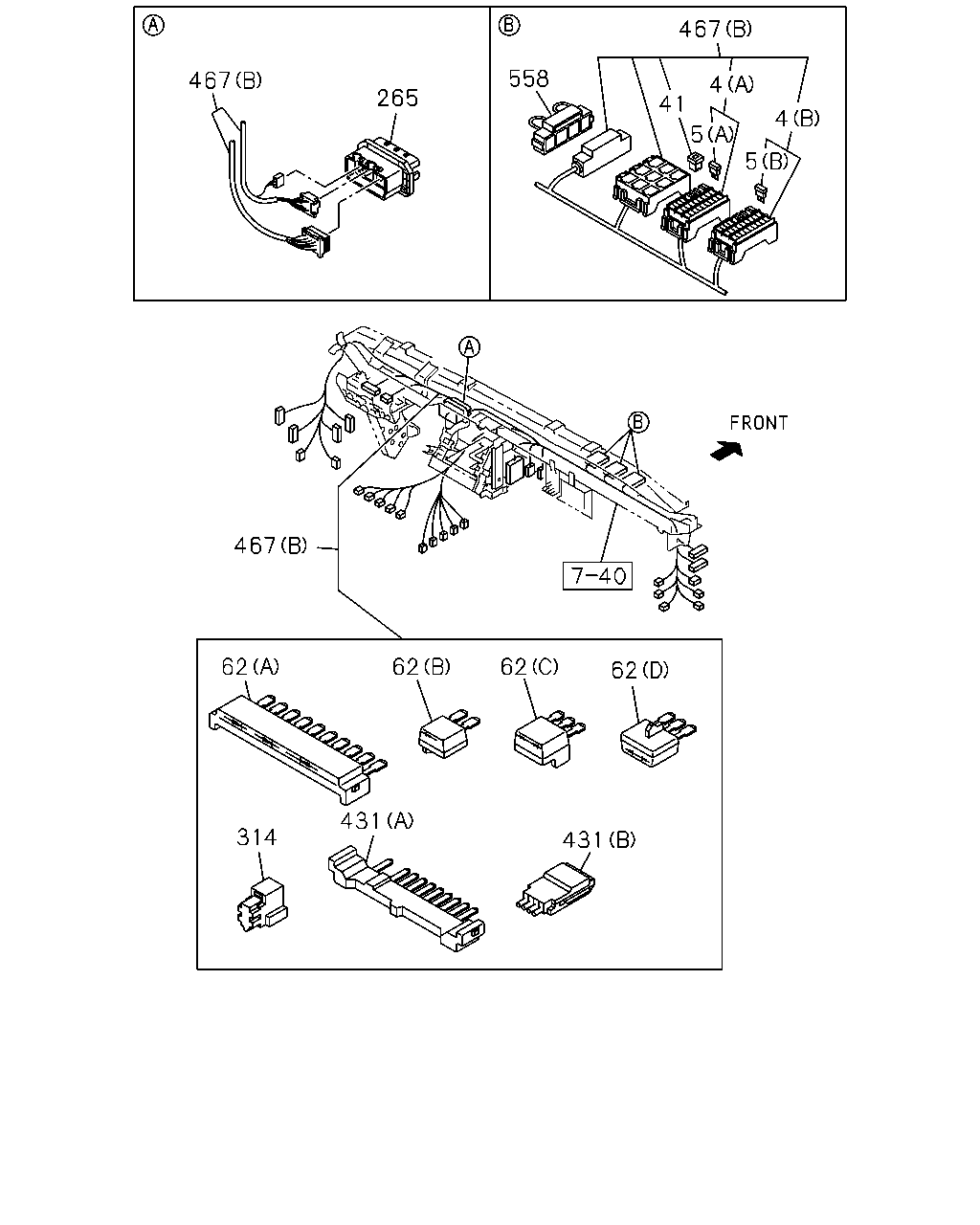

çizim 170125
467 558 467 4 265 41 4 5 5 467 62 62 62 62 431 314 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 1008-
4 BOX ASM; FUSE,HARNESS
(B) 15AX22 25AX3 		8-98126-046-0 01 1 1008-
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 22 1 1008-
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 03 1 1008-
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 21 1 1008-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 1008-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 1008-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 1008-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 04 1 1008-1112
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 1201-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 1008-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 1008-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1008-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 1008-
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 03 1 1008-
467 HARNESS; FACIA
(B) LOWER 		8-98144-223-7 01 1 1008-
467 HARNESS; FACIA
(A) UPPER 		8-98145-590-1 01 1 1008-
558 CONNECTOR; HARNESS
4P 		1-82629-690-0 01 1 1008-
