◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#62124) — 23 parça

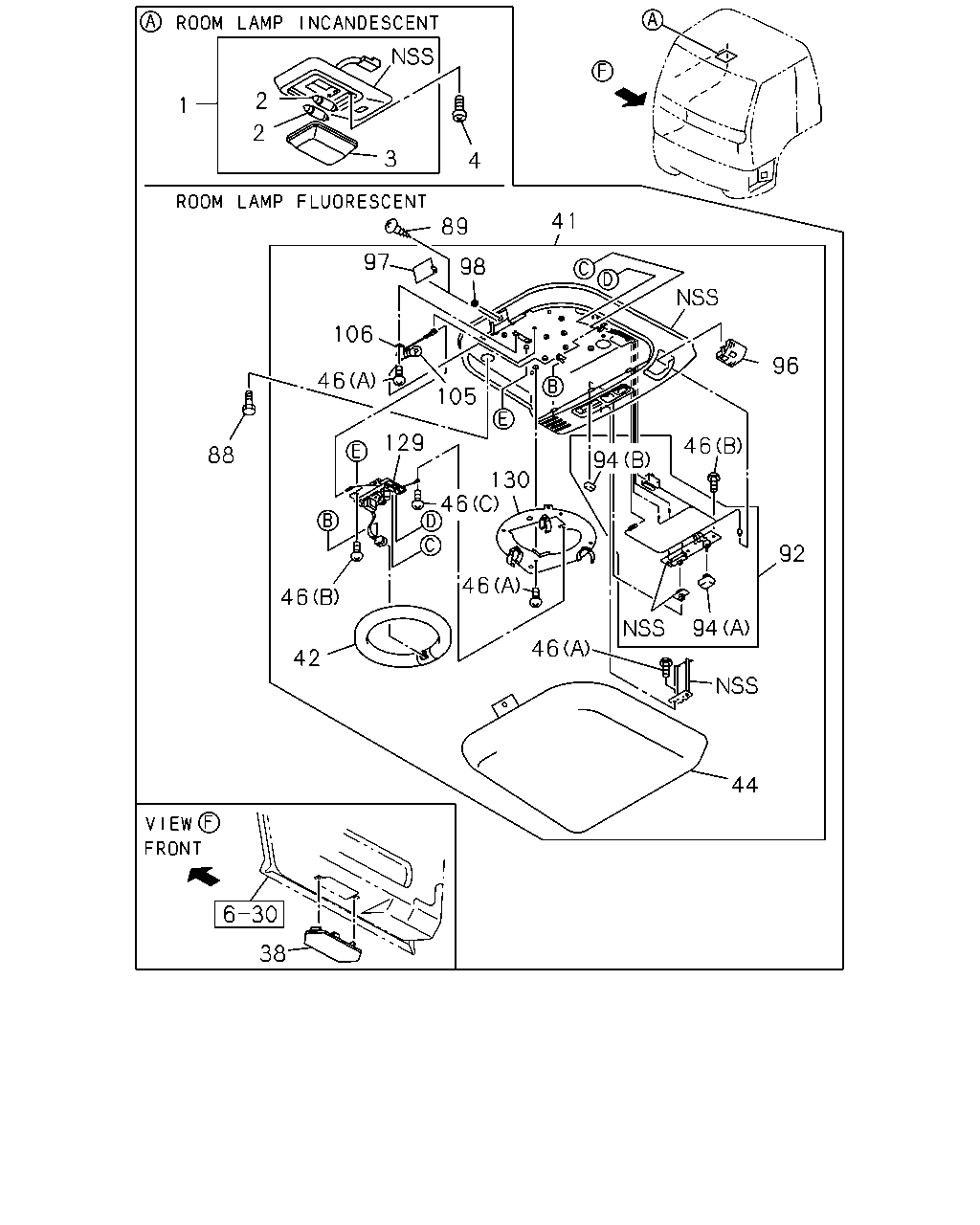

çizim 170068
2 1 2 3 4 41 89 97 98 106 96 46 105 129 46 88 94 130 46 92 46 46 94 46 42 44 38
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; ROOM
ROOM LAMP INCANDESCENT<NGH> 		1-82140-050-1 01 1 1008-
2 BULB; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> 24V 10W 		1-82195-001-0 02 1 1008-
3 LENS; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> 		1-82145-020-0 01 1 1008-
4 SCREW; ROOM LAMP
ROOM LAMP INCANDESCENT<NGH> M5X20 TAPPING 		0-71040-520-0 03 1 1008-
38 COVER; STEP LAMP,DOOR 1-74997-029-2 01 1 1008-
41 LAMP ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-315-2 01 1 1008-
42 LAMP; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-094-1 01 1 1008-
44 LENS; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-092-0 01 1 1008-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING 		1-86830-095-0 08 1 1008-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (B) M4X12 		1-86830-202-0 07 1 1008-
46 SCREW; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING 		1-86830-336-0 01 1 1008-
88 BOLT; LAMP
ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 1008-
89 SCREW; LENS,FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING 		0-71240-510-0 01 1 1008-
92 SWITCH ASM; FLUORESCENT
ROOM LAMP FLUORESCENT<NGG> 		1-86830-306-0 01 1 1008-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (A) 		1-86830-312-0 01 1 1008-
94 KNOB; ROOM LAMP SW
ROOM LAMP FLUORESCENT<NGG> (B) 		1-86830-313-0 01 1 1008-
96 CAP; SPOT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-385-0 01 1 1008-
97 CAP; LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-311-0 01 1 1008-
98 GROMMET; SCREW,LENS FIX
ROOM LAMP FLUORESCENT<NGG> 		1-86830-102-0 01 1 1008-
105 BULB; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 28V 20W 		1-86830-200-0 01 1 1008-
106 SOCKET; BULB
ROOM LAMP FLUORESCENT<NGG> 		1-86830-201-0 01 1 1008-
129 INVERTER ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-338-0 01 1 1008-
130 PLATE ASM; FLUORESCENT LAMP
ROOM LAMP FLUORESCENT<NGG> 		1-86830-339-0 01 1 1008-
