◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#62123) — 55 parça

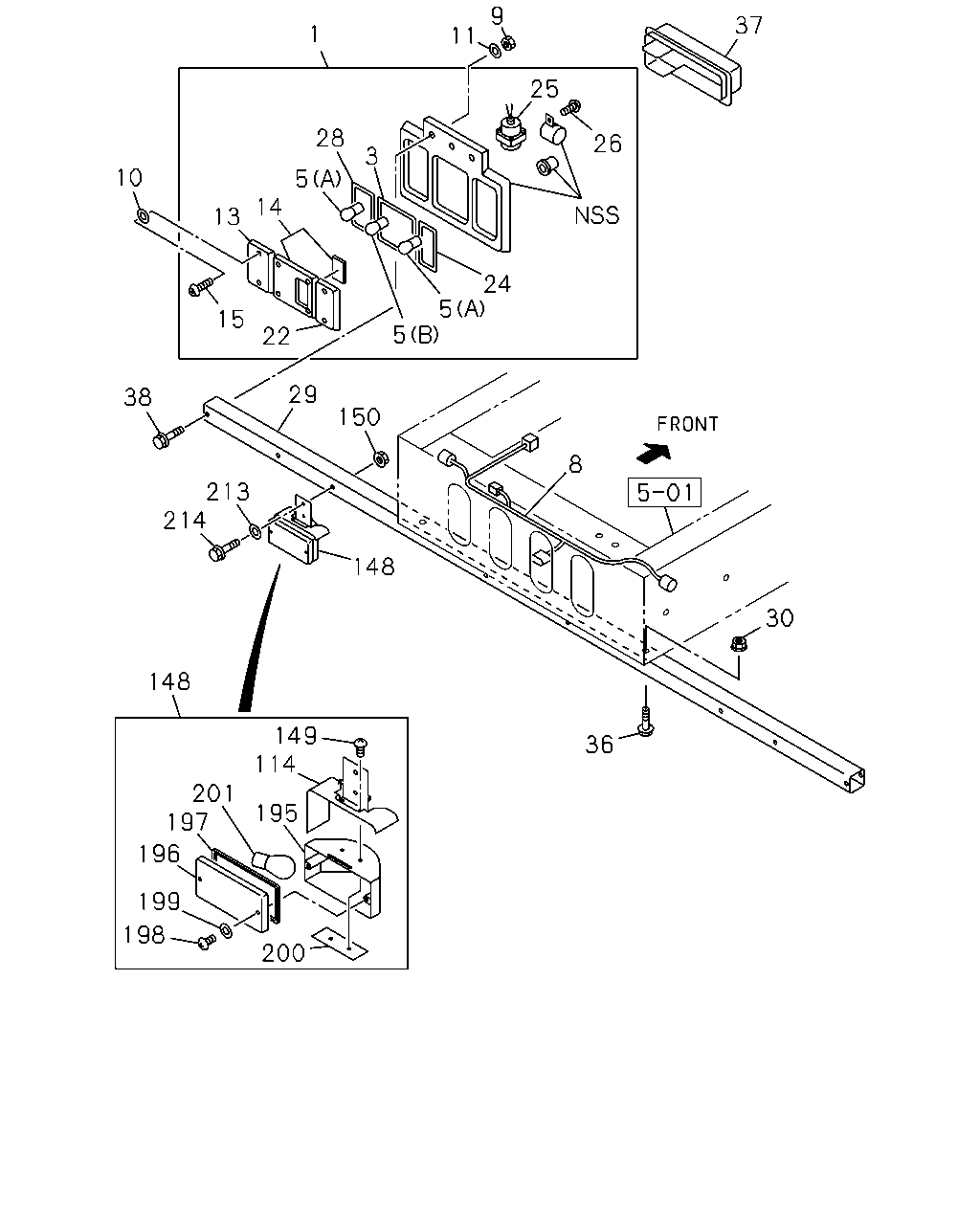

çizim 170056
9 37 1 11 25 28 26 3 10 5 14 13 24 5 5 15 22 29 38 150 8 213 214 148 30 148 149 114 36 201 197 195 196 199 198 200
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 1008-
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 1008-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1008-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1008-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 6500MM(65W) FULL TRAILER PIPING<Z25> 		8-98139-511-3 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 6500MM(65W) EXC. FULL TRAILER PIPING<Z25> 		8-98144-644-2 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) FULL TRAILER PIPING<Z25> 		8-98139-512-2 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) EXC. FULL TRAILER PIPING<Z25> 		8-98144-645-1 01 1 1008-
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1008-
10 WASHER; LK,RR COMB LAMP
ID=5.1 		0-91510-505-0 04 1 1008-1106
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1008-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1008-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1008-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1008-
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1008-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1008-
25 HORN ASM; BACK 8-94257-518-0 01 1 1008-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1008-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1008-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1008-
29 BRACKET; LAMP,RR COMB 8-98153-159-0 01 1 1008-
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 1008-
36 BOLT; BRKT,RR COMB
M10X90 FLANGE 		0-28051-090-0 02 1 1008-
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1008-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1008-
38 BOLT; LAMP,RR COMB
M6X70 FLANGE 		0-28050-670-0 04 1 1008-
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1008-
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 1008-
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1008-
150 NUT; RR FOG LAMP
M6 		0-91110-506-0 01 1 1008-
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1008-
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1008-
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1008-
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1008-
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1008-
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1008-
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1008-
213 WASHER; PL,RR FOG LAMP
ID=5.1 		0-91510-505-0 01 1 1008-1106
213 WASHER; PL,RR FOG LAMP
ID=6.4 OD=18 		0-91610-706-0 01 1 1008-
214 BOLT; RR FOG LAMP
M6X70 FLANGE 		0-28050-670-0 01 1 1008-

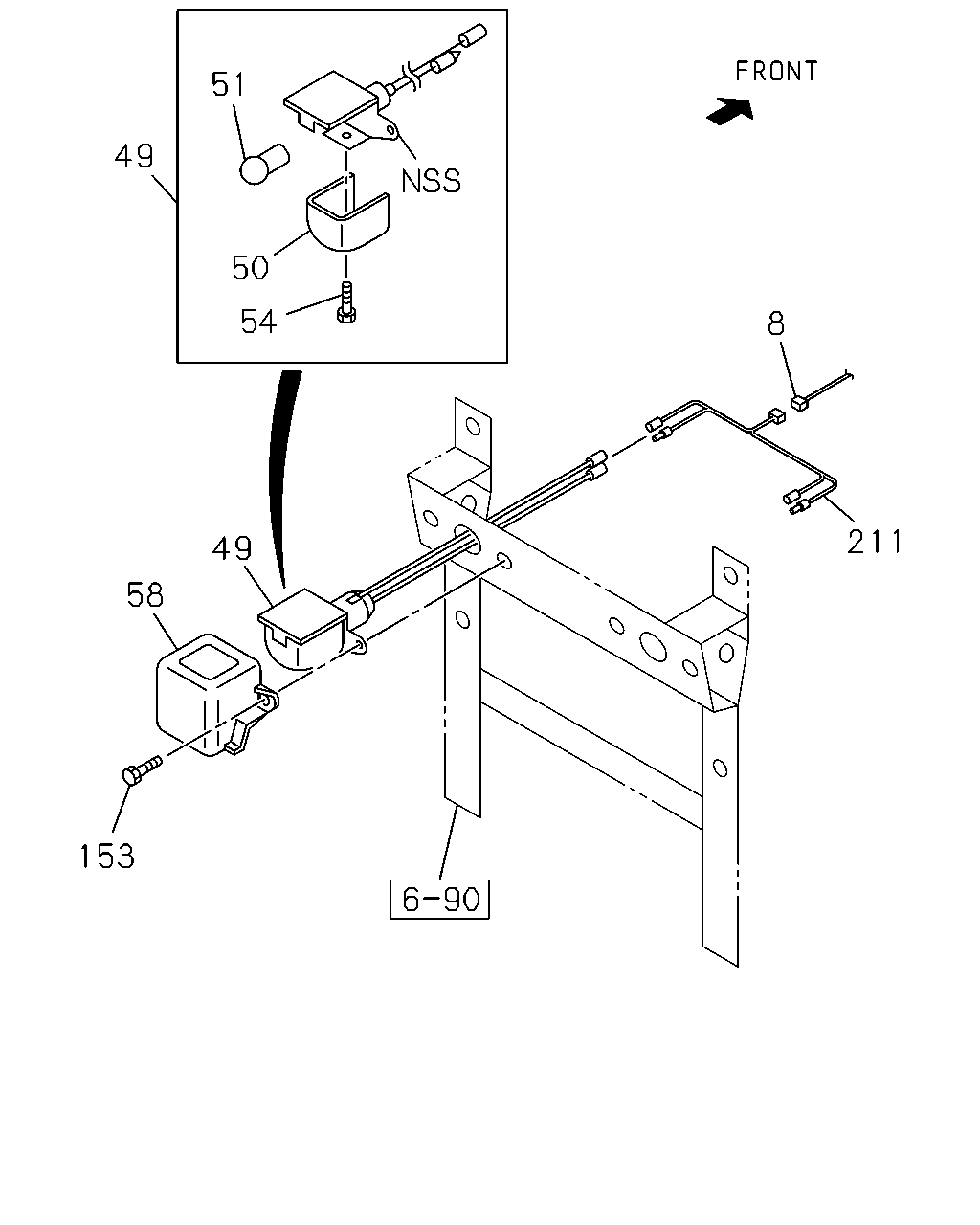

çizim 170059
51 49 50 54 8 211 49 58 153
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; RR COMB LAMP
WHEEL BASE 6500MM(65W) FULL TRAILER PIPING<Z25> 		8-98139-511-3 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 6500MM(65W) EXC. FULL TRAILER PIPING<Z25> 		8-98144-644-2 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) FULL TRAILER PIPING<Z25> 		8-98139-512-2 01 1 1008-
8 HARNESS; RR COMB LAMP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) EXC. FULL TRAILER PIPING<Z25> 		8-98144-645-1 01 1 1008-
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1008-1509
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1008-
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1008-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1008-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1008-
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 04 1 1008-
211 HARNESS; EXT 8-98131-066-0 01 1 1008-
