11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#62117) — 54 parça
◀
[743A] ASSIST GRIP;CAB INSIDE (18 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (19 parça)
[743A] SUN VISOR AND SUPPORT ASM (17 parça)
▶
150
76
71
87
48
54
71
48
71
106
55
87
56
142
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1008-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1008-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1008-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-070-2
01
1
1008-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
02
1
1008-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1008-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1008-
71
SCREW
(B) M6X30 W/LK WASHER
5-09981-064-0
04
1
1008-
71
SCREW
(A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
1008-
76
SPACER; ASSIST GRIP
OD=13 T=4.5
8-94230-464-1
04
1
1008-
87
GRIP; ASSIST,CANT RAIL SIDE
DARK GRAY
8-97098-476-2
02
1
1008-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
04
1
1008-
150
CLIP; ASSIST GRIP HOLE
OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1008-

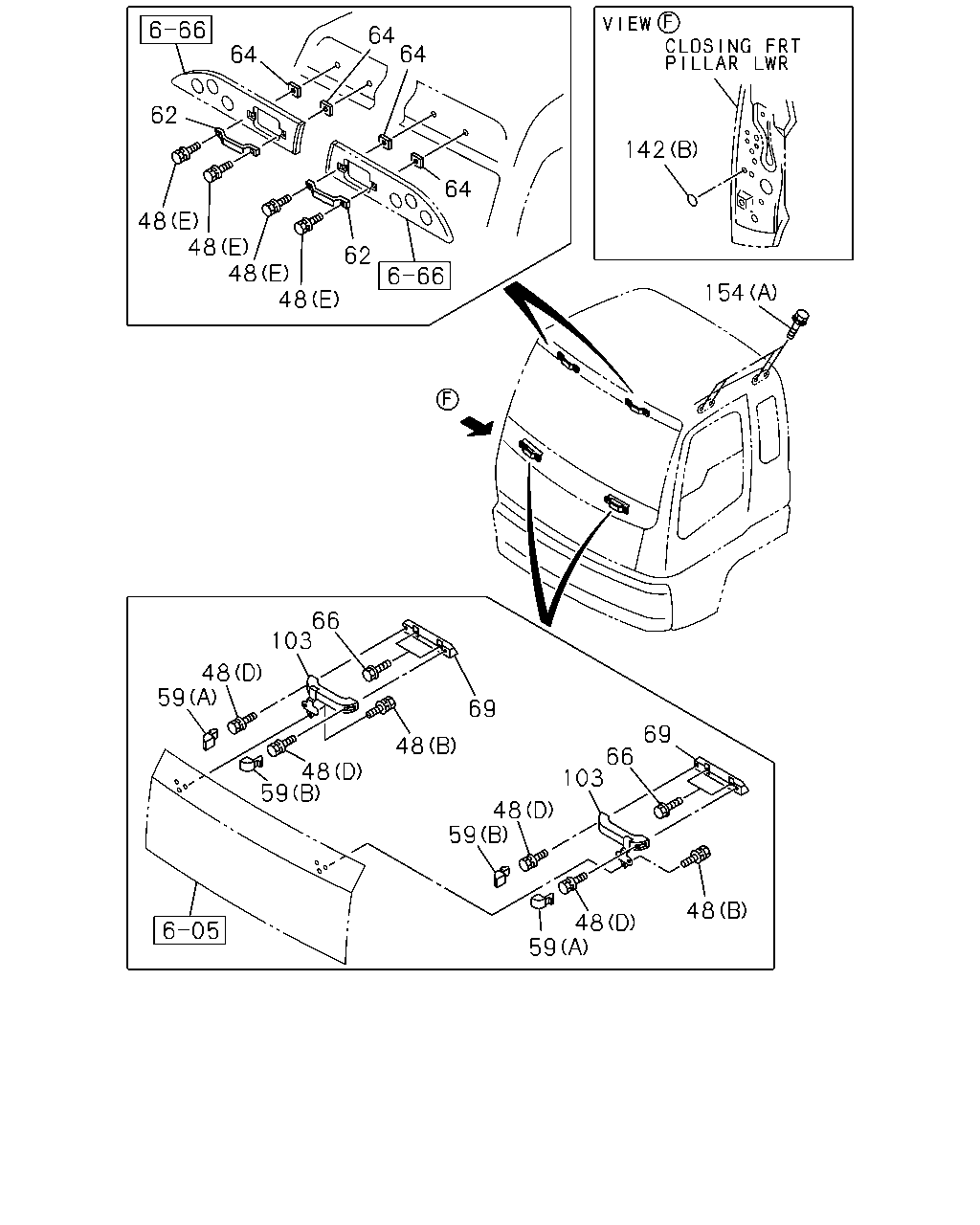

64
64
64
62
142
64
48
48
48
48
62
154
66
103
48
59
69
69
48
66
103
48
59
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1008-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1008-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1008-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1008-
59
COVER; ASSIST GRIP
(A)
1-71998-789-2
02
1
1008-
59
COVER; ASSIST GRIP
(B)
1-71998-790-2
02
1
1008-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1008-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1008-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1008-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1008-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1008-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1008-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1008-
142
SEAL; ASSIST GRIP
(B) OD=25 BLACK
1-76798-019-0
01
1
1008-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25
8-94272-533-0
04
1
1008-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1008-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1008-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1008-

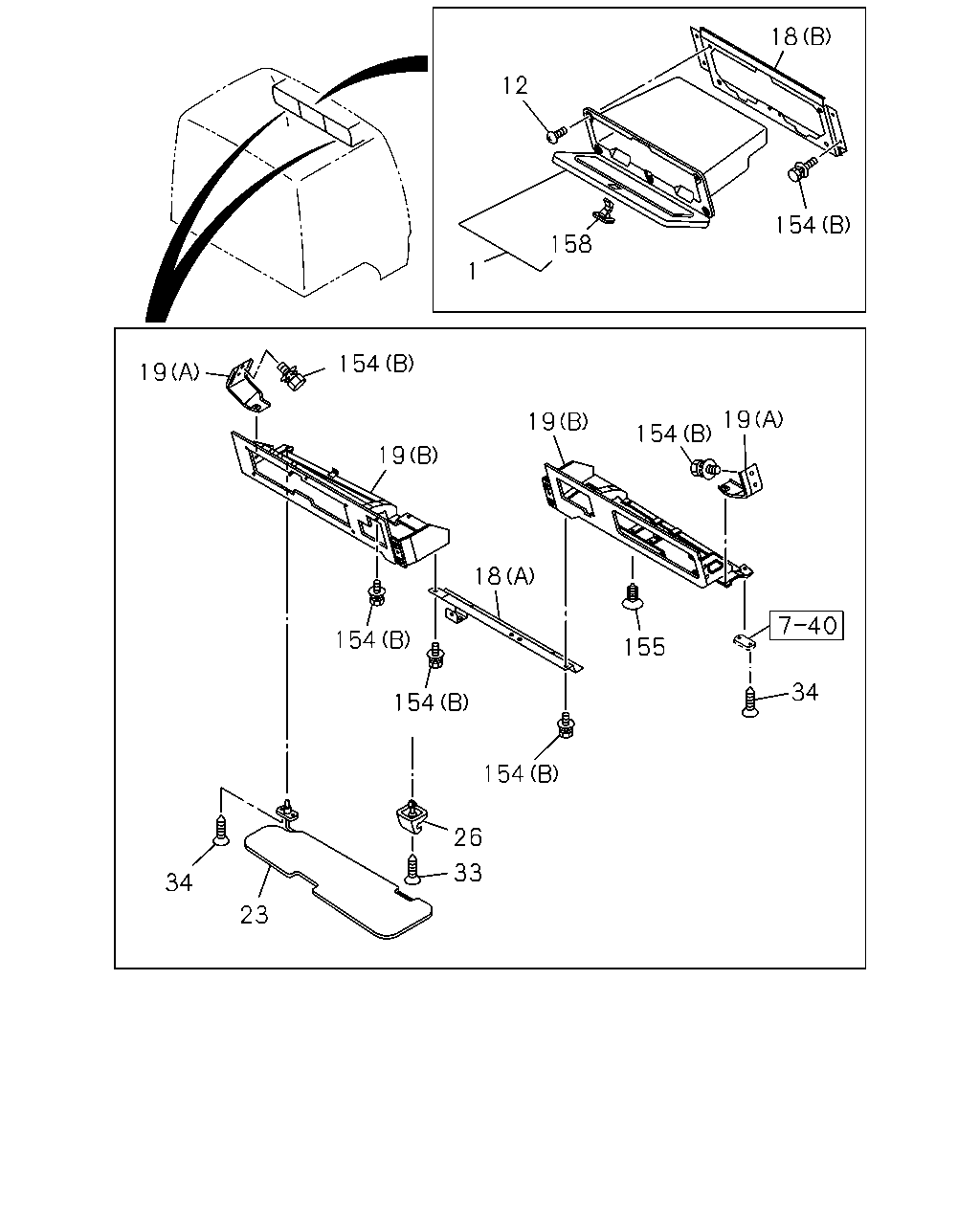

18
12
154
158
1
154
19
19
19
154
19
18
154
155
34
154
154
26
33
34
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
1-72447-968-0
01
1
1008-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1008-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1008-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-937-0
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-938-4
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1008-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1008-
23
SUN VISOR
1-73138-157-1
01
1
1008-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1008-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1008-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1008-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1008-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
1008-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1008-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1008-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
1008-
