Sayfa 7-10 - Isuzu EPC

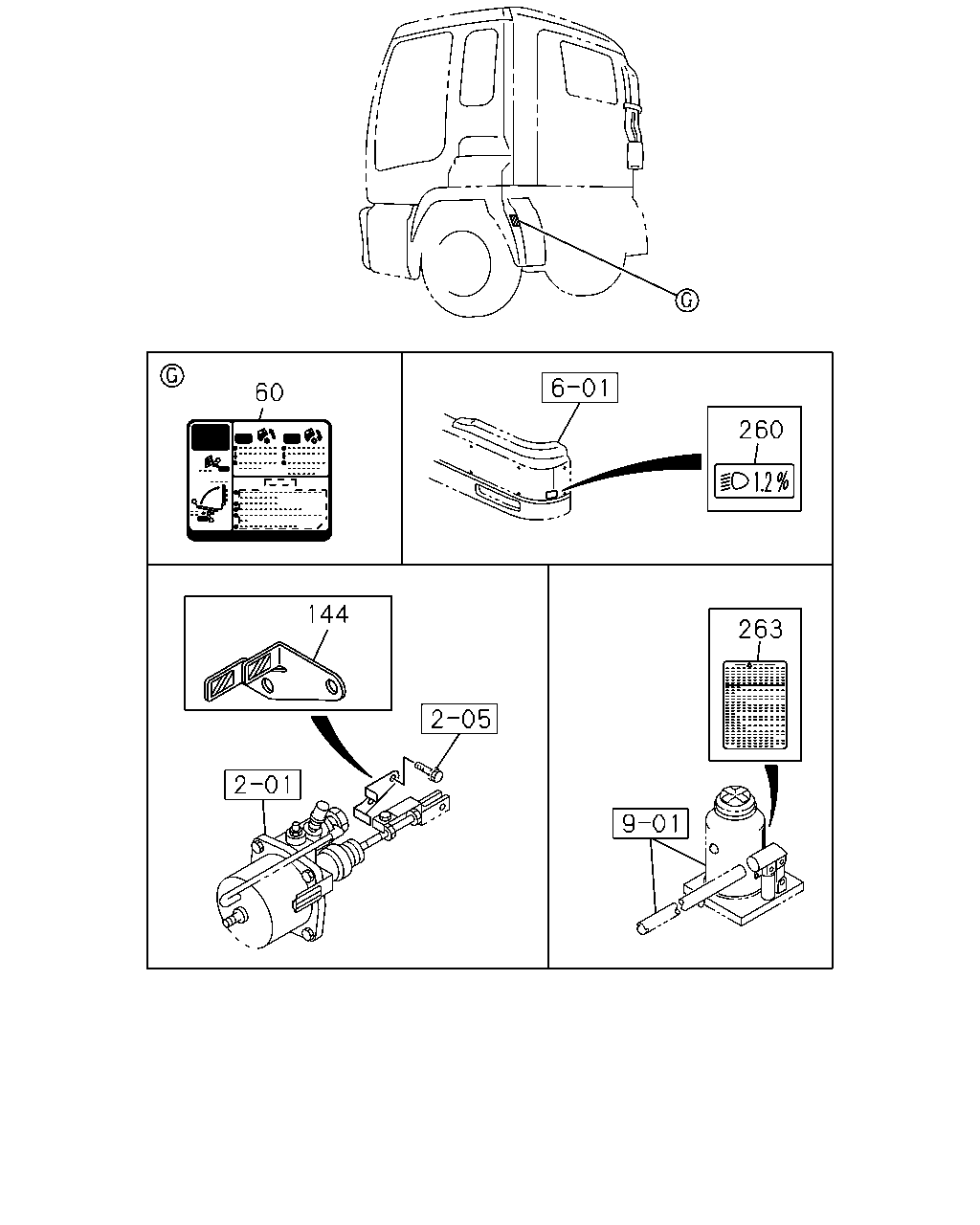

7-10 — CAUTION PLATE AND LABEL (#62113) — 20 parça

60 260 144 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	PLATE; CAUTION,CAB TILT	1-85883-181-0	01	1	1008-
144	PLATE; CAUTION,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-85878-345-0	01	1	1008-
260	PLATE; CAUTION,HEAD LAMP LEVELING	1-85878-416-1	01	1	1008-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1>	8-98094-561-0	01	1	1008-

252 51 49 51 74 119 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PLATE; CAUTION,FUSE BOX	8-97624-086-0	01	1	1008-
51	PLATE; CAUTION,WARNING (B)	1-85880-787-0	01	1	1008-
51	PLATE; CAUTION,WARNING (A)	8-97624-052-0	01	1	1008-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (B)	8-98118-493-0	01	1	1008-
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (A)	8-98124-445-0	01	1	1008-
119	PLATE; CAUTION,HAND BRK LEVER FULL TRAILER PIPING<Z25>	1-85881-980-0	01	1	1008-
119	PLATE; CAUTION,HAND BRK LEVER EXC. FULL TRAILER PIPING<Z25>	1-85881-979-0	01	1	1008-
252	PLATE; CAUTION,HARNESS	8-97623-996-0	01	1	1008-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>	8-98082-441-0	01	1	1008-

4 4 5 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (B)	8-98088-627-0	01	1	1008-
4	LABEL; ENG MAINTENANCE (A)	8-98088-630-0	01	1	1008-
5	LABEL; TIRE AIR PRESSURE	1-85880-814-0	01	1	1008-
289	PLATE; CAUTION,DRIVING	8-98093-472-0	01	1	1008-

181 181 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
162	PLATE; CAUTION,FUEL	8-98083-160-0	01	1	1008-
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1008-
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1008-
