8-50 — AIR CONDITIONING SYSTEM; FRONT (#6211) — 65 parça

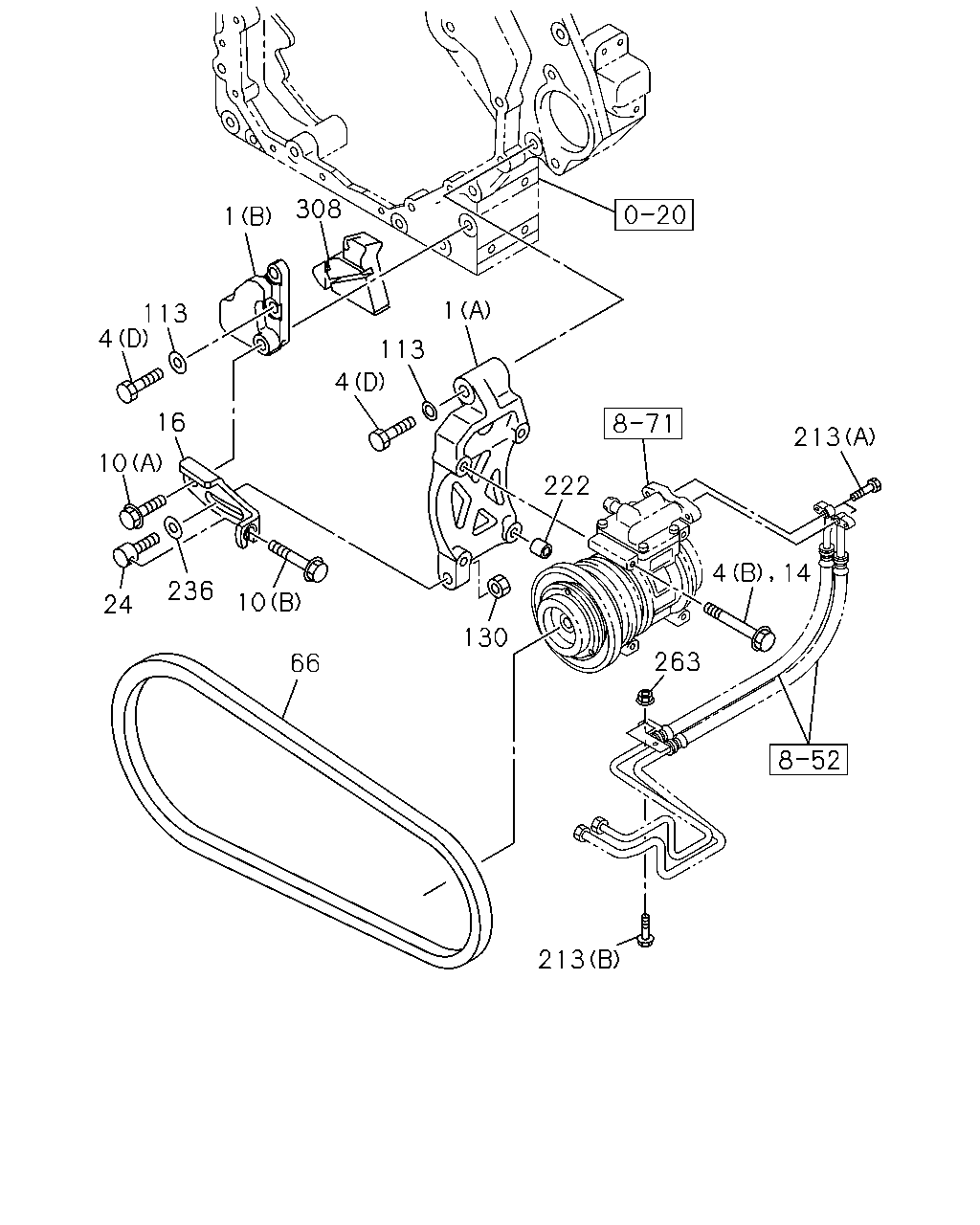

çizim 37531
308 1 1 113 4 113 4 16 213 10 222 4 14 236 10 24 130 263 66 213
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-842-0 01 1 9905-0104
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-001-0 01 1 0105-
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-987-0 01 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 9905-0104
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X80 FLANGE 		0-28080-880-0 04 1 0105-0301
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M12X130 		9-09804-177-2 01 1 9905-0104
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (D) M14X130 		9-09804-194-1 02 1 9905-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 9905-0512
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28151-225-0 01 1 0601-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 9905-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28080-880-0 04 1 0302-0512
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X80 FLANGE 		0-28050-880-0 04 1 0601-
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-210-1 01 1 9905-0104
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-253-1 01 1 0105-
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 9905-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 9905-
113 WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26 		9-09164-514-0 02 1 0105-
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 9905-0602
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 0603-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE 		0-28080-630-0 02 1 0105-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE 		0-28050-630-0 02 1 0601-
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.4 OD=19 		5-11779-001-0 02 1 0302-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 0105-
263 NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
263 NUT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-
308 INSULATOR; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-19389-213-0 01 1 0105-0301

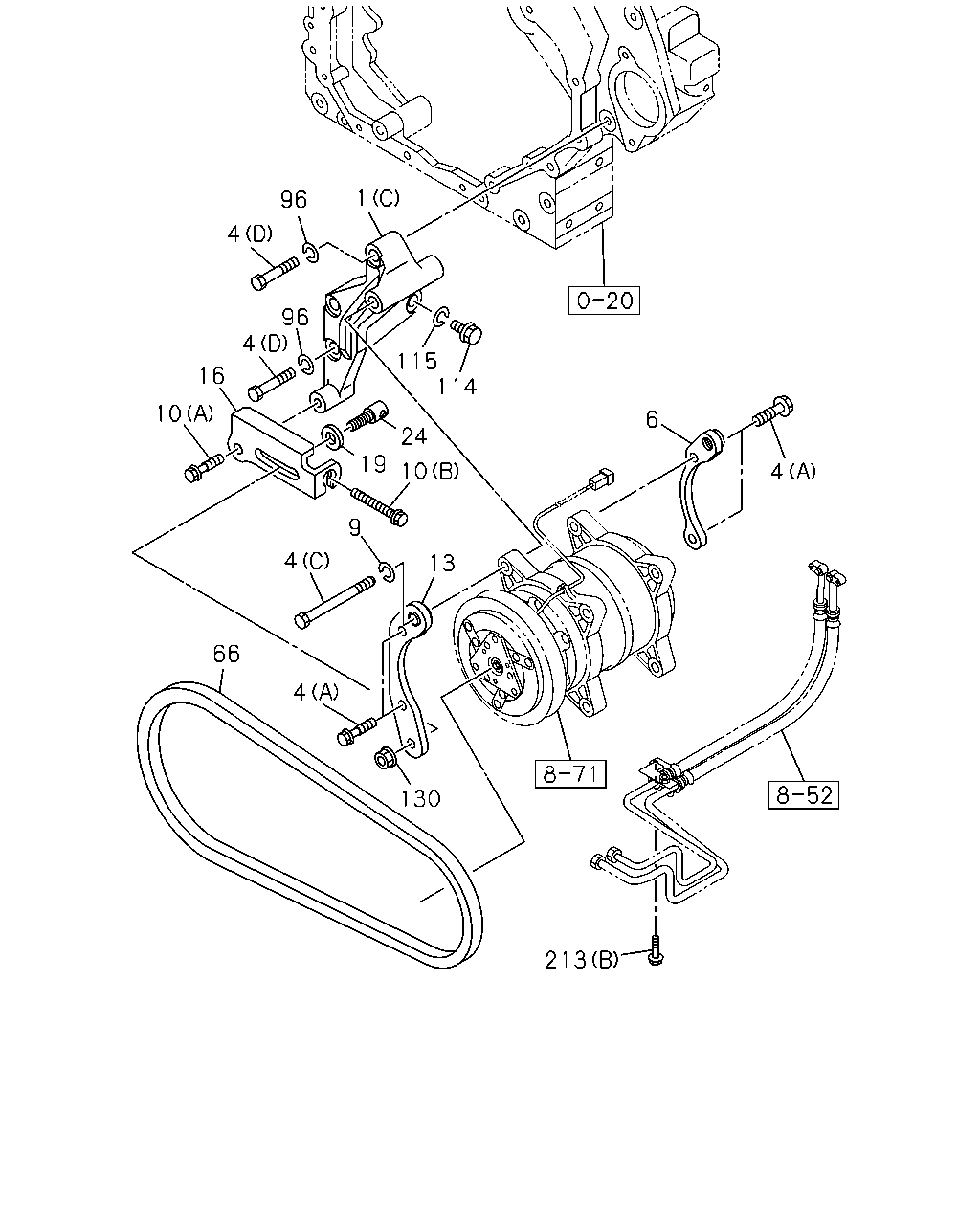

çizim 37995
1 96 4 96 4 115 114 16 10 6 24 19 10 4 9 4 13 66 4 130 213
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-842-0 01 1 9905-0104
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-001-0 01 1 0105-
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-987-0 01 1 0105-
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 9905-0104
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X80 FLANGE 		0-28080-880-0 04 1 0105-0301
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M12X130 		9-09804-177-2 01 1 9905-0104
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (D) M14X130 		9-09804-194-1 02 1 9905-
6 BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-707-0 01 1 9905-0104
9 WASHER; LK,A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 		9-09150-512-0 01 1 9905-0104
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 9905-0512
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28151-225-0 01 1 0601-
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 9905-
13 BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-843-1 01 1 9905-0104
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-210-1 01 1 9905-0104
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-253-1 01 1 0105-
19 WASHER; PL,ADJ PLATE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 9905-0104
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 9905-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 9905-
96 WASHER; LK
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 02 1 9905-0104
114 BOLT; BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) M14X35 		0-23801-435-0 01 1 9905-0104
115 WASHER; LK,BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 01 1 9905-0104
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 9905-0602
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91180-112-0 01 1 0603-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 9905-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE 		0-28080-630-0 02 1 0105-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X30 FLANGE 		0-28050-630-0 02 1 0601-

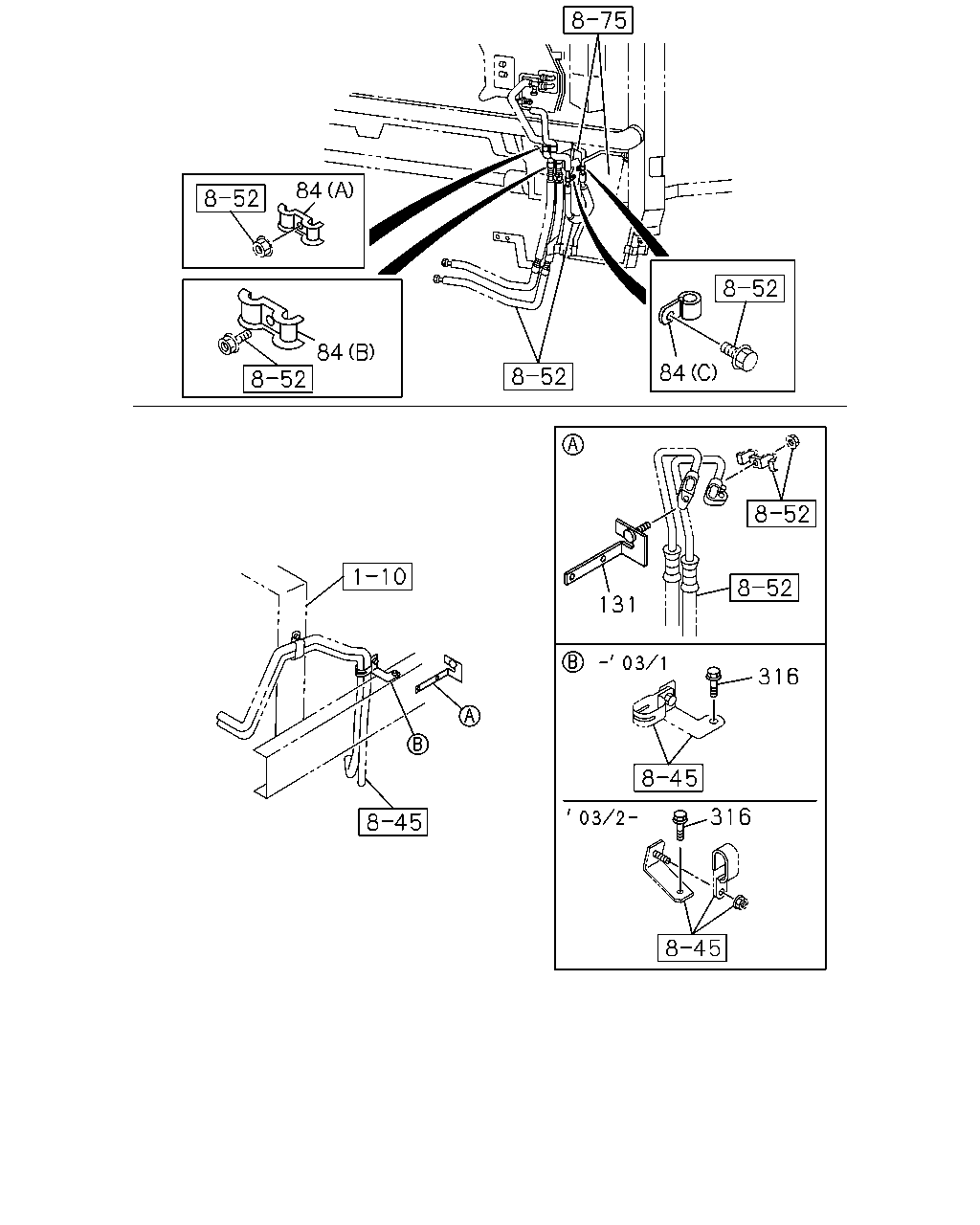

çizim 100315
84 84 84 131 316 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9905-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 9905-
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 9905-0206
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 01 1 0207-0606
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		0-95234-835-0 01 1 0607-
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-244-0 01 1 0302-
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 01 1 9905-0104
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0301
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 0302-0512
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28050-820-0 02 1 0601-
