6-47 — MUD GUARD AND INSULATOR (#62100) — 123 parça
çizim 170007
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1203
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 02 1 1204-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1008-1203
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1204-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-1203
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1204-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE 		0-28650-820-0 03 1 1008-
122 BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1203
130 PANEL; SHUTTER NOISE
(A) 		1-53194-652-0 01 1 1204-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-408-4 01 1 1008-1207
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-79931-412-1 01 1 1008-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-
168 NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 01 1 1008-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1008-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 1008-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1008-

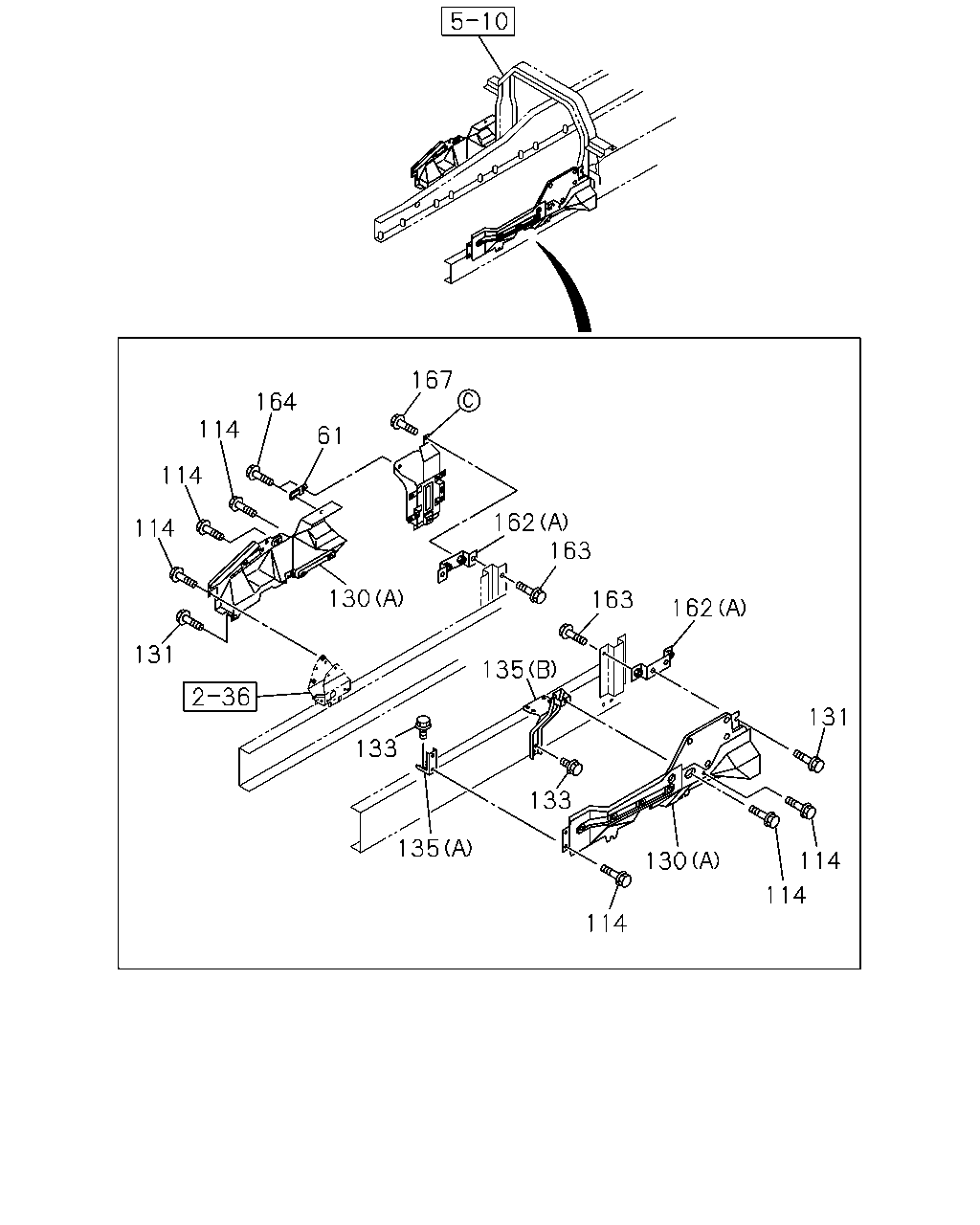

çizim 170020
167 164 114 61 114 162 163 114 130 163 162 131 135 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98039-501-1 01 1 1008-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1203
130 PANEL; SHUTTER NOISE
(A) 		1-53194-652-0 01 1 1204-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1008-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 1008-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 1008-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 1008-
162 BRACKET
(A) 		1-53441-520-0 02 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-53441-521-2 01 1 1008-
162 BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C) 		1-53441-522-0 01 1 1008-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
164 BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 02 1 1008-
167 BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE 		0-28650-820-0 05 1 1008-

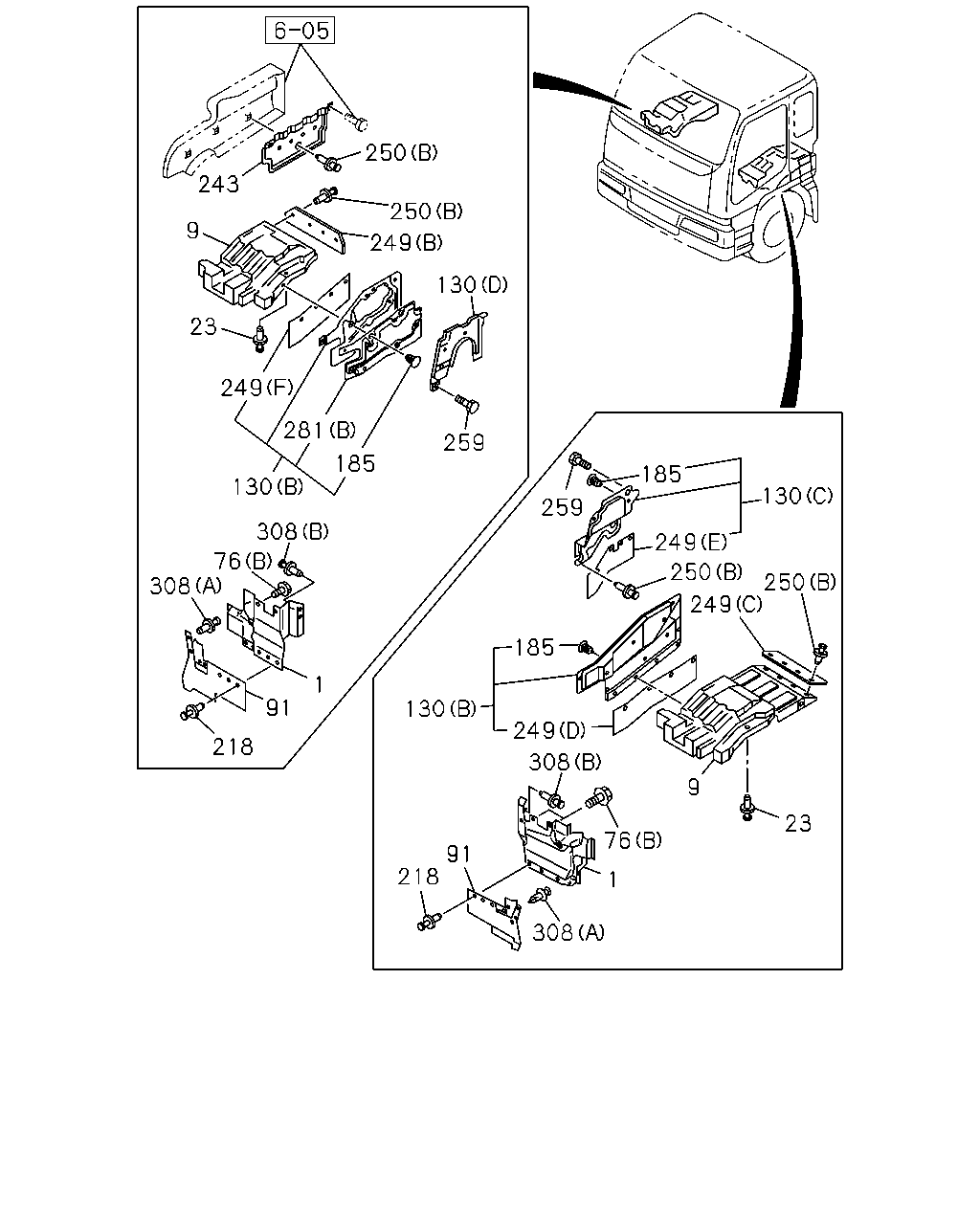

çizim 170028
243 250 250 9 249 130 23 249 281 259 185 185 130 130 259 308 249 76 250 250 249 308 185 1 91 130 249 218 308 9 23 76 91 218 1 308
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 1008-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 1008-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 1008-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 1008-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
91 COVER; MUD,FRT 8-98134-826-2 01 1 1008-
91 COVER; MUD,FRT 8-98134-825-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 1008-1203
130 PANEL; SHUTTER NOISE
(A) 		1-53194-652-0 01 1 1204-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-435-1 01 1 1008-
130 PANEL; SHUTTER NOISE
(C) 		8-98159-129-0 01 1 1008-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-943-2 01 1 1008-
130 PANEL; SHUTTER NOISE
(B) 		8-98146-434-1 01 1 1008-
130 PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A) 		1-53192-818-6 01 1 1008-
130 PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-53194-380-2 01 1 1008-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1008-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 1008-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 1008-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 1008-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 1008-

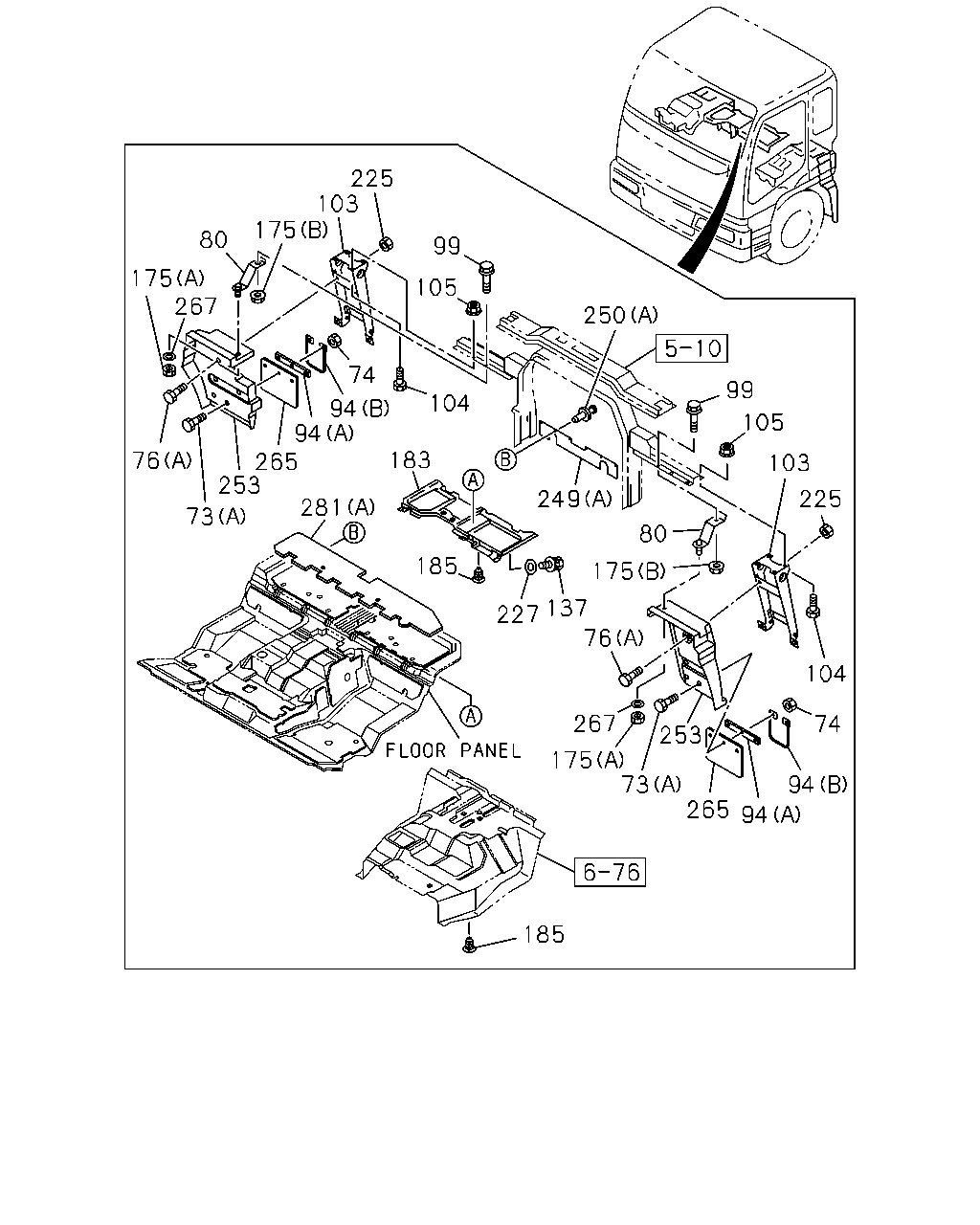

çizim 170119
225 103 175 80 99 175 267 105 250 74 99 104 94 94 265 253 105 183 76 103 225 249 281 73 80 185 175 137 227 76 104 267 74 253 175 73 94 265 94 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1008-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1008-1203
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 02 1 1204-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 1008-1203
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1204-
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-1203
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 1204-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1008-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 1008-
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 1008-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 1008-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 1008-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 1008-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 1008-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 1008-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 1008-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1008-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1008-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 1008-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 1008-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 21 1 1008-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 1008-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 1008-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 1008-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 1008-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 1008-
249 RUBBER; SHUTTER
(D) 		8-98146-437-0 01 1 1008-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 1008-
249 RUBBER; SHUTTER
(F) 		8-98146-436-0 01 1 1008-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 1008-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 09 1 1008-
253 GUARD; MUD 8-98134-766-1 01 1 1008-
253 GUARD; MUD
SILENCER SINGLE VERTICAL<N28> 		8-98134-760-0 01 1 1008-
253 GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28> 		8-98134-759-0 01 1 1008-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 1008-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 1008-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 1008-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A) 		1-73237-445-4 01 1 1008-
