◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#621) — 19 parça

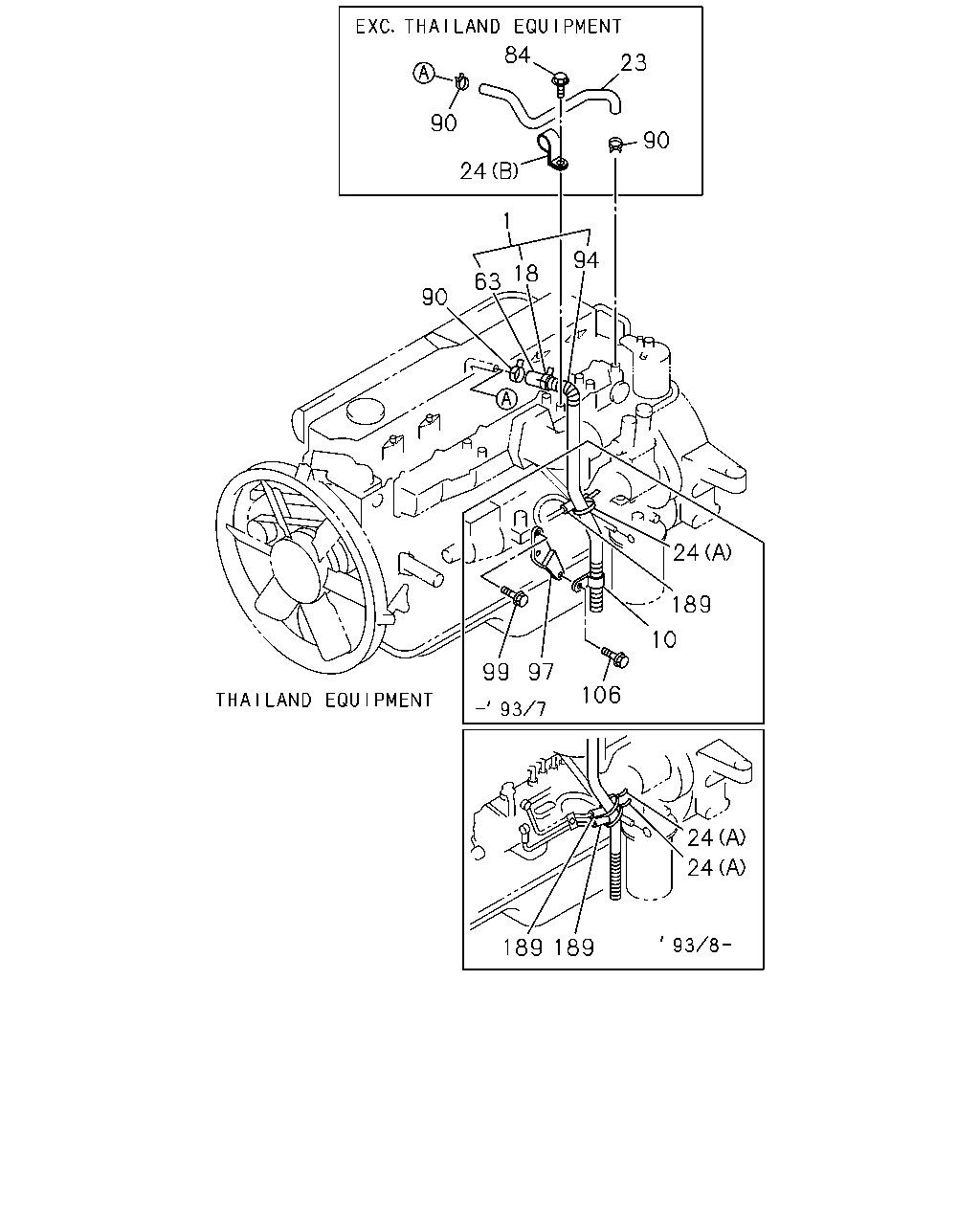

çizim 94745
84 23 90 90 24 1 94 18 63 90 24 189 10 99 97 106 24 24 189 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR
THAILAND EQUIPMENT(PM9) 		8-94394-859-1 01 1 9211- ● ●
10 CLIP; AIR BREATHER
THAILAND EQUIPMENT(PM9) ID=31 L=30 		1-09700-969-0 01 1 9211-9307 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
THAILAND EQUIPMENT(PM9) ID=33.6 		8-94362-518-0 01 1 9211- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
EXC. THAILAND EQUIPMENT(PM9) 		8-94396-111-0 01 1 9202- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
THAILAND EQUIPMENT(PM9) (A) L=170 		5-09707-054-0 01 1 9211-9307 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
THAILAND EQUIPMENT(PM9) (A) L=140 		5-09707-031-0 04 1 9308- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
EXC. THAILAND EQUIPMENT(PM9) (B) 		8-94397-160-1 01 1 9202- ● ●
63 HOSE; RUBBER,AIR BREATHER
THAILAND EQUIPMENT(PM9) L=70 		0-02728-070-0 01 1 9211- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
EXC. THAILAND EQUIPMENT(PM9) M8X12 FLANGE 		0-28080-812-0 01 1 9202- ● ●
90 CLIP; RUBBER HOSE
ID=22.7 		8-94466-382-0 02 1 9202-9210 ● ●
90 CLIP; RUBBER HOSE
EXC. THAILAND EQUIPMENT(PM9) ID=22.7 		8-94466-382-0 02 1 9211- ● ●
90 CLIP; RUBBER HOSE
THAILAND EQUIPMENT(PM9) ID=33.6 		8-94362-518-0 01 1 9211- ● ●
94 HOSE; BREATHER TO PIPE
THAILAND EQUIPMENT(PM9) 		8-94394-861-0 01 1 9211-9411 ● ●
94 HOSE; BREATHER TO PIPE
THAILAND EQUIPMENT(PM9) L=1100 		8-94394-785-0 01 1 9412- ● ●
97 BRACKET; HOSE
THAILAND EQUIPMENT(PM9) 		8-94394-752-0 01 1 9211-9307 ● ●
99 BOLT; BRKT TO C/BL
THAILAND EQUIPMENT(PM9) M10X16 FLANGE 		0-28181-016-0 02 1 9211-9307 ● ●
106 BOLT; DRAIN PIPE
THAILAND EQUIPMENT(PM9) M8X12 FLANGE 		0-28080-812-0 01 1 9211-9307 ● ●
189 SLEEVE; RUBBER
THAILAND EQUIPMENT(PM9) ID=10 OD=14 L=30 		9-09956-682-0 04 1 9306-9307 ● ●
189 SLEEVE; RUBBER
THAILAND EQUIPMENT(PM9) OD=16.8 L=50 		1-09369-010-0 04 1 9308- ● ●
