◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#62089) — 83 parça

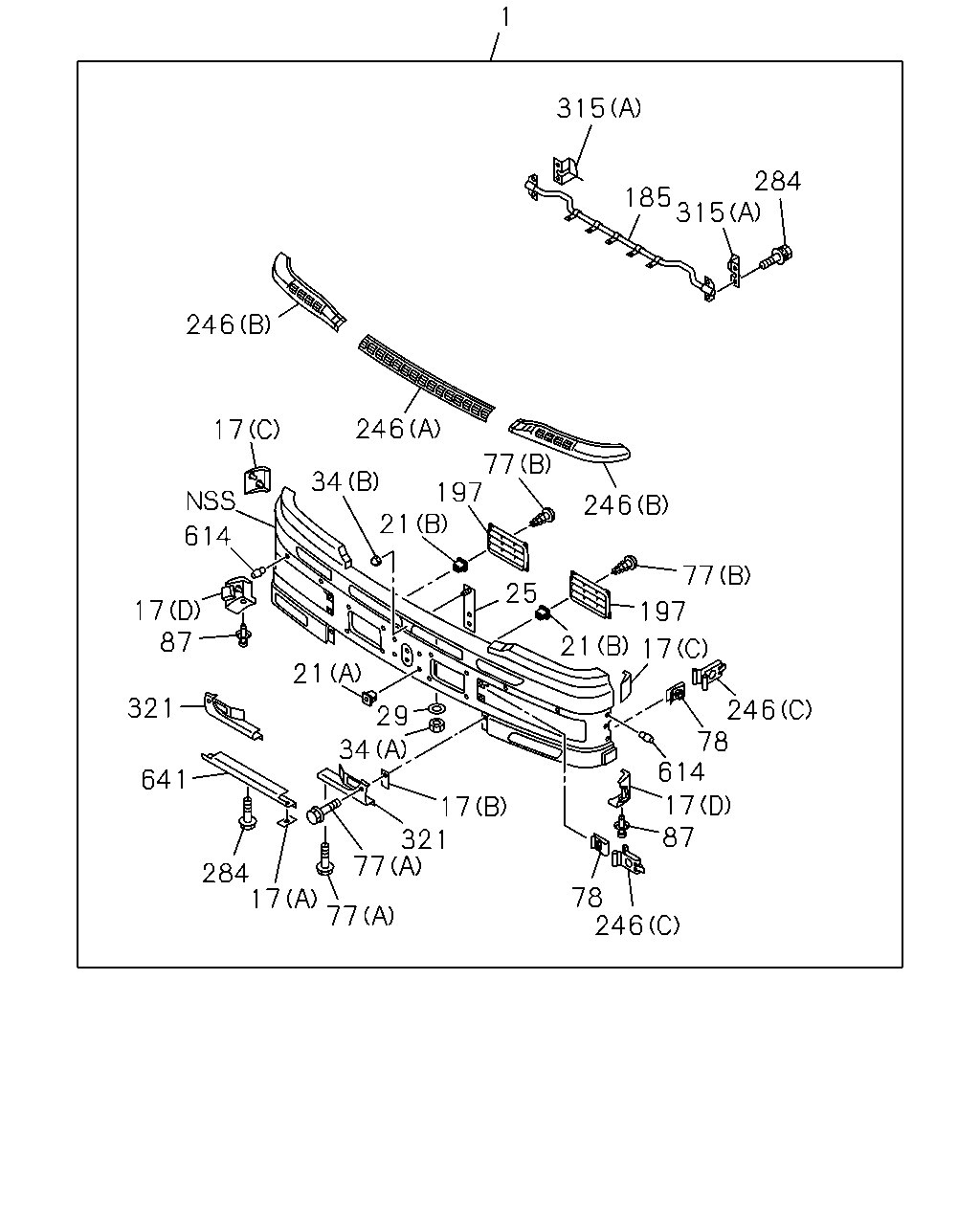

çizim 169989
1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT 8-98138-769-3 01 1 1008-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 1008-
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 1008-
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-102-1 01 1 1008-
17 PROTECTOR; FRT BUMPER
(C) 		8-98139-103-1 01 1 1008-
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-106-2 01 1 1008-
17 PROTECTOR; FRT BUMPER
(D) 		8-98139-107-2 01 1 1008-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 1008-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
25 SPACER; PLATFORM 1-71230-640-0 01 1 1008-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 1008-
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 1008-
78 NUT; SPIRE 1-71260-174-0 06 1 1008-
87 RIVET; POP,FRT BUMPER
D8X13.5 		1-09987-248-1 02 1 1008-
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 1008-
197 GRILLE; BUMPER 1-71260-115-1 01 1 1008-
197 GRILLE; BUMPER 1-71260-116-1 01 1 1008-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 1008-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 1008-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 1008-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 1008-
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 1008-
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 1008-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 1008-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 1008-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 1008-
315 STAY; BUMPER
(C) 		1-71230-624-0 01 1 1008-
315 STAY; BUMPER
(B) 		1-71230-625-0 01 1 1008-
315 STAY; BUMPER
(C) 		1-71230-434-0 01 1 1008-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 1008-
321 COVER; BUMPER FRT SIDE 1-71260-263-1 01 1 1008-
321 COVER; BUMPER FRT SIDE 1-71260-264-1 01 1 1008-
614 STOPPER; LID 1-71260-163-0 12 1 1008-
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 1008-

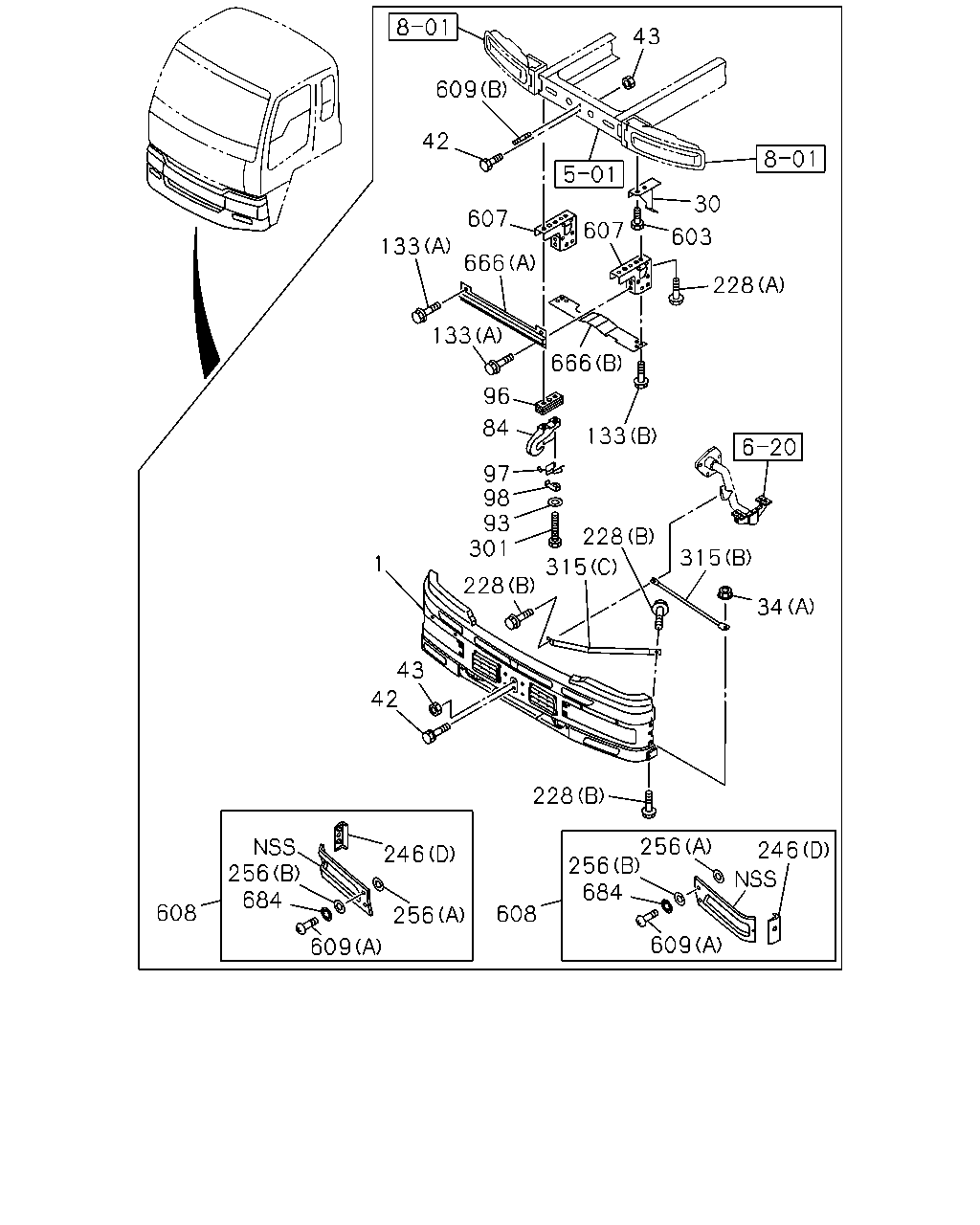

çizim 170016
43 609 42 30 607 607 603 133 666 228 133 666 96 84 133 97 98 93 301 228 315 1 315 228 34 43 42 228 256 256 684 256 684 246 246 608 608 256 609 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT 8-98138-769-3 01 1 1008-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 1008-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 03 1 1008-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 1008-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 1008-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 1008-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 1008-
84 HOOK 1-57181-027-1 01 1 1008-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1008-
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 1008-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 1008-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 1008-
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 1008-
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 1008-1207
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208-
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 1008-
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1008-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 1008-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 1008-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 1008-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 1008-
246 PROTECTOR; BUMPER
(D) 		8-98139-105-1 01 1 1008-
246 PROTECTOR; BUMPER
(D) 		8-98139-104-1 01 1 1008-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 1008-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 1008-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 1008-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 1008-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 1008-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 1008-
315 STAY; BUMPER
(C) 		1-71230-624-0 01 1 1008-
315 STAY; BUMPER
(B) 		1-71230-625-0 01 1 1008-
315 STAY; BUMPER
(C) 		1-71230-434-0 01 1 1008-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 1008-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1008-
607 BRACKET 8-97608-469-3 01 1 1008-
607 BRACKET 8-97608-470-3 01 1 1008-
608 LID; BUMPER 8-98138-789-3 01 1 1008-
608 LID; BUMPER 8-98138-788-3 01 1 1008-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 1008-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 1008-
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 1008-
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 1008-
684 WASHER 8-98148-221-0 06 1 1008-
