4-65 — REAR LEAF SPRING (#62080) — 15 parça

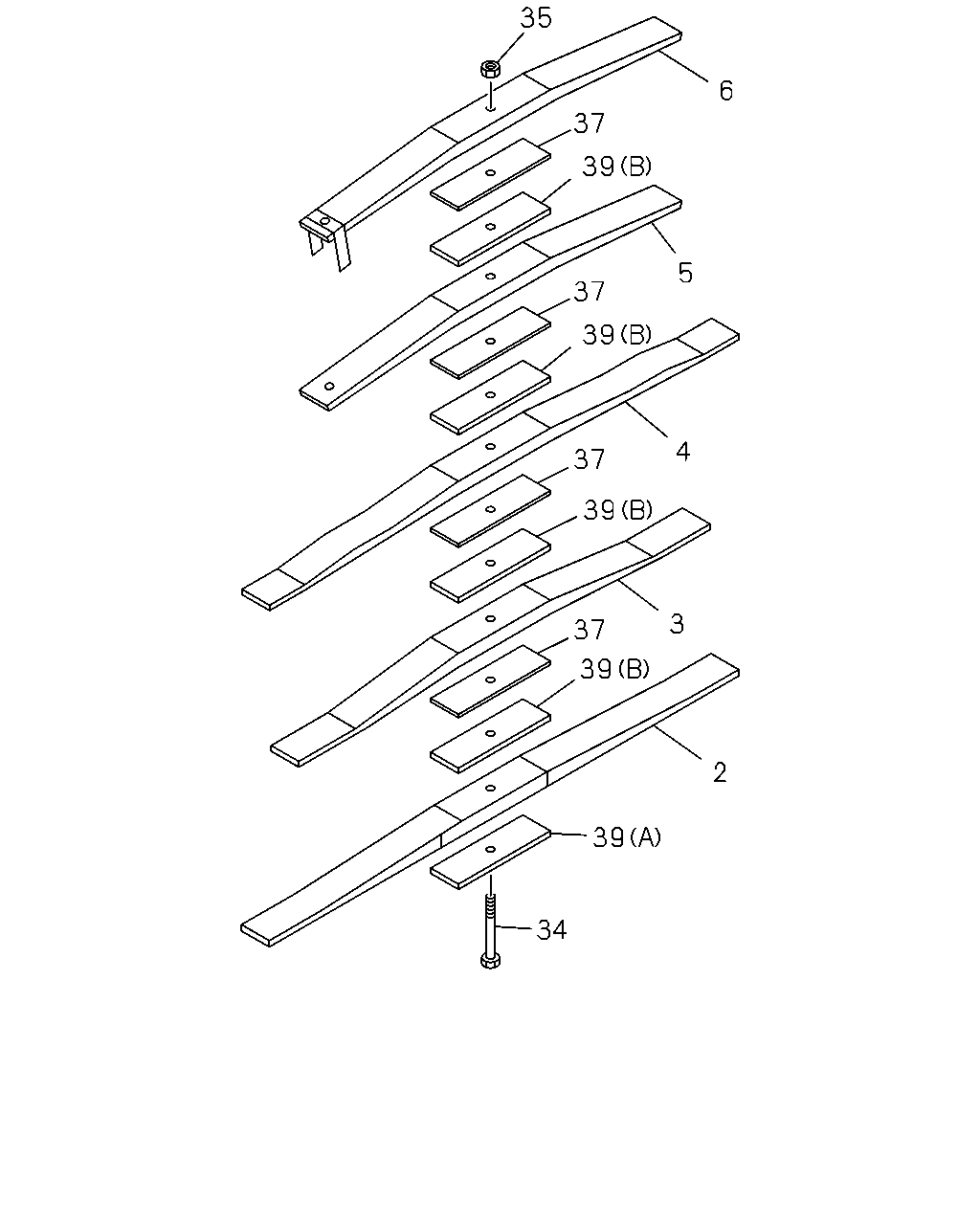

çizim 169996
35 6 37 39 5 37 39 4 37 39 3 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98159-609-0 		8-98161-618-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98159-622-0 		8-98161-621-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98159-609-0 		8-98161-619-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98159-622-0 		8-98161-622-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98159-609-0 		8-98161-620-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98159-622-0 		8-98161-623-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-98159-622-0 		8-98145-654-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98159-609-0 		8-98156-986-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-98159-622-0 		8-98145-655-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98159-609-0 		8-98156-987-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=225 ASM PART: A = 8-98159-609-0, B = 8-98159-622-0 		8-98156-981-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 8-98159-609-0, B = 8-98159-622-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: A = 8-98159-609-0, B = 8-98159-622-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 8-98159-609-0, B = 8-98159-622-0 		1-51377-399-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=3.2 ASM PART: A = 8-98159-609-0, B = 8-98159-622-0 		8-97615-292-0 01 1 -
