Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#6208) — 490 parça

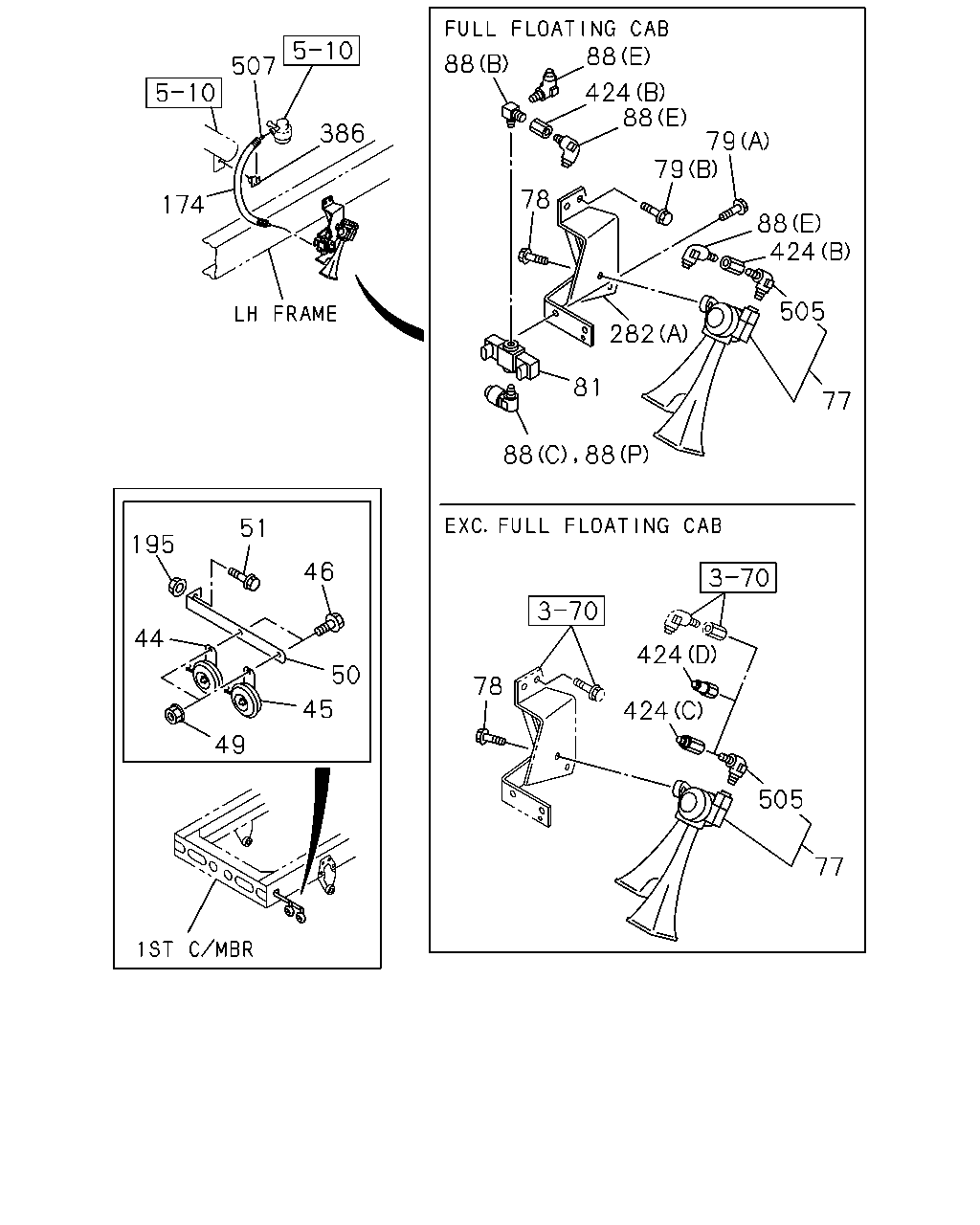

88 88 507 424 88 386 79 79 78 174 88 424 505 282 81 77 51 195 46 44 424 50 78 45 424 49 505 77 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	1-83410-061-1	01	1	9905-
45	HORN; LOW NOTE	1-83410-062-1	01	1	9905-
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY M8 FLANGE	0-91150-108-0	02	1	9905-0602
49	NUT; HORN TO BODY M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN	1-53458-901-0	01	1	9905-0602
50	BRACKET; HORN	1-53457-196-0	01	1	0603-
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	03	1	9905-0104
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	03	1	9905-0104
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
51	BOLT; HORN TO BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM	1-83430-041-2	01	1	9905-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9905-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV (C) M8X70	0-10805-870-0	02	1	9905-0512
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0601-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28680-825-0	10	1	0005-0512
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9905-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9905-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	9905-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	02	1	9906-0002
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0003-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9906-0002
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0003-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	07	1	9905-9905
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	9906-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	9905-9905
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	9906-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	9905-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	9905-9905
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	9906-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-0301
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9905-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (P) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
174	COVER FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
195	NUT; HORN TO BRKT M8 FLANGE	0-91150-108-0	03	1	9905-0104
195	NUT; HORN TO BRKT M8 FLANGE	0-91150-108-0	03	1	9905-0104
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9905-0602
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	9905-
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9905
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9906-0007
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9905-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9905-9907
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0301
424	ADAPTER EXC. FULL FLOATING CAB(W16) (D) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9908-0005
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=900 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9905-0103
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0104-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

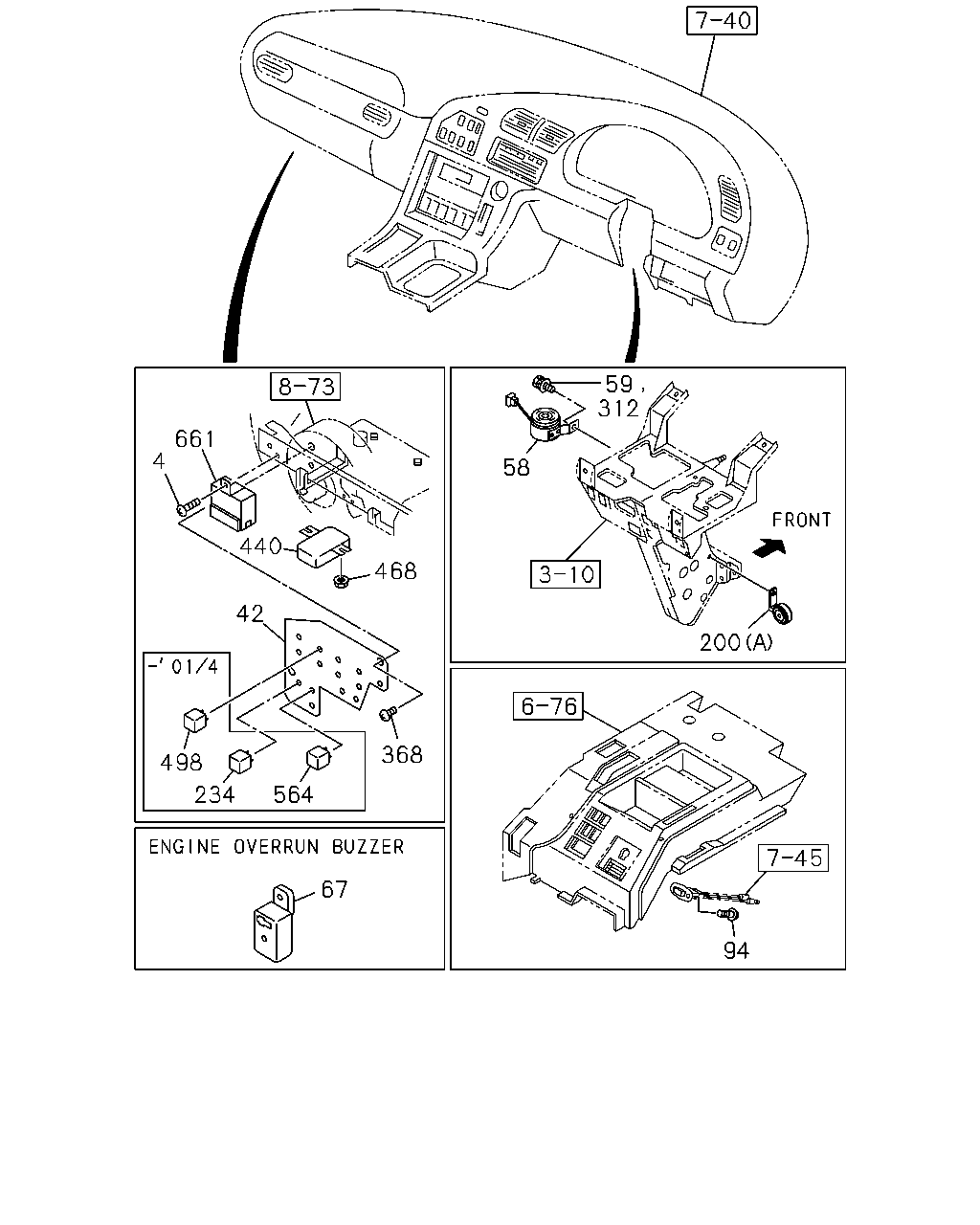

59 312 661 4 58 440 468 42 200 368 498 564 234 67 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0105-
42	BRACKET; RELAY	1-82699-952-0	01	1	9905-0103
42	BRACKET; RELAY	1-82698-351-1	01	1	0104-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9905-0104
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-0602
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0603-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9905-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0104
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0306-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9905-0104
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9905-0101
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0102-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9905-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	9905-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	9905-
234	RELAY; AIR SUSPENSION 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
234	RELAY; AIR SUSPENSION 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305
368	SCREW; RELAY FIX M5X14	8-94279-325-0	03	1	9905-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0105-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0302-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9905-0104
564	RELAY; DC-DC CONVERTER ELEC OUTLET 12V<TAW> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0004
564	RELAY; DC-DC CONVERTER AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111
564	RELAY; DC-DC CONVERTER AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0302-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0105-

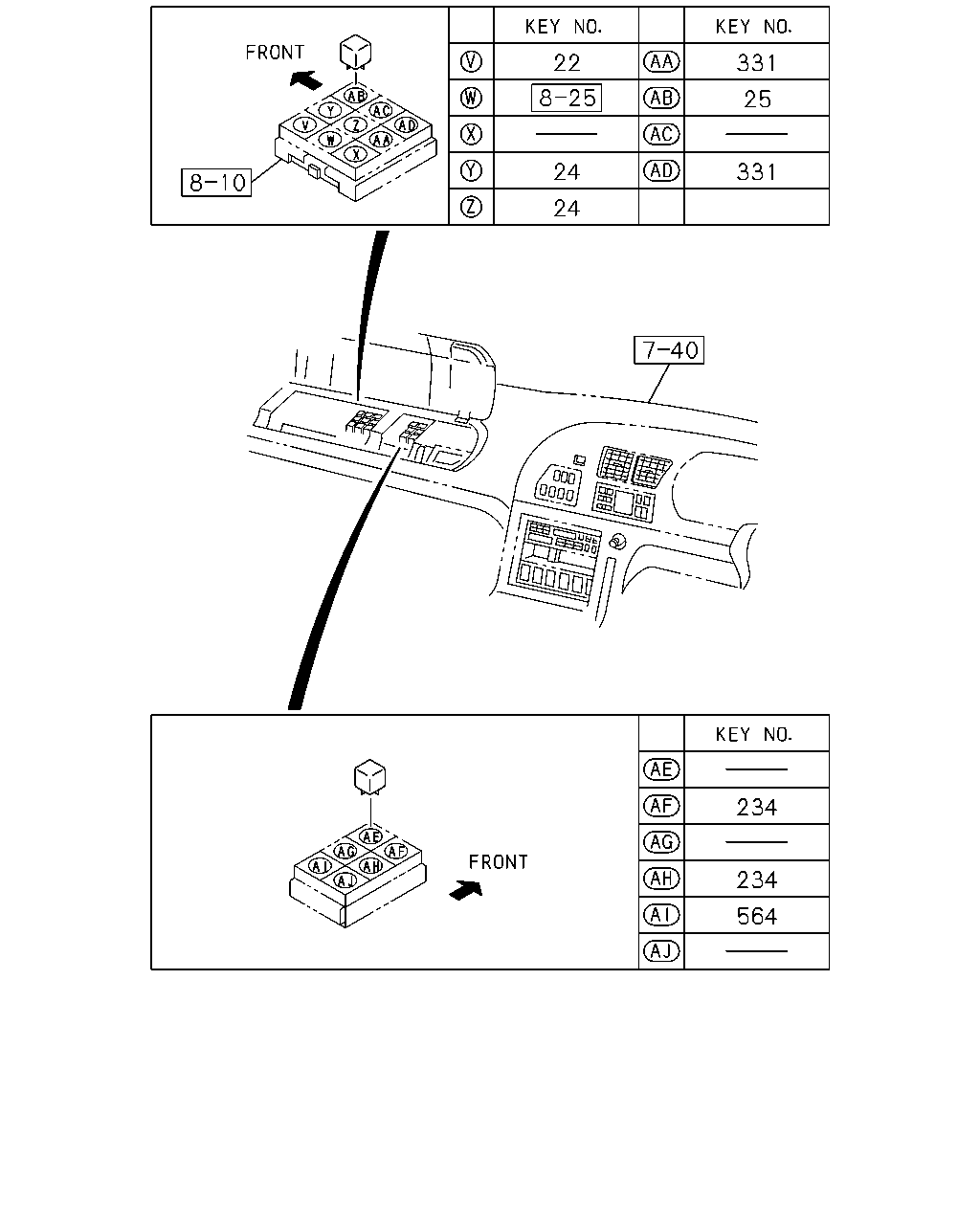

22 331 25 24 331 24 234 234 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
234	RELAY; AIR SUSPENSION 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
234	RELAY; AIR SUSPENSION 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
564	RELAY; DC-DC CONVERTER ELEC OUTLET 12V<TAW> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0004
564	RELAY; DC-DC CONVERTER AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111
564	RELAY; DC-DC CONVERTER AUSTRALIA EQUIPMENT(RR3) ELEC OUTLET 12V<TAW> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301
564	RELAY; DC-DC CONVERTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0302-

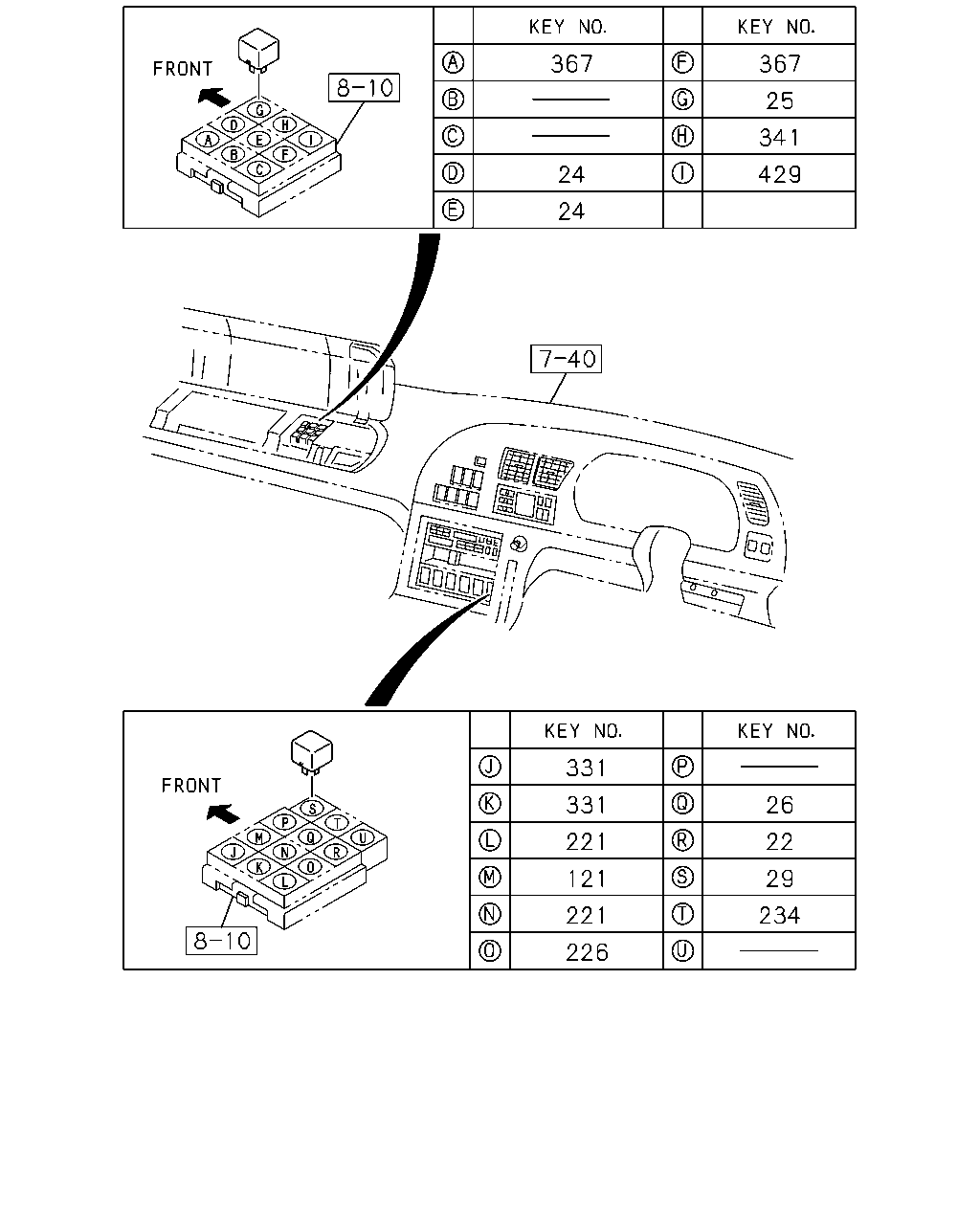

367 367 25 341 24 429 24 331 331 26 221 22 121 29 221 234 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0104
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301
234	RELAY; AIR SUSPENSION 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
234	RELAY; AIR SUSPENSION 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0104
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301

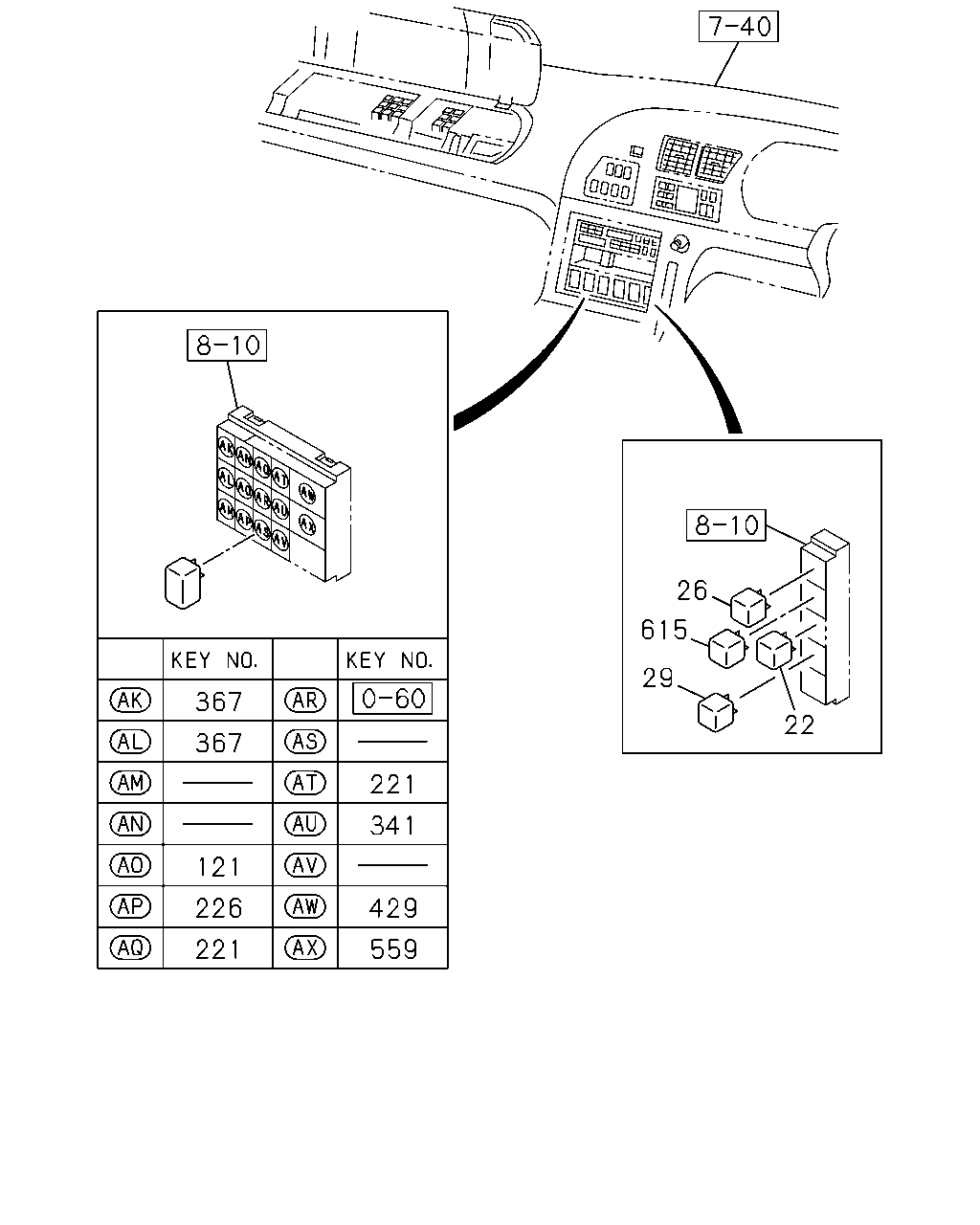

26 615 29 367 22 367 221 341 121 429 226 221 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0104
221	RELAY; AUTO CRUISE 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0104
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-0104
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-0111
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0301
559	RELAY; MAG VLV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0302-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

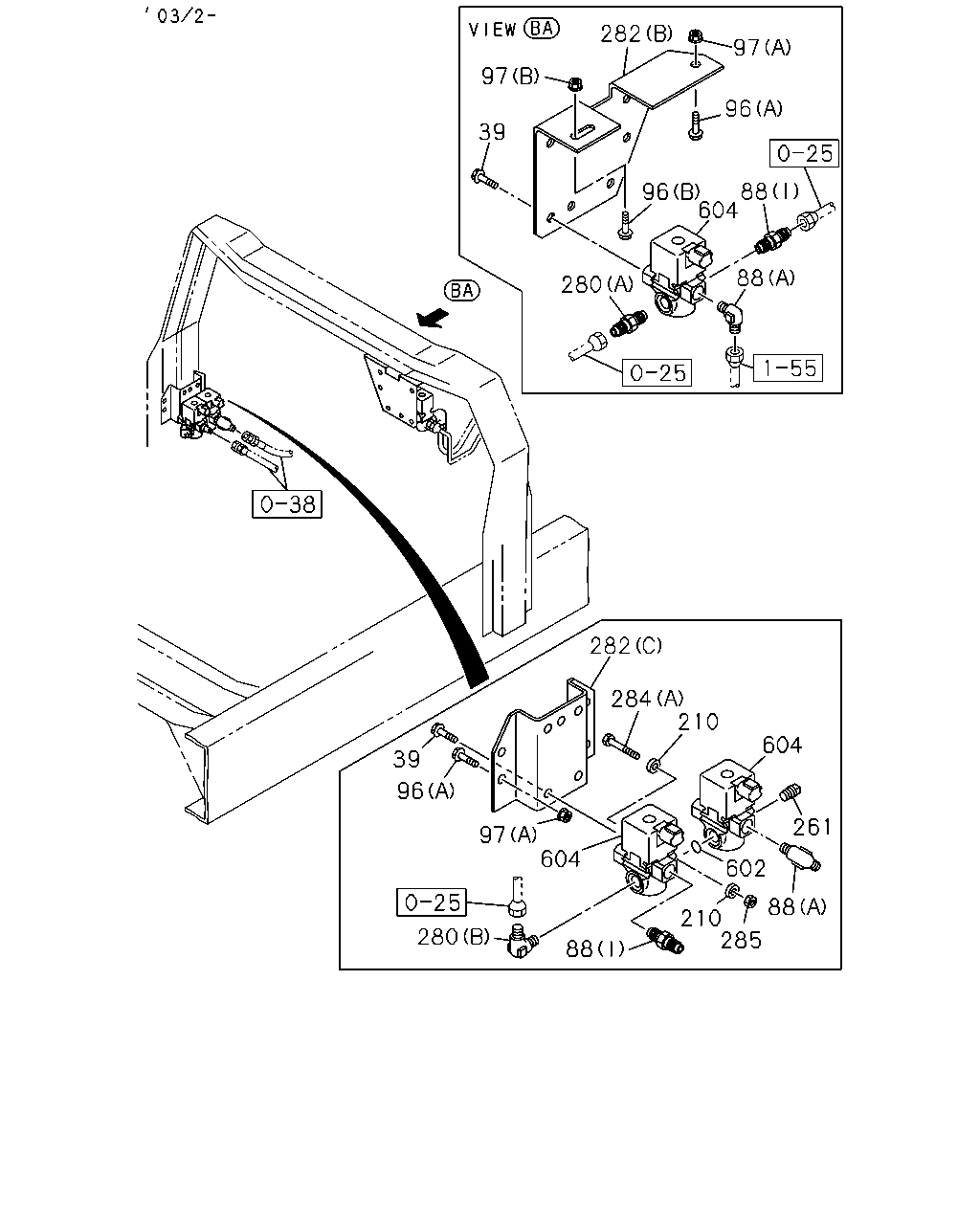

282 97 97 96 39 96 88 604 88 280 282 284 210 604 39 96 261 97 604 602 88 210 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0302-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	9905-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	02	1	9906-0002
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0003-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9906-0002
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0003-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	07	1	9905-9905
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	9906-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	9905-9905
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	9906-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	9905-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	9905-9905
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	9906-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-0301
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9905-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (P) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	05	1	0302-0512
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0302-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0302-0602
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-210-0	01	1	0302-0602
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	01	1	0603-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	9905-0301
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT 6WG1 TC-N(71L)	1-82569-266-0	02	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	0302-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9905-0602
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	9905-0301
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-0104
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0105-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	9905-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV 6WG1 TC-N(71L) M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WG1 TC-N(71L) M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV	9-09561-117-0	01	1	9905-9910
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	9911-0301
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV 6WG1 TC-N(71L) ID=16.8	9-09565-117-0	01	1	0302-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0302-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0302-

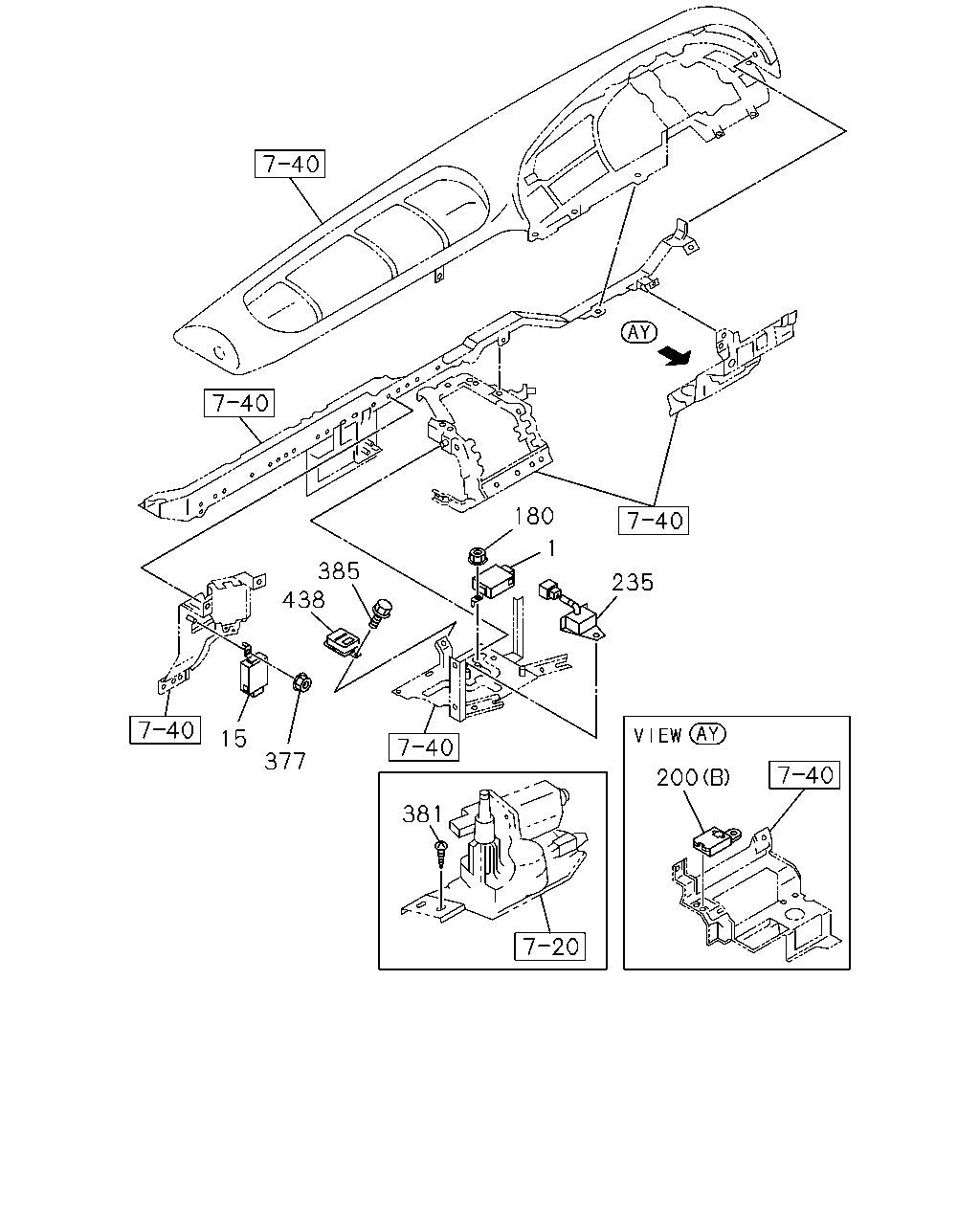

180 1 385 438 235 15 377 200 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	9905-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9905-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9905-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-032-0	01	1	9905-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-040-0	01	1	9905-
235	TIMER; AIR SUSPENSION	1-82540-068-0	01	1	9905-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9905-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9905-0210
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9905-
438	UNIT; SPD CONTROL	1-82550-309-0	01	1	9905-

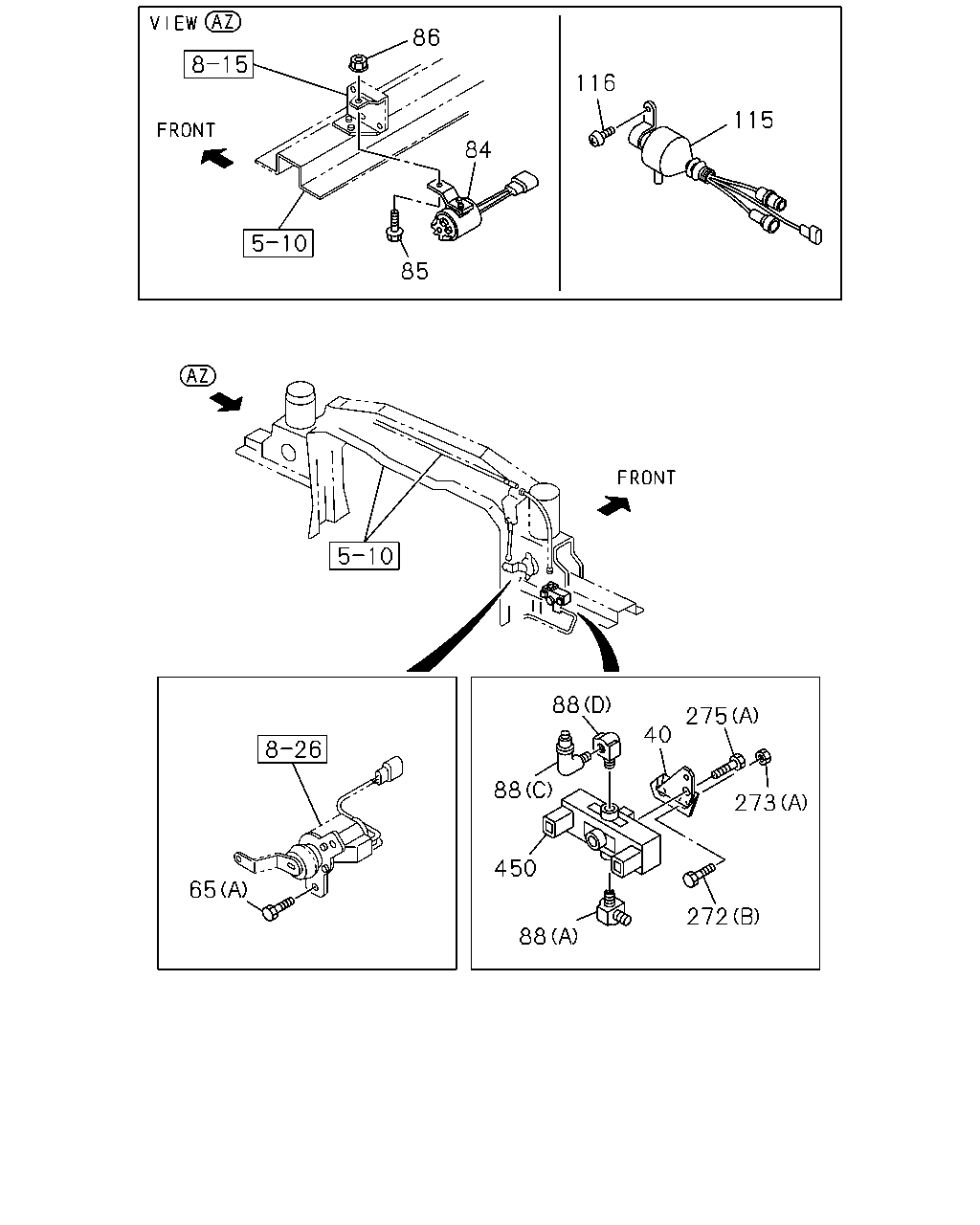

86 116 115 84 85 88 275 40 88 273 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16)	1-53458-380-0	01	1	9905-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	9905-0512
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE	0-28680-825-0	02	1	0005-0301
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9905-0104
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-0602
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0603-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9905-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-0104
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9905-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-0602
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0603-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9905-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	9905-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	02	1	9906-0002
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0003-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9906-0002
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0003-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	07	1	9905-9905
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	9906-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	9905-9905
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	9906-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	9905-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	9905-9905
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	9906-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-0301
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9905-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (P) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-0	01	1	9905-0104
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0211-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9905-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-0104
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9905-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	10	1	9905-0004
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0305
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0306-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
273	NUT; MAG VLV FULL FLOATING CAB(W16) (A) M10 FLANGE	0-91150-210-0	02	1	9905-0602
273	NUT; MAG VLV FULL FLOATING CAB(W16) (A) M10 FLANGE	0-91180-210-0	02	1	0603-
273	NUT; MAG VLV (B) M8 FLANGE	0-91150-108-0	02	1	9905-0602
273	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0603-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0104-0301
275	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	9905-0512
275	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9905-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9905-

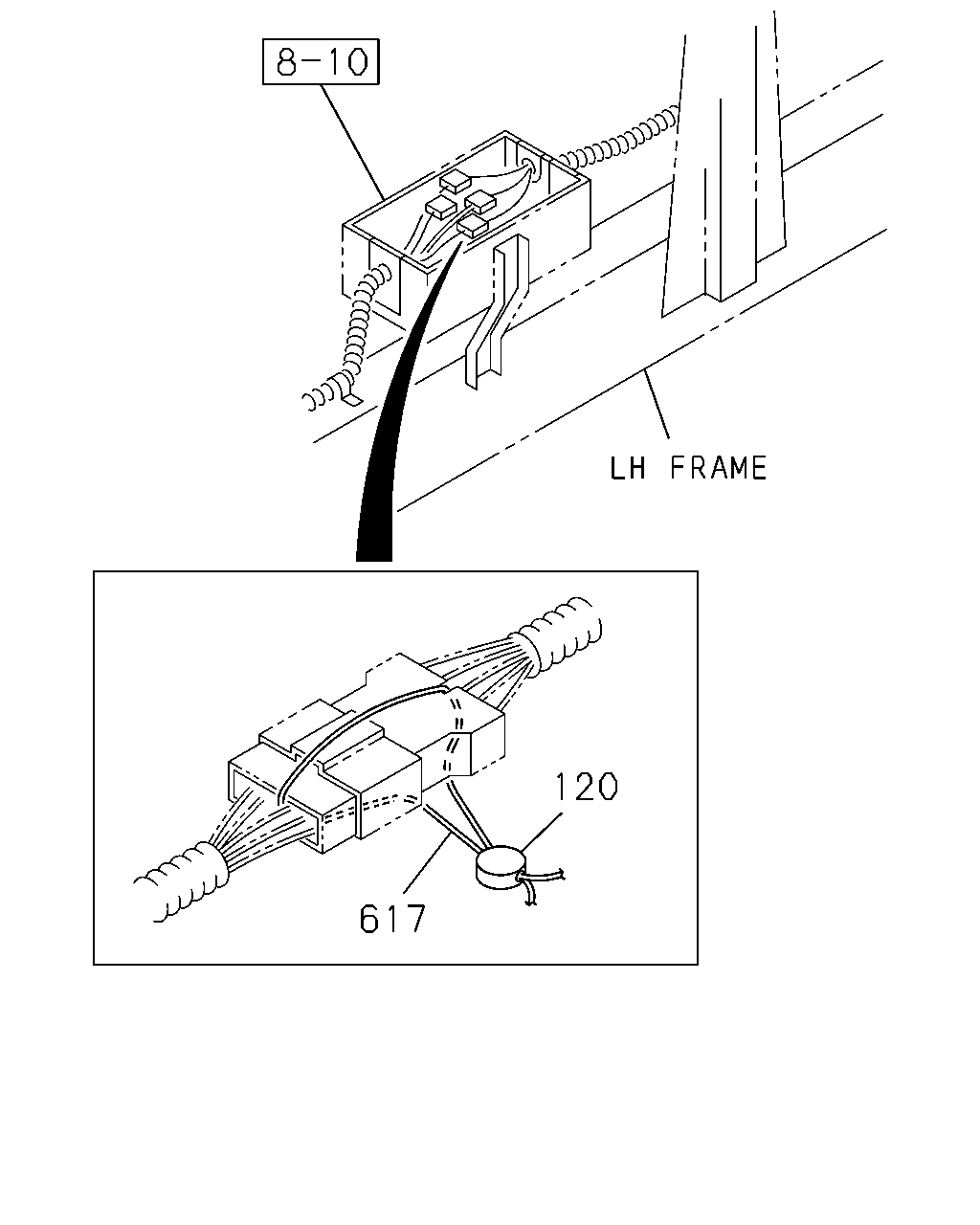

120 617

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	SEAL	1-15739-002-0	01	1	9905-0012
120	SEAL SPEED LIMITER<RF9>	1-15739-002-0	01	1	0101-0104
120	SEAL	1-15739-002-0	01	1	0105-0201
120	SEAL SPEED LIMITER<RF9>	1-15739-002-0	01	1	0202-0301
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	9905-0012
617	WIRE; RACK SENSOR SPEED LIMITER<RF9>	9-81325-446-0	01	1	0101-0104
617	WIRE; RACK SENSOR	9-81325-446-0	01	1	0105-0201
617	WIRE; RACK SENSOR SPEED LIMITER<RF9>	9-81325-446-0	01	1	0202-0301

79 79 272 88 88 424 88 88 259 625 88 88 88 88 79 259 272 275 274 88 283 424 273 88 88 88 88 88 259 88 88 79 88 272 424 259 259 88 88 88 88 88 88 88 88 88 88 259 79 272 272 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	BOLT; MAG VLV (C) M8X70	0-10805-870-0	02	1	9905-0512
79	BOLT; MAG VLV (C) M8X70	0-10855-870-0	02	1	0601-
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28680-825-0	10	1	0005-0512
79	BOLT; MAG VLV (D) M8X25 FLANGE	0-28650-825-0	10	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9905-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	9905-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	02	1	9906-0002
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0003-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9906-0002
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0003-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	07	1	9905-9905
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	9906-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	9905-9905
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	9906-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	9905-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	9905-9905
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	9906-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-0301
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9905-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (P) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
259	VALVE; MAG,AIR SUSP CONT (A)	1-82563-703-0	05	1	9905-
259	VALVE; MAG,AIR SUSP CONT (B)	1-82563-713-0	01	1	9905-
272	BOLT; MAG VLV (A) M8X25 FLANGE	0-28680-825-0	10	1	9905-0004
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0305
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0306-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
273	NUT; MAG VLV FULL FLOATING CAB(W16) (A) M10 FLANGE	0-91150-210-0	02	1	9905-0602
273	NUT; MAG VLV FULL FLOATING CAB(W16) (A) M10 FLANGE	0-91180-210-0	02	1	0603-
273	NUT; MAG VLV (B) M8 FLANGE	0-91150-108-0	02	1	9905-0602
273	NUT; MAG VLV (B) M8 FLANGE	0-91180-108-0	02	1	0603-
274	BRACKET; MAG VLV AIR SUSP	1-82569-289-0	01	1	9905-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0104-0301
275	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	9905-0512
275	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9905-
283	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9905-0301
283	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0104-0104
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0301
283	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
283	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9905
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09661-096-0	03	1	9906-0007
424	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0008-
424	ADAPTER FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9905-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9905-9907
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0301
424	ADAPTER EXC. FULL FLOATING CAB(W16) (D) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9908-0005
625	GASKET; CONNECTOR ID=22.5	9-09571-422-0	01	1	9905-

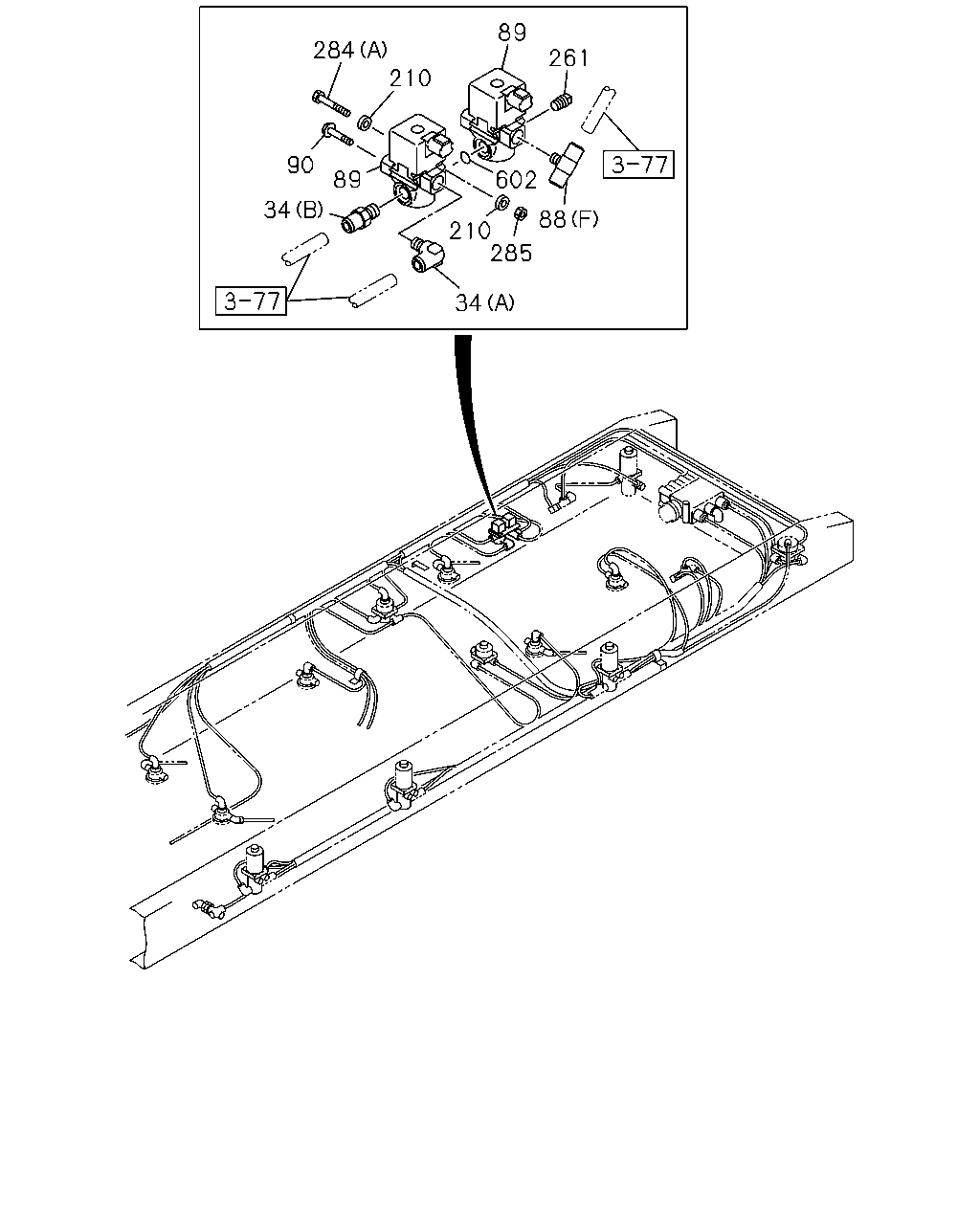

89 284 210 261 90 89 602 34 88 210 285 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-
88	CONNECTOR; MAG VLV (G) INNER PT3/8,OUTER M22	1-09650-494-1	01	1	9905-
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	02	1	9906-0002
88	CONNECTOR; MAG VLV (H) M16 & PT1/4X2 3WAY	1-09656-669-0	01	1	0003-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9905
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	01	1	9906-0002
88	CONNECTOR; MAG VLV (O) M16 & PT1/4X2 3WAY	1-09656-668-0	02	1	0003-
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	07	1	9905-9905
88	CONNECTOR; MAG VLV (J) DIN12 & R1/4 ELBOW	1-09660-958-0	05	1	9906-
88	CONNECTOR; MAG VLV (K) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	9905-9905
88	CONNECTOR; MAG VLV (L) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	9906-
88	CONNECTOR; MAG VLV (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-
88	CONNECTOR; MAG VLV (M) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	9905-
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	03	1	9905-9905
88	CONNECTOR; MAG VLV (N) DIN12X2 & R1/4 3WAY	1-09661-071-0	05	1	9906-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV (I) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-0301
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0302-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9905-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-9905
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (P) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	02	1	9905-
90	BOLT; MAG VLV M8X25 FLANGE	0-28680-825-0	02	1	9905-0512
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0601-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	9905-0301
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0302-
210	WASHER; PL,BRKT 6WG1 TC-N(71L)	1-82569-266-0	02	1	0302-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-0301
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0302-
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	0302-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	9905-0301
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-0104
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0105-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	9905-0301
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV 6WG1 TC-N(71L) M6 FLANGE	0-91150-106-0	01	1	0302-0602
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WG1 TC-N(71L) M6 FLANGE	0-91180-106-0	01	1	0603-
602	GASKET; MAG VLV	9-09561-117-0	01	1	9905-9910
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	9911-0301
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0302-
602	GASKET; MAG VLV 6WG1 TC-N(71L) ID=16.8	9-09565-117-0	01	1	0302-

64 65 66 283 284 282 275 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) NIKKO	1-83460-052-0	01	1	0005-0104
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) METRO DENSO	1-83460-088-1	01	1	0105-0301
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. AUSTRALIA EQUIPMENT(RR3) METRO DENSO	1-83460-088-1	01	1	0005-0104
64	SOCKET; TRAILER EXC. AUSTRALIA EQUIPMENT(RR3) 7P	1-82523-014-0	01	1	0005-0301
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28080-616-0	02	1	9905-0512
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X25 FLANGE	0-28680-825-0	02	1	0005-0301
66	NUT; SOCKET FIX EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	02	1	0005-0104
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0104-0301
275	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	9905-0512
275	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9905-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0302-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9905-0602
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53457-197-0	01	1	0603-0608
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	8-98052-304-0	01	1	0609-
283	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9905-0301
283	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	01	1	0104-0104
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> (A) M10 FLANGE	0-91150-210-0	01	1	0105-0301
283	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602
283	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	9905-0301
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28080-650-0	01	1	0302-0512
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WG1 TC-N(71L) (A) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	9905-0104
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28680-820-0	02	1	0105-0301

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
