4-55 — FRONT LEAF SPRING (#62078) — 54 parça

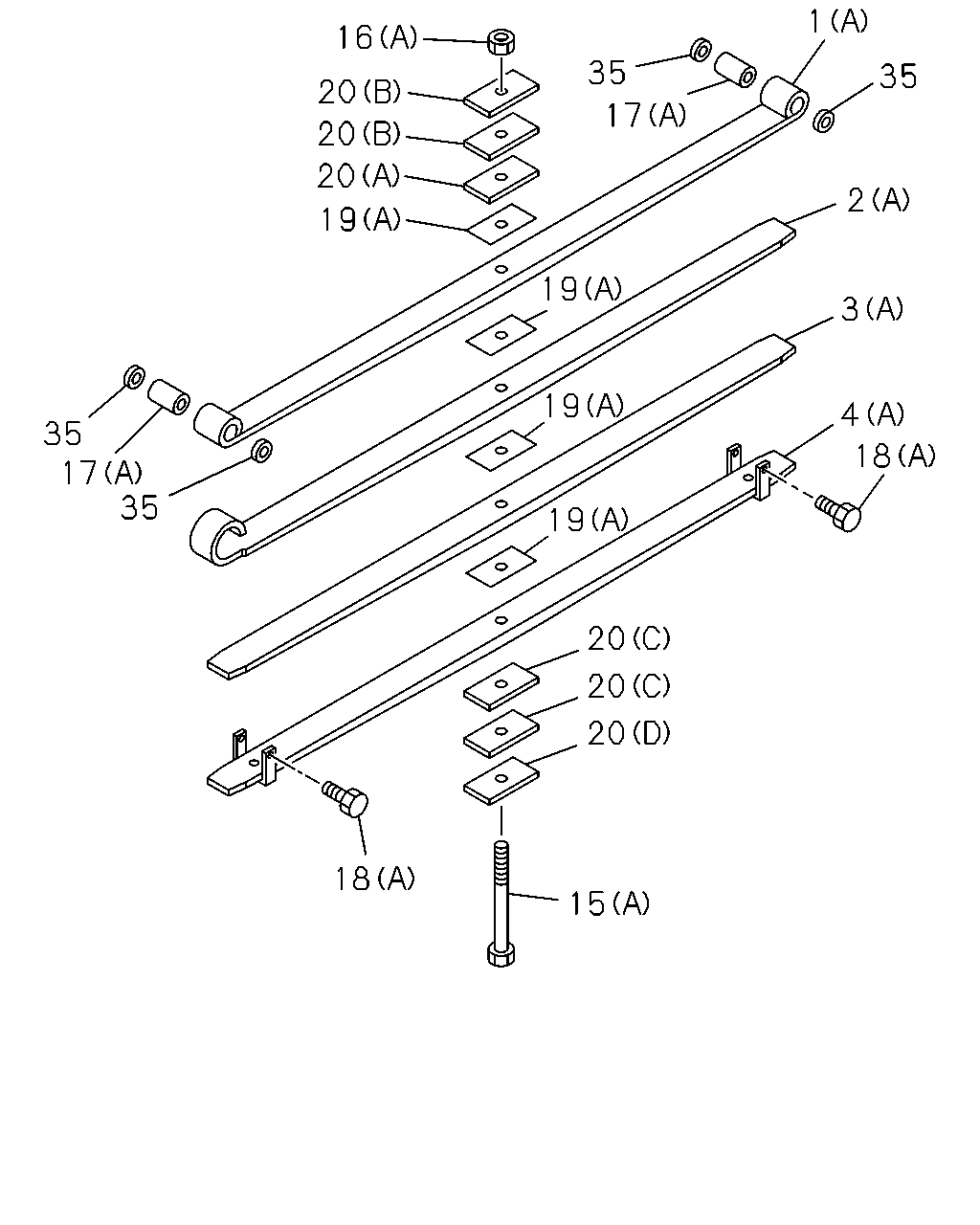

1 16 35 35 20 17 20 20 2 19 19 3 19 4 35 17 35 18 19 20 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-622-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-614-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-623-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-615-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-624-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-616-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-625-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-617-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=190 ASM PART: B = 8-98157-783-0	1-51156-342-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=185 ASM PART: A = 8-98157-780-0	8-98161-628-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: B = 8-98157-783-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: A = 8-98157-780-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=42 ASM PART: B = 8-98157-783-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-98157-780-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98157-783-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98157-780-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: B = 8-98157-783-0	1-51177-071-0	05	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98157-780-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (E), T=12 ASM PART: B = 8-98157-783-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: B = 8-98157-783-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: A = 8-98157-780-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: A = 8-98157-780-0	1-51177-340-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=13 ASM PART: B = 8-98157-783-0	1-51177-346-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 8-98157-780-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: A = 8-98157-780-0	8-97618-651-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98157-780-0, B = 8-98157-783-0	1-51177-321-0	04	1	-

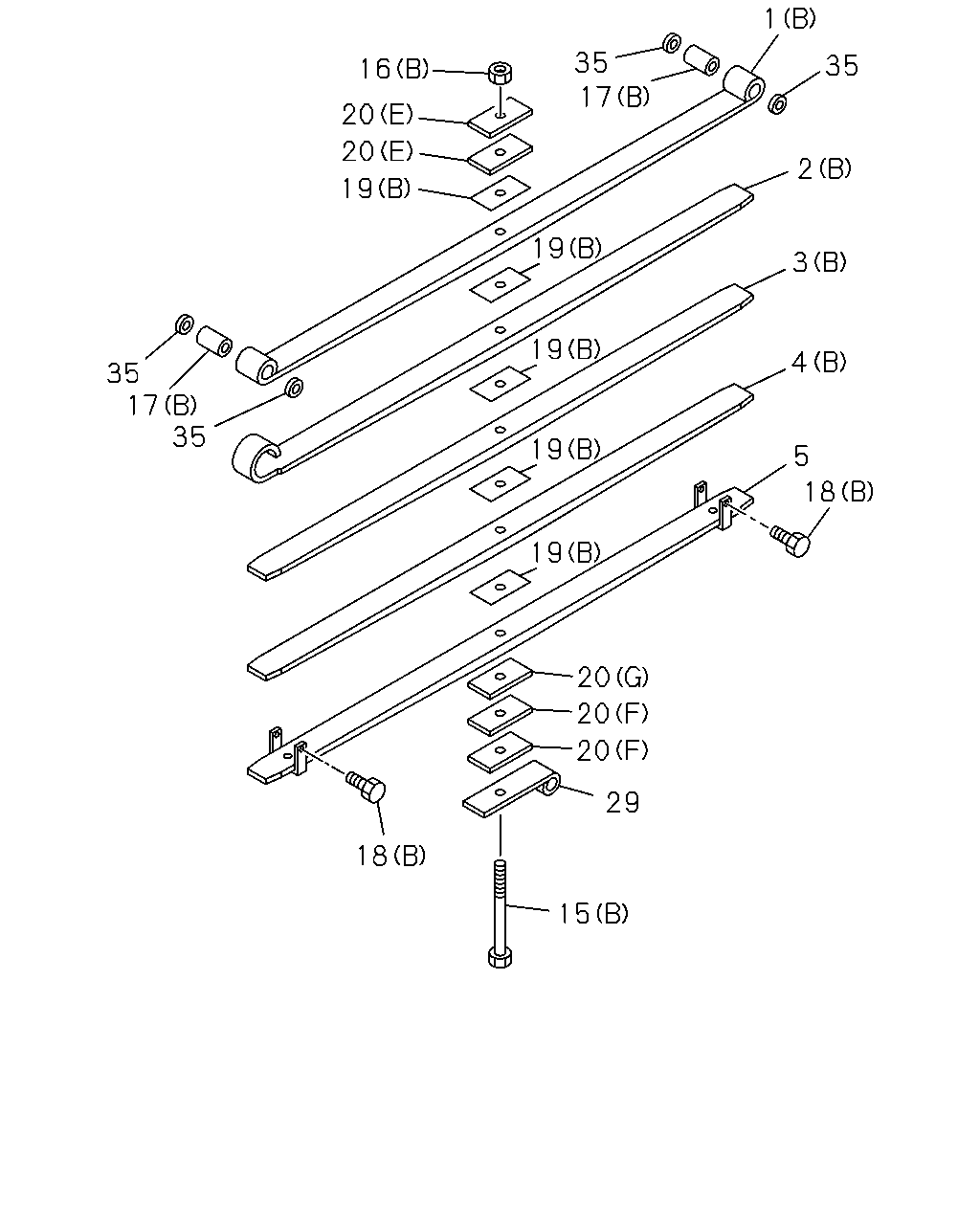

1 35 17 35 16 20 20 2 19 19 3 19 4 35 17 35 19 5 18 19 20 20 20 29 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-622-0	01	1	-
1	SPRING; LEAF,NO 1,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-614-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-623-0	01	1	-
2	SPRING; LEAF,NO 2,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-615-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-624-0	01	1	-
3	SPRING; LEAF,NO 3,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-616-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (B) ASM PART: B = 8-98157-783-0	8-98142-625-0	01	1	-
4	SPRING; LEAF,NO 4,FRT (A) ASM PART: A = 8-98157-780-0	8-98161-617-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98157-783-0	8-98142-626-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (B), L=190 ASM PART: B = 8-98157-783-0	1-51156-342-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT (A), L=185 ASM PART: A = 8-98157-780-0	8-98161-628-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (B), M16 ASM PART: B = 8-98157-783-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT (A), M16 ASM PART: A = 8-98157-780-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT (B), OD=42 ASM PART: B = 8-98157-783-0	1-51351-044-0	02	1	-
17	BUSHING; LEAF SPR,FRT (A), OD=42 ASM PART: A = 8-98157-780-0	1-51351-046-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: B = 8-98157-783-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: A = 8-98157-780-0	8-98161-627-0	02	1	-
19	SPACER; LEAF SPRING,FRT (B), T=1 ASM PART: B = 8-98157-783-0	1-51177-071-0	05	1	-
19	SPACER; LEAF SPRING,FRT (A), T=1 ASM PART: A = 8-98157-780-0	1-51177-339-0	04	1	-
20	SEAT; LEAF SPR,FRT (E), T=12 ASM PART: B = 8-98157-783-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (F), T=10 ASM PART: B = 8-98157-783-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: A = 8-98157-780-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=11 ASM PART: A = 8-98157-780-0	1-51177-340-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=13 ASM PART: B = 8-98157-783-0	1-51177-346-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 8-98157-780-0	1-51377-402-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: A = 8-98157-780-0	8-97618-651-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: B = 8-98157-783-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 8-98157-780-0, B = 8-98157-783-0	1-51177-321-0	04	1	-
