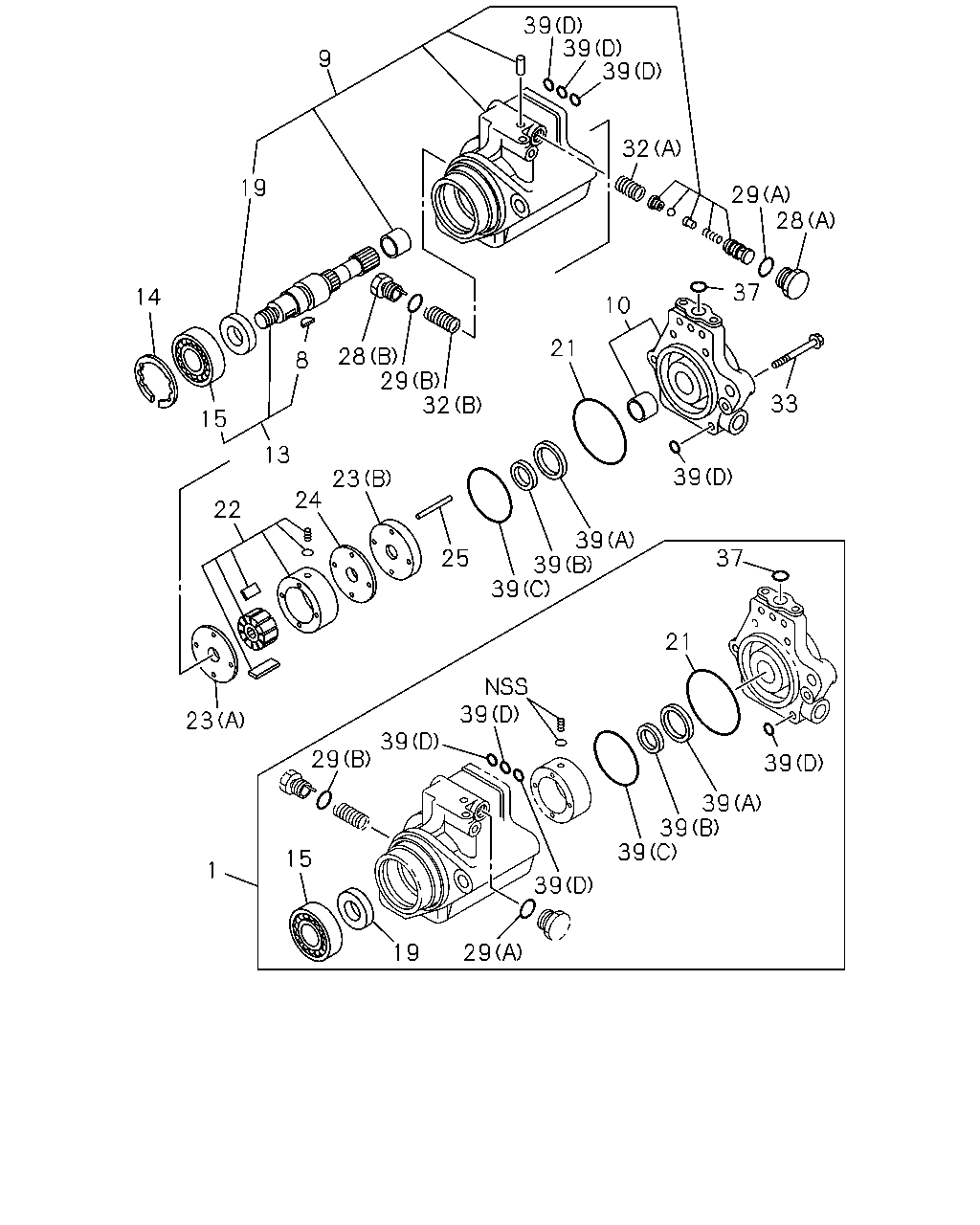

4-42 — POWER STEERING OIL PUMP (#62075) — 26 parça

39 39 39 9 32 19 29 28 37 14 10 21 28 29 32 8 33 15 13 39 23 24 22 39 39 39 25 37 21 39 23 39 29 39 39 39 39 15 1 39 29 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-617-3	1-85574-082-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-617-3	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-617-3	1-19511-197-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-617-3	1-19511-201-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-617-3	1-19521-041-1	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-617-3	1-19519-361-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-617-3	1-19515-016-1	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-617-3	1-19519-360-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-617-3	1-19519-367-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-617-3	1-19519-374-0	01	1	-
23	PLATE; SIDE,OIL PUMP (A) ASM PART: A = 1-19500-617-3	1-19519-363-0	01	1	-
23	PLATE; SIDE,OIL PUMP (B) ASM PART: A = 1-19500-617-3	1-19519-372-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-617-3	1-19519-371-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-617-3	1-19519-359-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (A) ASM PART: A = 1-19500-617-3	1-19519-368-0	01	1	-
28	PLUG; DRAIN,OIL PUMP (B) ASM PART: A = 1-19500-617-3	1-19519-369-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 1-19500-617-3	9-44519-087-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 1-19500-617-3	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: A = 1-19500-617-3	1-19519-370-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: A = 1-19500-617-3	8-94475-376-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-617-3	1-19519-346-0	06	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-617-3	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 1-19500-617-3	1-19519-364-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 1-19500-617-3	1-19519-365-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: A = 1-19500-617-3	1-19519-366-0	01	1	-
39	GASKET; OIL PUMP (D) ASM PART: A = 1-19500-617-3	8-94240-926-0	04	1	-
